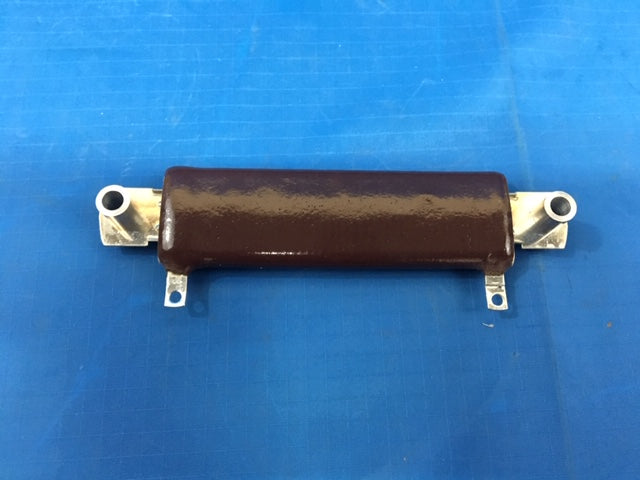

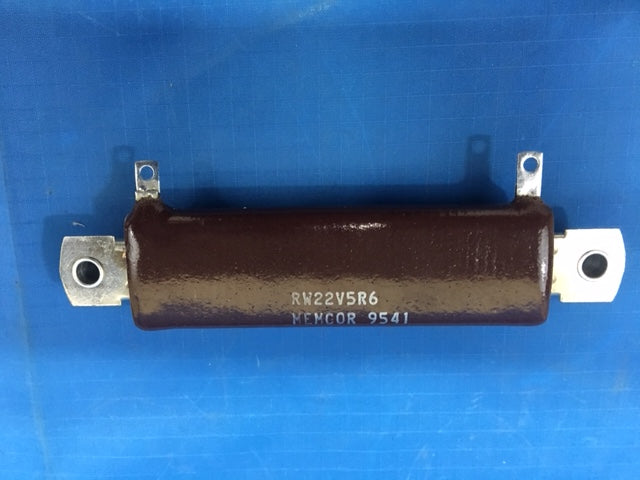

Wire Wound Induct Fixed Resistor P/N:RW22V5R6 NSN:5905-00-051-6944

Regular price $7.99

Fixed Wire Wound Induct Resistor

SKU: 5905000516944 | Model: RW22V5R6
NSN 5905-00-051-6944NSN 5905-00-051-6944

Specifications from the Manufacturer

Temp Coefficient Of Resistance In Ppm Per Deg Celsius:
-400.0 to 400.0
Electrical Resistance:
5.600 ohms
Resistance Tolerance In Percent:
-5.000 to 5.000
Ambient Temp In Deg Celsius At Full Rated Power:
Ambient Temp In Deg Celsius At Zero Percent Rated Power:
Temp Range Of Temp Coefficient In Deg Celsius:
Inclosure Method:
Terminal Type:
Tab, solder lug
Reliability Indicator:
Not established
Terminal Length:
0.407 inches nominal
Body Length:
3.500 inches nominal
Body Width:
1.187 inches nominal
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length:
4.250 inches nominal
Power Dissipation Rating In Watts:
53.000 free air
Err Default:
0.265 inches nominal
Mounting Hole Size:
0.196 inches nominal
Style Designator:
Terminals one edge
Test Data Document:
81349-milr26/2 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
