Winchester Electronics Corporation

Winchester Electronics XAC66PF2D010 Electrical Receptacle Connector Body NSN:5935-00-219-5546

Regular price $39.99

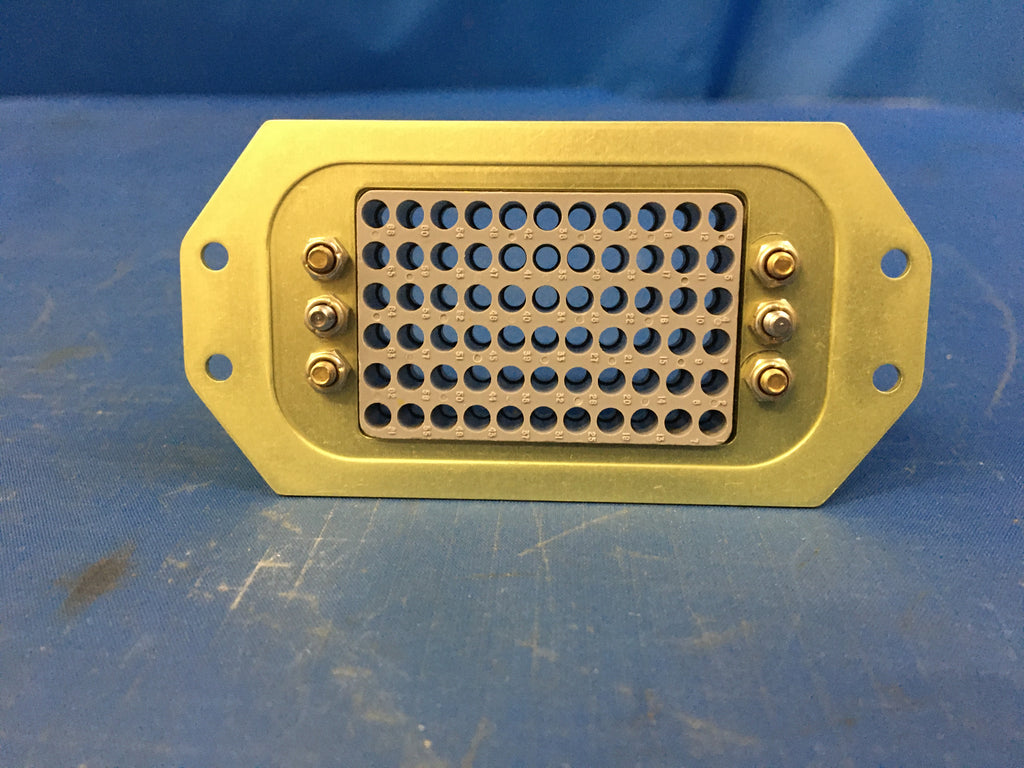

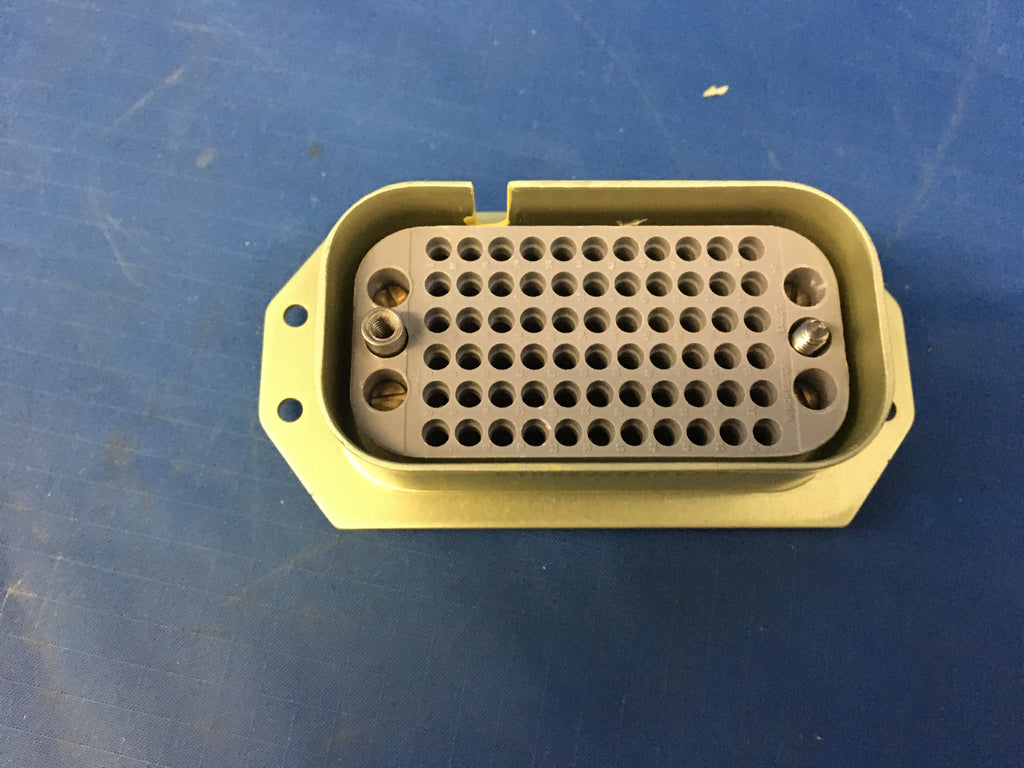

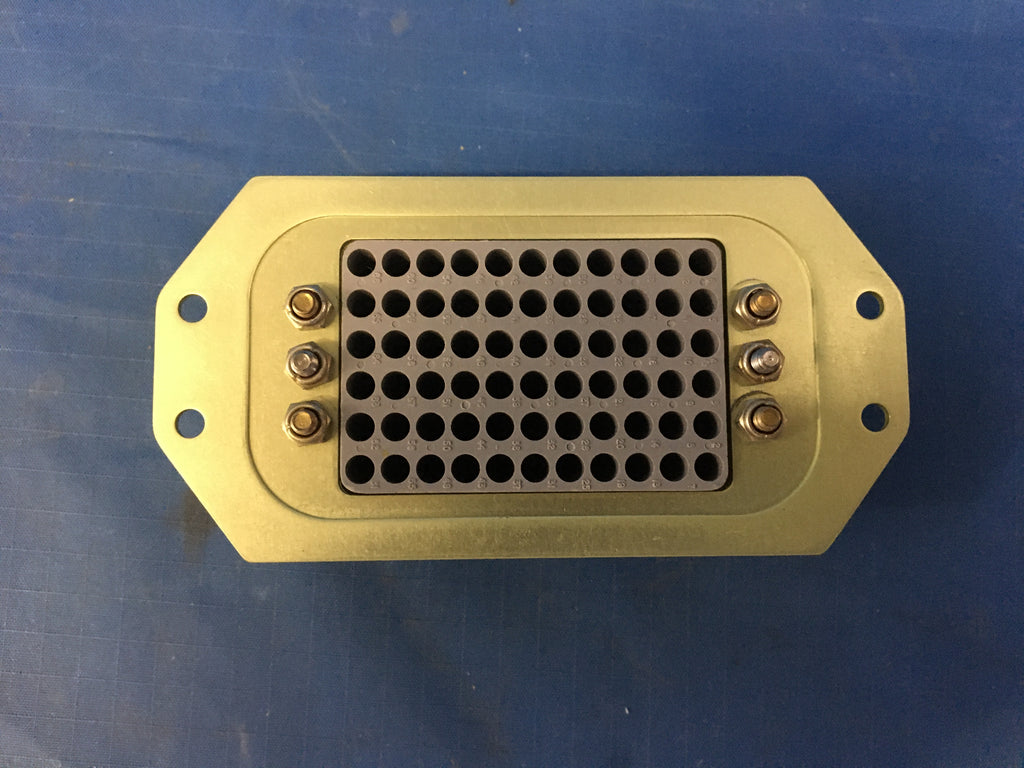

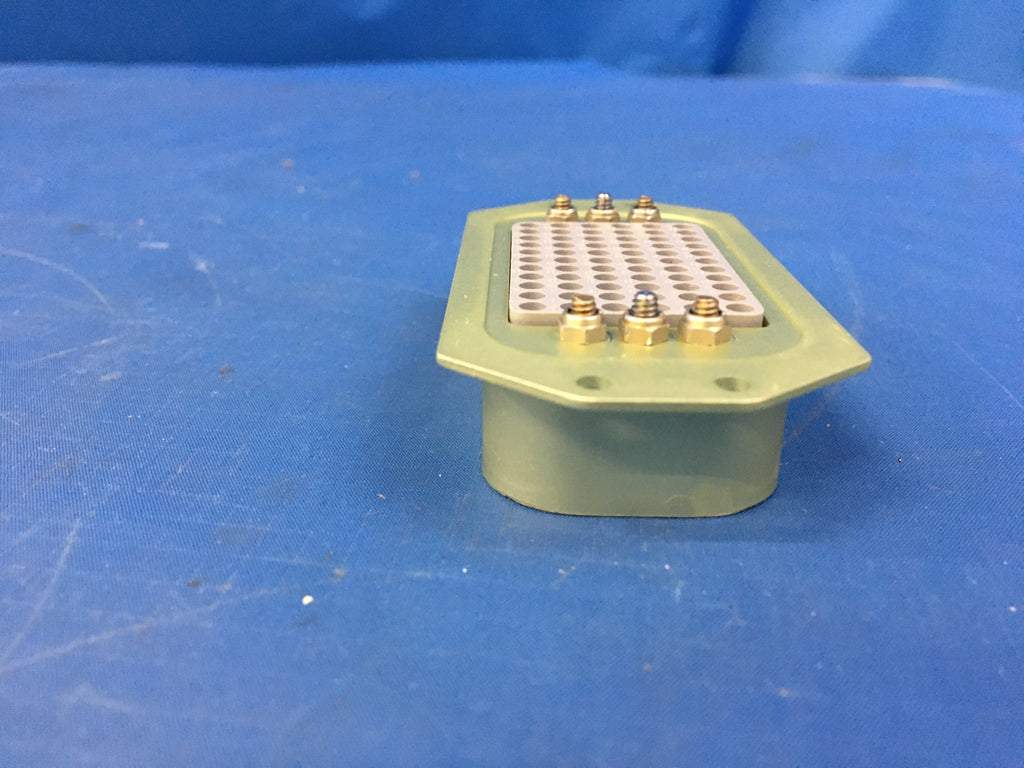

Electrical Receptacle Connector Body

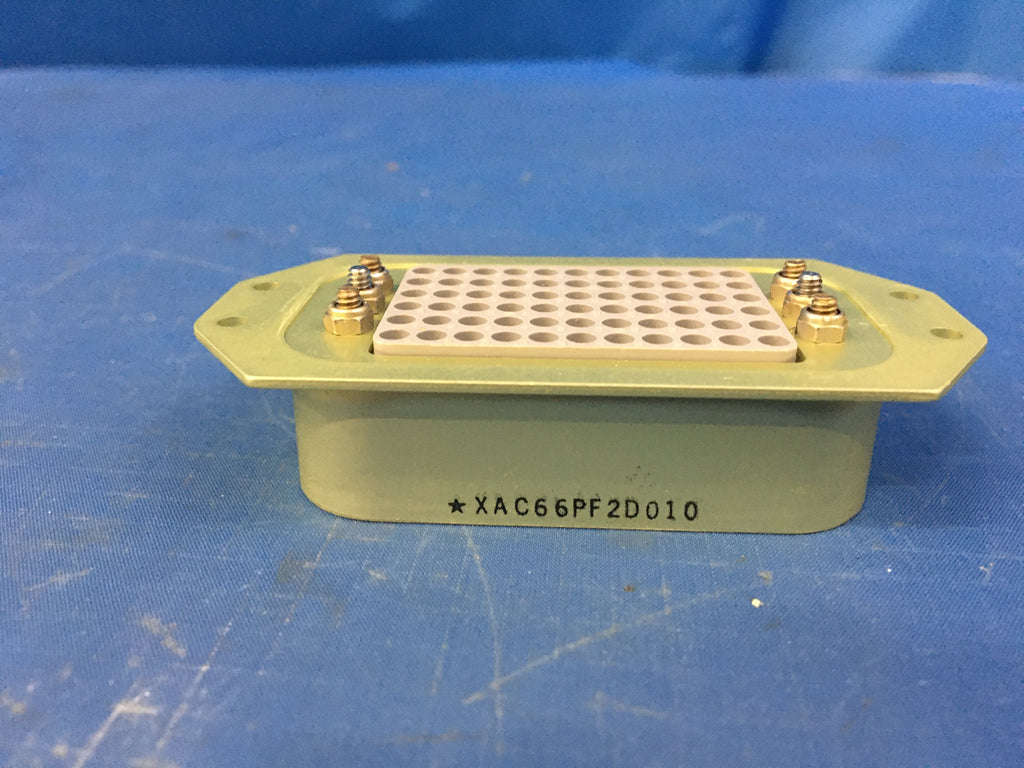

NSN: 5935-00-219-5546 | Model: XAC66PF2D010
ITAR Registered seal

The main or principal part of a connector, receptacle, electrical which includes inser (s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes connector body, modular receptacle, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Class
2a and 2b and 2a
Thread Direction
Right-hand and right-hand and right-hand
Body Style
Rectangular shape
Overall Length
2.281 inches
Center To Center Distance Between Mounting Facilities Parallel To Length
1.969 inches
Overall Height
0.930 inches
Overall Width
1.688 inches
Unthreaded Mounting Hole Diameter
0.120 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width
0.468 inches
Threaded Device Type
Coupling facility and mounting stud
Mating End Quantity
Contact Position Arrangement Style
66 single mating end
Polarization Method
Jackscrew and shell
Shell Type
Connector Locking Method
Thready Qty Per Inch (tpi)
32 and 32 and 32
Thread Size
0.138 inches and 0.138 inches and 0.138 inches
Insert Material
Plastic diallyl phthalate single mating end or plastic epoxy single mating end or plastic phenolic single mating end
Shell Material
Aluminum alloy or zinc
Shell Surface Treatment
Anodize and dichromate potassium
Insert Material Specification
Mil-m-14, type sdg-f military specification single material response single mating end or mil-p-19833, type gdi-30f military specification single material response single mating end
Shell Guide Type And Location Designator
D pin
Thread Series Designator
Unc and unc and unc
