Westinghouse Electric Corp

Westinghouse 595R298H01 Power Transformer NSN:5950-00-795-1096

Regular price $99.99

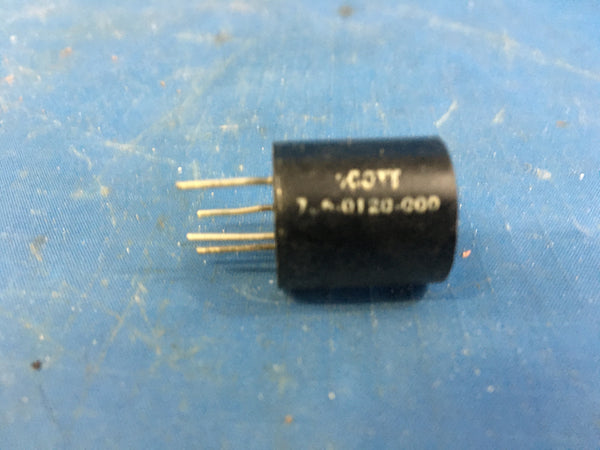

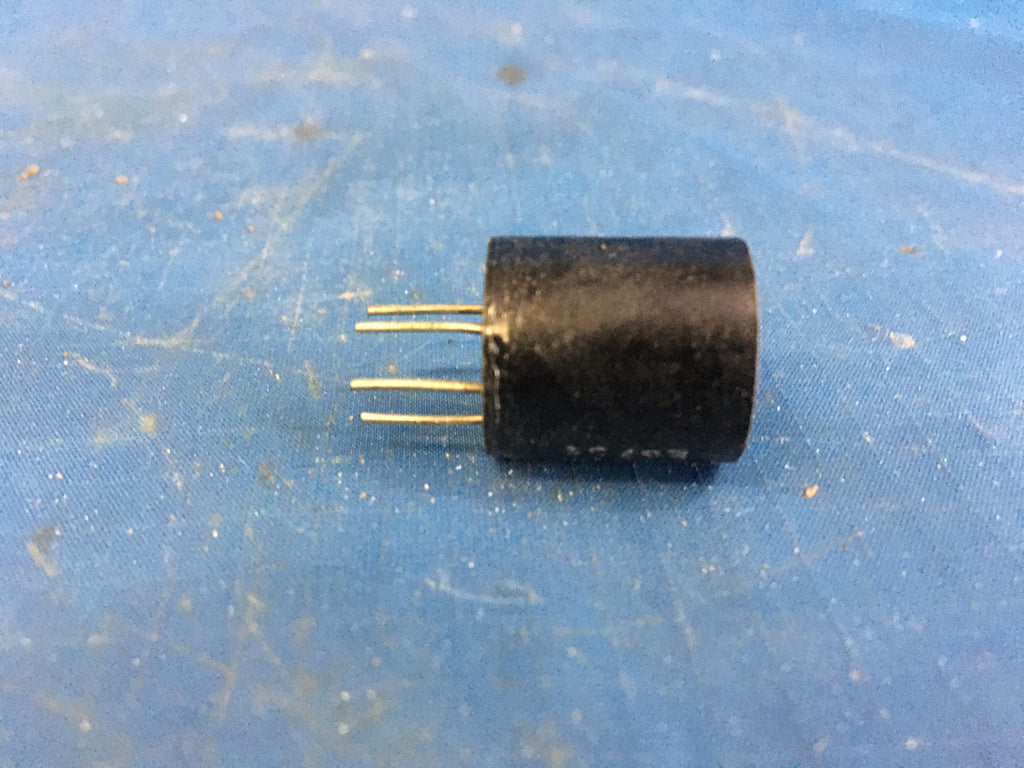

Power Transformer

NSN: 5950-00-795-1096 | Model: 595R298H01
ITAR Registered seal

A transformer consisting of one or more primary windin (s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see transformer (1), power, autotransformer. Excludes transformer (1) , pulse.

NSN Properties and Flags
NATO Stock Number
Reliability Indicator
Not established
Frequency Rating
50.0 hertz single component
Input-output Phase Relationship
Single phase to single phase single component
Body Length
0.740 inches
Overall Diameter
0.700 inches
Inclosure Type
Fully enclosed
Mounting Method
Terminal single group
Winding Function And Quantity
1 primary single component and 1 secondary single component
Winding Operating Current
8.0 milliamperes ac single component single secondary
Winding Operating Voltage
12.00 ac pounds per hour wet single component single primary
Terminal Type And Quantity
4 pin
