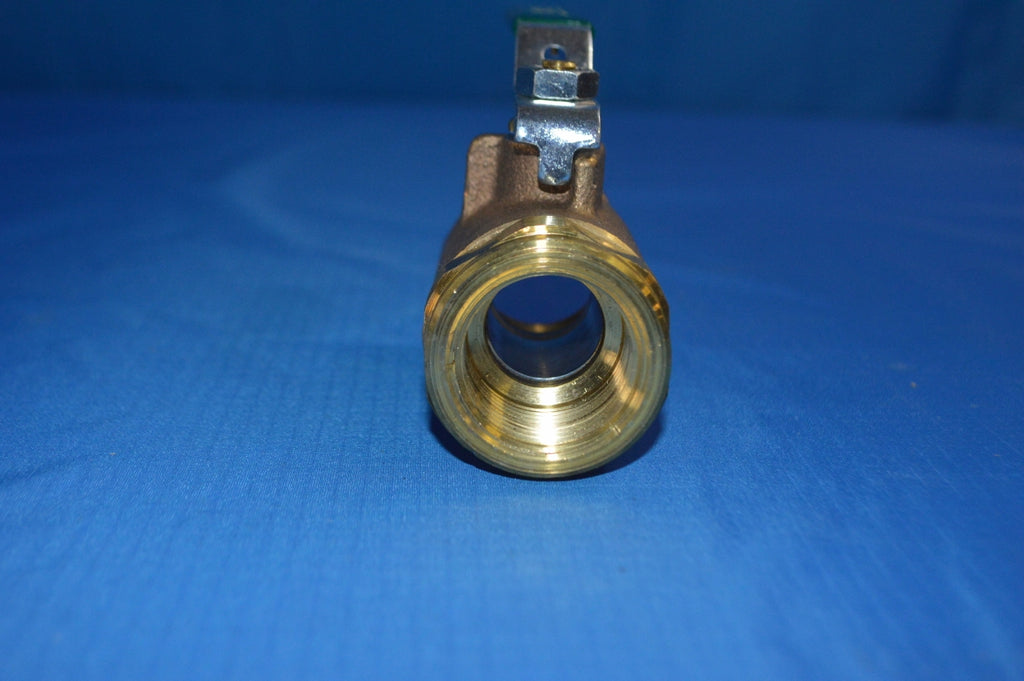

Watts 1' Ball Valve NSN:4820-01-439-4861 P/N:B-6000-1
Please fill out the form below for a price quote and availability on this item.
1' Ball Valve-A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. the flow is controlled by the rotation of a ported ball within a suitable ported seat(s). the ball is usually engaged by a stem. it is normally operated in an open or closed position. excludes valve, check.
|Connection Style:||Plain,optional end(pipe) all ends|
|Connection Type:||Threaded internal pipe all ends|
|For Use With/On:||Strategic sealift conversion ships class|
|Material:||Copper alloy body|
|Material:||Plastic polytetrafluoroethylene seat|
|Maximum Operating Temp:||450.0 deg fahrenheit single response|
|Maximum Operating Pressure:||600.0 pounds per square inch single response|
|Media For Which Designed:||Water-oil-gas single response|
|Nominal Thread Size:||1.000 inches all ends|
|Renewable Seat Ring Type:||Pressed-in|
|Style Designator:||Straight thru|
|Thread Direction:||Right-hand all ends|
|Thread Series Designator:||Npt all ends|
|Valve Operation Method:||Manual|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
