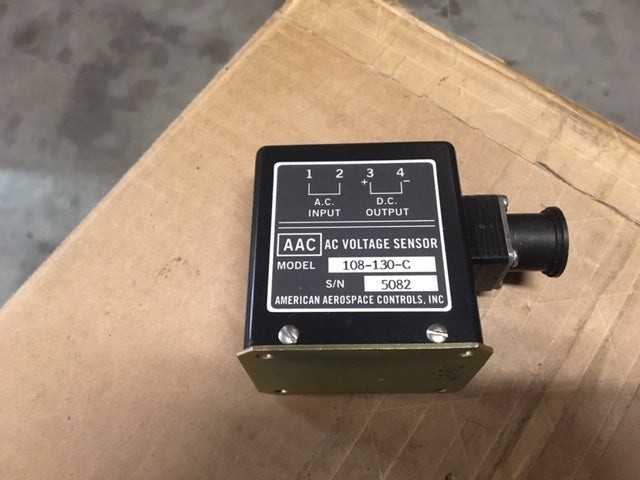

Unused American Aerospace 130V AC Voltage Current Sensor, 108-130-C

§Brand: American Aerospace Controls

Item: AC Voltage Sensor

Part Number: 108-130-C

Input Voltage Range: 0 to 130 VAC

Output Voltage: 0 to 10Vdc

AC Input Current Drain: 3mA, max.

Output Impedance: 10K-Ohms, max.

Frequency: 47 to 63Hz

Output Ripple: 3% F.S. RMS, max.

Accuracy: ±2% F.S.

Repeatability: ½% F.S.

Response: 200 m-sec. Max.

Operating Temperature: 0°C to +60°C

Storage Temperature: -25°C to +85°C

TEMPERATURE COEFFICIENT: ± 0.05% F.S./°C

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
