Vishay G-3-66 Inductive Wire Wound Fixed Resistor 205 OHMS NSN:5905-01-249-9014 Model:J690P2050A
Regular price
$3.99

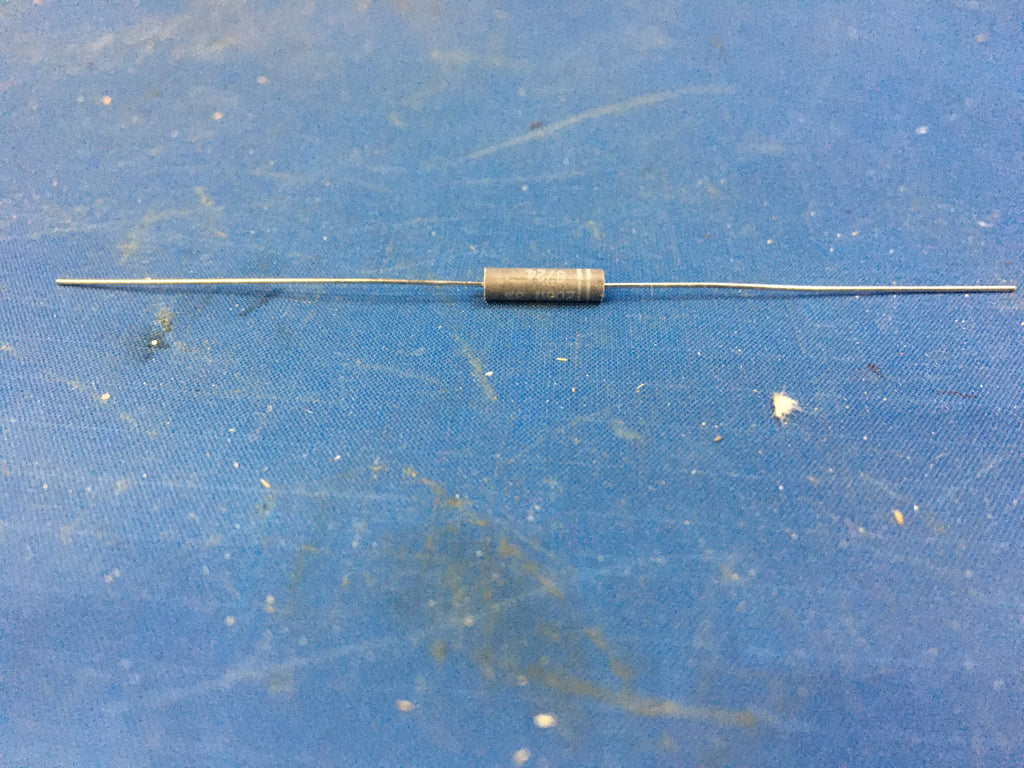

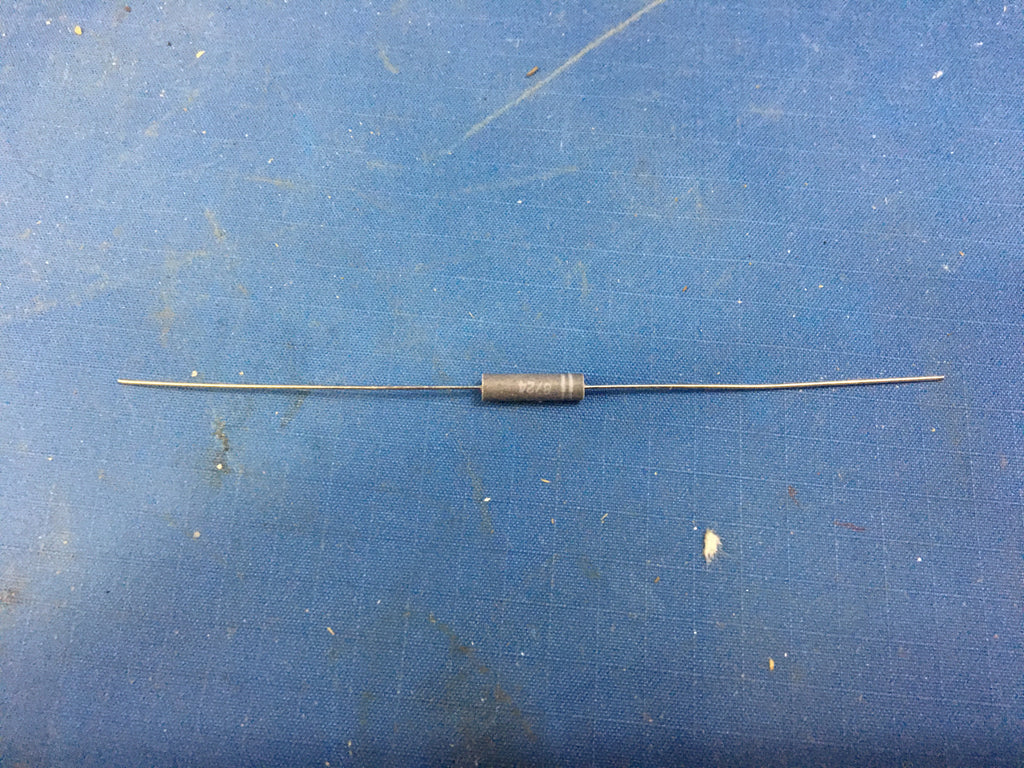

Inductive Wire Wound Fixed Resistor
NSN:5905-01-249-9014 P/N:G-3-66 Model:J690P2050AInc 37403 reinstated on 010303~a resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes suppressor, ignition interference. See also resistor (1), fixed, wire wound, noninductive.
NSN Properties and Flags
NATO Stock Number
5905-01-249-9014
DEMIL
Yes - ITAR Controlled
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
-20.0/+20.0
Electrical Resistance
205.000 ohms
Resistance Tolerance In Percent
-3.000/+3.000
Ambient Tempurature In Deg Celsius At Full Rated Power
25.0
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
275.0
Tempurature Range Of Tempurature Coefficient In Deg Celsius
-55.0/+275.0
Inclosure Method
Encapsulated
Terminal Type
Wire lead
Reliability Indicator
Not established
Terminal Length
Between 1.375 inches and 1.625 inches
Body Diameter
Between 0.105 inches and 0.125 inches
Body Length
0.437 inches
Power Dissipation Rating In Watts
0.500 free air
Cubic Measure (non-core)
0.005 cubic inches
Unpackaged Unit Weight
0.34 grams
Style Designator
Axial terminal each end
Specification Data
07482-j690 manufacturers source control
