NSN 5930-00-548-4628

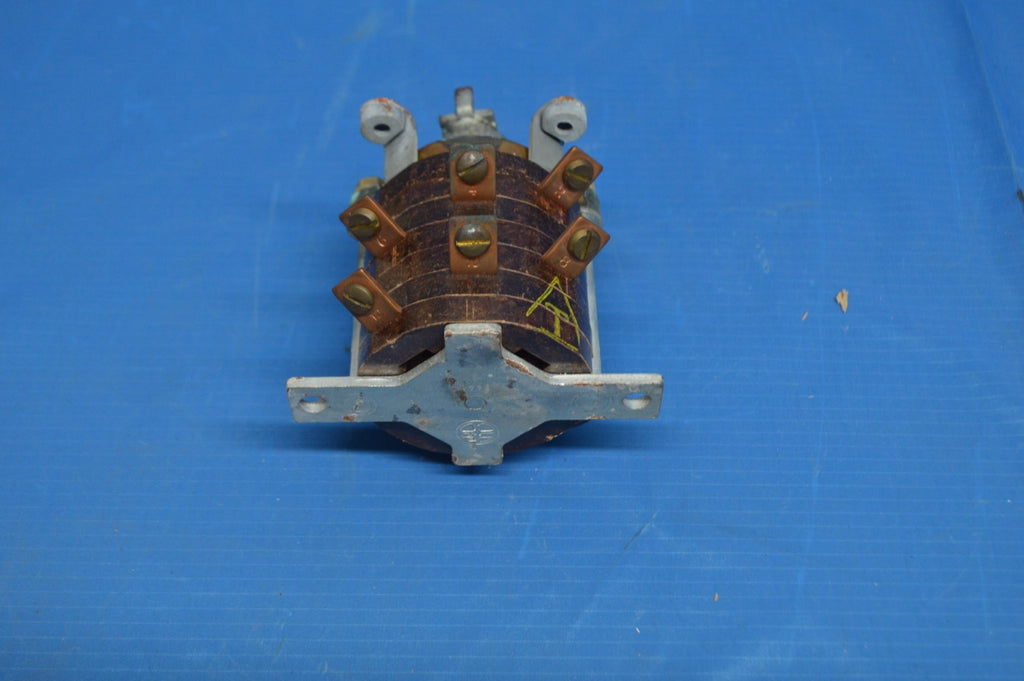

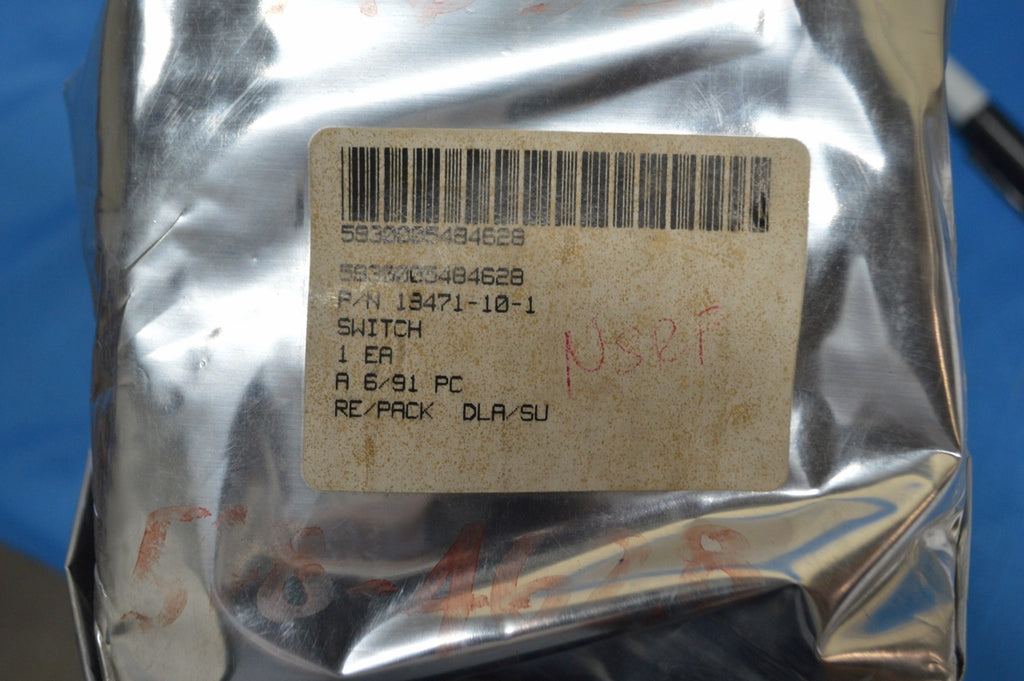

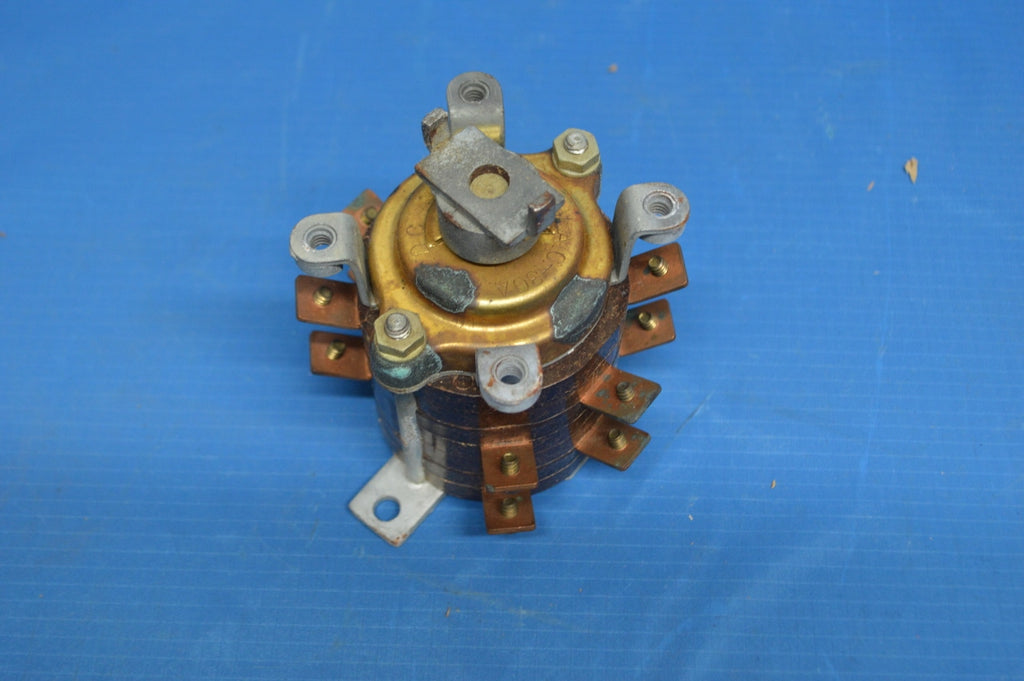

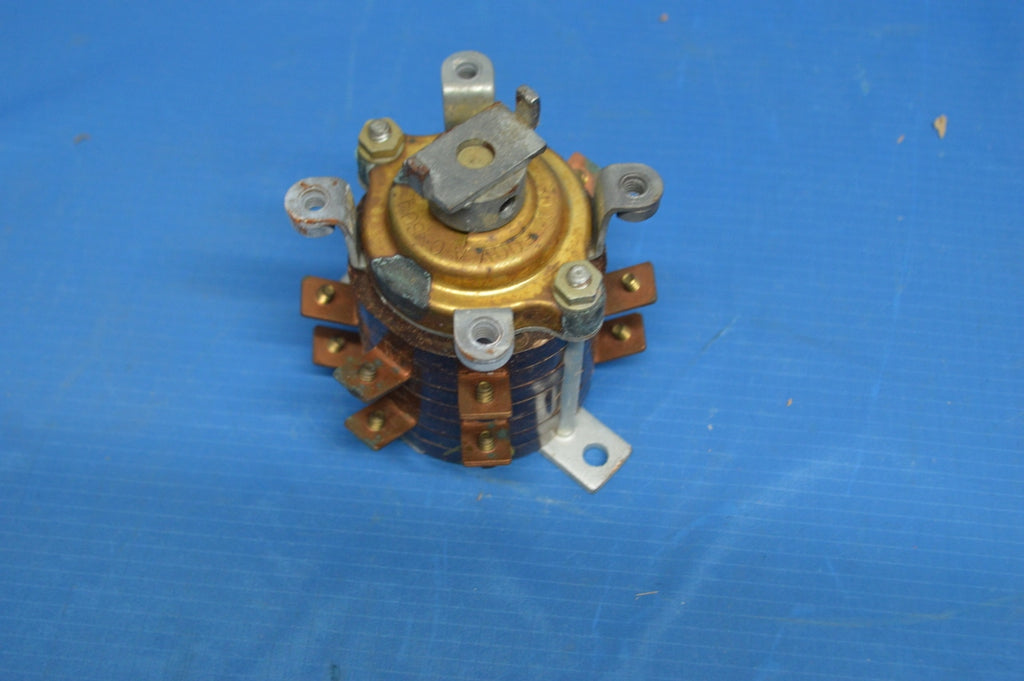

Vintage Rotary Switch 30Amp NSN:5930-00-548-4628 P/N;19471-10-1
Regular price
$49.99
Rotary Switch
SKU: 5930005484628 | Model: 19471-10-1NSN 5930-00-548-4628
Specifications from the Manufacturer
Shaft Diameter:
0.375 inches nominal single actuator
Shaft Length:
1.156 inches nominal single actuator
Unthreaded Mounting Hole Diameter:
0.312 inches nominal single mounting facility
Individual Section Quantity:
3
Longest Horizontal Distance Between Mounting Centers:
3.812 inches nominal single mounting facility
Switch Contact Basic Design:
Nonpile-up symmetrical
Mounting Facility Circle Radius:
3.219 inches nominal single mounting facility
Contact Voltage Rating In Volts:
500.0 ac at sea level
Mounting Facility Pattern:
Four position circular single mounting facility
Switch Actuator Indexing Position Quantity:
2 single actuator
Shaft Type:
Round single actuator
Terminal Type:
Threaded stud
Contact Switching Action:
Breaks before makes each section rear
Contact Switching Action:
Breaks before makes each section front
Switch Actuator Positioning Increment:
90.0 degrees single actuator
Contact Load Current Rating:
30.0 amperes resistive load ac at sea level
