TYCO

Tyco Electrical Plug Connector NSN:5935-01-240-2280 Model:1251-7556 P/N:641238 5

Regular price $7.99

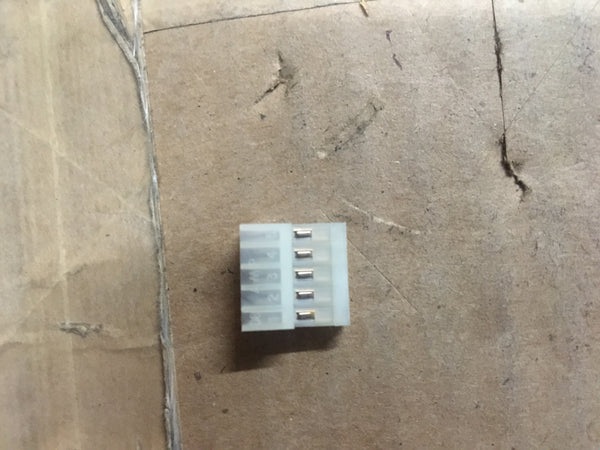

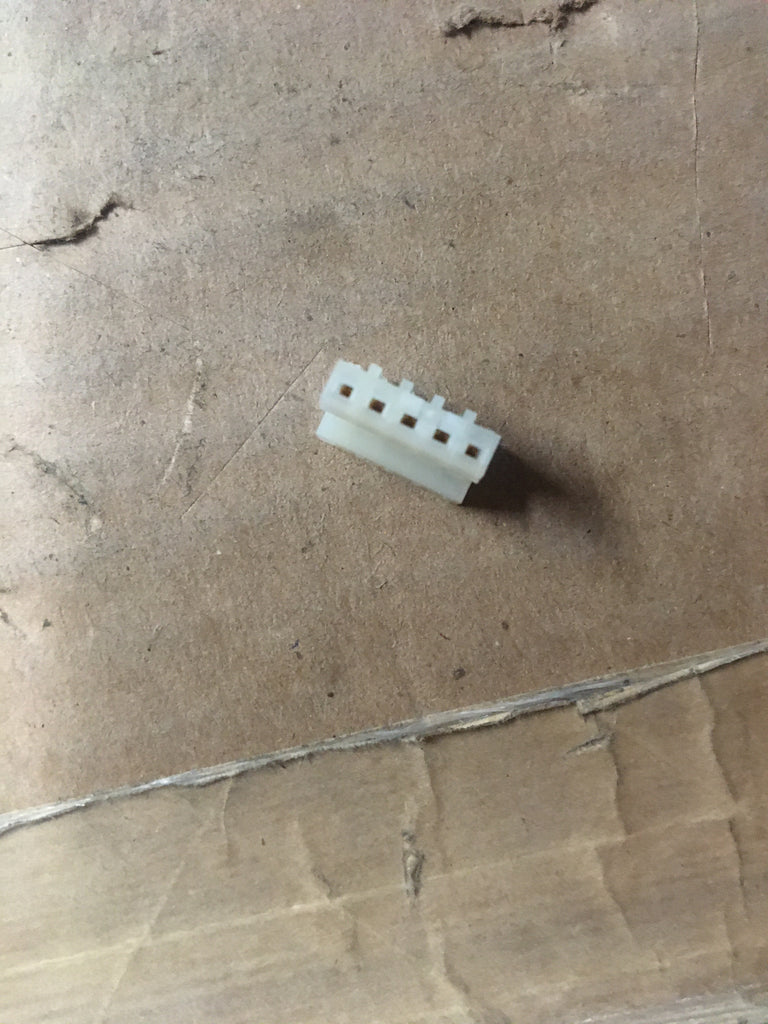

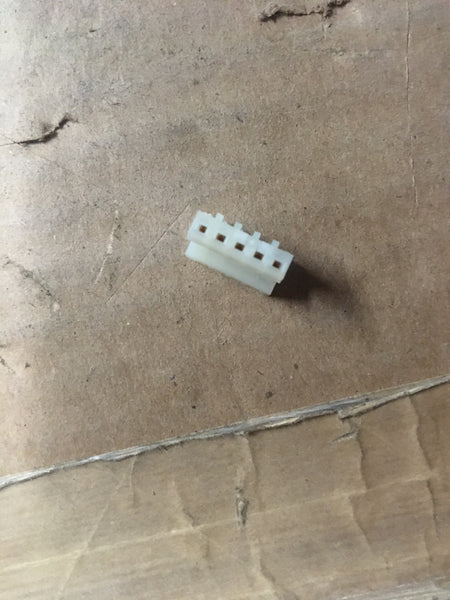

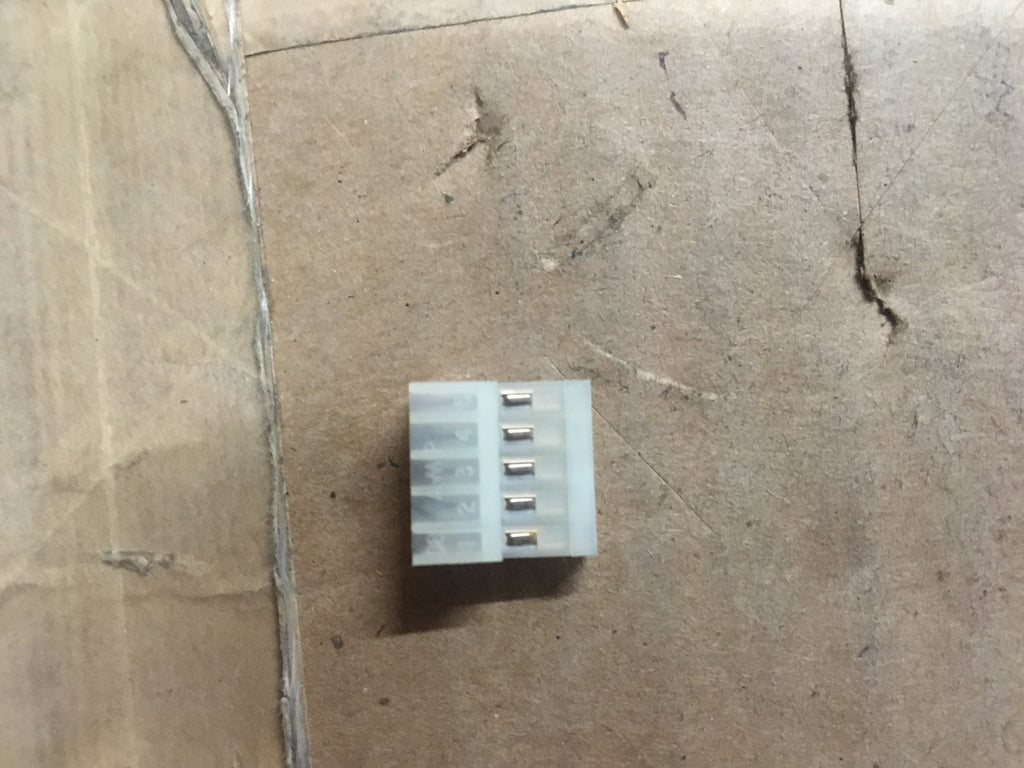

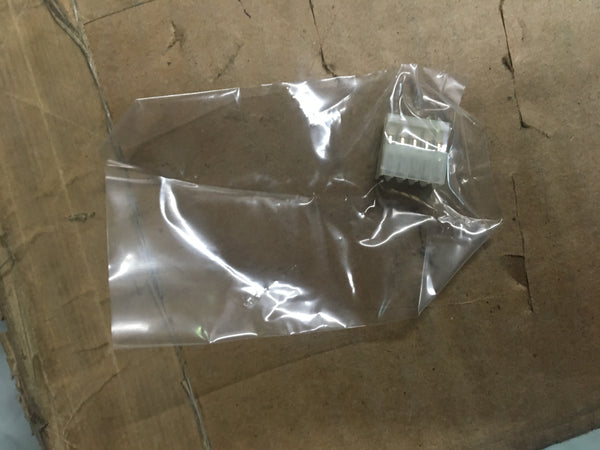

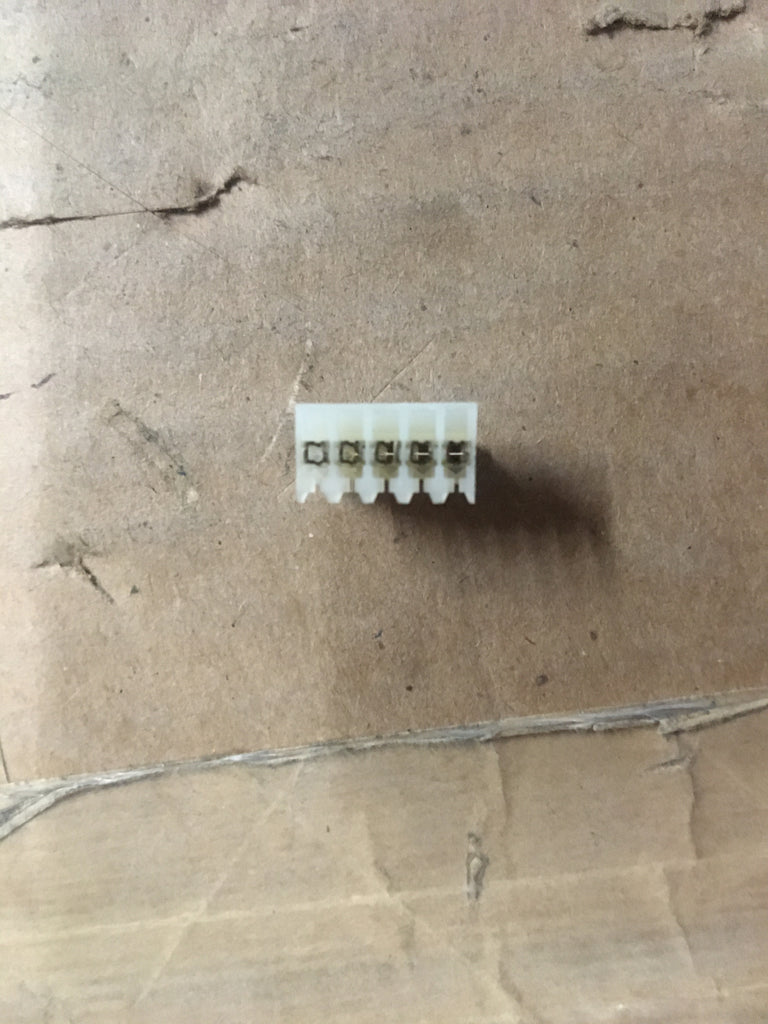

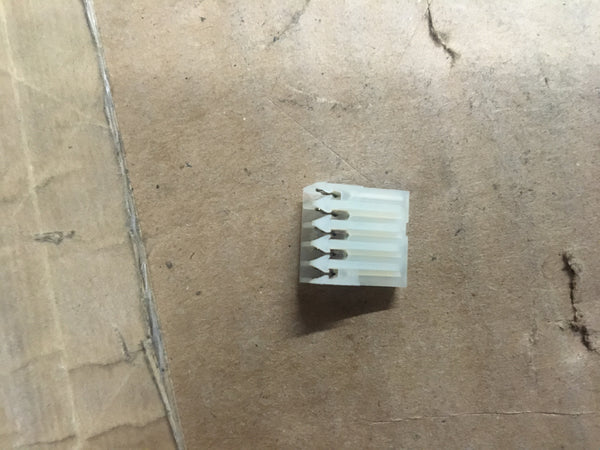

Electrical Plug Connector

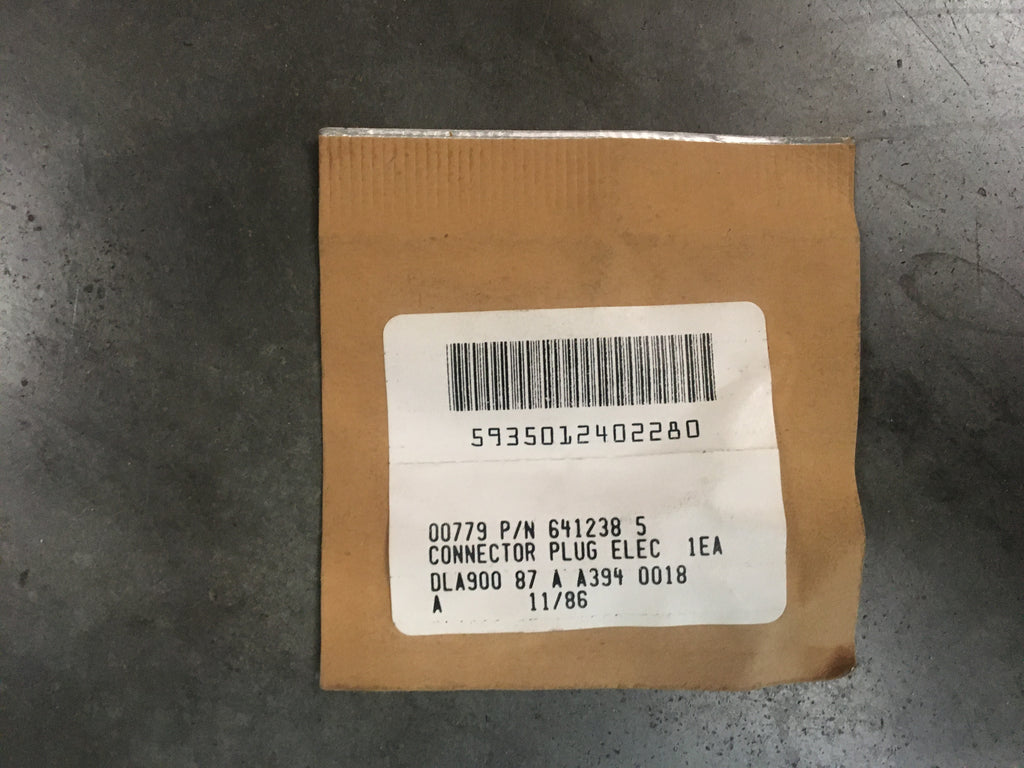

NSN:5935-01-240-2280 Model:1251-7556 P/N:641238 5
ITAR Registered seal

An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector (s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified) and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified) and cable assembly (as modified) . for items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-01-240-2280
DEMIL
Yes - ITAR Controlled
Body Style
Straight shape
Overall Length
0.500 inches
Overall Height
0.520 inches
Overall Width
0.275 inches
Environmental Protection
Humidity resistant and thermal shock resistant and vibration resistant
Mating End Quantity
1
Contact Position Arrangement Style
1 row of contacts non-inserted board single mating end
Contact Removability
Removable single mating end single contact grouping
Contact Maximum Current Rating In Amps
4.0 single mating end single contact grouping
Connector Locking Method
Friction
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping
Insert Material
Plastic single mating end
Contact Surface Treatment Specification
MIL-G-45204 military specification single treatment response single mating end single contact grouping
Terminal Type
Crimp single mating end single contact grouping
Included Contact Quantity
5 single mating end single contact grouping
Included Contact Type
Flat socket single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.005 gold grains, troy
Precious Material
Gold
