TYCO

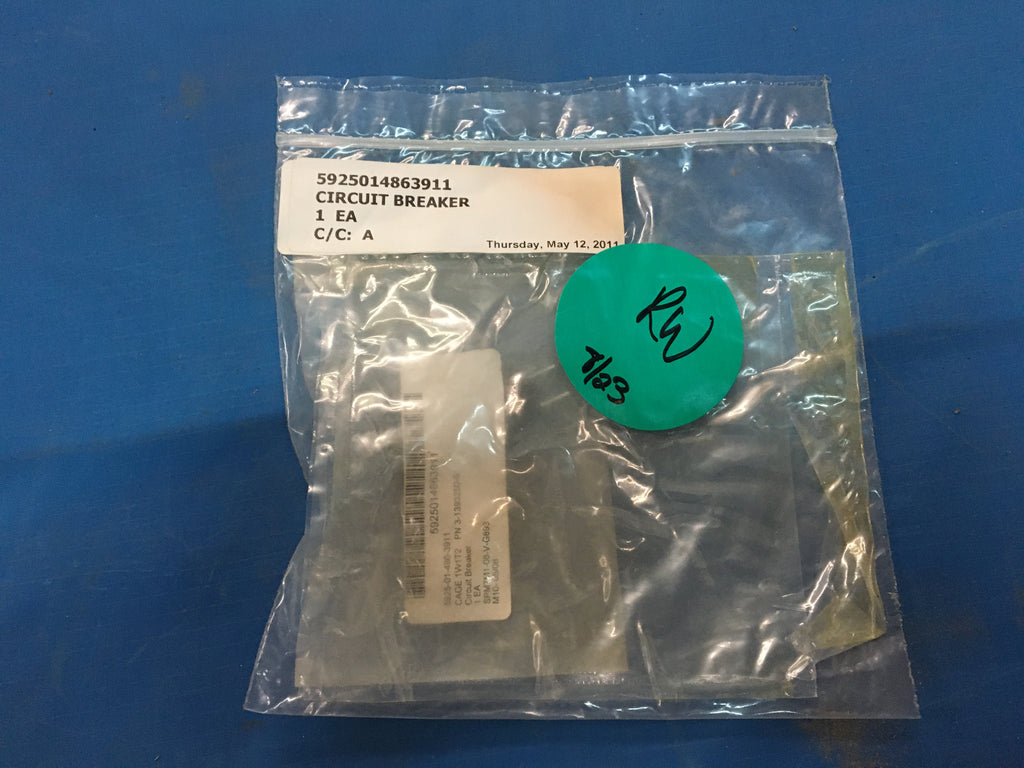

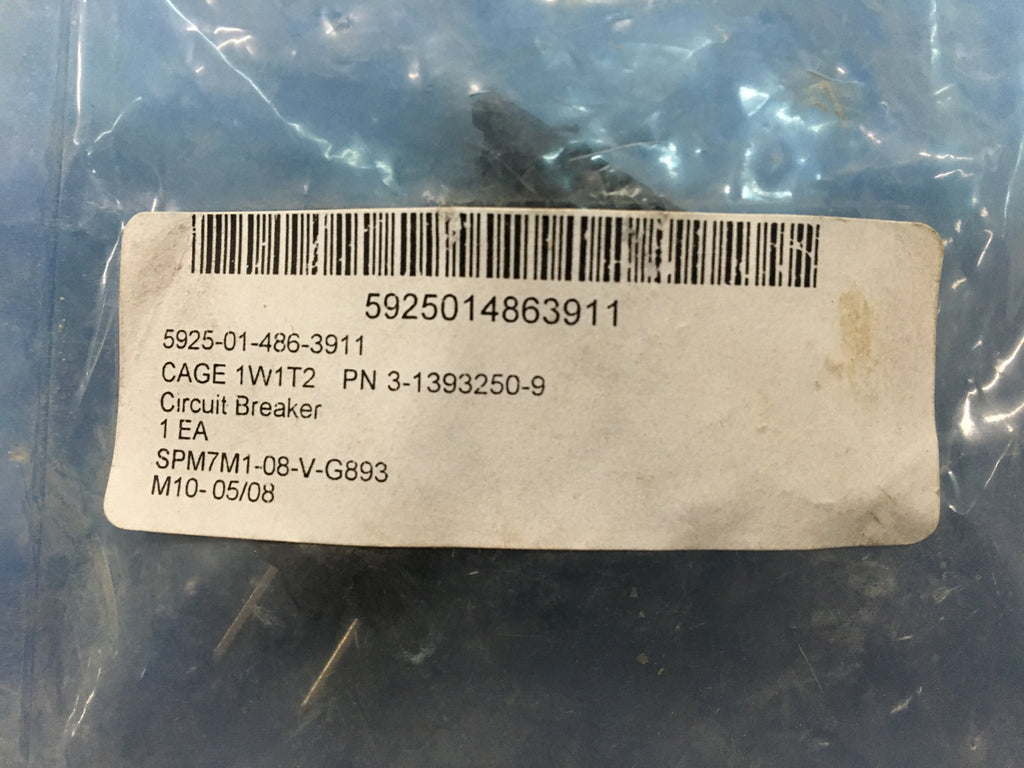

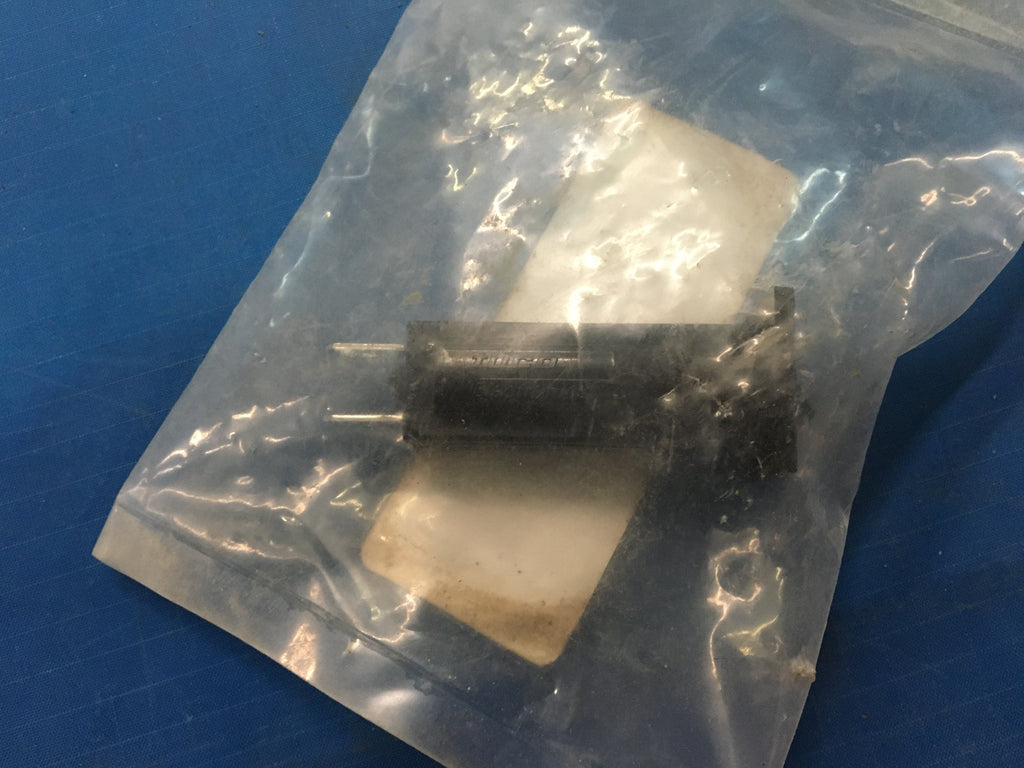

Tyco Circuit Breaker Model:W28XQ1A-6 NSN:5925-01-486-3911

Regular price $5.99

Circuit Breaker

NSN: 5925-01-486-3911 | Model: W28XQ1A-6
ITAR Registered seal

A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating elem en (s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. Excludes circuit breaker box and magneto breaker assemblies. See also switch (as modified) ; and controller.

NSN Properties and Flags
NATO Stock Number
5925-01-486-3911
DEMIL
Yes - ITAR Controlled
Body Style
Single pole type
Pole Quantity
1
Mounting Facility Type And Quantity
1 terminal
Maximum Continuous Load Current Rating Per Pole
0.750 amperes ac single location
Operating Voltage Type And Rating Per Pole In Volts
250.0 ac single location and 32.0 dc single location
Circuit Protection Type
Overcurrent single location
Trip Release Method
Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent
175.0 single location
Reset Method
Manual
Manual Actuator Type And Quantity
1 push button
Actuator Function
Trip-reset
Special Features
Quick connect terminals; black w/white rate marking bezel; black button; push to reset series trip
Frequency In Hertz
50.0 single location or 60.0 single location


TE Connectivity
Circuit Breakers

Fuse Holder Type
6 A
250 VAC
32 VDC
1 Pole
Push to Reset
- 20 C
+ 60 C
Not Illuminated
19.31 mm

38.99 mm

Quick Connect

32 V

19.31 mm

TE Connectivity / P&B

Snap In

UL

Thermal Circuit Breakers

Circuit Breakers

3-1393250-9 3-1393250-9

0.352740 oz
