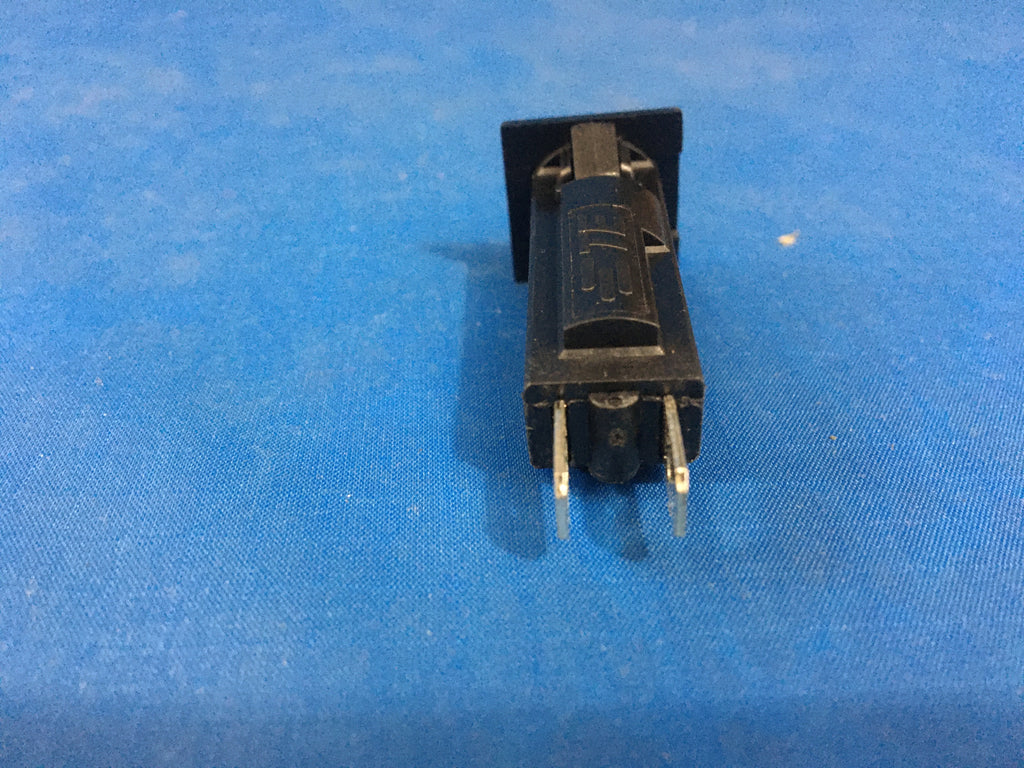

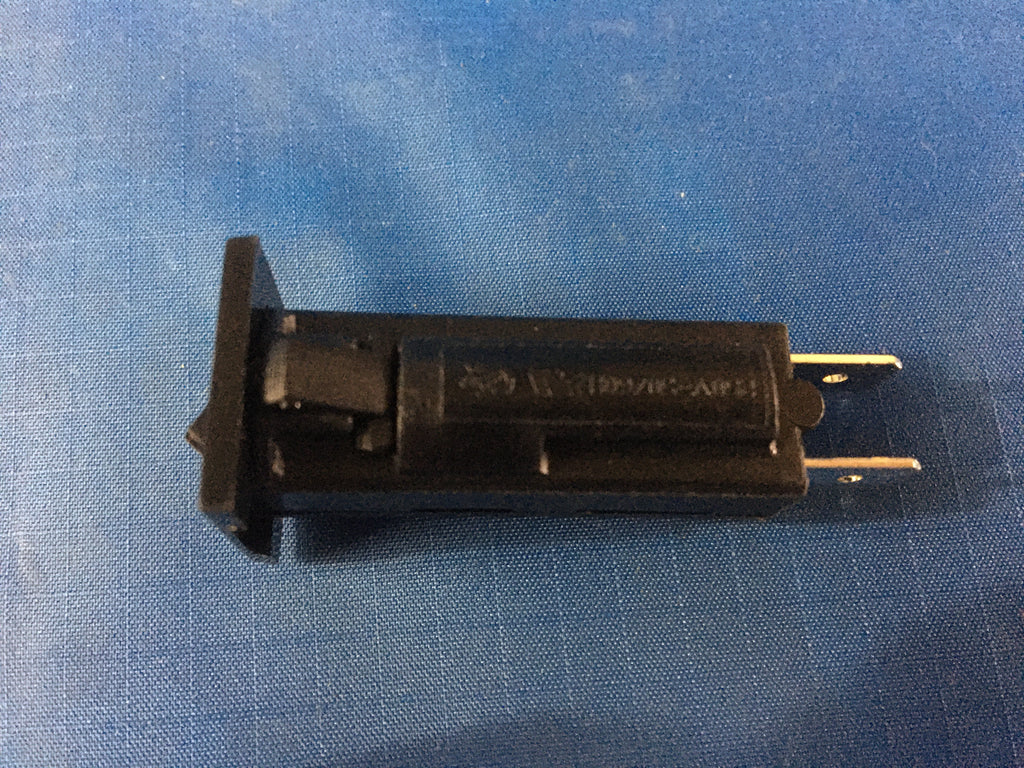

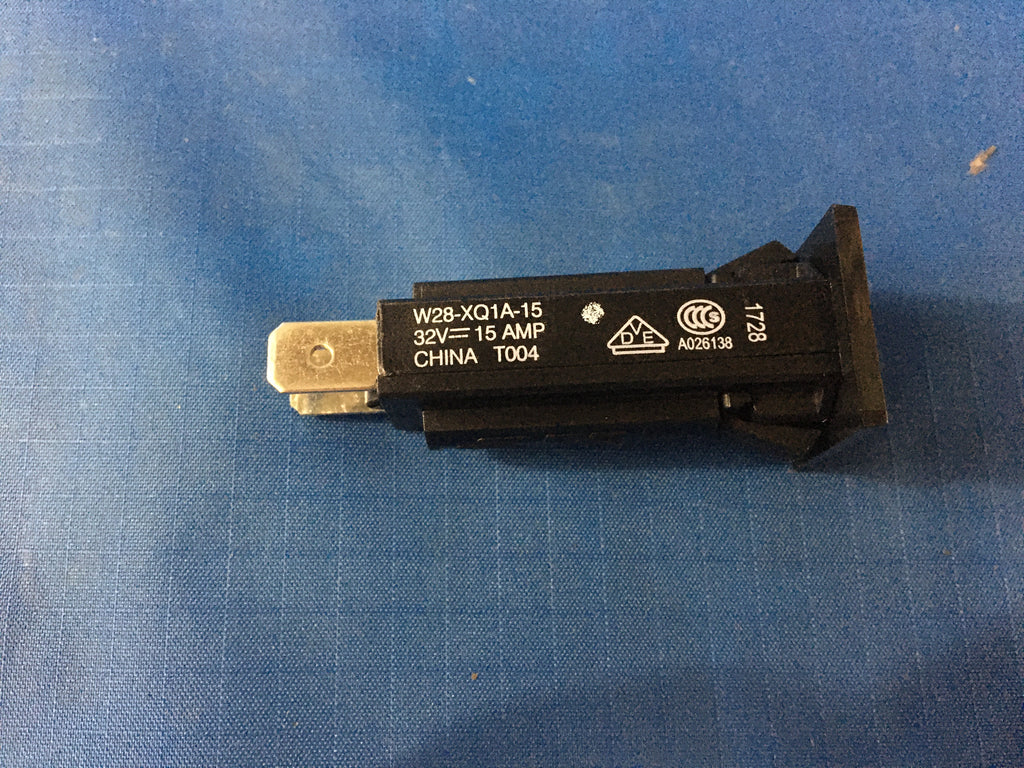

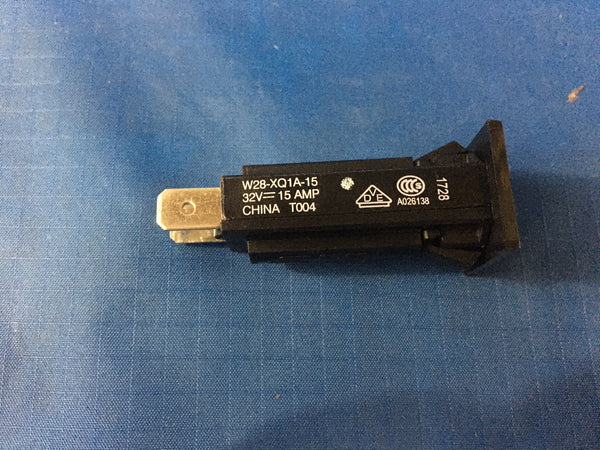

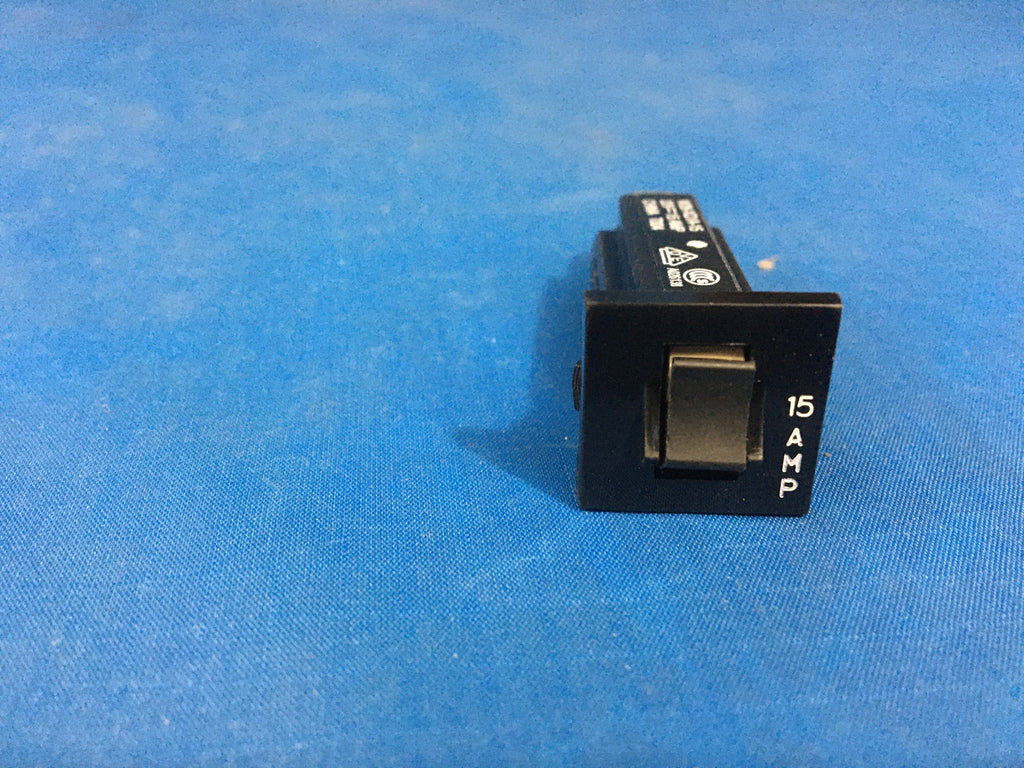

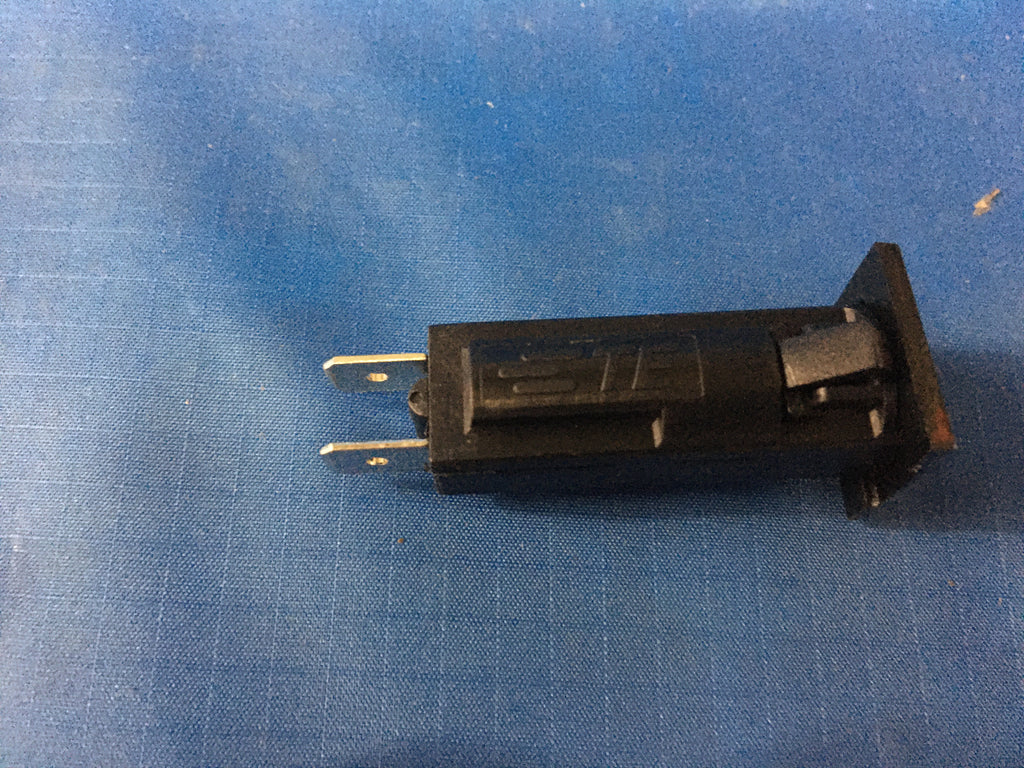

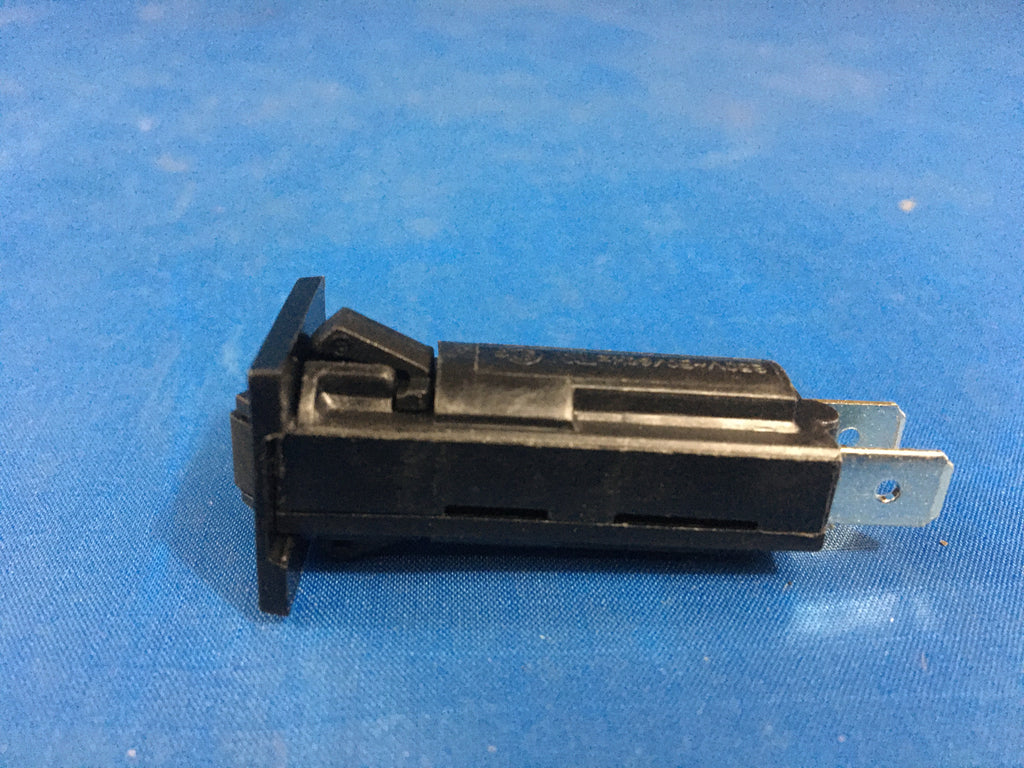

Tyco Circuit Breaker, 15 AMP Push Thru, Model:W28XQ1A-15 NSN:5925-01-258-2129

Regular price $9.99

Circuit Breaker

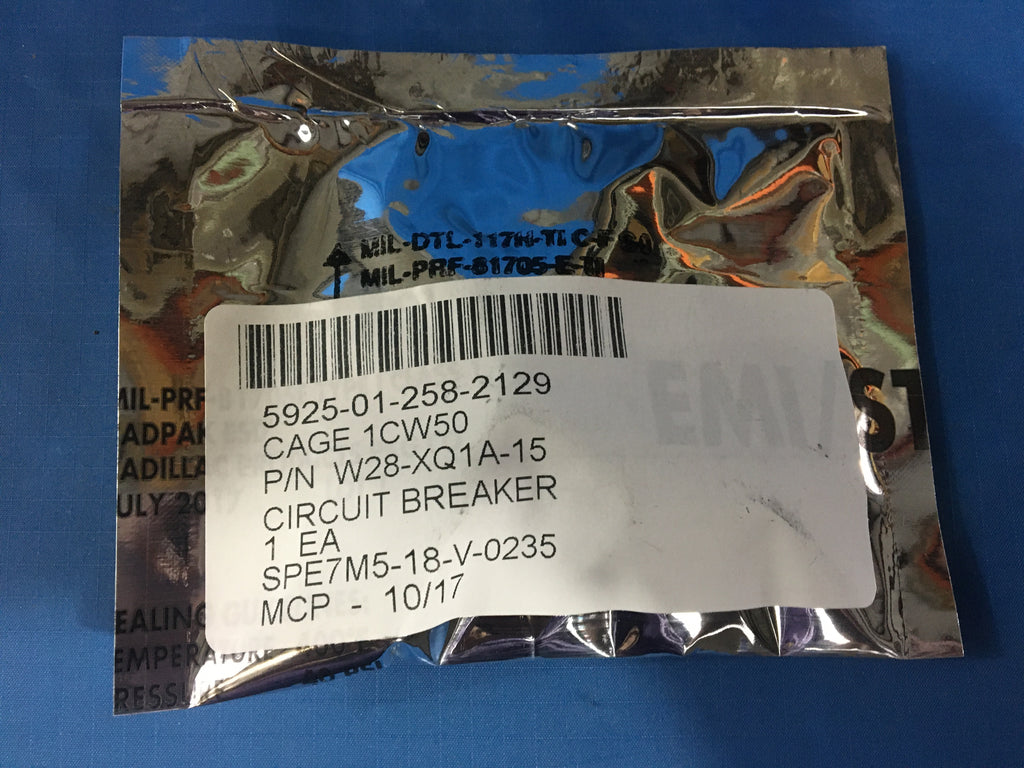

NSN: 5925-01-258-2129 | Model: W28XQ1A-15
ITAR Registered seal

A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating elem en (s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. Excludes circuit breaker box and magneto breaker assemblies. See also switch (as modified) ; and controller.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Style
Rectangular dimensional envelope
Overall Length
1.535 inches
Overall Height
0.760 inches
Overall Width
0.760 inches
Case Material
Fragility Factor
Moderately rugged
Pole Quantity
Arc Quenching Method
Mounting Facility Type And Quantity
2 clip
Storage Type
General purpose warehouse
Maximum Continuous Load Current Rating Per Pole
15.0 amperes ac single location and 15.0 amperes dc single location
Operating Voltage Type And Rating Per Pole In Volts
250.0 ac single location and 32.0 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps
1000.0 ac single location and 1000.0 dc single location
Circuit Protection Type
Overcurrent single location
Trip Release Method
Thermal single location
Trip Release Characteristic
Time delay single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent
135.0 single location
Reset Method
Main Contact Tripping Mechanism Type
Trip free
Manual Actuator Type And Quantity
1 push button
Actuator Function
Actuator Position Designation
At pole one
Internal Trip Release Configuration
Series trip single location
Trip Delay Time In Seconds Per Rated Continuous Current
2.200 at 200 pct single location and 15.000 at 200 pct single location
Inclosure Protection Type For Which Designed
General purpose
Trip Release Ambient Tempurature Rating
25.0 degrees celsius single location
Frequency In Hertz
50.0 single location or 60.0 single location
Unpackaged Unit Weight
0.350 ounces
Terminal Type And Quantity
2 quick disconnect, male
