Tyco 218-AG49D Plug-in Electronic Components Socket NSN:5935-01-336-9861

Regular price $15.99

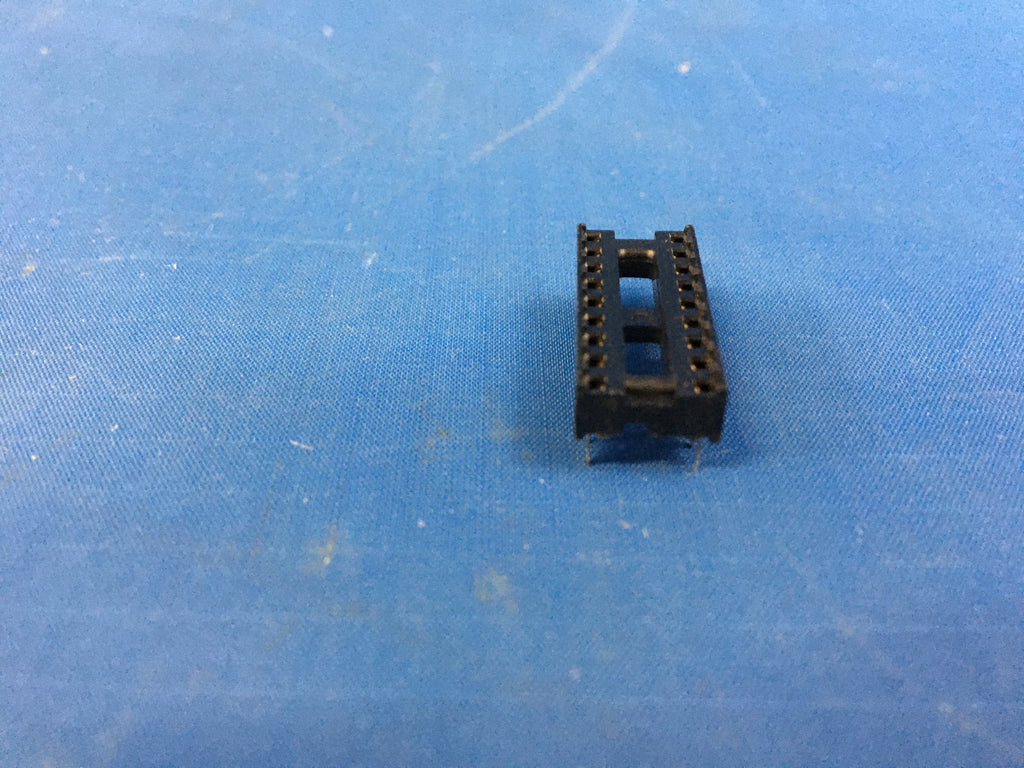

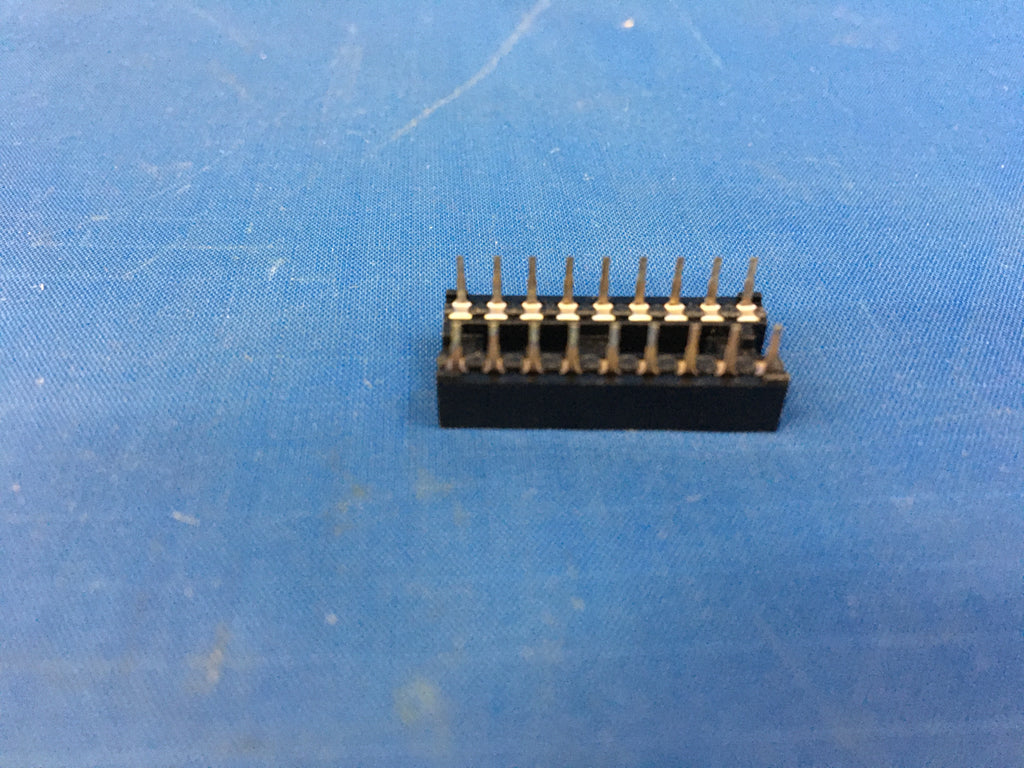

Plug-in Electronic Components Socket

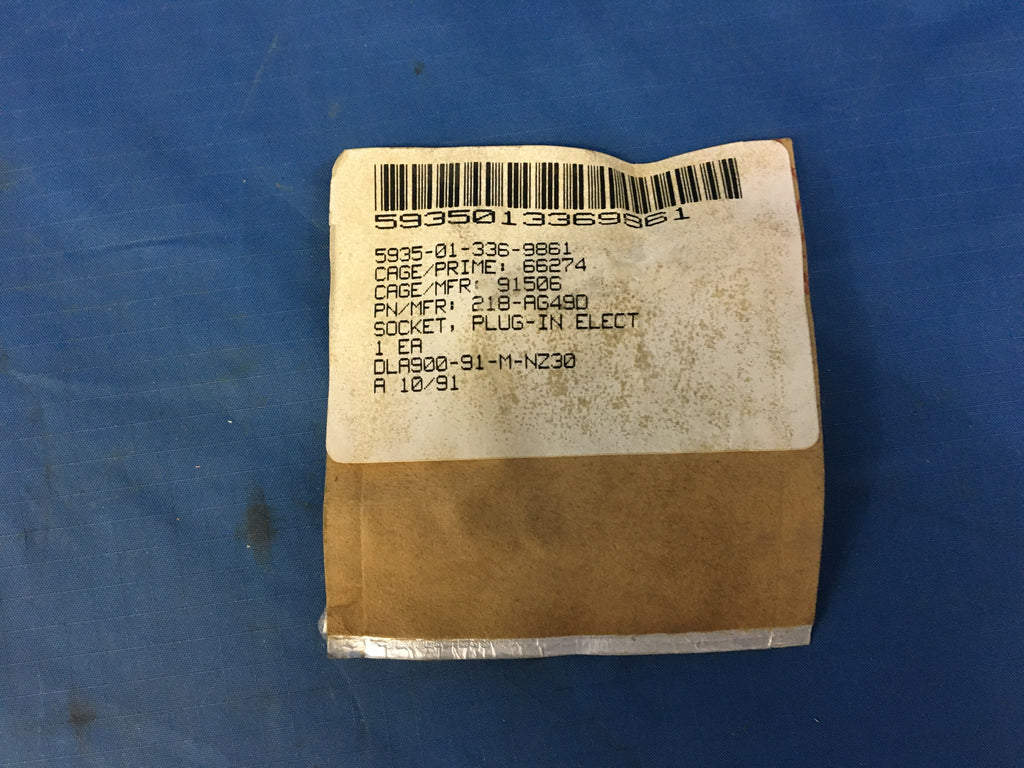

NSN: 5935-01-336-9861 | Model: 218-AG49D
ITAR Registered seal

An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Material
Body Style
Pcb, standoff terminals
Overall Length
0.900 inches
Terminal Length
Between 0.120 inches and 0.140 inches
Overall Height
0.326 inches
Overall Width
0.400 inches
Contact Material
Copper alloy
Contact Surface Treatment
Accommodated Contact Quantity
End Application
6625-01-212-3585 instrument, control
Printed Circuit Board Hole Arrangement Style
Eighteen hole
Polarization Type
Mounting Method
Mounting Type For Which Designed
Printed circuit
Contact Position Arrangement Style
Dual in-line
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.018 gold grains, troy
Precious Material
Terminal Type And Quantity
18 printed circuit
