RCA 2N304 Transistor NSN:5961-00-781-7023

Please fill out the form below for a price quote and availability on this item.

Transistor

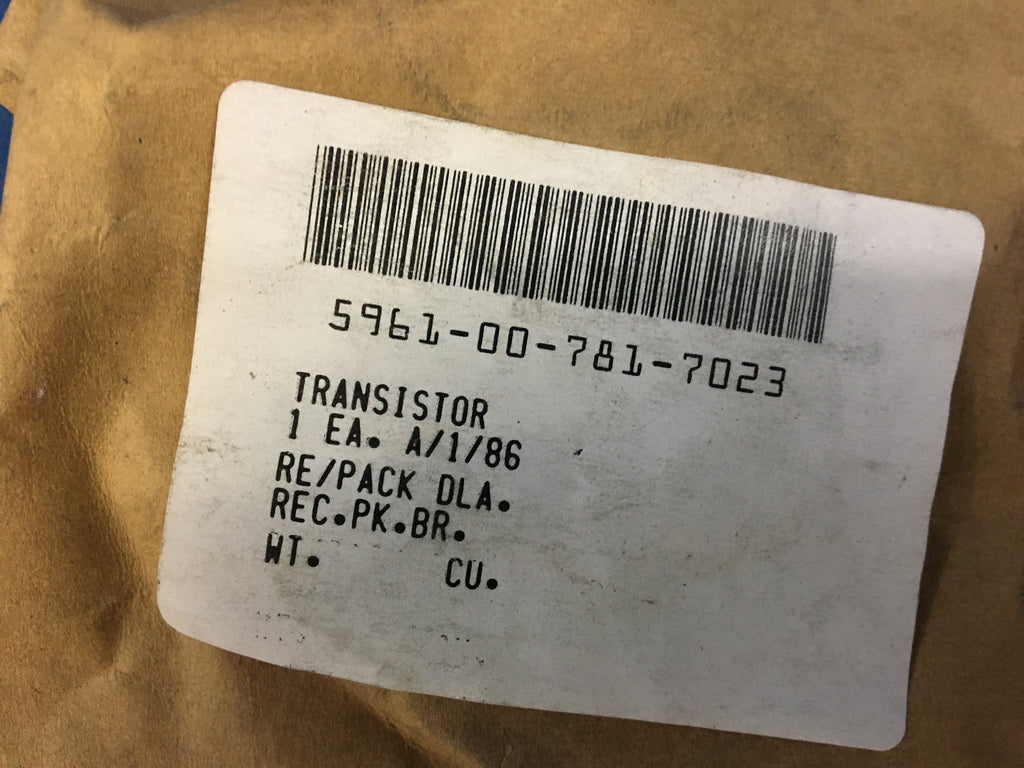

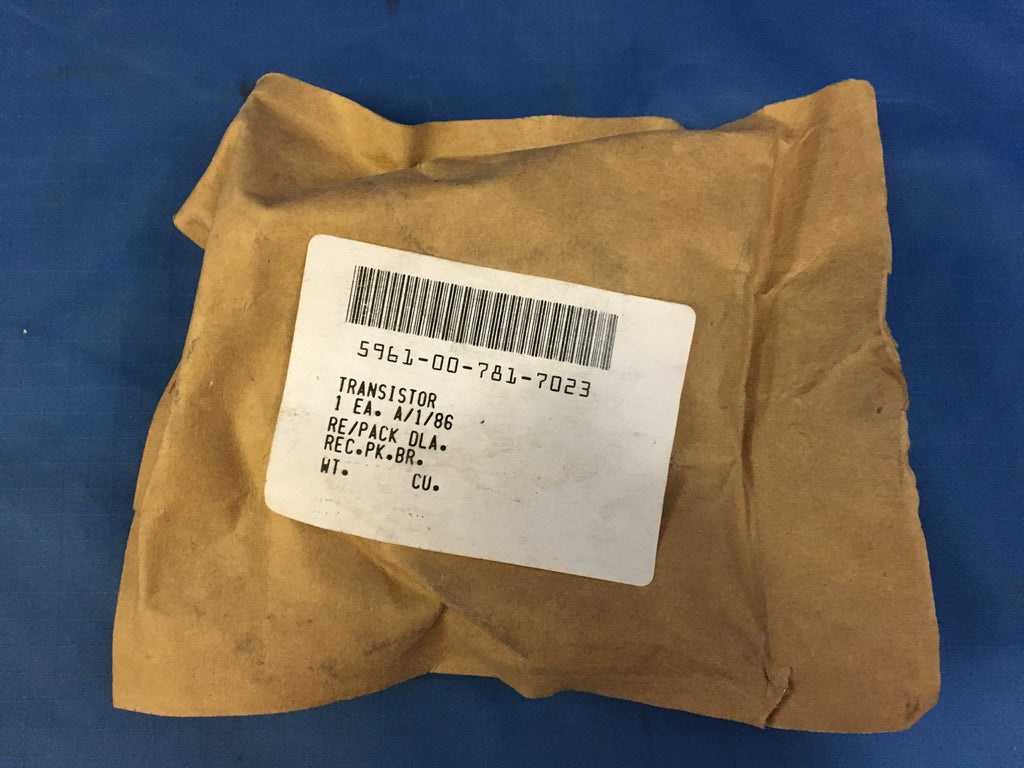

NSN:5961-00-781-7023 | Model:2N304
ITAR Registered seal

An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes semiconductor device, diode and semiconductor device, thyristor. For solid state devices which are responsive to visible or infrared radiant energy, see semiconductor device, photo.

NSN Properties and Flags
NATO Stock Number
5961-00-781-7023
DEMIL
Yes - ITAR Controlled
Inclosure Material
Metal
Overall Length
0.330 inches
Terminal Length
0.440 inches
Overall Diameter
0.524 inches
Internal Configuration
Junction contact
Electrode Internally-electrically Connected To Case
Collector
Mounting Method
Terminal
Terminal Circle Diameter
0.272 inches
Features Provided
Hermetically sealed case
Semiconductor Material
Silicon
Voltage Rating In Volts Per Characteristic
60.0 breakdown voltage, collector-to-base, emitter open and 40.0 breakdown voltage, collector-to-emitter, base open and 6.0 breakdown voltage, emitter-to-base, collector open
Current Rating Per Characteristic
Between 1.50 amperes source cutoff current and 3.00 amperes source cutoff current
Power Rating Per Characteristic
25.0 watts small-signal input power, common-collector
Maximum Operating Tempurature Per Measurement Point
200.0 degrees celsius ambient air
Special Features
Junction pattern arrangement: npn
Terminal Type And Quantity
3 pin
Specification Data
80131-release4224 professional/industrial association specification
