NEW NOS Time Totalizing Hour Meter, Quartz, 10-80V, DC, LQ NSN:6645-01-173-8841,P/N:1277828H91,

Please fill out the form below for a price quote and availability on this item.

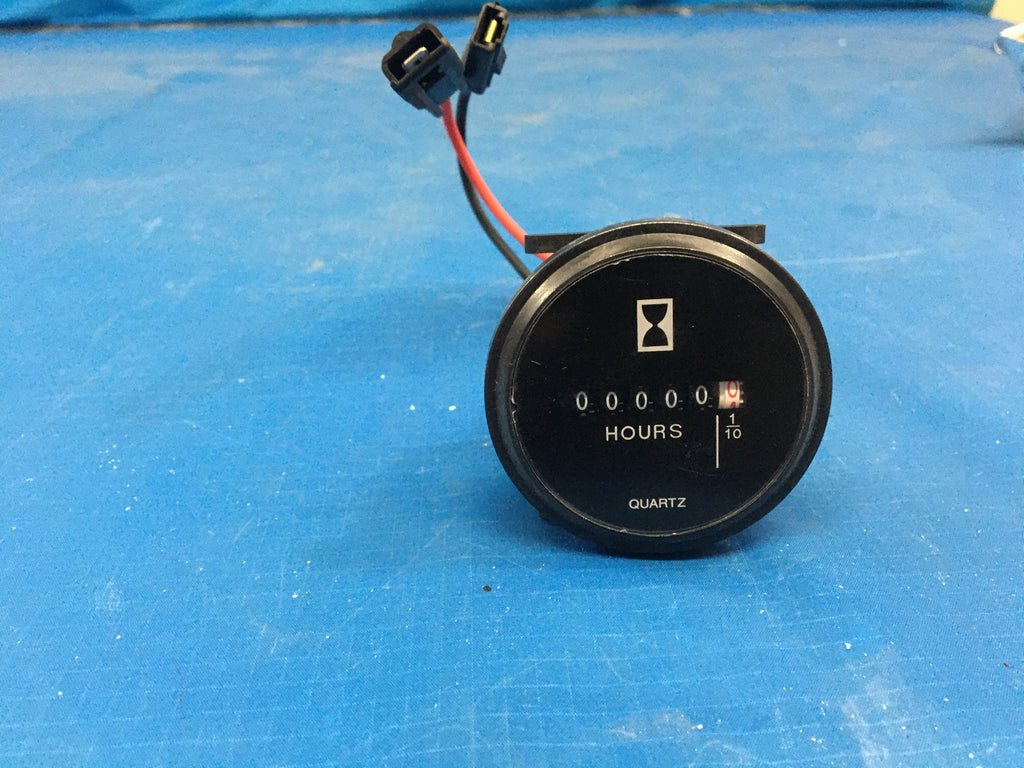

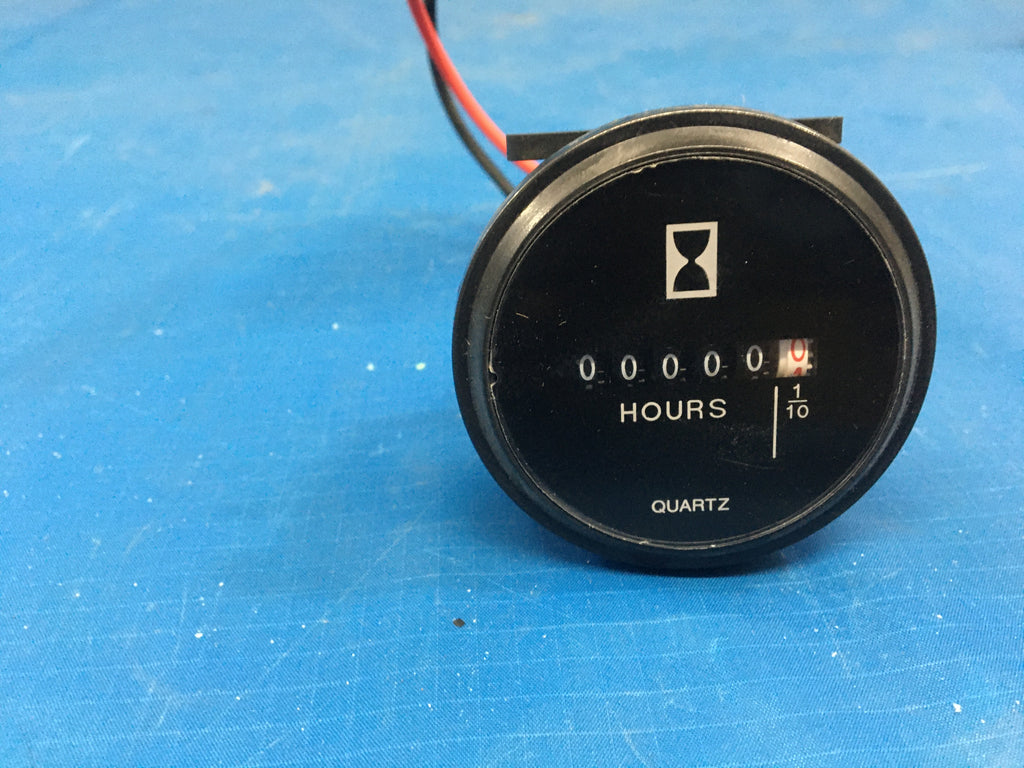

Time Totalizing Meter

NSN: 6645-01-173-8841 | Model: 1277828H91 & 1220651H2
ITAR Registered seal

An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See meter, frequency and time totalizing, electrical.

NSN Properties and Flags
NATO Stock Number
6645-01-173-8841
DEMIL
Yes - ITAR Controlled
Terminal Quantity
2
Terminal Type
Any acceptable
Mounting Type
Bracket or clamp
Overall Depth
Between 60.4 millimeters and 85.8 millimeters
Current Type
Dc
Overall Diameter
Between 58.4 millimeters and 63.5 millimeters
Case Material
Steel, corrosion resisting or thermoplastic
Indicator Type
Drum register
Voltage Rating
24.0 volts
Measurement Unit
Hours
Unit Type
Mounted
Movement Type
Solid state
Smallest Increment Indicated
0.10
Reset Feature
Not provided
Maximum Measurement
9999.90
Special Features
Safety vent hole to release pressure in excess of 40 psi; polarized connectors



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
