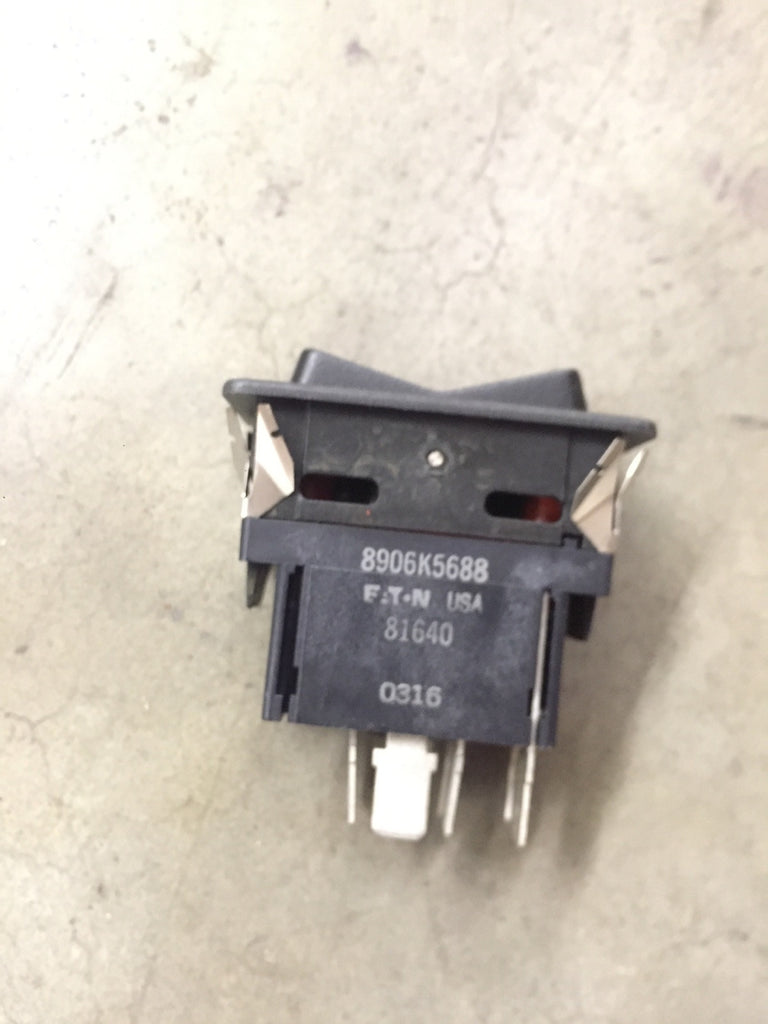

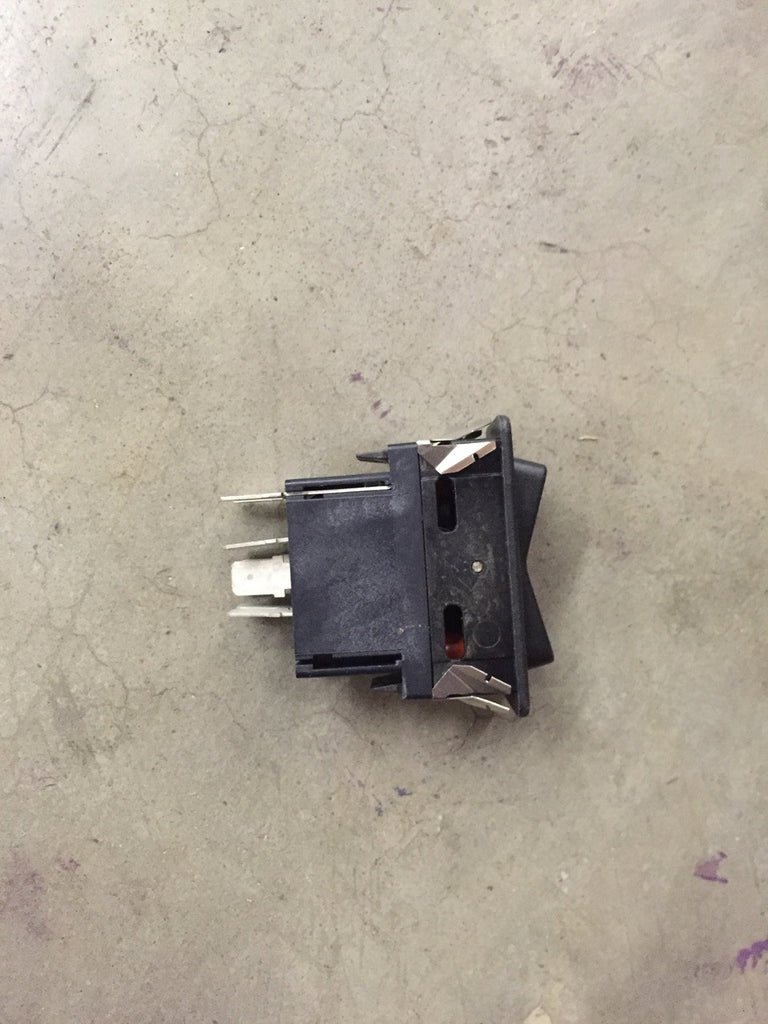

Eaton Toggle Switch High/Medium/Low For Use With/On: Used on MK23, MK25, MK27, MK28 NSN:593Sw0-01-480-7052 P/N:8HB630

Regular price $15.99

Toggle Switch

NSN: 5930-01-480-7052 | Model: 8HB630
ITAR Registered seal

A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes switch, lever; switch, rotary; switch, knife; switch, sensitive; and switch, box.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Style
Panel mount
Body Length
2.050 inches
Body Width
1.050 inches
Body Height
2.000 inches
Actuator Length
1.600 inches
Actuator Style
Actuator Height
0.540 inches
Actuator Width
0.705 inches
Actuator Position-action Relationship
Center position maintained
Actuator Color
Black single actuator
Illuminated Actuator Color
Red single actuator

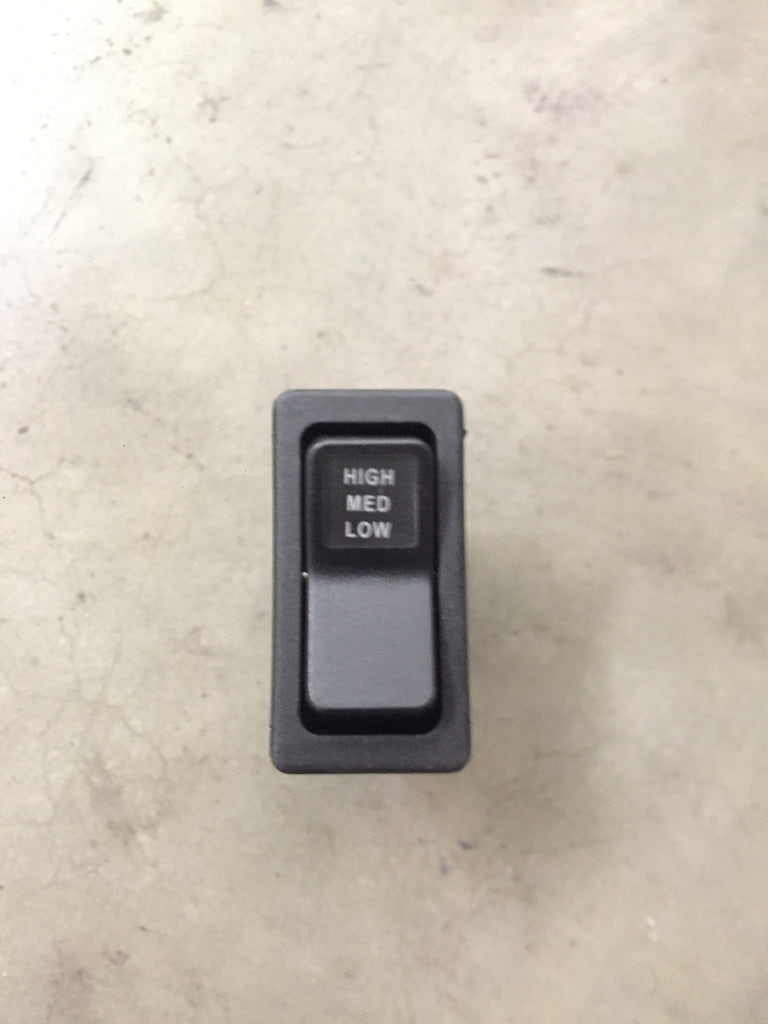

Actuator Inscription
High, med, low single actuator
Maximum Voltage Rating In Volts
28.0 dc
End Application
Used on MK23, MK25, MK27, MK28
Inclosure Type
Fully enclosed
Mounting Method
Press fit
Contact Load Current Rating At Maximum Rated Voltage
7.000 amperes lamp dc
Special Features
Operating temperature range -30 deg, c to +71 deg. C; switch seal level watertight; manufacture call this a rocker button icon engine brake high.
Terminal Type And Quantity
6 quick disconnect, male
