Military Spec MS27736-31 Toggle Switch NSN:5930-01-359-5457
Please fill out the form below for a price quote and availability on this item.

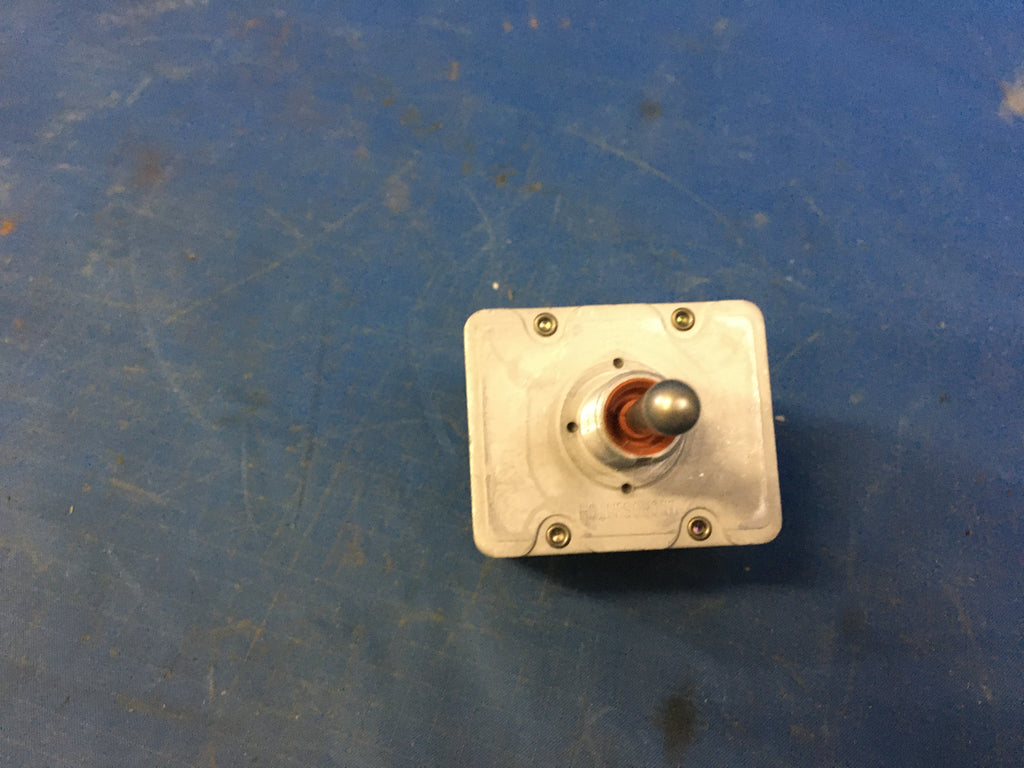

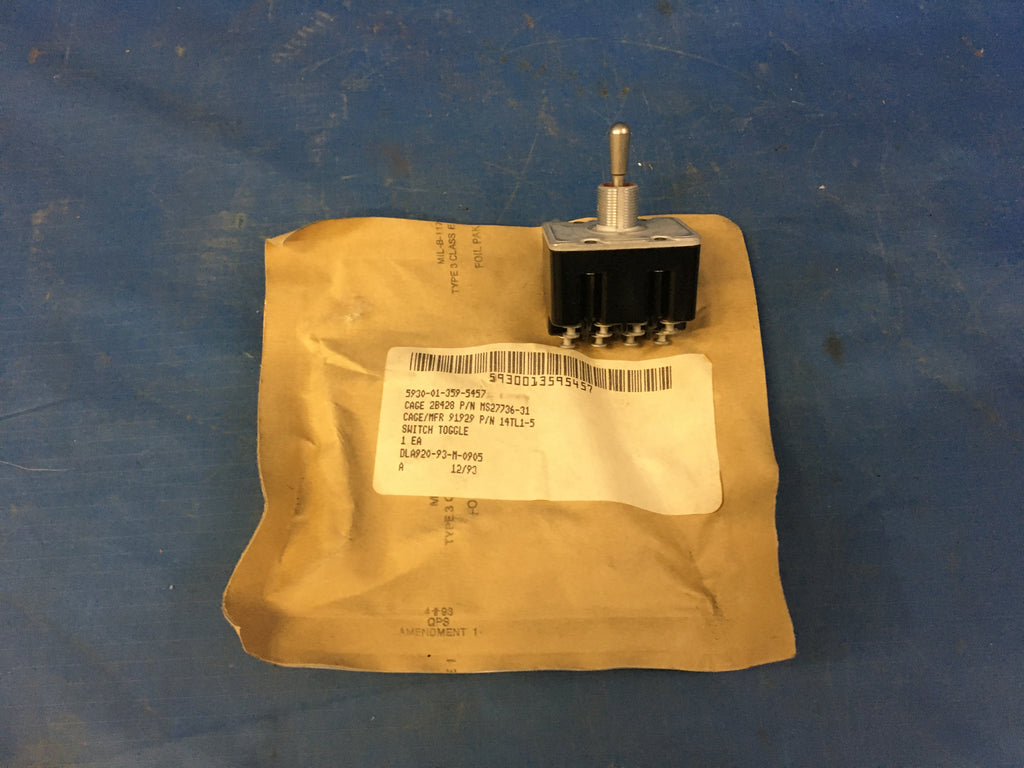

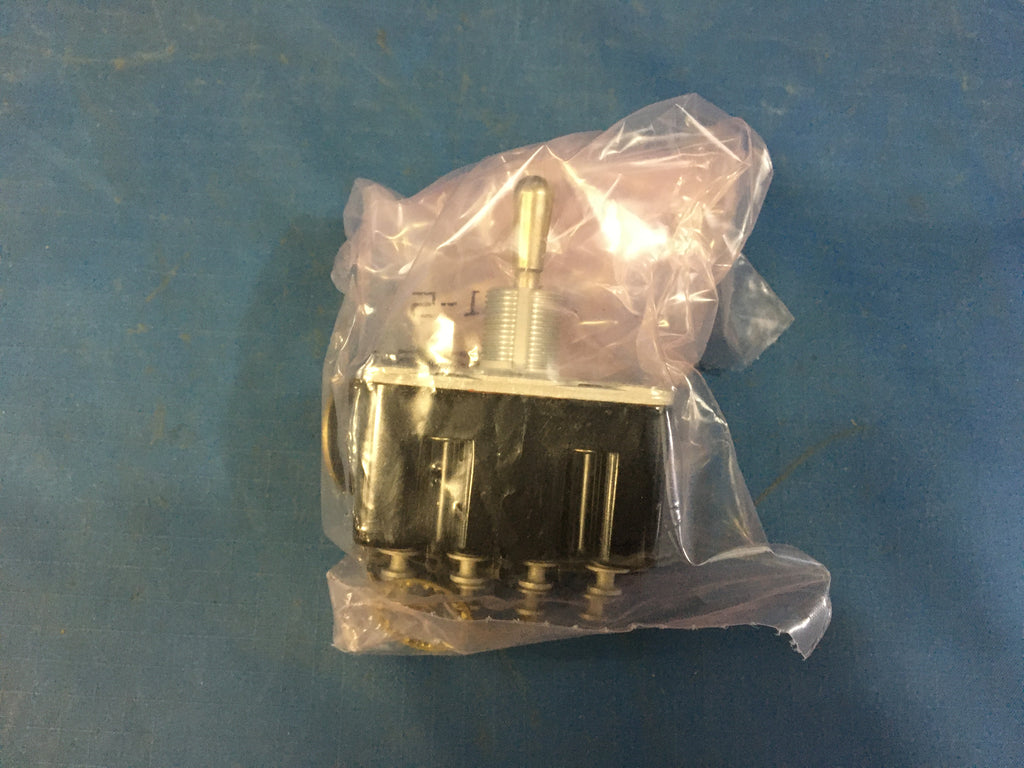

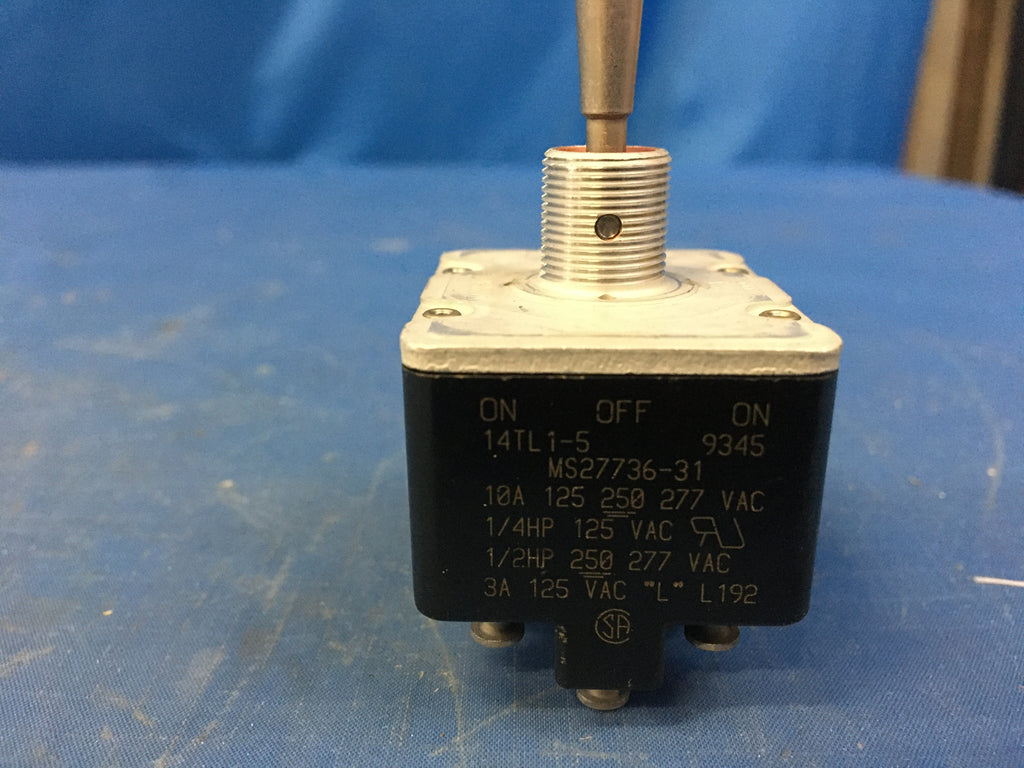

Toggle Switch
NSN: 5930-01-359-5457 | Model: MS27736-31A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes switch, lever; switch, rotary; switch, knife; switch, sensitive; and switch, box.
NSN Properties and Flags
NATO Stock Number
5930-01-359-5457
DEMIL
NO
Thread Class
2a
Body Style
Bushing mount
Bushing Length
0.470 inches
Body Length
1.340 inches
Body Width
1.660 inches
Actuator Style
Round
Actuator Diameter
0.240 inches
Actuator Height
0.690 inches
Actuator Position-action Relationship
Up position momentary and down position momentary and center position maintained
Maximum Voltage Rating In Volts
115.0 ac and 28.0 dc
Mounting Surface To Terminal End Distance
1.370 inches
Inclosure Type
Hermetically sealed

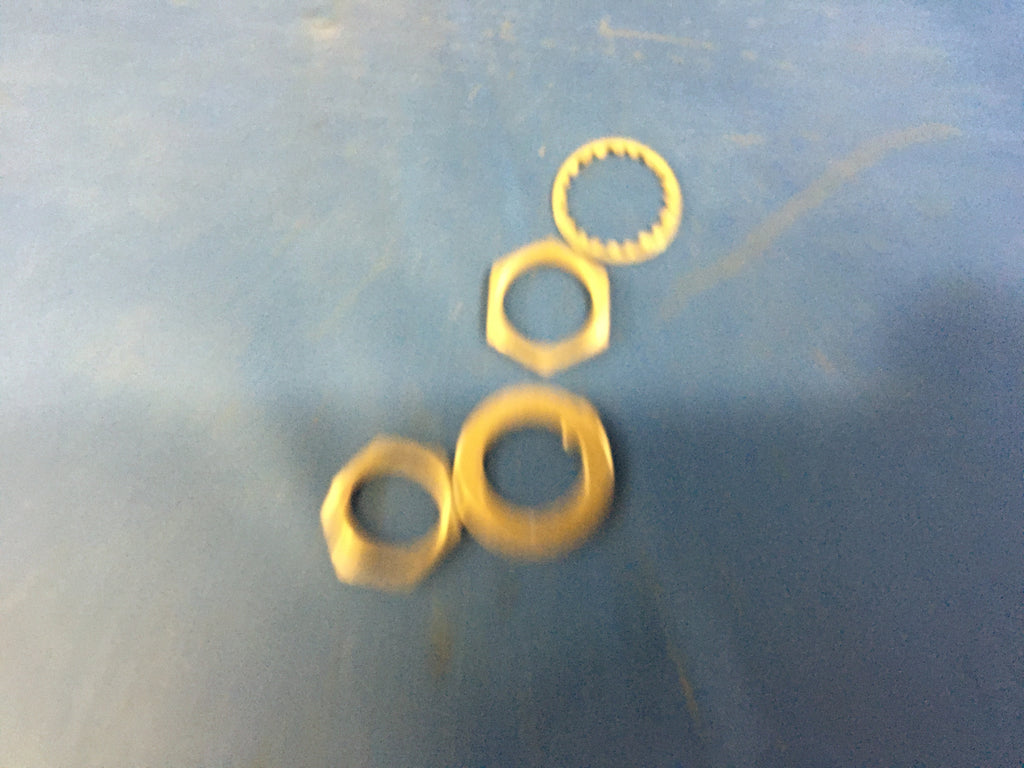

Mounting Method
Threaded bushing
Thready Qty Per Inch (tpi)
32
Thread Size
0.469 inches
Nonpile-up Contact Arrangement
4 pole, double throw, two positions momentary single switch unit
Contact Load Current Rating At Maximum Rated Voltage
11.000 amperes resistive ac and 8.000 amperes inductive ac and 8.000 amperes lamp ac and 18.000 amperes resistive dc and 10.000 amperes inductive dc and 4.000 amperes lamp dc
Test Data Document
82348-mil-s-3950 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Uns

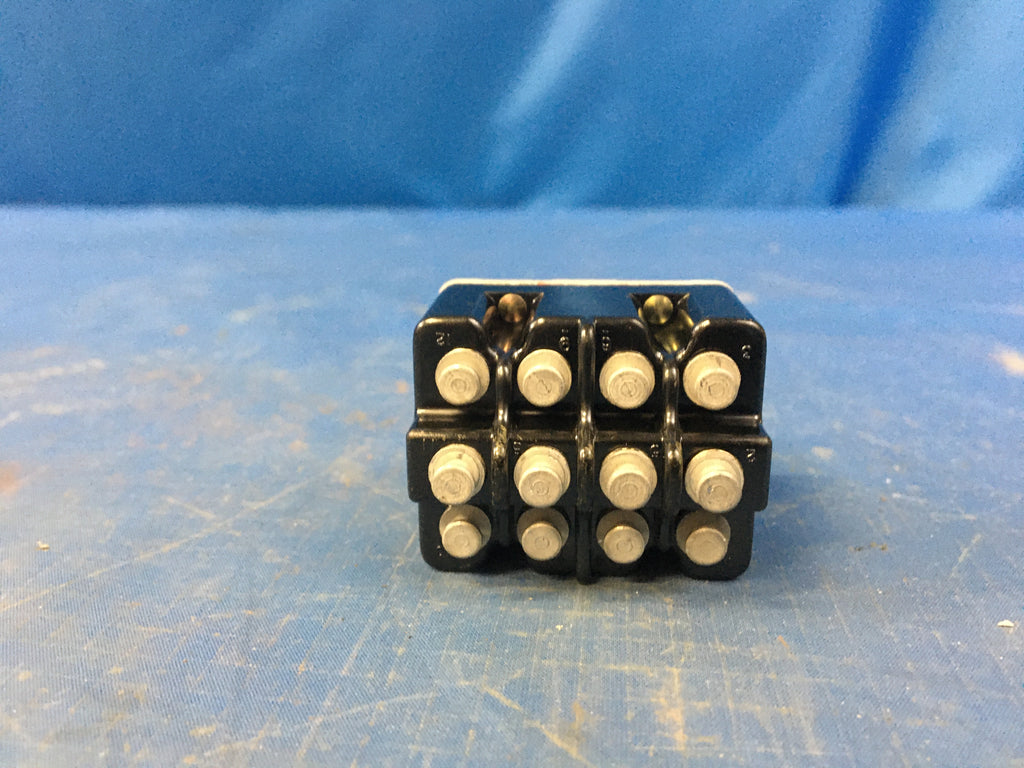

Terminal Type And Quantity
12 turret
Specification Data
96906-ms27736-31 government standard
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
