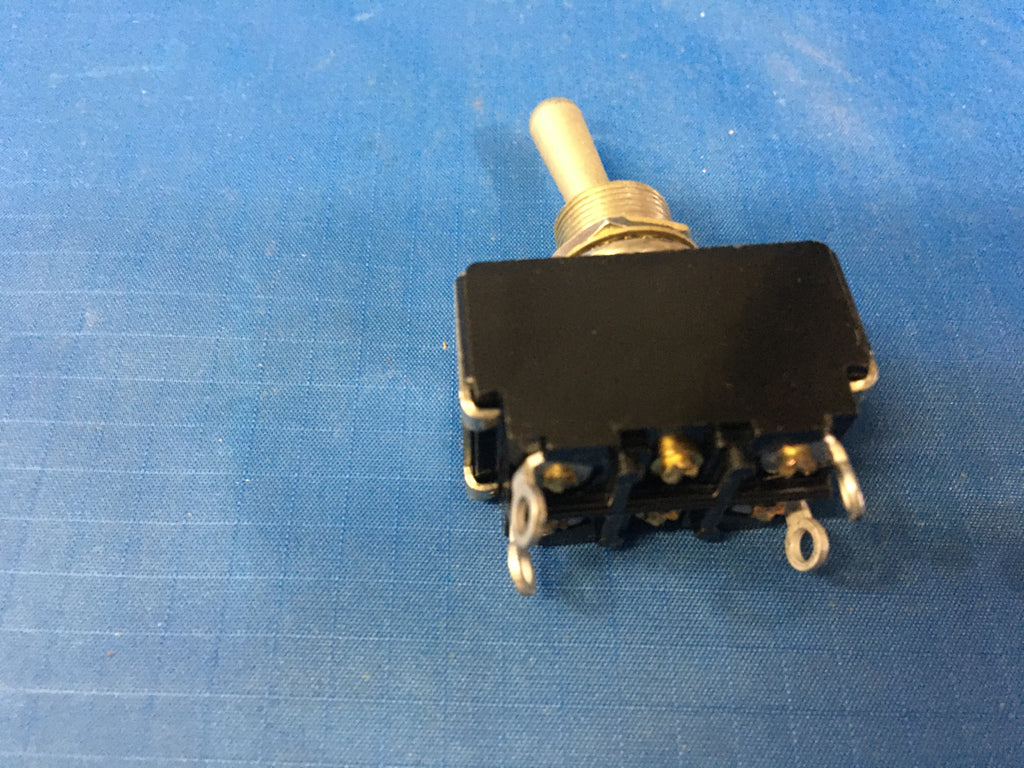

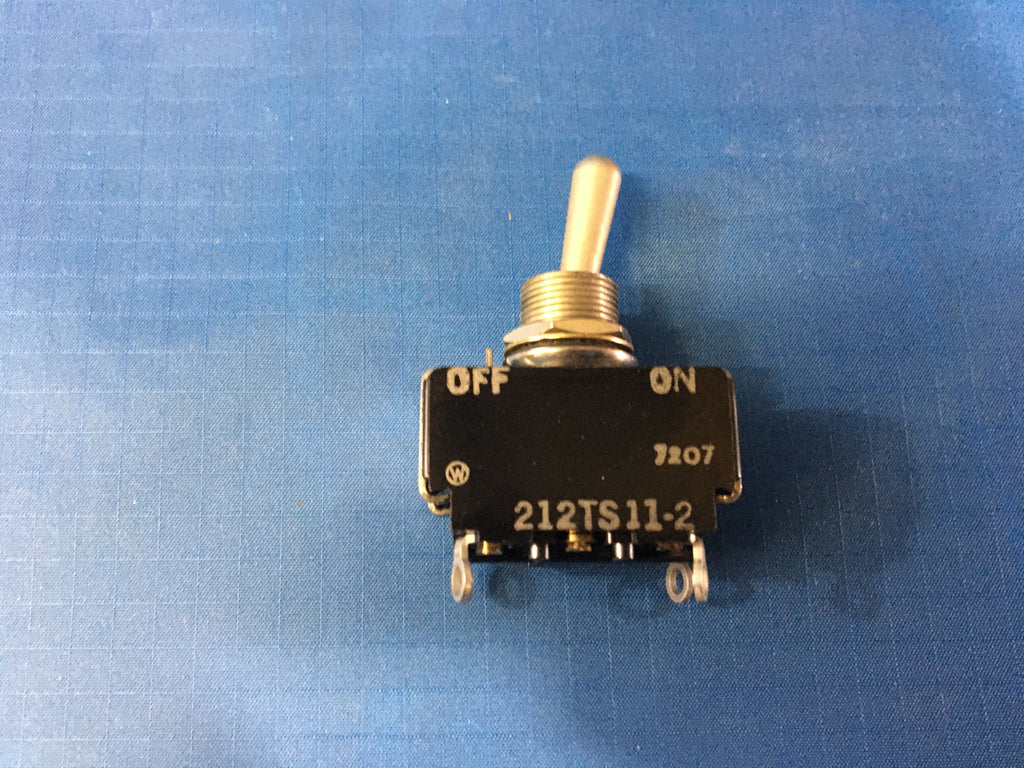

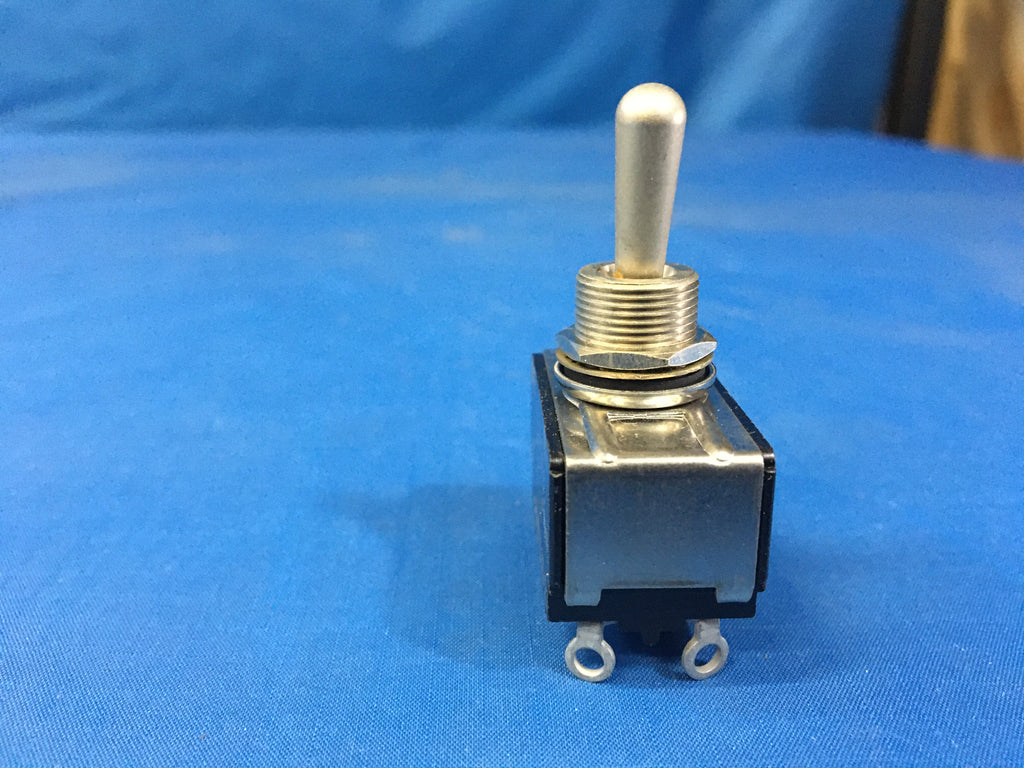

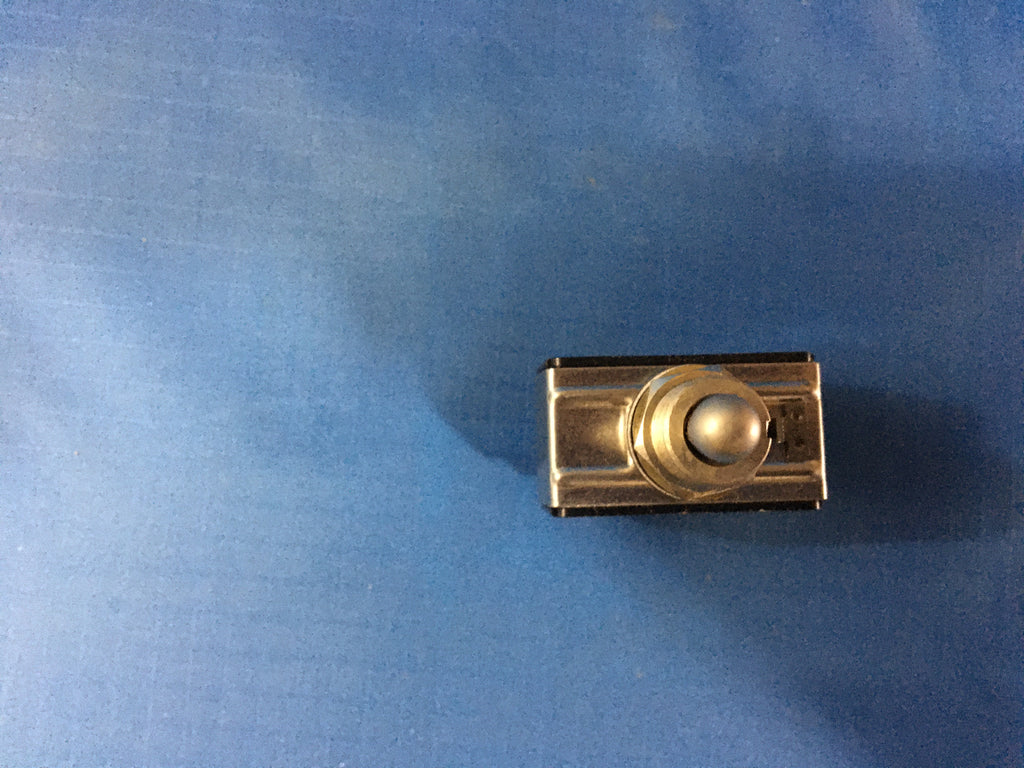

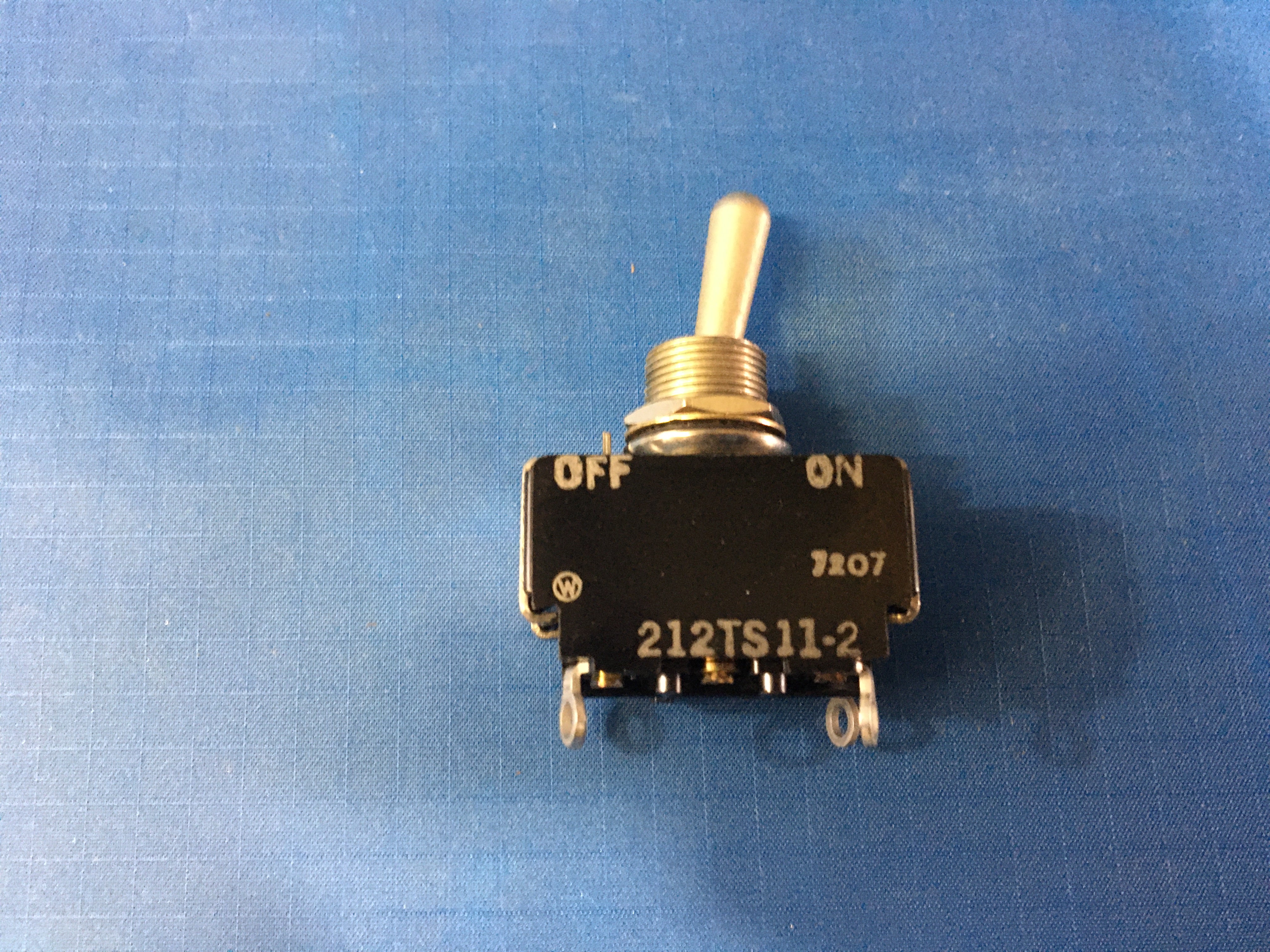

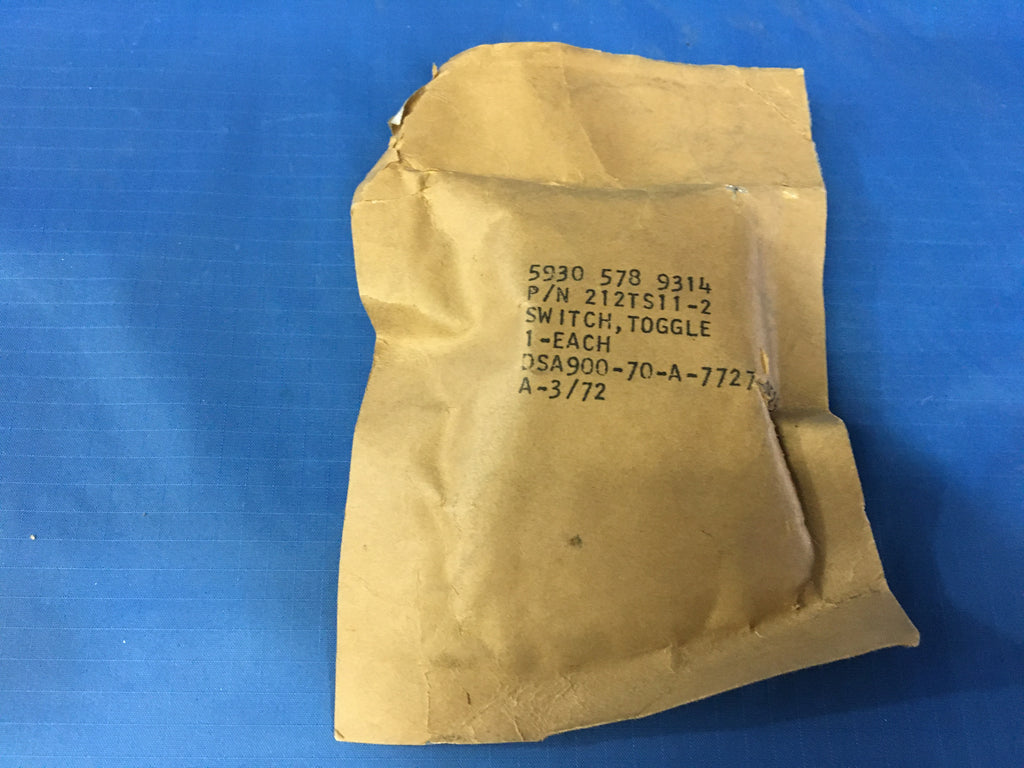

Honeywell 212TS11-2 On/Off Toggle Switch,SPST,9A 220V NSN:5930-00-578-9314 Model:739114

Please fill out the form below for a price quote and availability on this item.

Toggle Switch

NSN:5930-00-578-9314 Model:739114 P/N:212TS11-2
ITAR Registered seal

A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes switch, lever; switch, rotary; switch, knife; switch, sensitive; and switch, box.

NSN Properties and Flags
NATO Stock Number
5930-00-578-9314
DEMIL
Yes - ITAR Controlled
Body Style
Bushing mount
Overall Length
1.312 inches
Overall Height
2.190 inches
Overall Width
0.750 inches
Bushing Length
0.380 inches
Body Length
1.312 inches
Body Width
0.750 inches
Body Height
0.812 inches
Actuator Style
Round
Actuator Diameter
0.240 inches
Actuator Height
0.690 inches
Actuator Position-action Relationship
Up position maintained and down position maintained and center position maintained
Maximum Voltage Rating In Volts
220.0 ac and 250.0 dc
Inclosure Type
Fully enclosed
Mounting Method
Threaded bushing
Features Provided
Actuator seal
Thready Qty Per Inch (tpi)
32
Thread Size
0.469 inches
Nonpile-up Contact Arrangement
2 pole, single throw, both positions maintained single switch unit
Criticality Code Justification
Feat
Contact Load Current Rating At Maximum Rated Voltage
500.000 milliamperes restive dc and 9.000 amperes restive ac
Special Features
Weapon system essential
Thread Series Designator
Uns

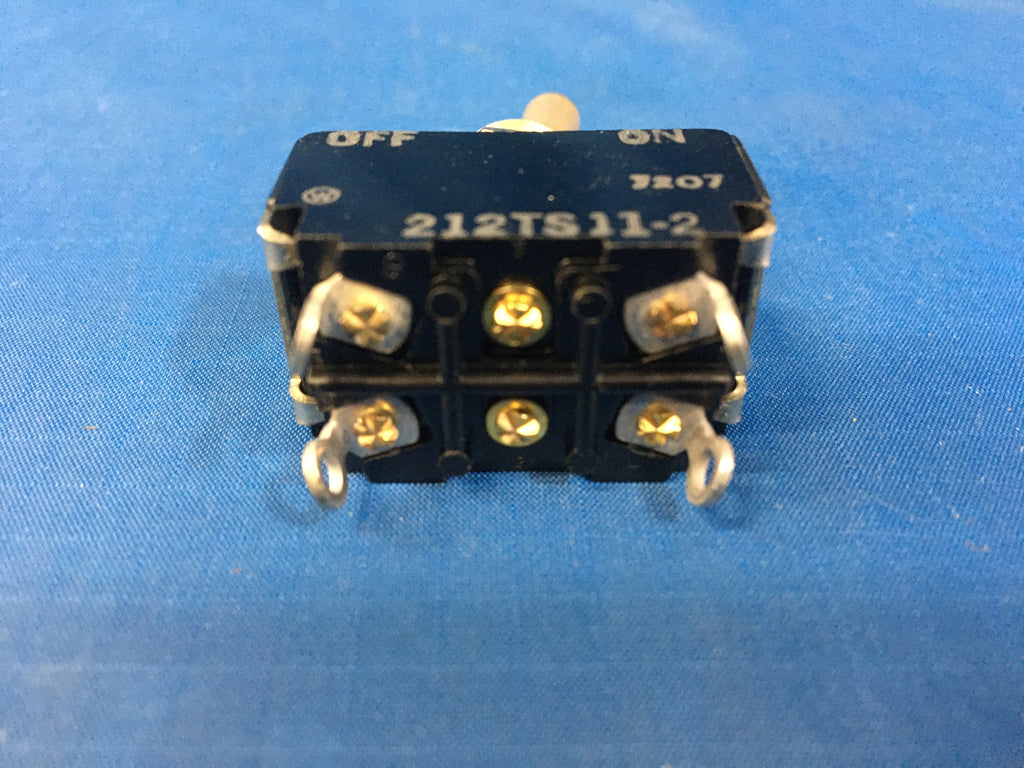

Terminal Type And Quantity
4 tab, solder lug



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
