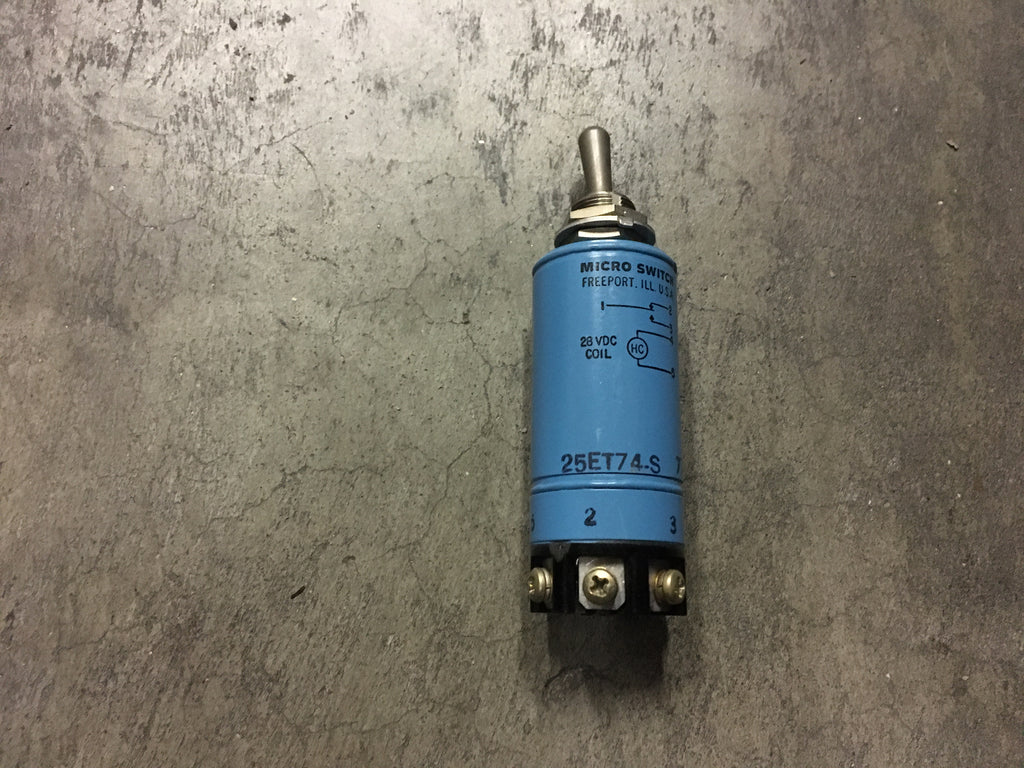

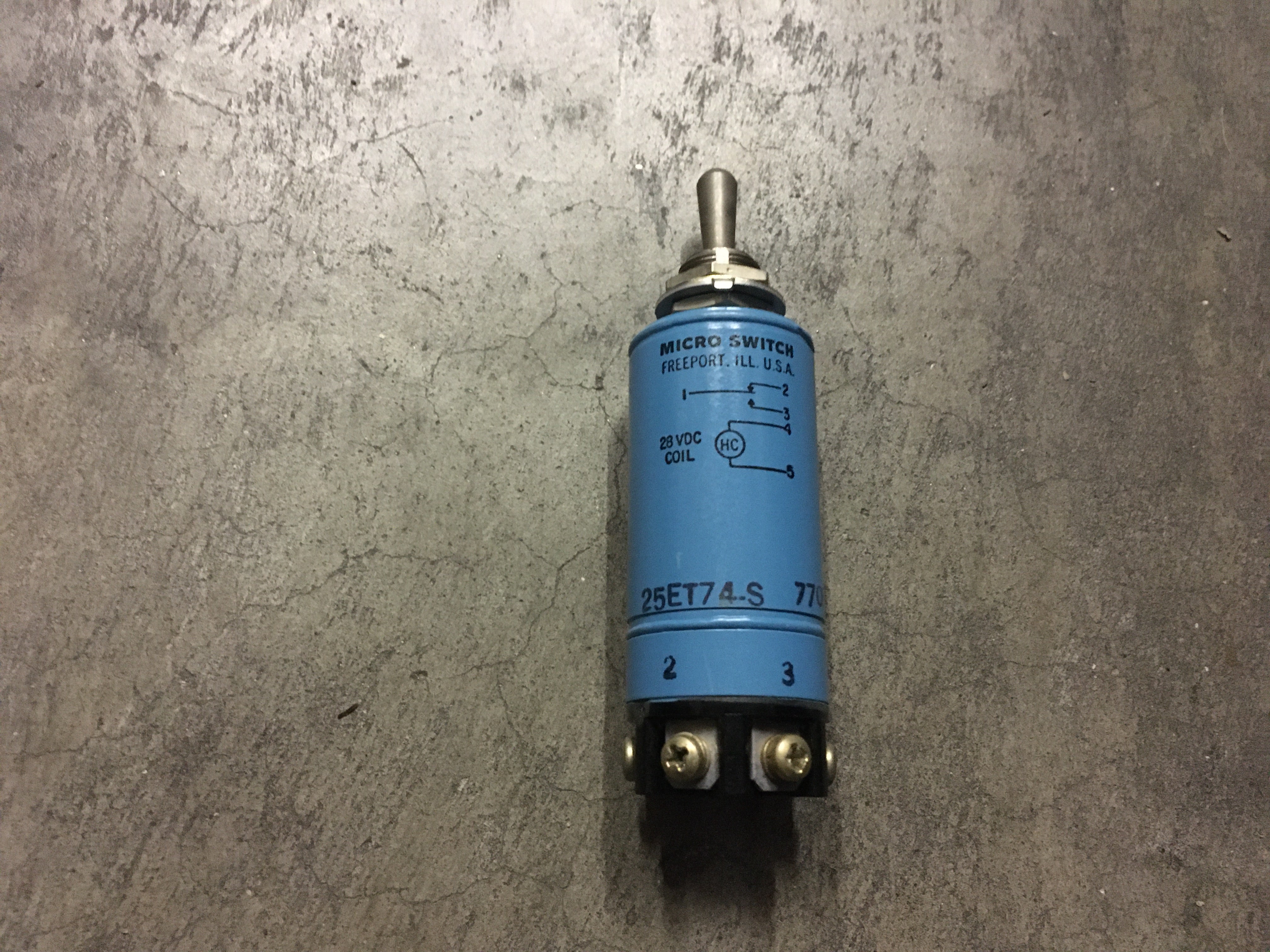

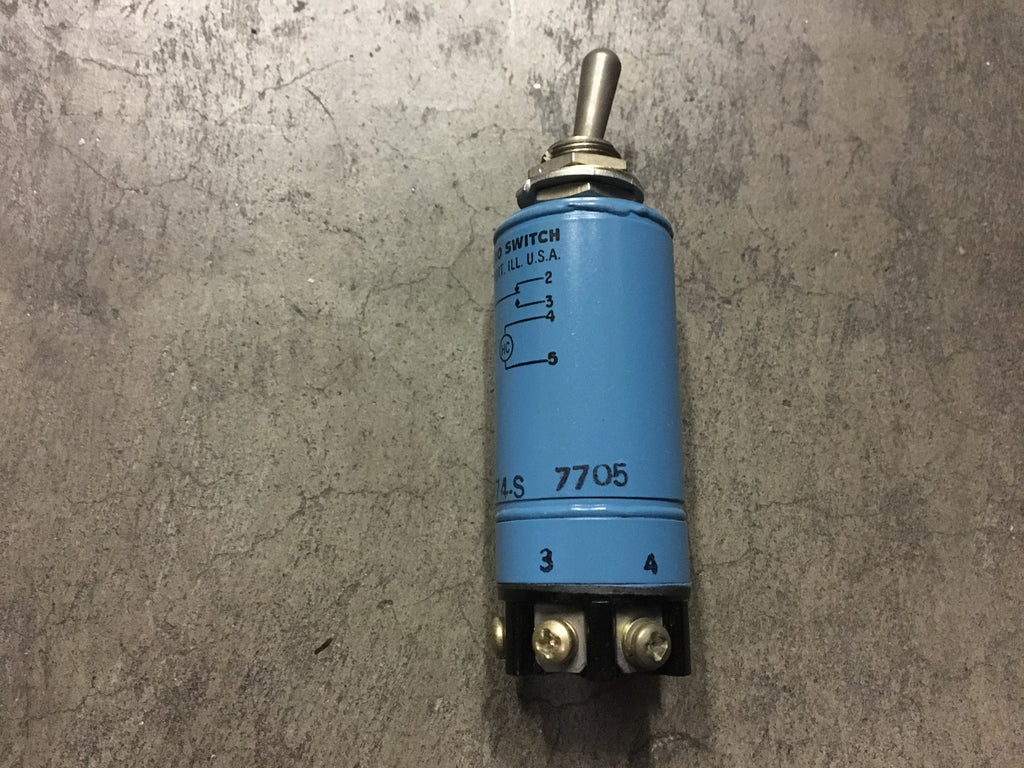

Toggle Switch

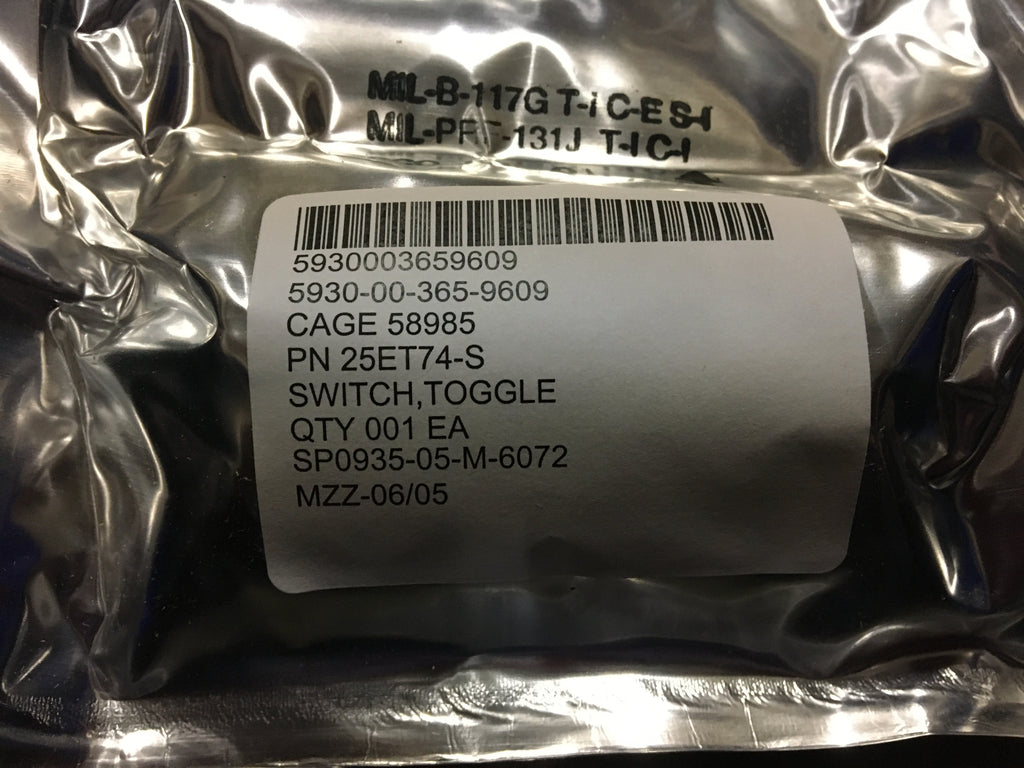

NSN: 5930-00-365-9609  P/N:7705  Model: 25ET74-S
ITAR Registered seal

A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes switch, lever; switch, rotary; switch, knife; switch, sensitive; and switch, box.

NSN Properties and Flags
NATO Stock Number
5930-00-365-9609
DEMIL
Yes - ITAR Controlled
Body Style
Bushing mount
Hazardous Locations/environmental Protection
Weatherproof
Body Diameter
1.030 inches
Bushing Length
Between 0.455 inches and 0.485 inches
Body Length
2.260 inches

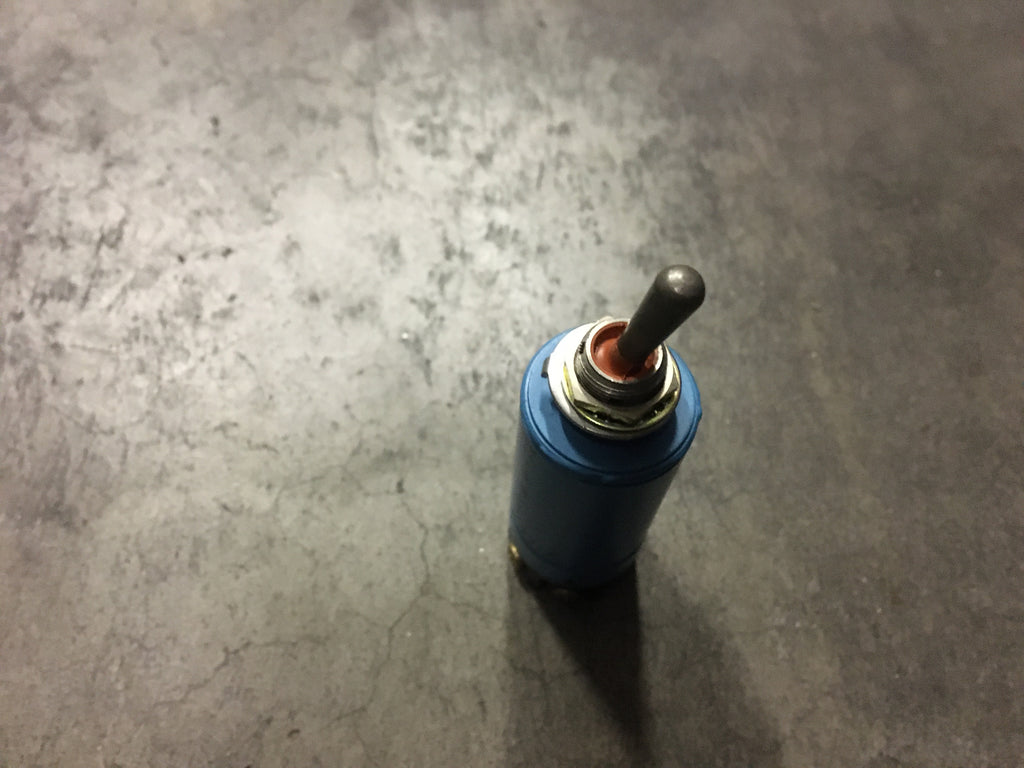

Actuator Style
Round
Actuator Diameter
0.240 inches
Actuator Height
0.690 inches
Actuator Position-action Relationship
Up position maintained and down position momentary
Maximum Voltage Rating In Volts
28.0 dc
Inclosure Type
Fully enclosed
Mounting Method
Threaded bushing
Features Provided
Actuator seal
Thready Qty Per Inch (tpi)
32
Thread Size
0.469 inches
Nonpile-up Contact Arrangement
1 pole, double throw, one position momentary single switch unit
Criticality Code Justification
Feat
Contact Load Current Rating At Maximum Rated Voltage
4.000 amperes restive dc and 2.500 amperes inductive dc and 4.000 amperes motor dc
Special Features
Weapon system essential
Thread Series Designator
Uns

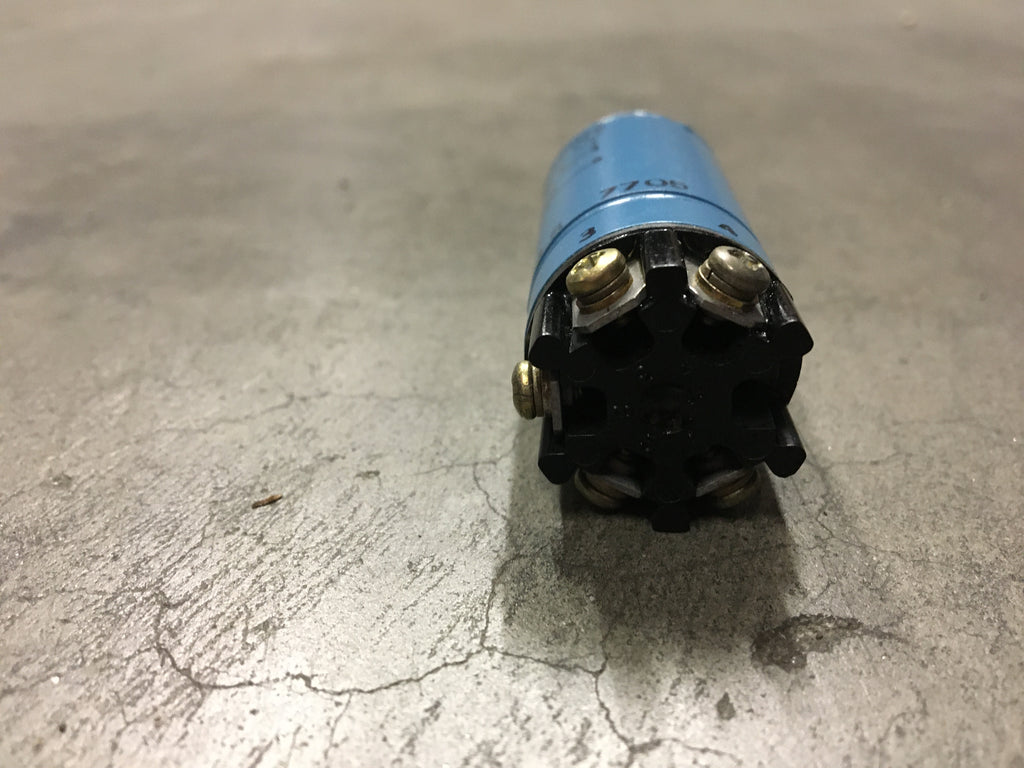

Terminal Type And Quantity
5 screw
