Thomas & Betts Corp

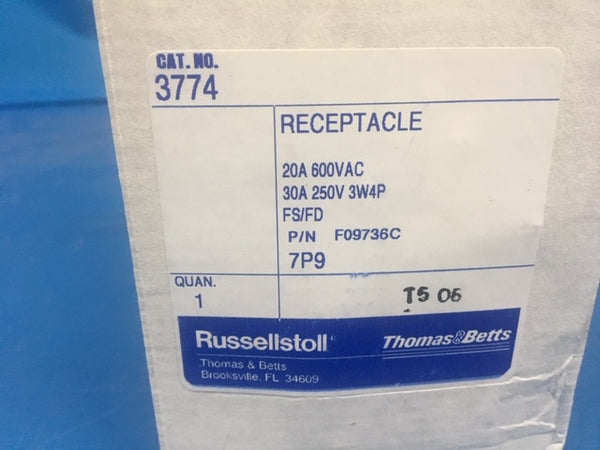

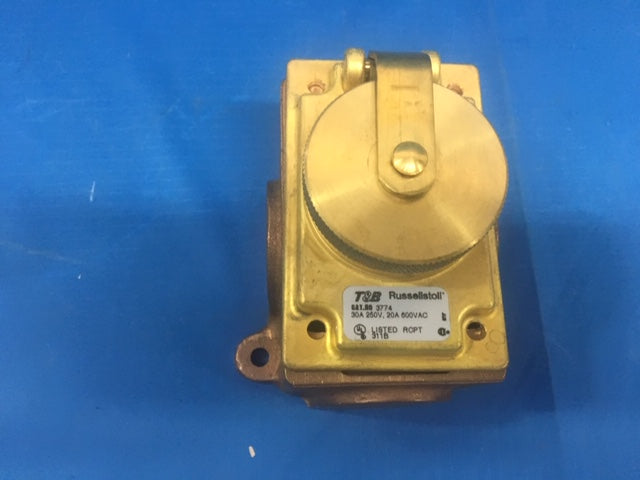

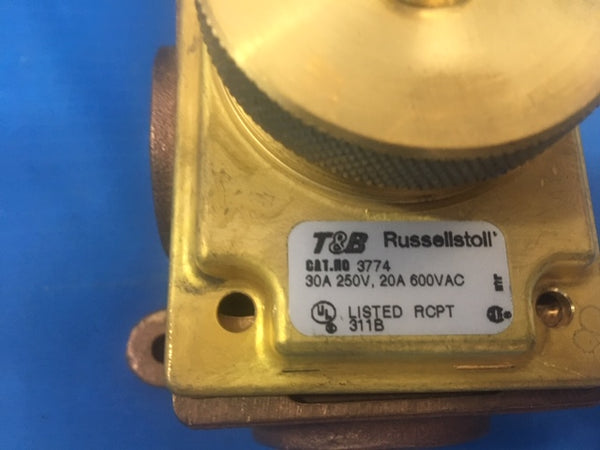

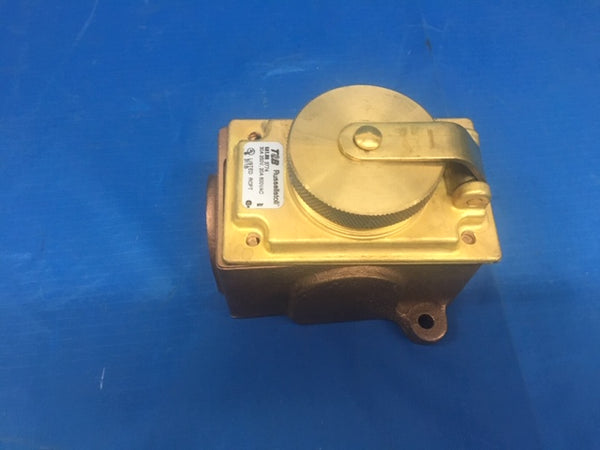

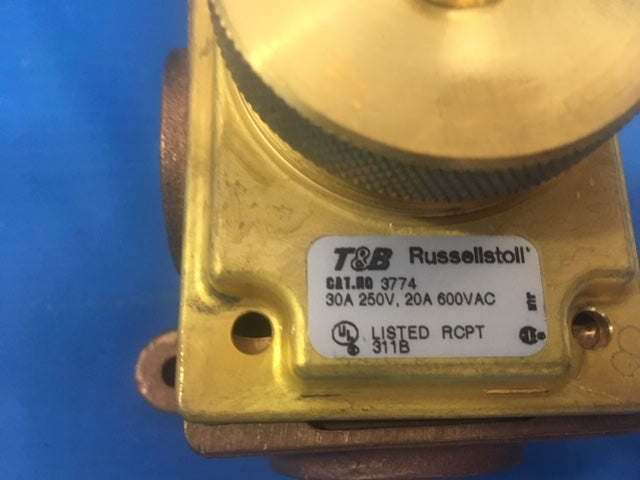

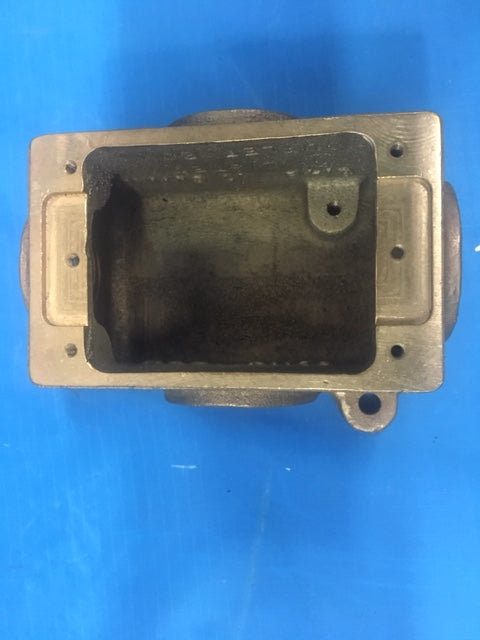

Thomas & Betts 3744 Receptacle Connector 30A 250V 20A 600VAC NSN:5935-00-435-2458

Regular price $275.00

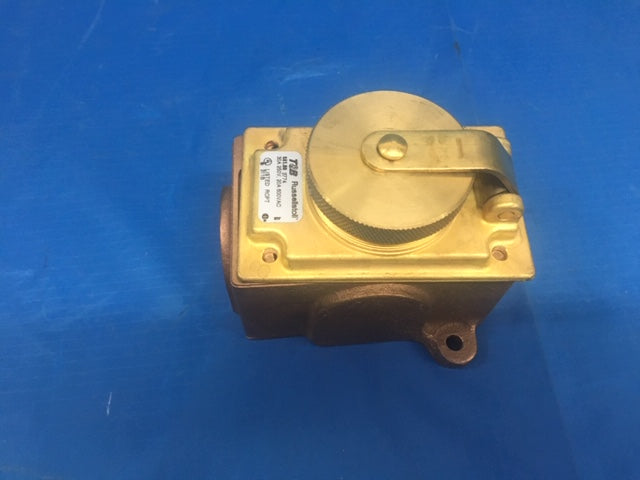

Electrical Receptacle Connector

NSN: 5935-00-435-2458 | Model: 3774
ITAR Registered seal

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connecto (s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lampholder; jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified) . For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-00-435-2458
DEMIL
NO
Body Style
Straight shape w/cover
Overall Length
3.469 inches
Overall Height
3.906 inches
Overall Width
4.531 inches
Unthreaded Mounting Hole Diameter
0.120 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width
4.469 inches
Mating End Quantity
1
Contact Removability
Nonremovable single mating end single contact grouping
Contact Maximum Current Rating In Amps
30.0 single mating end single contact grouping
Contact Maximum Ac Voltage Rating In Volts
250.0 single mating end single contact grouping
Contact Maximum Dc Voltage Rating In Volts
250.0 single mating end single contact grouping
Shell Type
Solid
Terminal Location
Side single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping
Insert Material
Plastic single mating end
Contact Surface Treatment Specification
Mil-g-45204 military specification single treatment response single mating end single contact grouping
Terminal Type
Screw single mating end single contact grouping
Shell Material
Copper alloy
Included Contact Quantity
4 single mating end single contact grouping
Included Contact Type

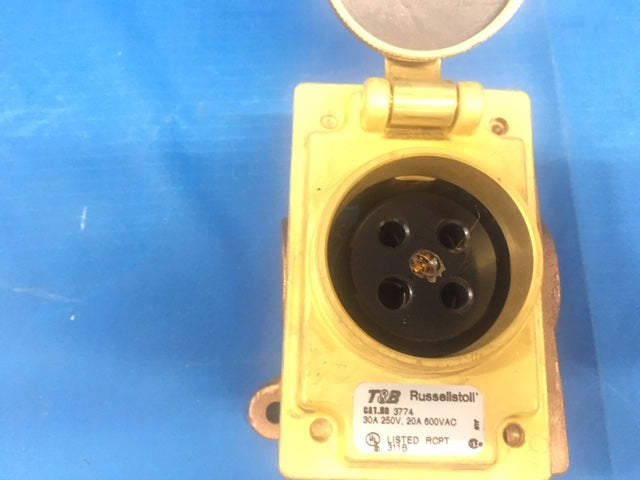

Round socket single mating end single contact grouping
Special Features
Junction box
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.004 gold grains, troy
Precious Material
Gold
