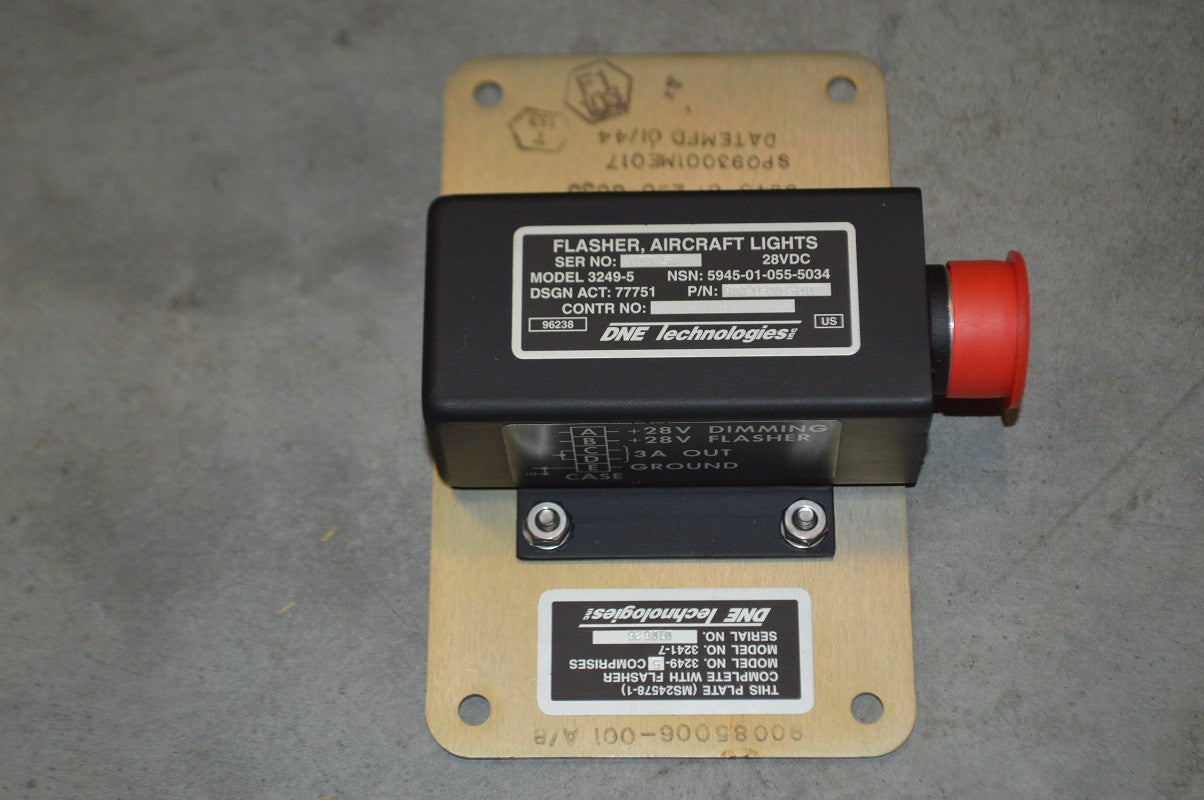

Thermal Flasher NSN: 5945-01-055-5034 P/N: 160C145950-1
Please fill out the form below for a price quote and availability on this item.
An item designed to complete, interrupt or change the connections in one or more electrical lighting circuits in accordance with a predetermined time cycle. it is actuated by the effect of heat generated by current passing through its circuit(s). excludes control, directional signal light, automotive, and switch thermostatic. see also flasher, solid state.
Technical Characteristics |
|
| Actuation Type: | Thermal |
| Battery Operation Facility: | Not provided |
| Controlled Circuit Quantity: | 2 |
| Dc Voltage Rating: | 26.0 volts minimum and 30.0 volts maximum |
| Adjustability: | Nonadjustable |
| Mounting Configuration: | Four 0.175 in. dia mtg holes spaced equally on 2.000 in. by 2.500 in. mtg centers |
| Overall Height: | 1.880 inches nominal |
| Overall Length: | 4.520 inches nominal |
| Overall Width: | 3.000 inches nominal |
| Terminal Quantity: | 1 |

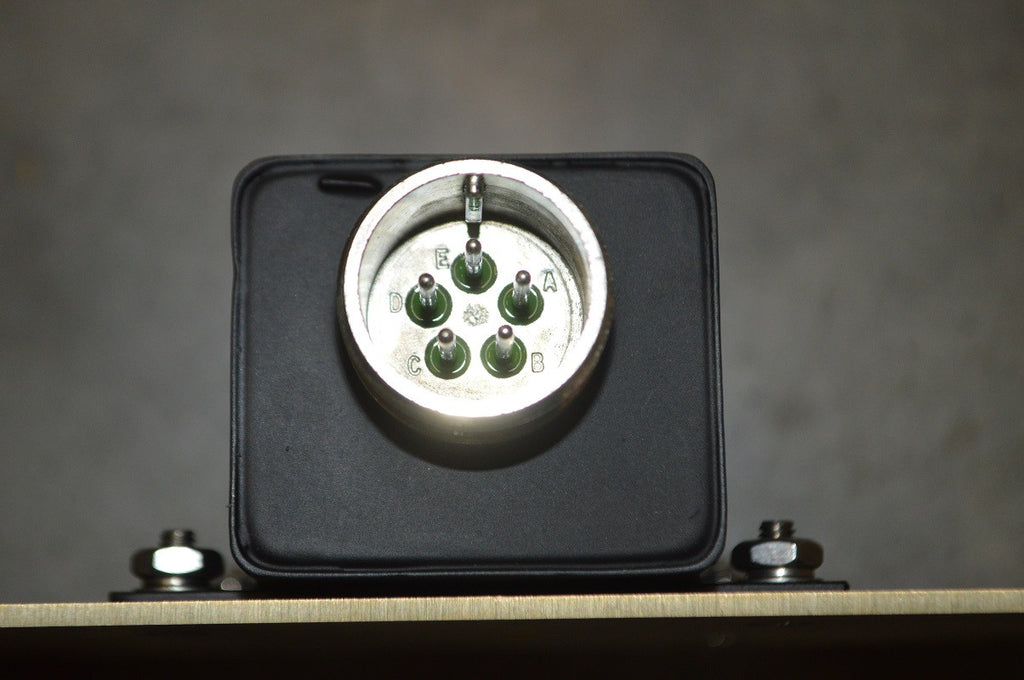

| Terminal Type: | Connector, receptacle |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
