Pomona 3781-36-2 Test Lead NSN 6625-01-023-4954

Please fill out the form below for a price quote and availability on this item.

Test Lead

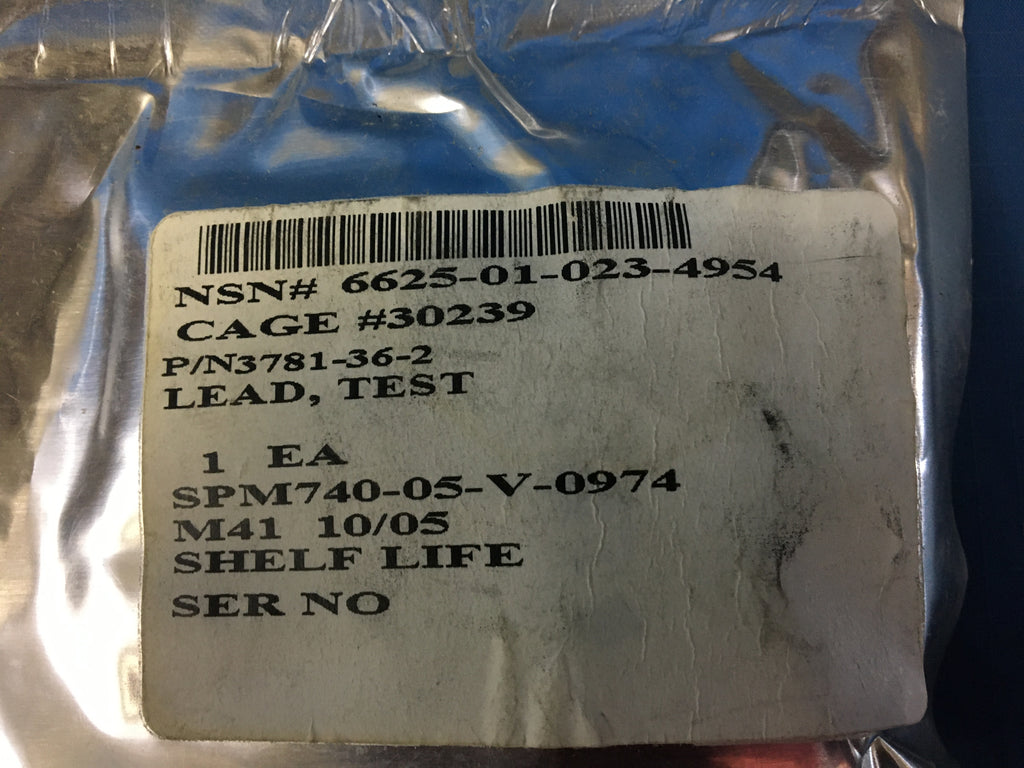

NSN:6625-01-023-4954       Model:35F1036       P/N:3781-36-2
ITAR Registered seal

A definite length of wire or cable with a clip (1), electrical; connector, plug, electrical; connector, receptacle, electrical; jack, telephone; plug, telephone; jack, tip; plug, tip; or the like on one or both ends, and prod, test on either end but not both ends. Active electronic components such as capacitors, electron tube, resistors, semiconductor devices, and the like may be mounted into and included with lead, test for attenuation or amplification purposes. May or may not include accessories, such as clip (1), electrical; tip, test prod; prod, test; and test lead attachment. For items consisting of more than one lead, test see lead set, test. For items designed for direct attachment to a lead, test see prod, test. For items designed for indirect attachment to a lead, test see test lead attachment. For items not specifically designed for test purposes see lead, electrical.

NSN Properties and Flags
NATO Stock Number
6625-01-023-4954
DEMIL
Yes - ITAR Controlled
Cross Sectional Shape
Round
Cross Section Outside Diameter
0.087 inches
Termination Type
Clip terminal both ends single conductor
Strand Quantity Per Conductor
41 single conductor
Conductor Form
Stranded single conductor
Round Conductor Size
20 awg single conductor
Strand Awg Size Per Conductor
36 single conductor
Color
Red 1st position cover single conductor
Material
Plastic polyvinyl 1st position primary insulation single conductor
Fsc Application Data
Elec, elect. Properties measuring and test instruments



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
