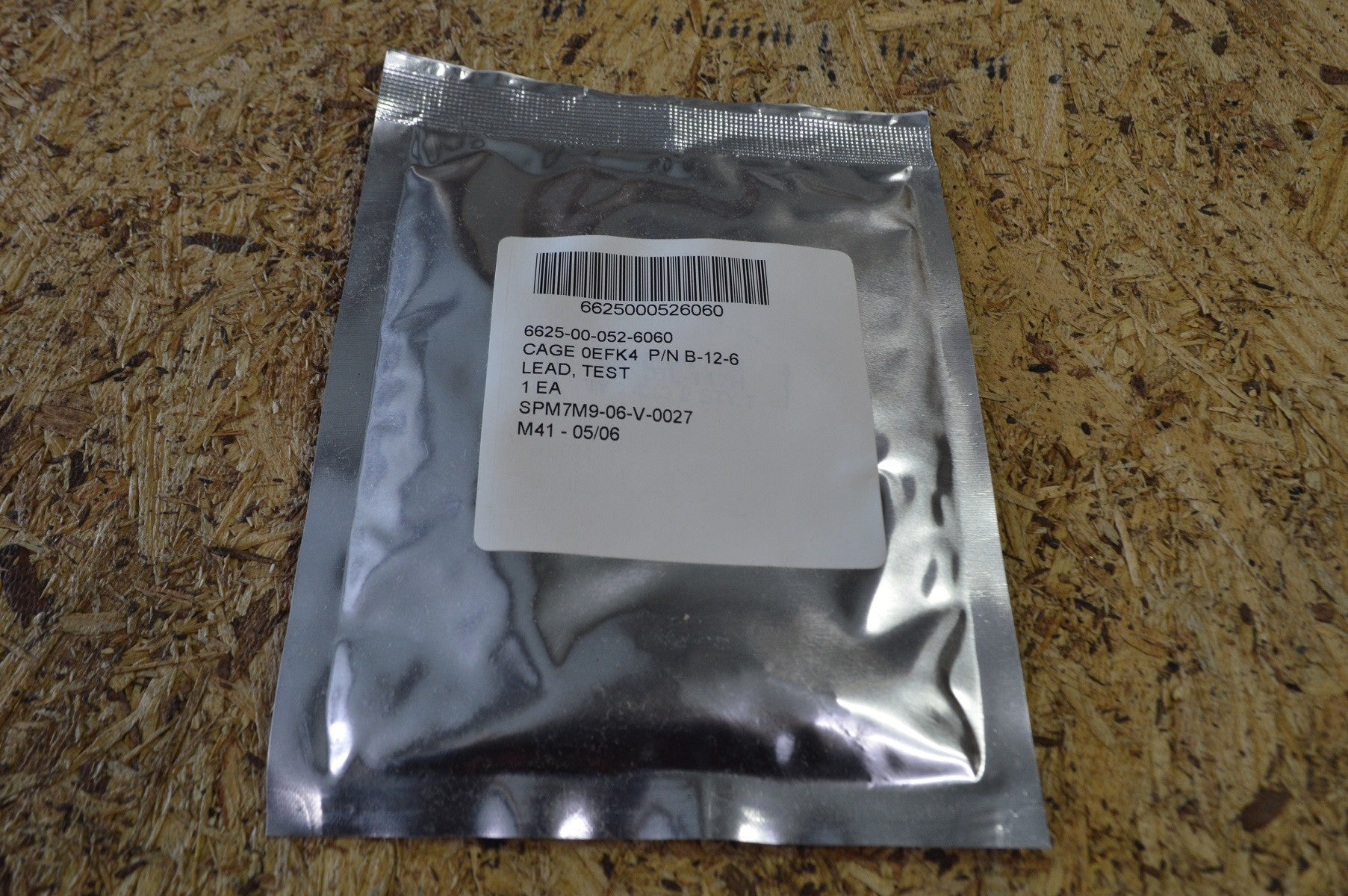

Test Lead NSN:6625-00-052-6060 P/N:B-12-6
Please fill out the form below for a price quote and availability on this item.
Test Lead- A definite length of wire or cable with a clip (1), electrical; connector, plug, electrical; connector, receptacle, electrical; jack, telephone; plug, telephone; jack, tip; plug, tip; or the like on one or both ends, and prod, test on either end but not both ends. active electronic components such as capacitors, electron tube, resistors, semiconductor devices, and the like may be mounted into and included with lead, test for attenuation or amplification purposes. may or may not include accessories, such as clip (1), electrical; tip, test prod; prod, test; and test lead attachment. for items consisting of more than one lead, test see lead set, test. for items designed for direct attachment to a lead, test see prod, test. for items designed for indirect attachment to a lead, test see test lead attachment. for items not specifically designed for test purposes see lead, electrical.
|Color:||Blue 1st position cover single conductor|
|Cross Section Outside Diameter:||0.125 inches nominal|
|Cross-sectional Shape Style:||Round|
|Conductor Form:||Stranded single conductor|
|Material:||Copper core conductor all conductors|
|Material:||Plastic polyvinyl chloride 1st position primary insulation single conductor|
|Round Conductor Size:||18 awg single conductor|
|Voltage Rating:||7500.0 maximum peak operating voltage single conductor|
|Strand Awg Size Per Conductor:||36 single conductor|
|Strand Quantity Per Conductor:||65 single conductor|
|Termination Type:||Connector plug both ends single conductor|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
