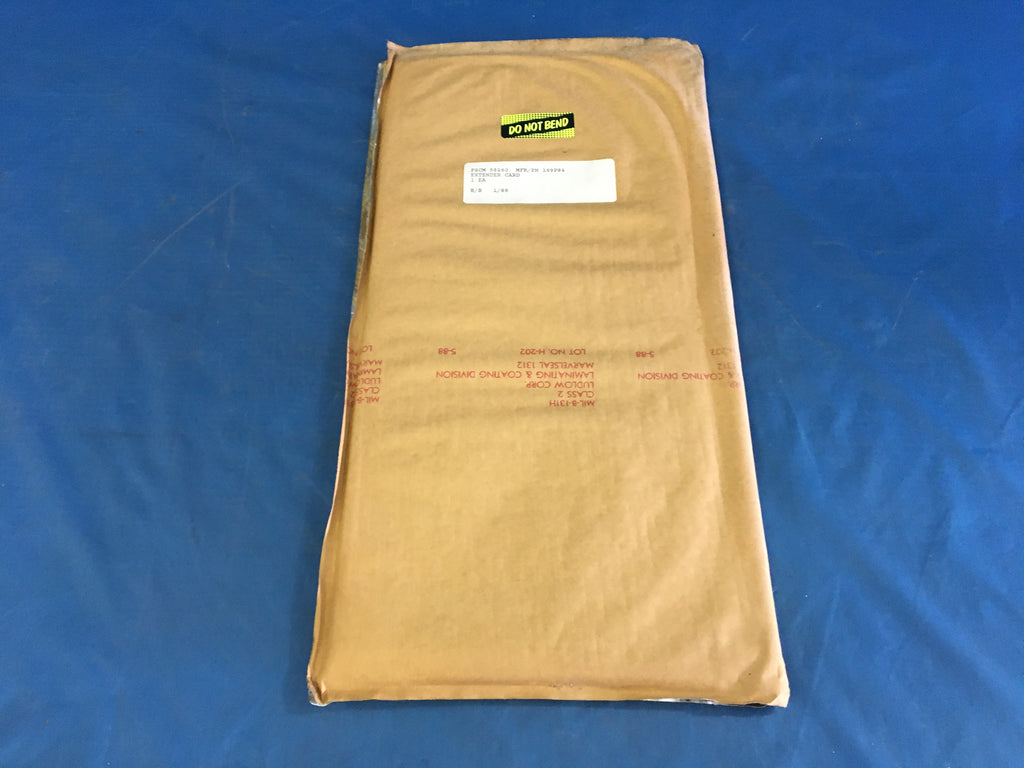

Vector Electronics 169P84 PC Board Epoxy Glass 8.5 x 17 NSN:5940-01-014-5490

Please fill out the form below for a price quote and availability on this item.

Terminal Board

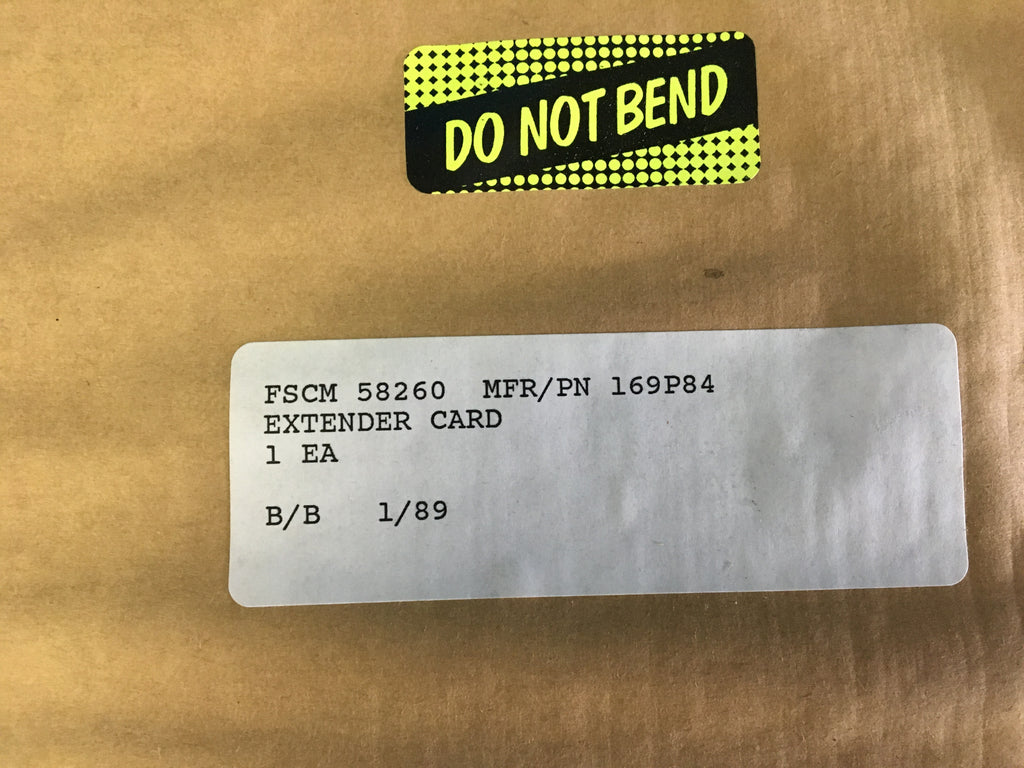

NSN:5940-01-014-5490     P/N:169P84      Model:169P79-062
ITAR Registered seal

An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal (s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as fuseholder; holder, resistor; fanning strip; contact assembly, electrical; jack assembly, tip; chamber, cable terminal; panel (2) (as modified); connector (as modified) . Excludes terminal, stud; terminal, feedthru, insulated; post, binding, electrical; and chassis, electrical-electronic equipment. For items having printed electrical conductor paths, see printed wiring board.

NSN Properties and Flags
NATO Stock Number
5940-01-014-5490
DEMIL
NO
Body Style
Strip type
Terminal Row Quantity
84
Center To Center Distance Between Terminals
0.100 inches
Distance Between Terminal Row Centers
0.100 inches
Board Construction
Solid construction
Boardlength
17.000 inches
Boardwidth
8.500 inches
Board Thickness
0.063 inches

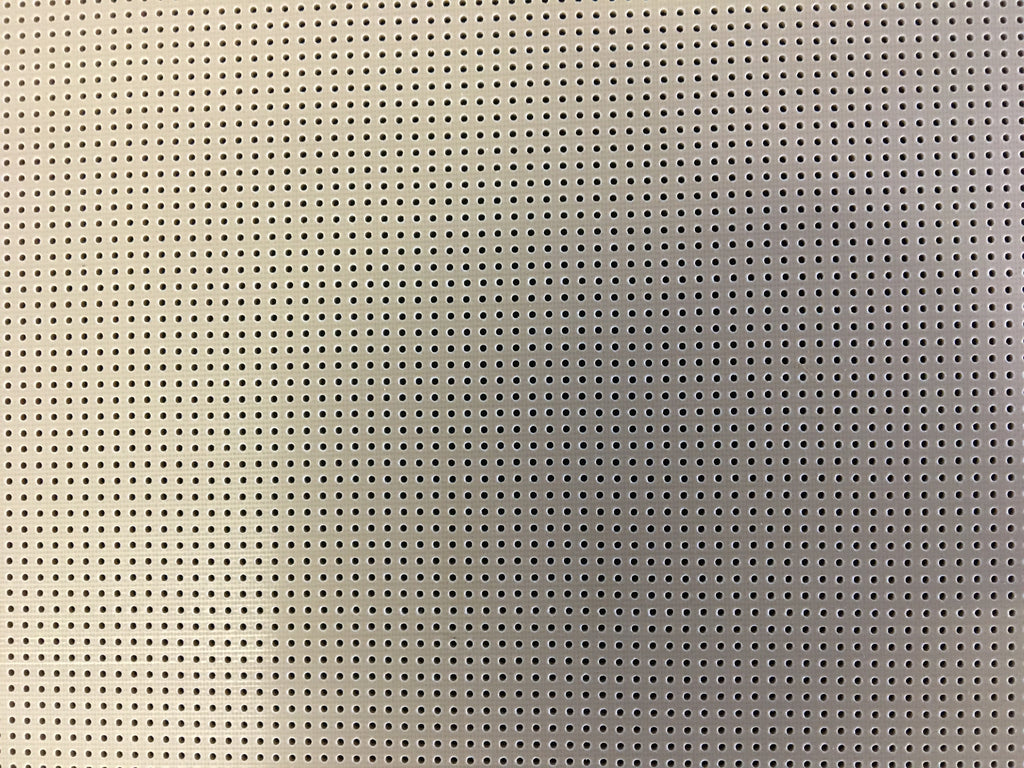

Terminal Pattern Arrangement
Multi-row
Terminal Design
Vertical feedthru
Material
Glass board and plastic epoxy board



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
