Hydra Electric 83184-2 Pressure Switch NSN:5930-01-126-8879

Please fill out the form below for a price quote and availability on this item.

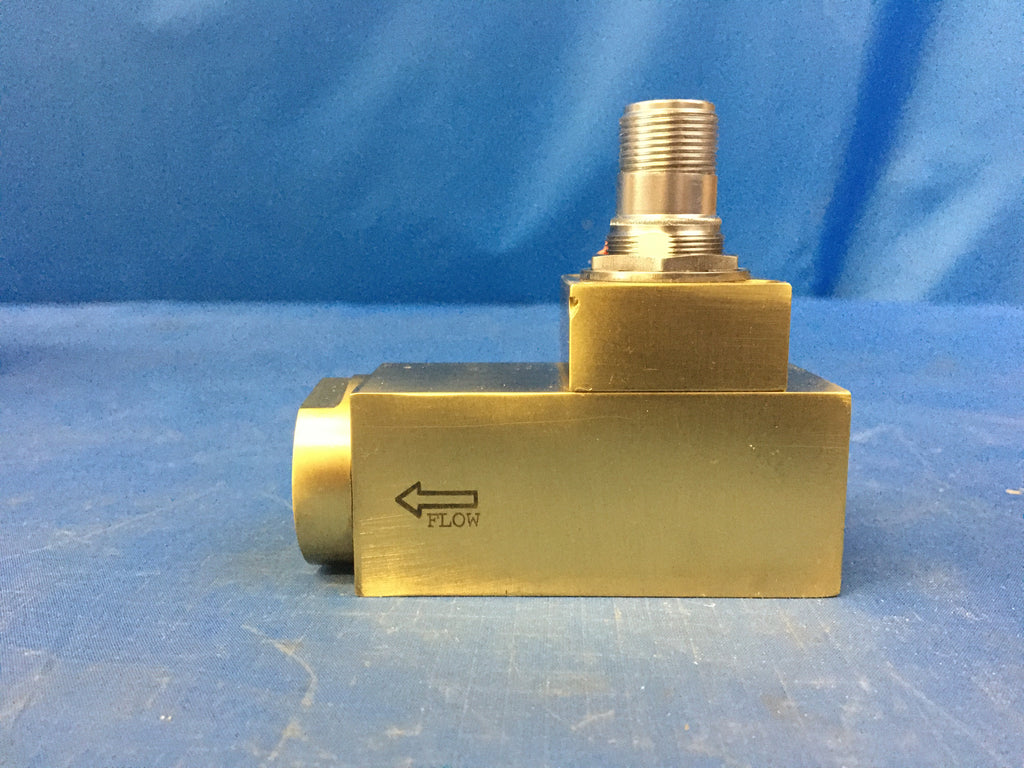

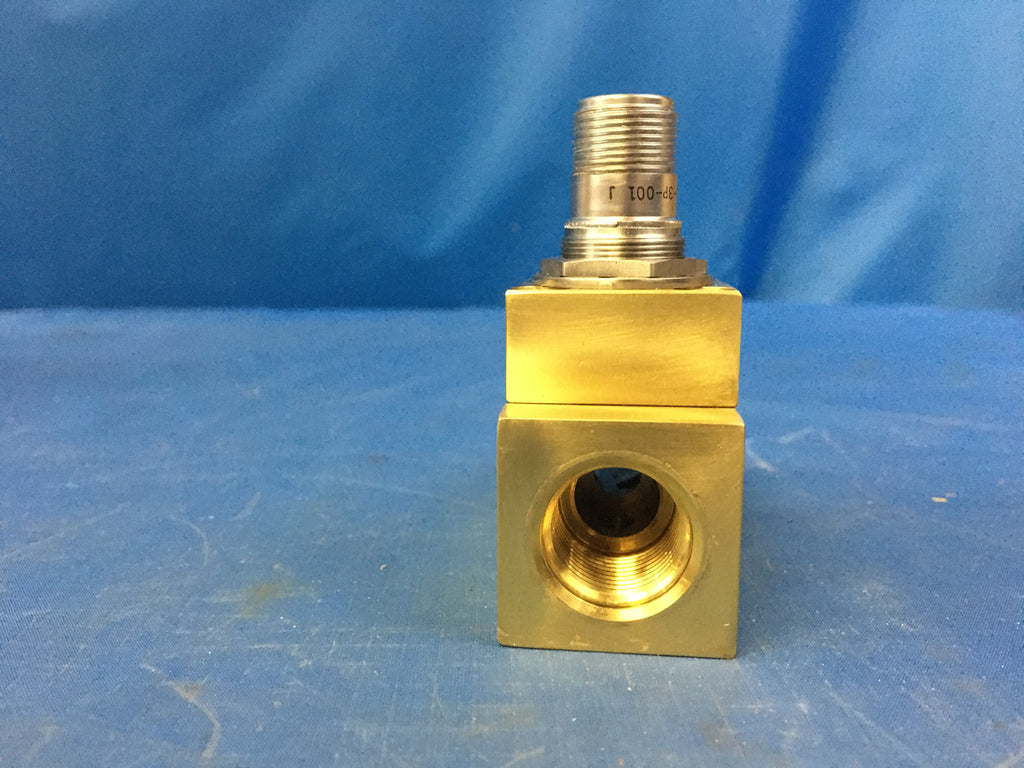

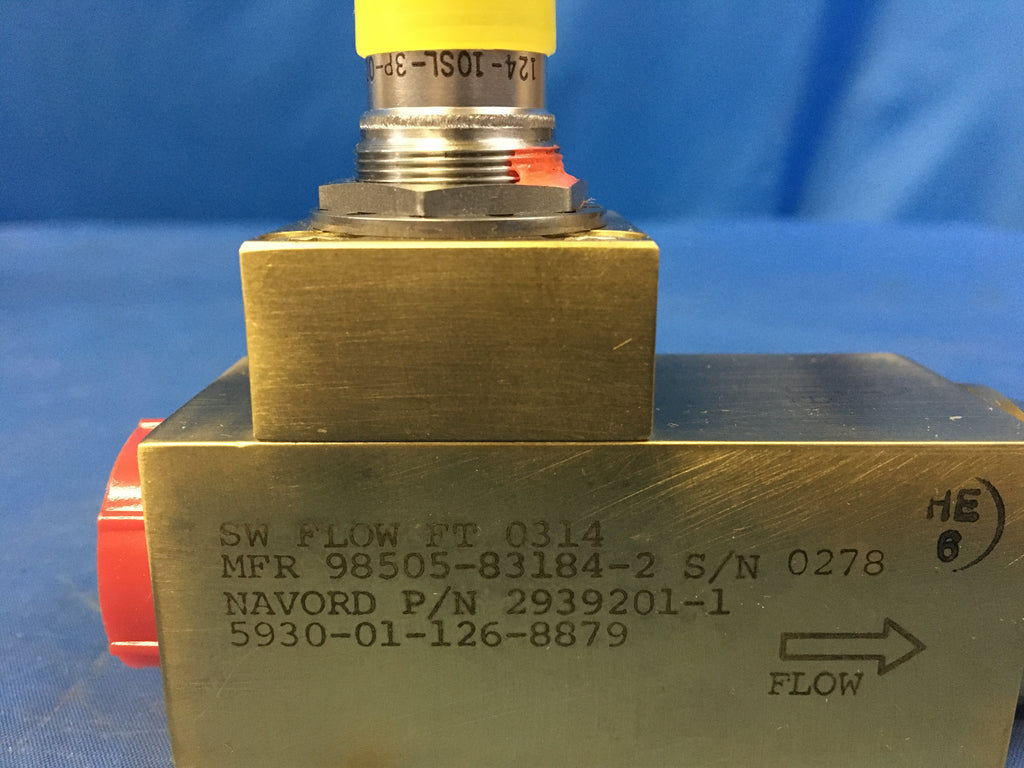

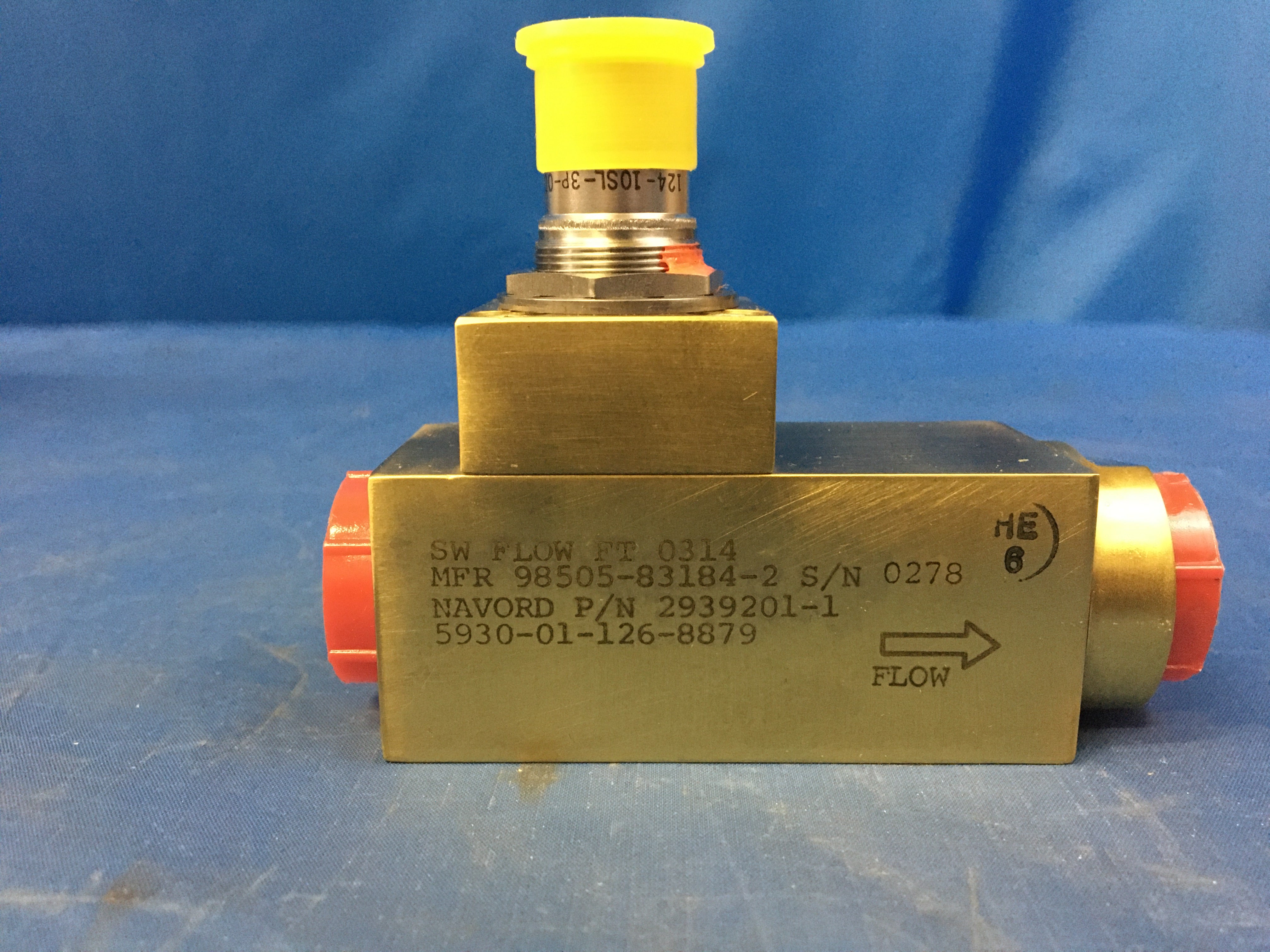

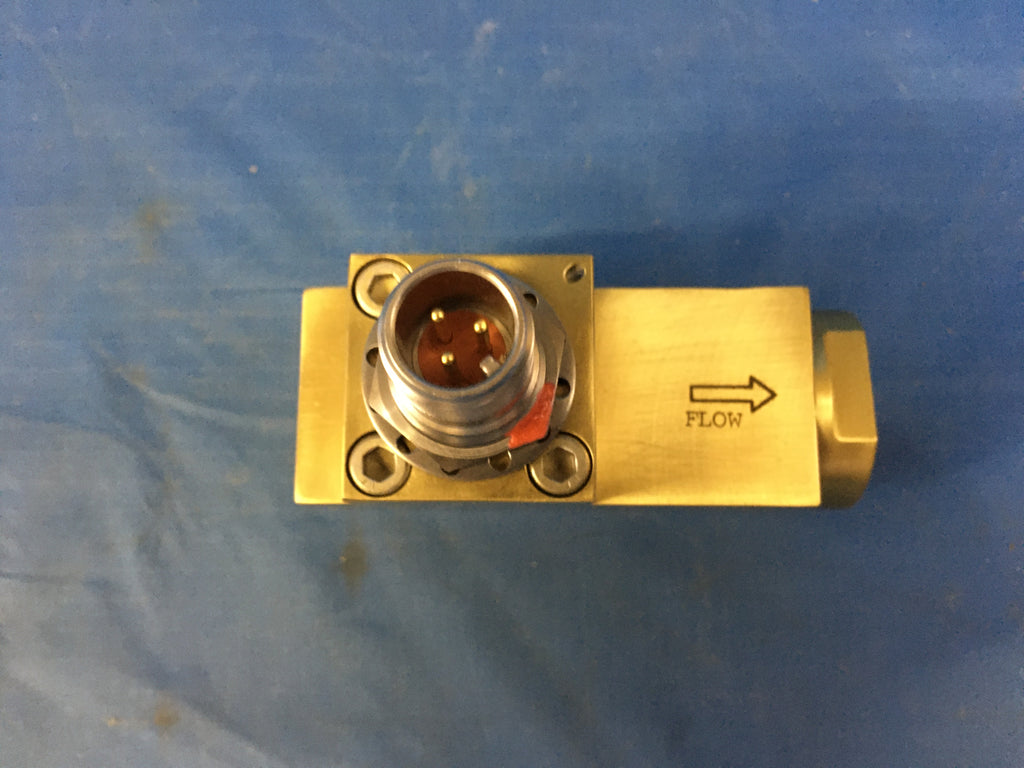

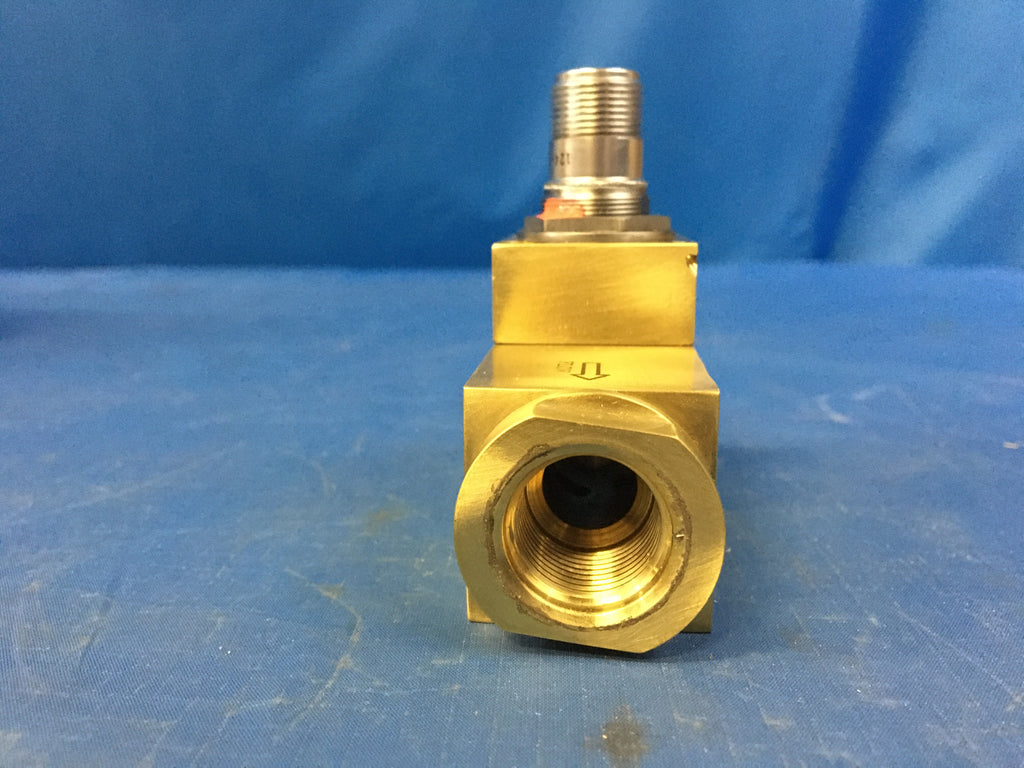

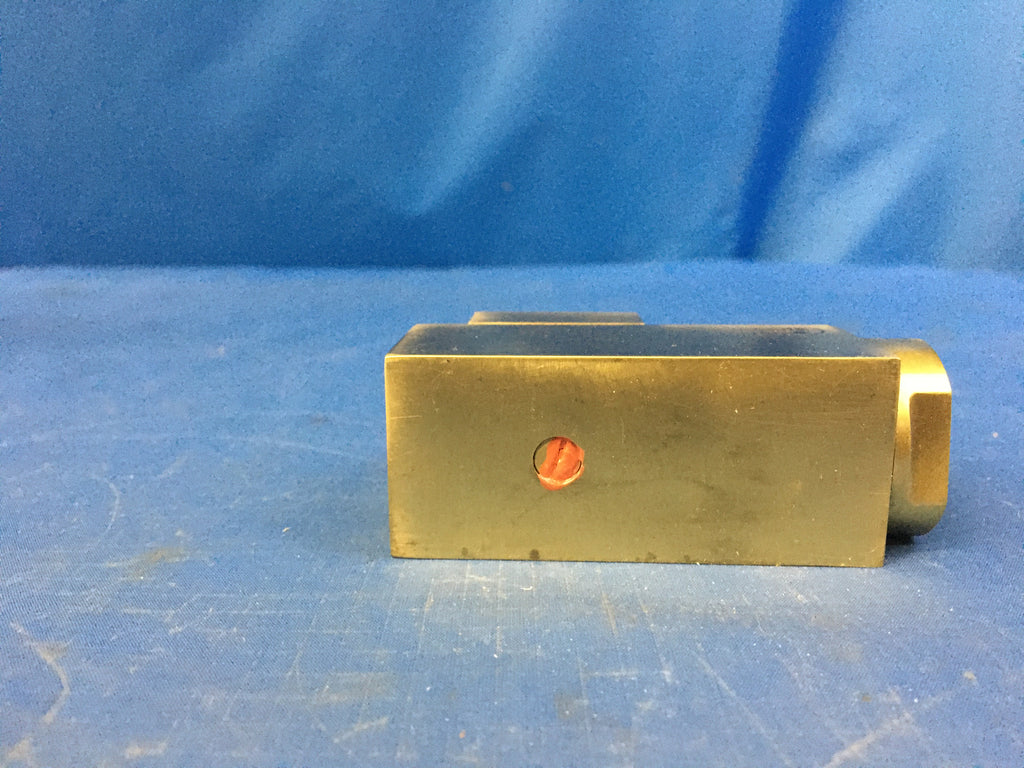

Pressure Switch

NSN: 5930-01-126-8879 | Model: 2939201-1
ITAR Registered seal

A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes baroswitch; switch, pressure-thermostatic; and switch, sensitive.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Class
3b all pressure connection
Inside Diameter
0.750 inches all connections
Hazardous Locations/environmental Protection
Moisture proof
Overall Length
3.250 inches
Overall Height
2.935 inches
Overall Width
Between 0.970 inches and 1.280 inches
Body Height
1.875 inches
End Application
Pressure Switch Type
Operating Tempurature Rating
Between -40.0 degrees celsius and 100.0 degrees celsius
Mounting Method
Inlet connection and outlet connection
Features Provided
Electrical box connector
Thready Qty Per Inch (tpi)
16 all pressure connection
Contact Action Stimulus
Thread Size
0.750 inches single pressure connection
Nonpile-up Contact Arrangement
1 pole, double throw, one position momentary
Terminal Type
Connector, receptacle
Contact Load Current Rating
250.0 milliamperes resistive load single voltage
Contact Adjustability
Deactuation point not adjustable and actuation point not adjustable
Contact Stimulus Rating
4.50 actuation point gallons per minute and 0.50 differential point gallons per minute
Contact Voltage Rating In Volts
28.0 dc at sea level single voltage
Pressure Connector Type
Plain, threaded internal all connections
Media For Which Designed
Style Designator
Thread Series Designator
Unf all pressure connection

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
