SUNBANK
NSN 5935-01-312-4656

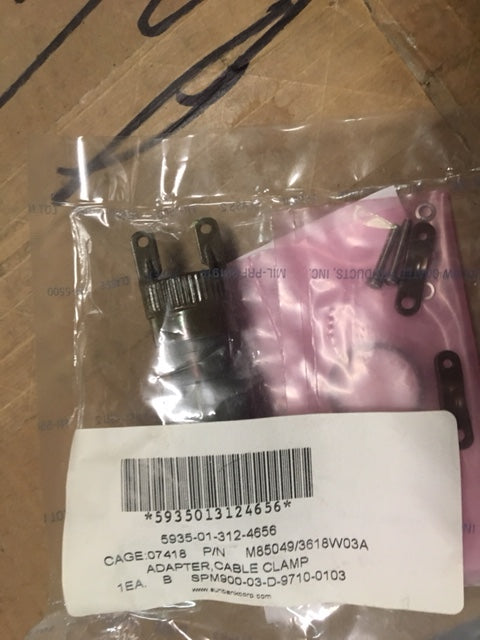

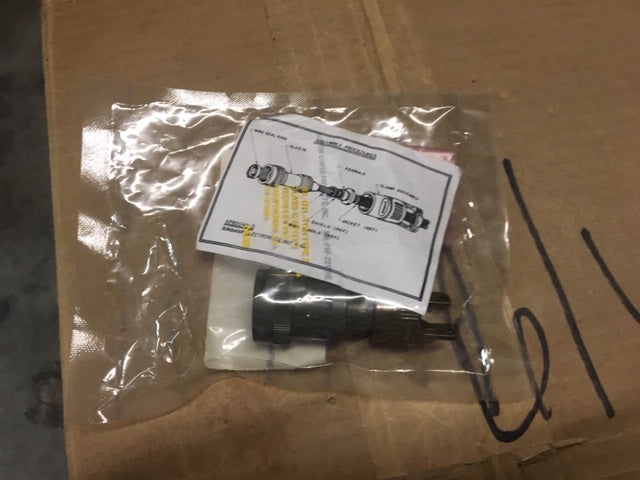

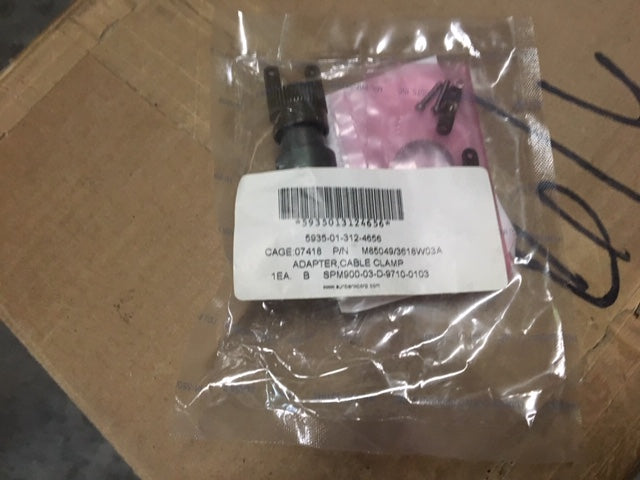

Sunbank Electrical Connector Backshell w/ Clamp P/N:M85049/3618W03A NSN:5935-01-312-4656
Regular price
$19.99
Electrical Connector Backshell
SKU: 5935013124656 | Model: M85049/3618W03ANSN 5935-01-312-4656
Specifications from the Manufacturer
Thread Class:
2b
Thread Direction:
Right-hand
Overall Length:
3.844 inches maximum
Overall Height:
1.062 inches maximum
Overall Width:
1.400 inches maximum
Cable Opening Diameter:
0.250 inches minimum and 0.375 inches maximum
Cable Opening Quantity:
1
Size Designation:
18
Mounting Facility Type And Quantity:
1 threaded coupling
Thread Quantity Per Inch:
18
Nominal Thread Size:
1.062 inches
Material:
Aluminum alloy
Surface Treatment:
Cadmium and chromate
Style Designator:
Straight type w/cable clamp
Surface Treatment:
Cadmium and chromate
Test Data Document:
81349-mil-c-85049 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Thread Series Designator:
Unef
Specification/standard Data:
81349-mil-c-85049/36 government specification
