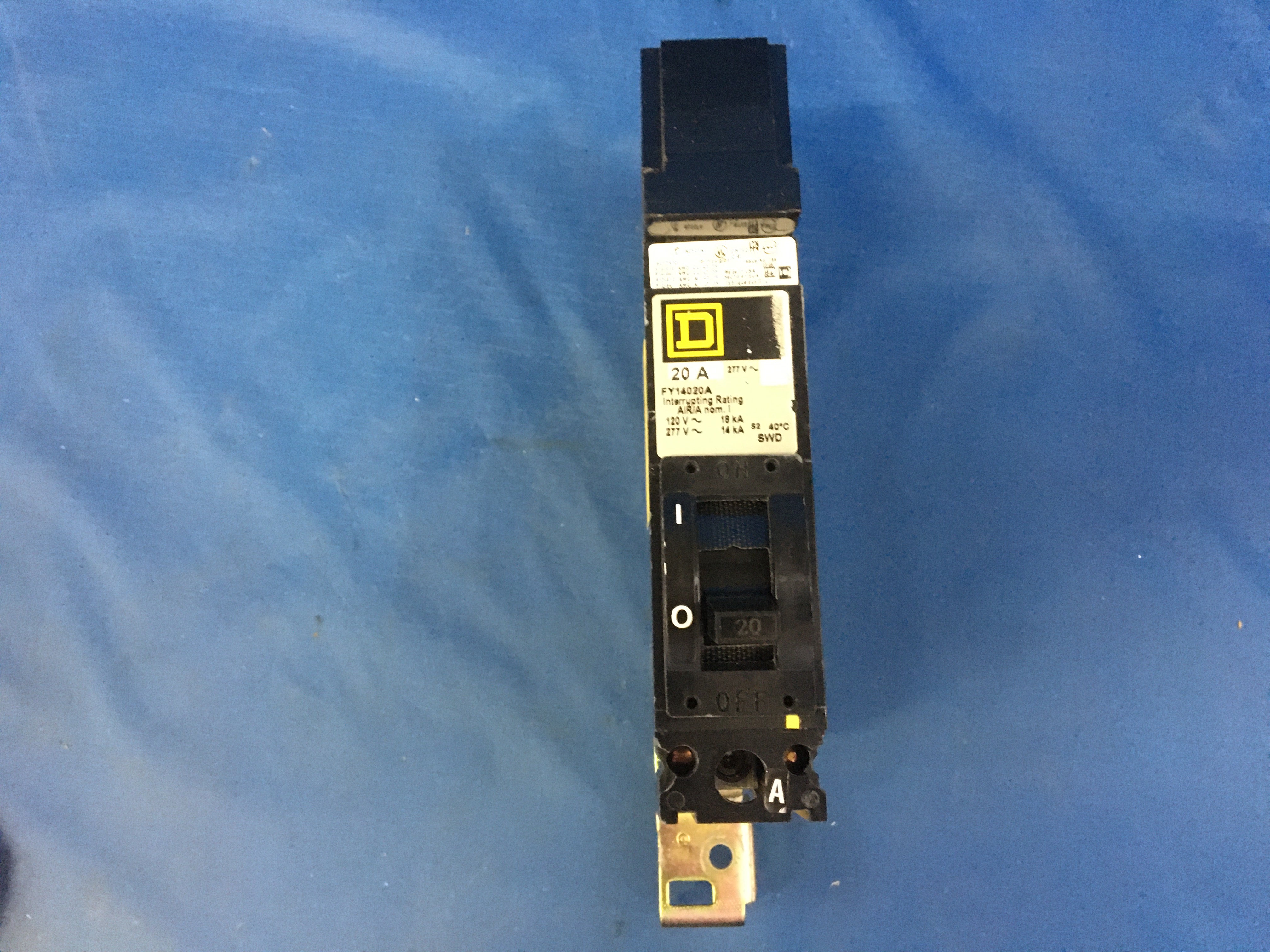

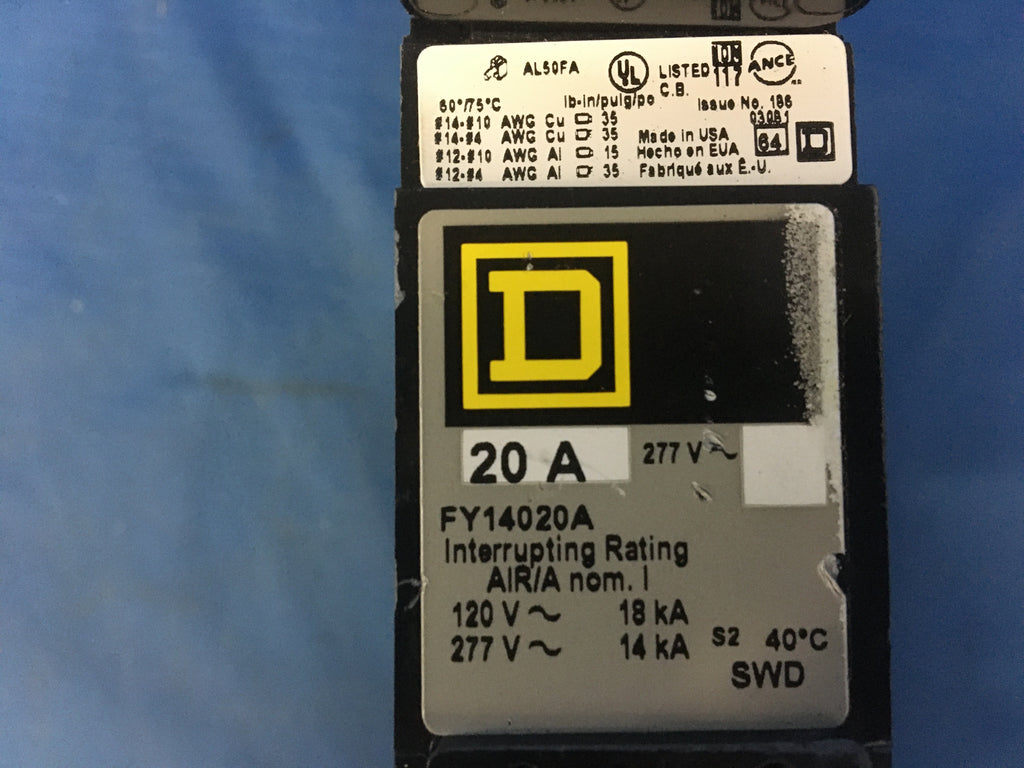

Square D FY14020A Circuit Breaker 1P/20A/277V
Please fill out the form below for a price quote and availability on this item.
NEW!!! MILITARY SURPLUS....CODE CONDITION A.....NO BOX
Square D FY14020A Industrial Electric Thermal Magnetic Molded Case Circuit Breaker
- 20 Amp
- 277 Volt
- 1 Pole
- Standard Interrupt
- I-Line
- Rated For Switching Duty
- A Phase Connection
FY-Frame(15-100 Amp)
|
F Frame
|
||||
|
Item Code:
|
FY14020A
|
|||
|
F
|
Frame Type
|
|||
|
Y
|
Interrupt
|
|||
|
-
|
Termination
|
|||
|
1
|
Number of Poles
|
|||
|
4
|
Volts
|
|||
|
20
|
Amps
|
|||
|
A
|
Suffix
|
|||
|
Options:
|
|||||||
|
Frame
|
Interrupt
|
Termination
|
Poles
|
Voltage
|
Amperage
|
Suffix
|
|
|
F
|
A=Standard
|
None=I-Line
|
1
|
2=240Vac
|
015
|
F=Frame Only
|
|
|
C=Extra High
|
F=No Lugs
|
2
|
2=120V(1 Pole)
|
020
|
G=Ground Fault
|
||
|
H=High
|
L=Lugs Both Ends
|
3
|
4=480V
|
025
|
DC=500Vdc
|
||
|
I=Current Limiting
|
P=Lugs Off End
|
4=277V(1 Pole)
|
030
|
M=Molded Case Switch
|
|||
|
Y=Standard(F Frame)
|
6=600V
|
035
|
MT=Top Feed Lugs
|
||||
|
6=500Vdc
|
040
|
V=View Window
|
|||||
|
6=277V(1 Pole)
|
045
|
##DC=Adj Amp DC Trip
|
|||||
|
050
|
(-)##M=MAG-GARD Adj Inst Trip
|
||||||
|
060
|
##M=MAG-GARD Mag Only Trip
|
||||||
|
070
|
|||||||
|
080
|
|||||||
|
090
|
|||||||
|
100
|
|
Interrupting Capacity Rating
|
||||
|
Poles
|
240 VAC
|
480 VAC
|
600 VAC
|
|
|
FA Frame Type
|
1,2,3
|
25kAIC
|
18kAIC
|
14kAIC
|
|
FH Frame Type
|
1,2,3
|
25kAIC(1P),65kAIC(2,3P)
|
25kAIC(2,3P)
|
18kAIC(2,3P)
|
|
FC Frame Type
|
1,2,3
|
100kAIC
|
65kAIC
|
-
|
|
FI Frame Type
|
1,2,3
|
200kAIC
|
200kAIC
|
100kAIC
|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
