Lockheed Martin Nonmetallic Special Shaped Section NSN:9390-00-081-6269 Model:LS37212-1

Please fill out the form below for a price quote and availability on this item.

Nonmetallic Special Shaped Section

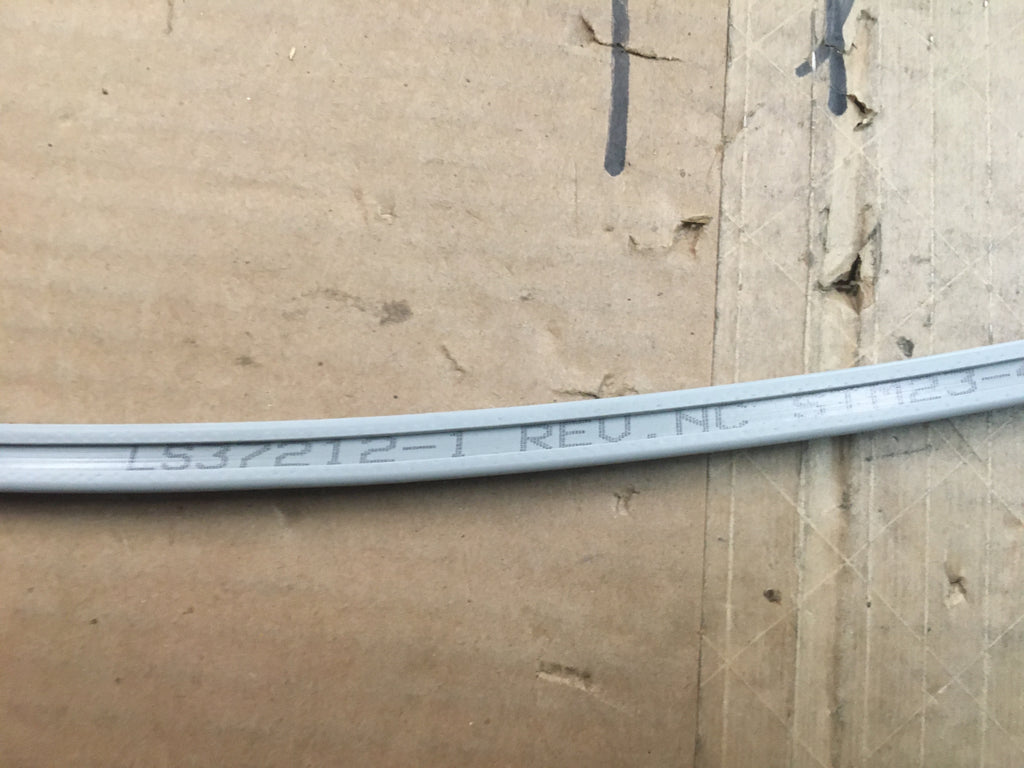

NSN: 9390-00-081-6269 | Model: LS37212-1
ITAR Registered seal

A structural shape fabricated from nonmetallic material (s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes seal, nonmetallic special shaped section.

NSN Properties and Flags
NATO Stock Number
9390-00-081-6269
DEMIL
Yes - ITAR Controlled

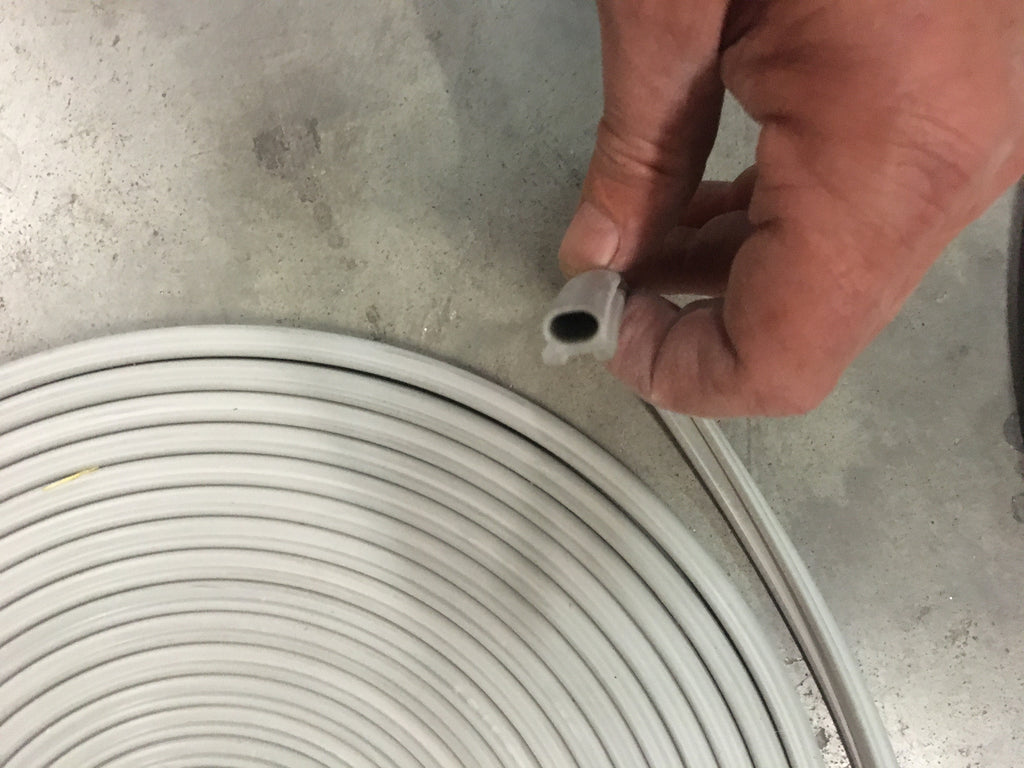

Cross Sectional Shape
Hollow section, base flange
Nonmetallic Hardness Rating
45.0 shore barometer a and 55.0 shore barometer a
Min. Tensile Strength (psi)
1000 pounds per square inch
Tempurature Rating
-65.0 degrees Fahrenheit and 400.0 degrees Fahrenheit
Overall Height
0.410 inches
Environmental Protection
Tear resistant and low temperature and high temperature
Inside Radius
0.120 inches
Base Flange Thickness
0.110 inches
Base Flange Width
0.440 inches
Outside Radius
0.160 inches
First Slot/groove Width
0.190 inches
Special Features
Color, gray
Material
Rubber



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
