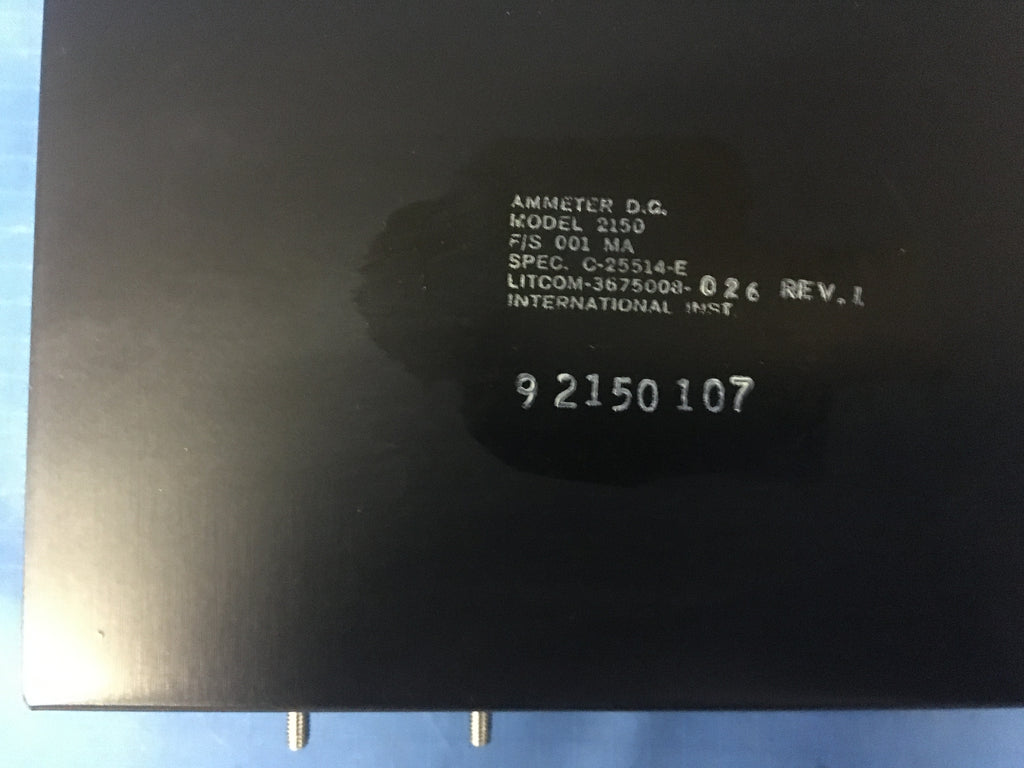

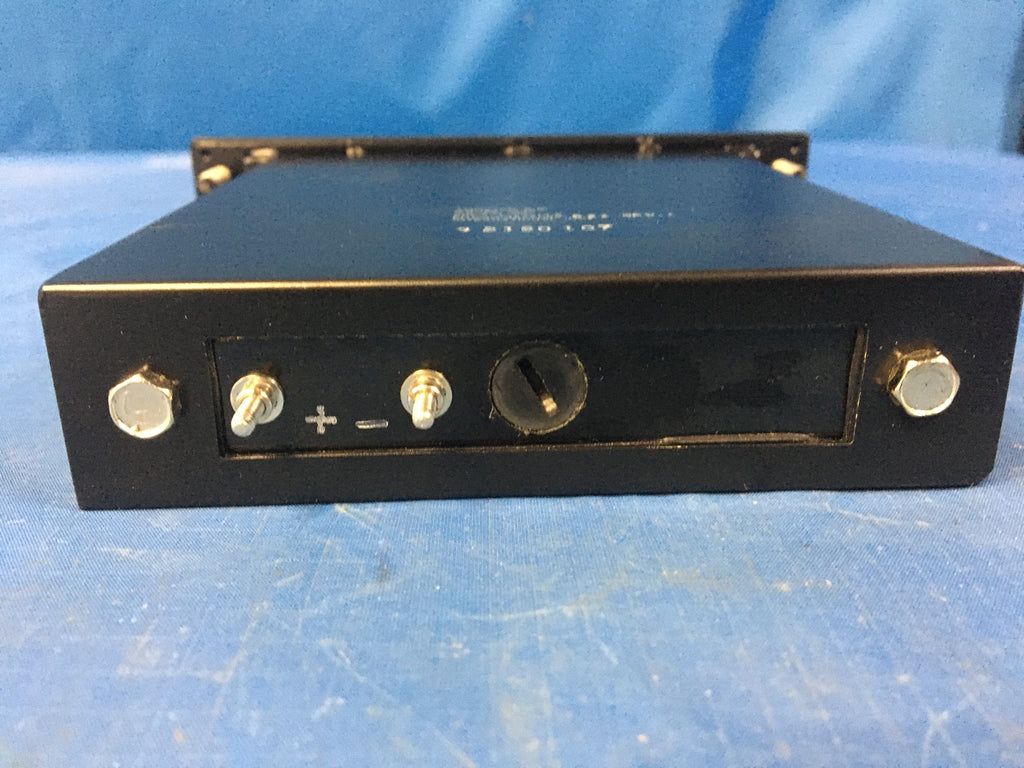

NOS Northrop Grumman Systems Corp Special Scale Meter NSN:6625-01-012-6560 P/N:3675008-026 Model:9-2150-107
Please fill out the form below for a price quote and availability on this item.
Special Scale Meter
NSN:6625-01-012-6560 P/N:3675008-026 Model:9-2150-107
Schedule B & Trade:
- Schedule B: 9030908030 (NAICS 334515)
Parts and accessories of articles of schedule b subheading 9030.39
- SITC: 87479
Parts and accessories for instruments and apparatus (except meters) measuring etc. Electrical quantities and devices measuring etc. Ionized radiations
- End Use: 21160
Measuring, testing, control instruments
NSN Properties and Flags
NATO Stock Number
6625-01-012-6560
DEMIL
Yes - ITAR Controlled
Circuit Current For Which Designed
Dc
Dielectric Withstanding Voltage In Volts
1500.0
Overall Length
7.730 inches
Center To Center Distance Between Mounting Facilities Parallel To Length
Between 6.043 inches and 6.057 inches
Center To Center Distance Between Mounting Facilities Parallel To Width
Between 0.718 inches and 0.732 inches
Overall Height
1.530 inches
Overall Width
6.700 inches
Mounting Hole Diameter
0.190 inches
Scale Division Quantity
30 single indicator single range
Environmental Protection
Humidity resistant and shock resistant and vibration resistant
Furnished Items And Quantity
Nut 8; washer 16
Indicator Type
Dial w/pointer
Installation Design
Panel
Mounting Arrangement Style
Four hole/stud rectangular/square
Sensitivity Rating
20.0 milliamperes
Dial Scale Marking Color
Black single indicator single range
Accuracy In Percent
-2.0/+2.0 at full scale single indicator single range
Unable To Decode
Unable to decode or unable to decode
Meter Depth Behind Mounting Flange
5.770 inches
Meter Body Width Behind Mounting Flange
5.450 inches
Movement Type
Moving coil, permanent magnet
Background Color
White single indicator single range
Pointer Color
Black single indicator single range
Scale Marking
Psig 0; 10; 20; 30
Mounting Facility Type And Quantity
4 screw and 4 unthreaded hole
Scale Graduation Type
Linear single indicator single range
Meter Body Height Behind Mounting Flange
1.225 inches
Features Provided
Electrical overload protection and luminous scale marking and non glare glass and self-illumination facility and zero adjuster
Movement Suspension Method
Jewel pivot base
Circuit Attachment Method And Quantity
2 threaded stud
Operating Voltage Rating In Volts
28.0 dc
Special Features
Edgewise mtg; ruggedest
Material
Steel
Nuclear Hardness Critical Feature
Nonhardened
Surface Treatment
Paint
Special Test Features
Drawing iaw MIL-STD-100A; vibration iaw MIL-STD-167; shock iaw MIL-S-901; marking iaw MIL-STD-130; sealing iaw MIL-STD-108D
Style Designator
Rectangular semi-flush mtg
Supplementary Features
Damping factor 2.5 max; response time 2 sec max; insulation res 20 megohms min
Fsc Application Data
Test set, elect. Equip.
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
