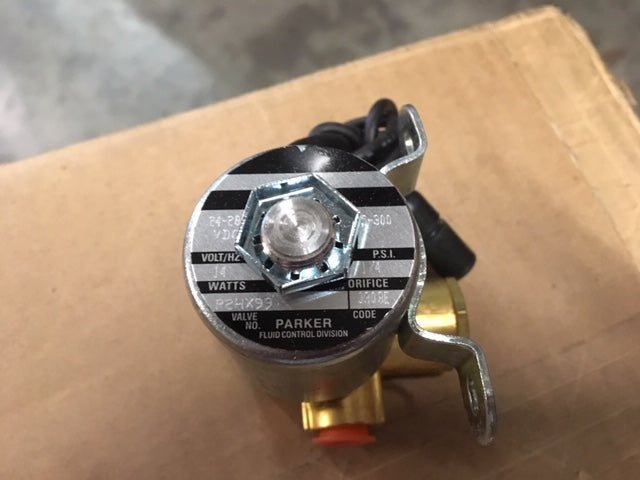

.25" Solenoid Valve Model: 11669826 NSN: 4810-01-140-8221

Please fill out the form below for a price quote and availability on this item.

Solenoid Valve-A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. it is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. the valve may be equipped with a manual opening or closing device. for items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see valve (1), linear, directional control. it may be inline or cartridge (manifold) design. excludes valve (1), butterfly.



Connection Style: Plain,optional end(pipe) all ends
Connection Type: Threaded internal pipe all ends
Current Rating In Amps: 0.720
Flow Control Device Normal Operation Position: Closed
Flow Control Device: Stem
Mounting Position: Horizontal
Nominal Thread Size: 0.250 inches 1st end
Inlet/outlet Operating Pressure Differential: 2.0 pounds per square inch nominal
Test Data Document: 19207-11669826 drawing (this is the basic governing drawing, such as a contractor drawing, original equipment manufacturer drawing, etc.; excludes any specification, standard or other document that may be referenced in a basic governing drawing)
Thread Direction: Right-hand 1st end
Thread Series Designator: Npt all ends
Valve Operation Method: Solenoid
Voltage In Volts And Current Type: 24.0 dc and 28.0 dc

    This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
