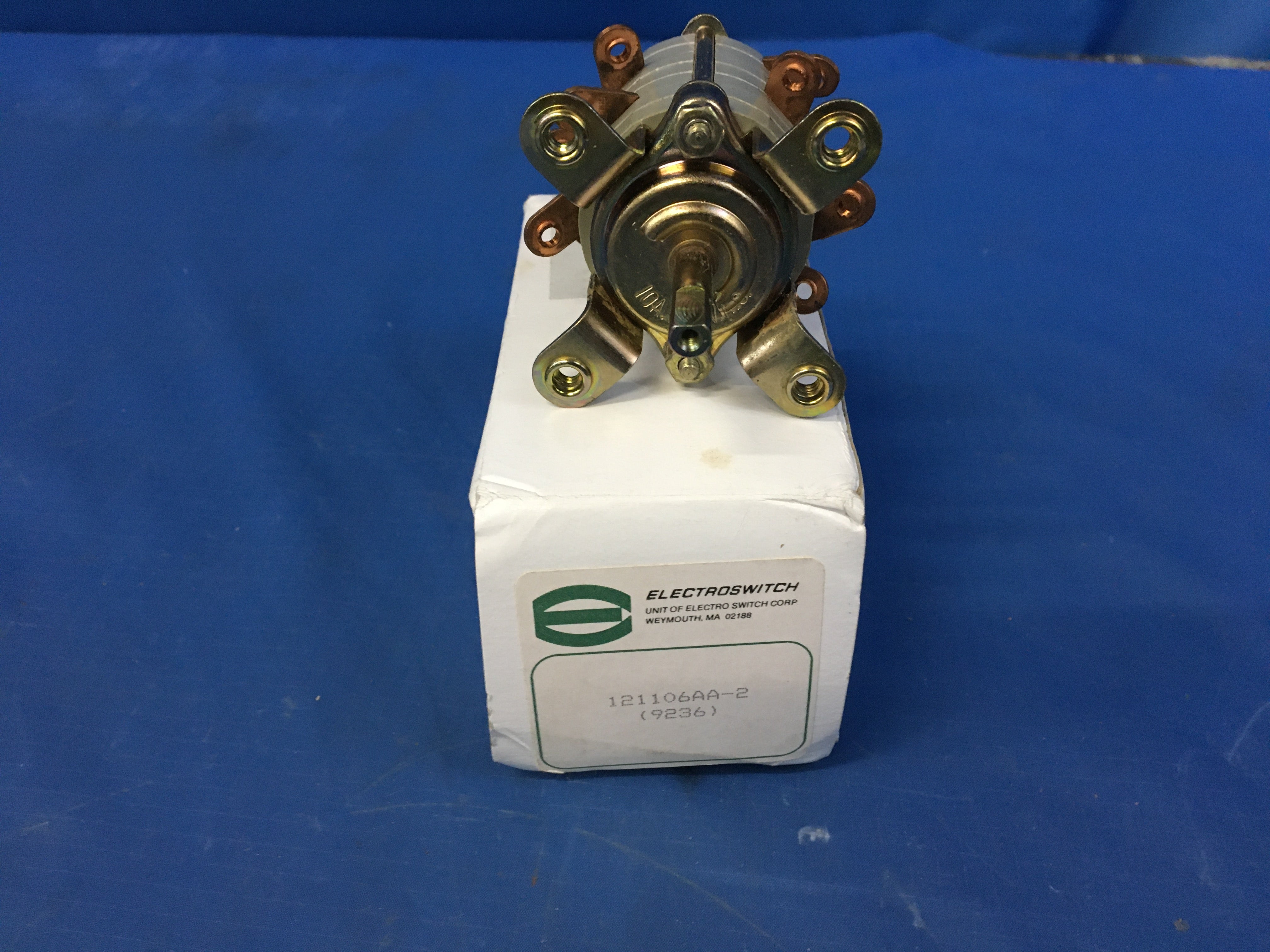

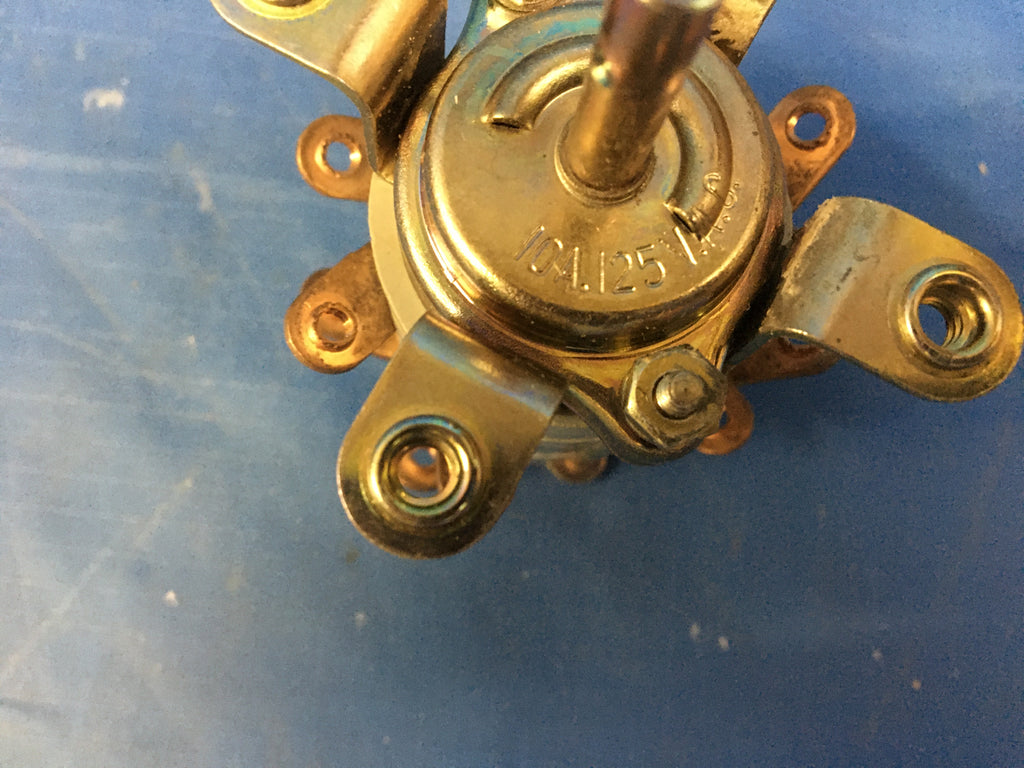

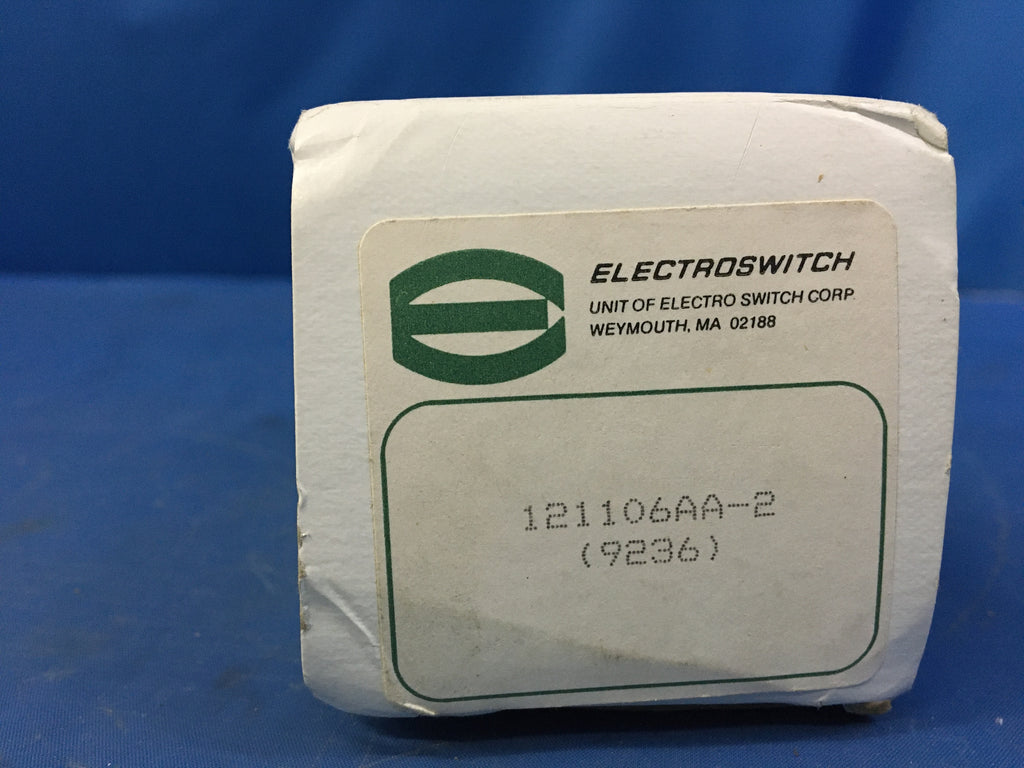

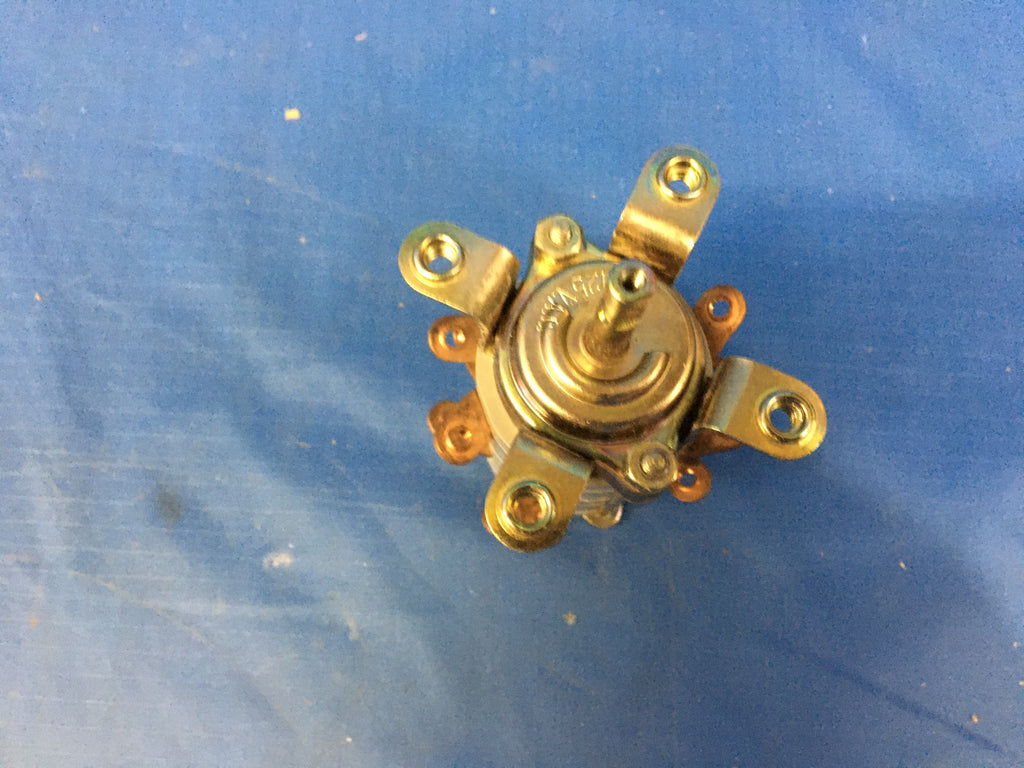

ElectroSwitch 121106AA-2 Rotary Switch 10A 125V NSN:5930-01-320-7710

Please fill out the form below for a price quote and availability on this item.

Rotary Switch

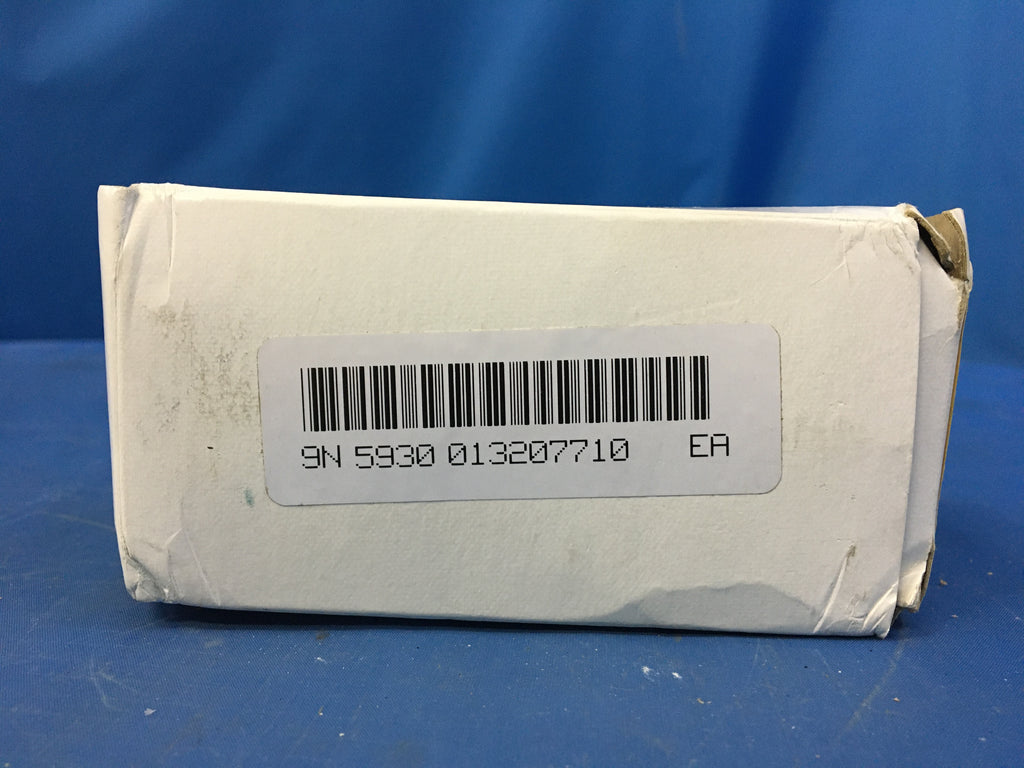

NSN: 5930-01-320-7710 | Model: G450725-1
ITAR Registered seal

A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see switch, sensitive. Excludes relay, rotary; switch, stepping; and switch, telephone (as modified).

NSN Properties and Flags
NATO Stock Number
5930-01-320-7710
DEMIL
Yes - ITAR Controlled
Overall Length
3.953 inches
Overall Diameter
2.500 inches

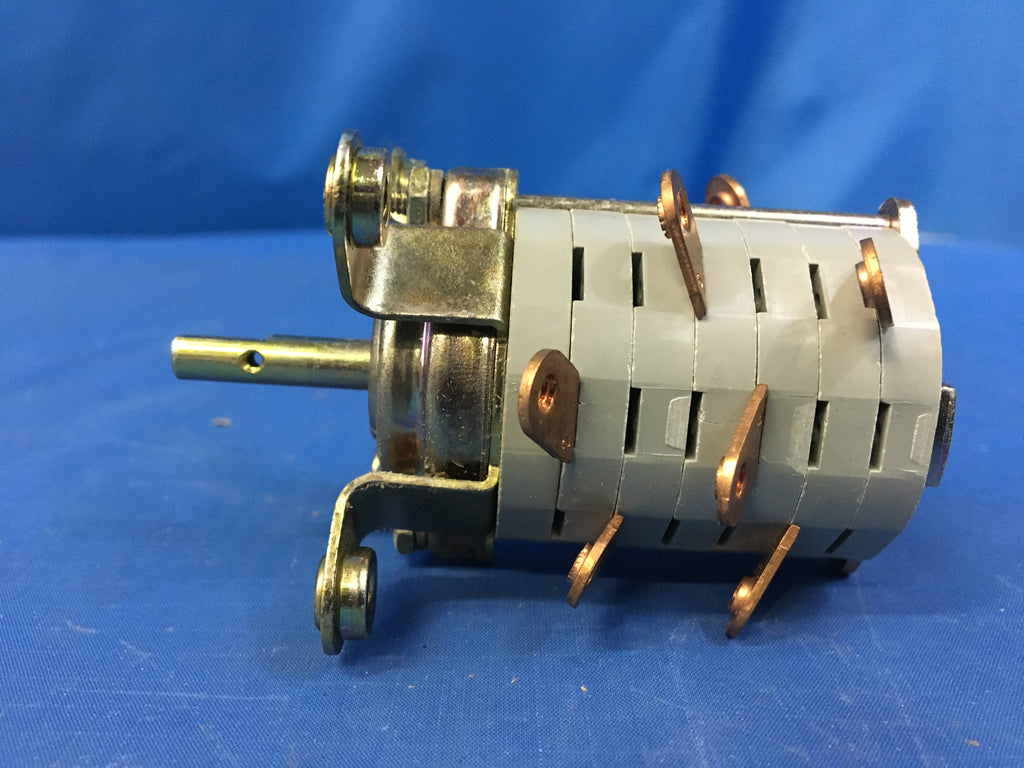

Individual Section Quantity
6
Switch Contact Basic Design
Nonpile-up nonsymmetrical
Mounting Method
Threaded hole single mounting facility
Features Provided

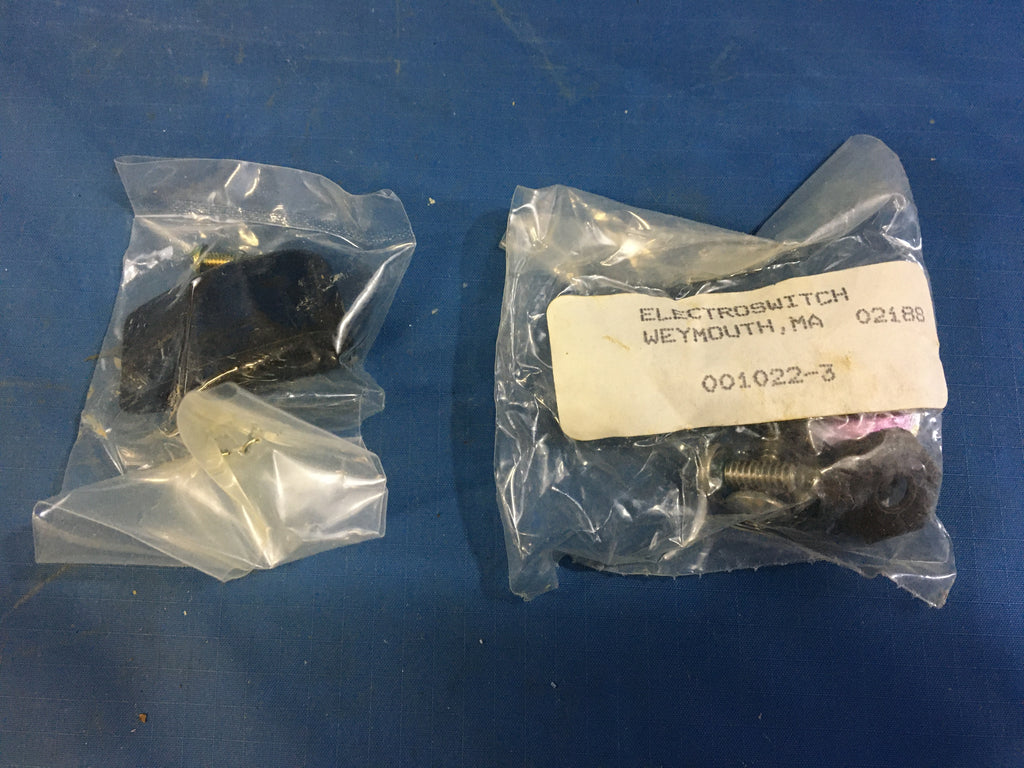

Actuator knob
Thready Qty Per Inch (tpi)
24 single mounting facility
Thread Size
0.190 inches single mounting facility
Contact Voltage Rating In Volts
250.0 highest ac voltage rating at sea level125.0 lowest ac voltage rating at sea level250.0 highest dc voltage rating at altitude120.0 lowest dc voltage rating at altitude
Switch Actuator Indexing Position Quantity
2 single actuator
Terminal Type
Tab w/screw
Switch Actuator Positioning Increment
90.0 degrees single actuator
Style Designator
Tap, circular, bushing mount
Thread Series Designator
Unc single mounting facility



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
