General Dynamics Push Switch NSN:5930-01-159-7628 P/N:10620SA1-303 Model:33-808827-303

Please fill out the form below for a price quote and availability on this item.

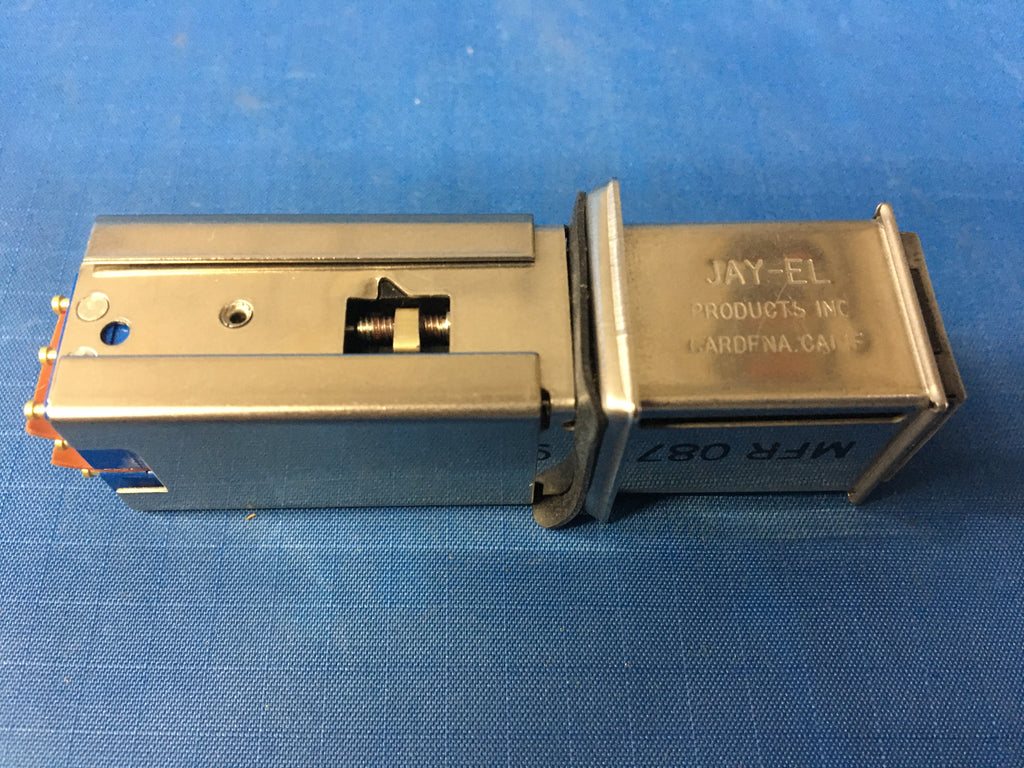

Push Switch

NSN: 5930-01-159-7628 P/N:10620SA1-303 Model: 33-808827-303
ITAR Registered seal

A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lam (s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull switch, sensitive and switch assembly. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.

NSN Properties and Flags
NATO Stock Number
5930-01-159-7628
DEMIL
Yes - ITAR Controlled
Body Style
Panel mounted
Body Width
0.750 inches
Body Height
0.688 inches
Case Material
Metal
Actuator Length
0.620 inches
Actuator Style
Rectangular
Actuator Height
0.090 inches
Actuator Width
0.620 inches
Actuator Inscription
Am big single actuator
Maximum Voltage Rating In Volts
115.0 ac and 28.0 dc
Mounting Surface To Terminal End Distance
2.620 inches
Inclosure Type
Fully enclosed
Mounting Method
Panel
Nonpile-up Contact Arrangement
3 pole, double throw, two positions momentary single switch unit
Contact Load Current Rating At Maximum Rated Voltage
7.000 amperes restive dc and 4.000 amperes inductive dc and 2.500 amperes lamp dc and 7.000 amperes restive ac and 7.000 amperes inductive ac and 2.000 amperes lamp ac
Precious Material And Location
Contacts silver
Terminal Type And Quantity
9 turret and 4 tab, solder lug



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
