Eaton Corp Rotary Switch NSN: 5930-00-704-5793 P/N: MS14B4

Please fill out the form below for a price quote and availability on this item.

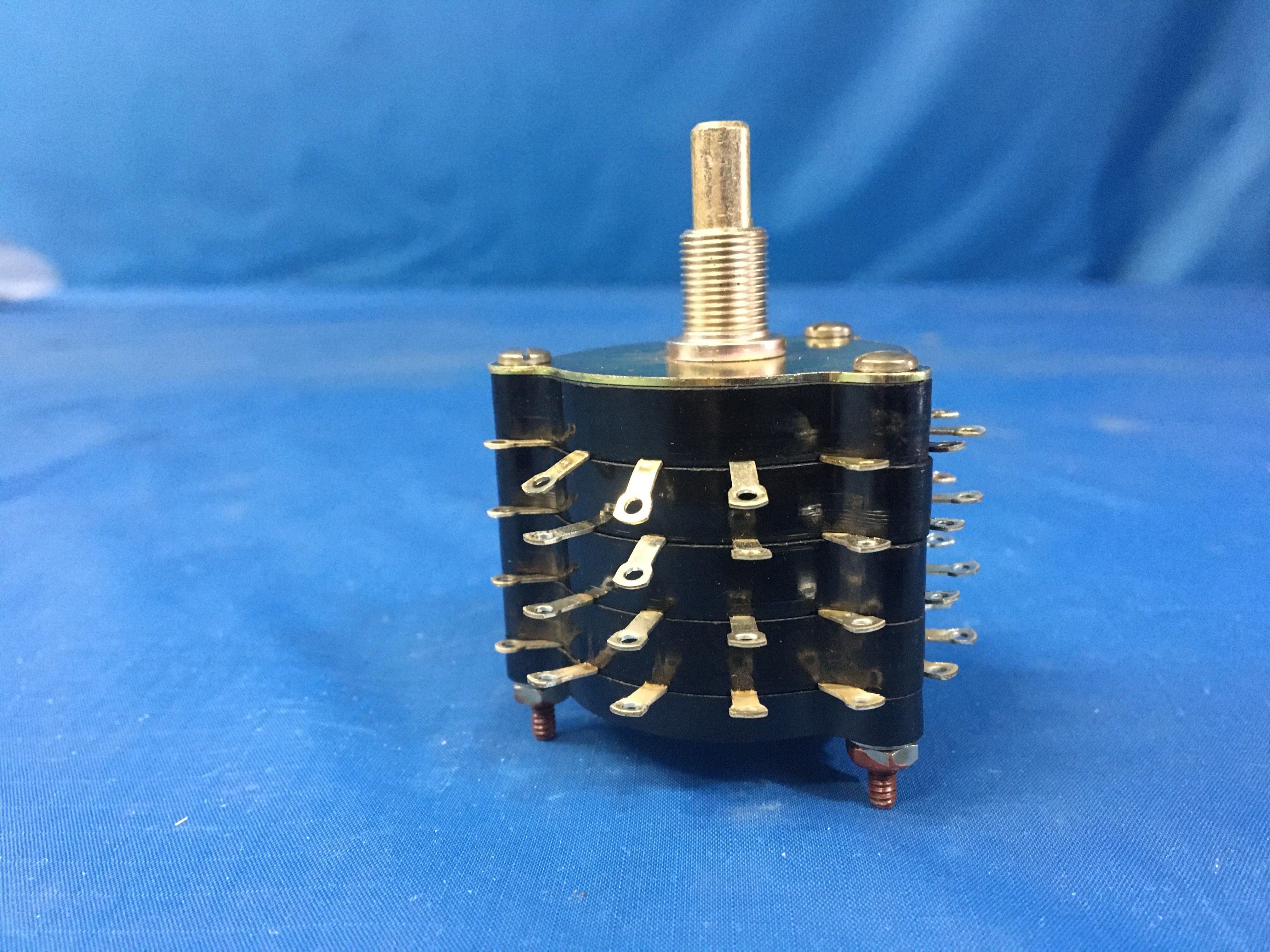

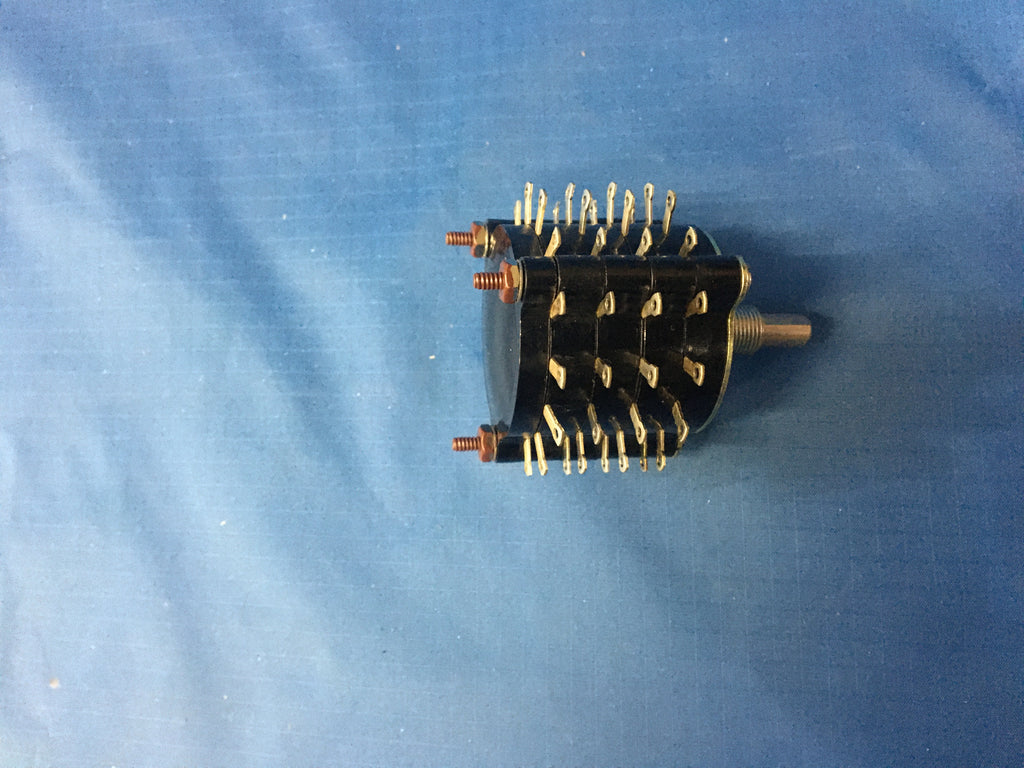

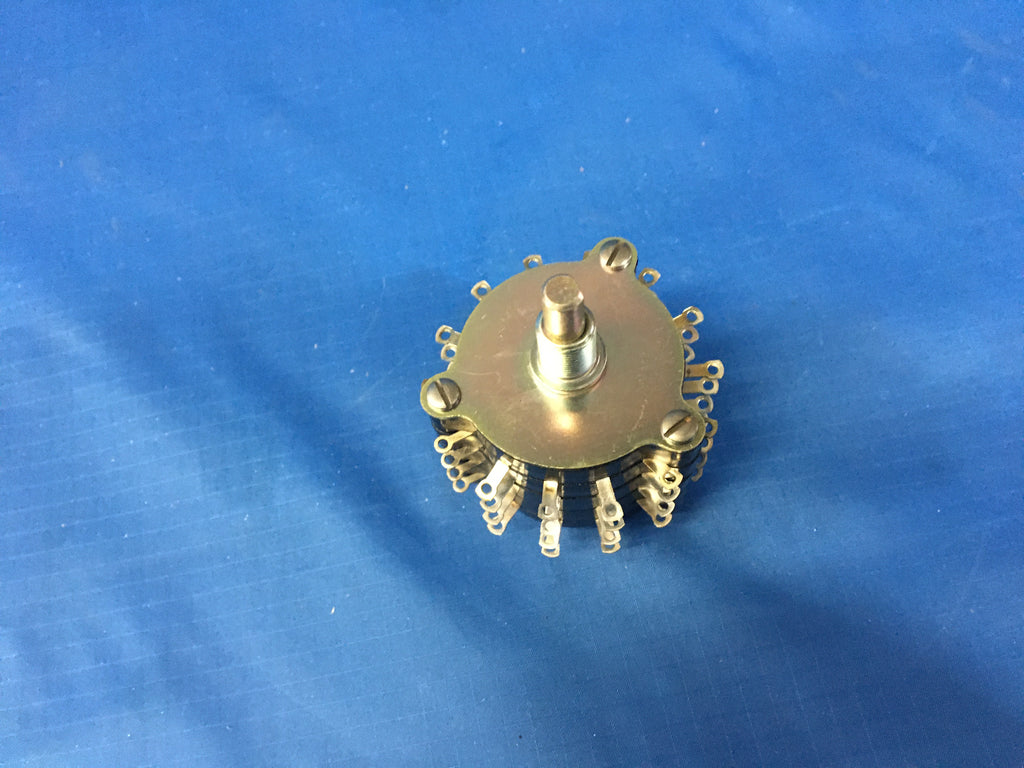

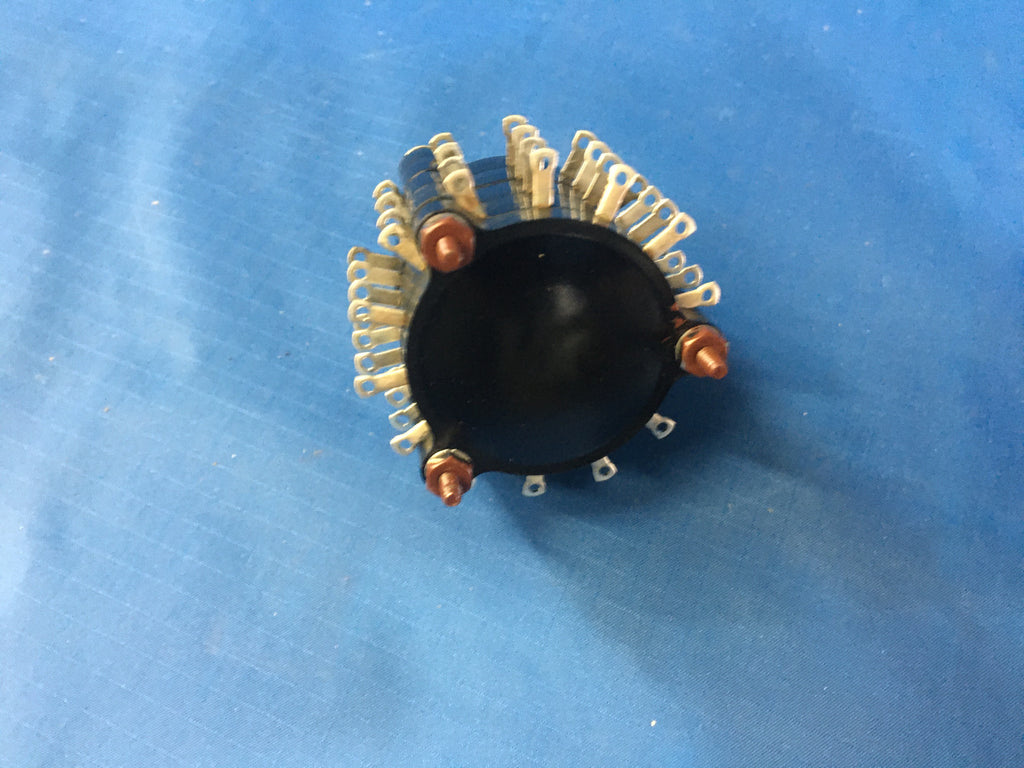

Rotary Switch

NSN: 5930-00-704-5793 | Model: MS14B4
ITAR Registered seal

A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see switch, sensitive. Excludes relay, rotary; switch, stepping; and switch, telephone (as modified).

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Length
0.438 inches single mounting facility
First Flat Length
0.438 inches single actuator
Flat Height
0.219 inches single actuator
Shaft Diameter
0.250 inches single actuator
Shaft Length
0.875 inches single actuator
Individual Section Quantity
Switch Contact Basic Design
Nonpile-up symmetrical
Pole Quantity
1 each section rear
Throw Quantity
13 each section rear
Mounting Method
Threaded bushing single mounting facility
Thread Size
0.375 inches single mounting facility
Switch Actuator Indexing Position Quantity
14 single actuator
Shaft Type
Round, flatted single actuator
Terminal Type
Tab, solder lug
Contact Switching Action
Breaks before makes each section rear
Switch Actuator Positioning Increment
25.7 degrees single actuator
Thread Series Designator
Unef single mounting facility

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
