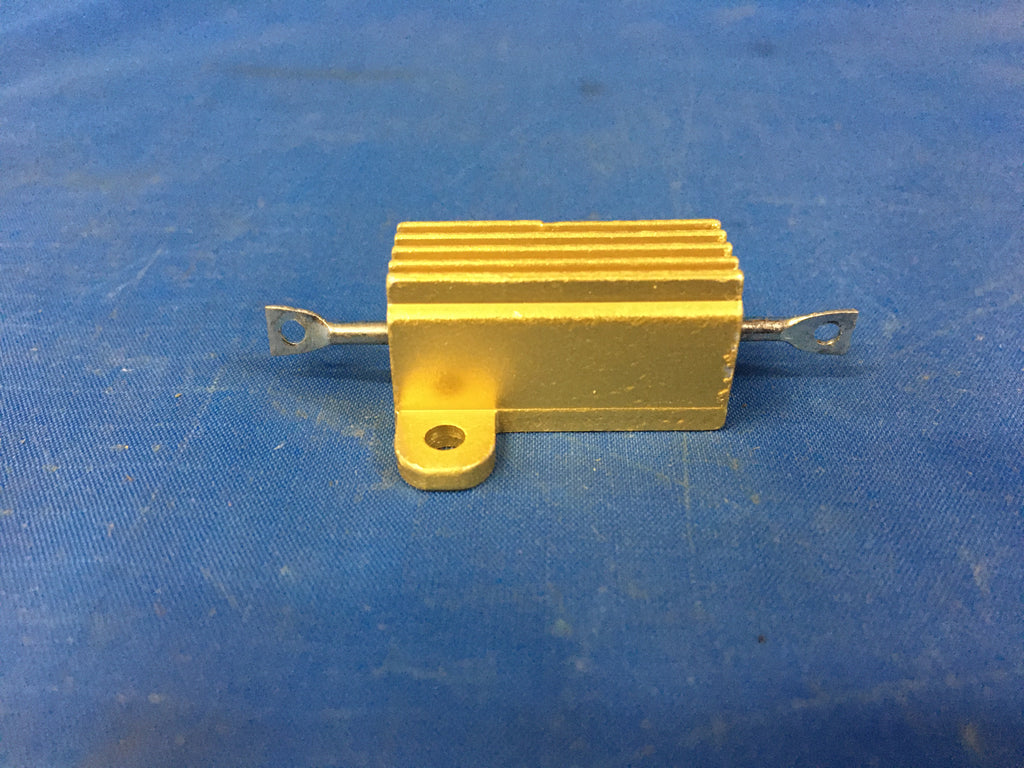

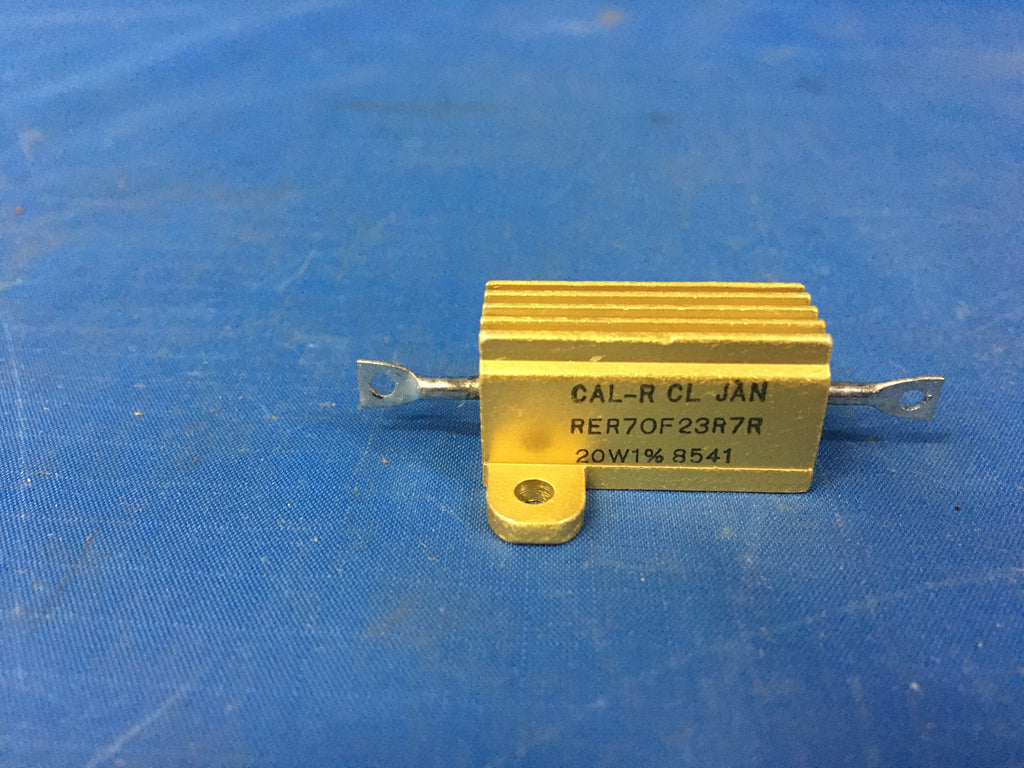

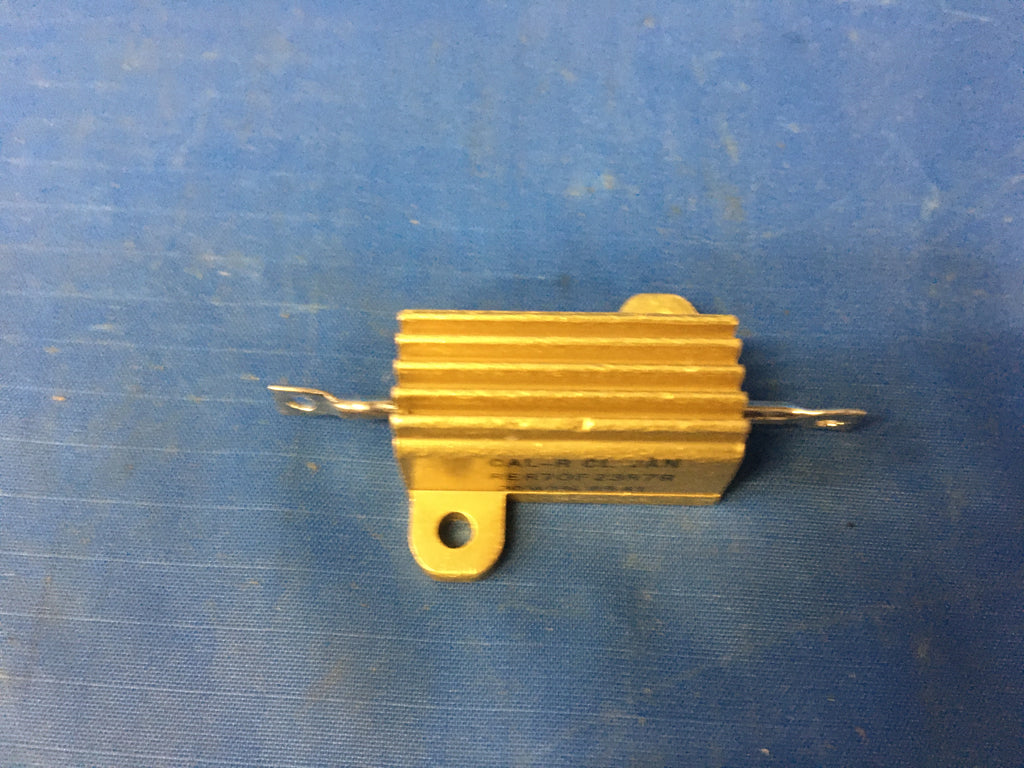

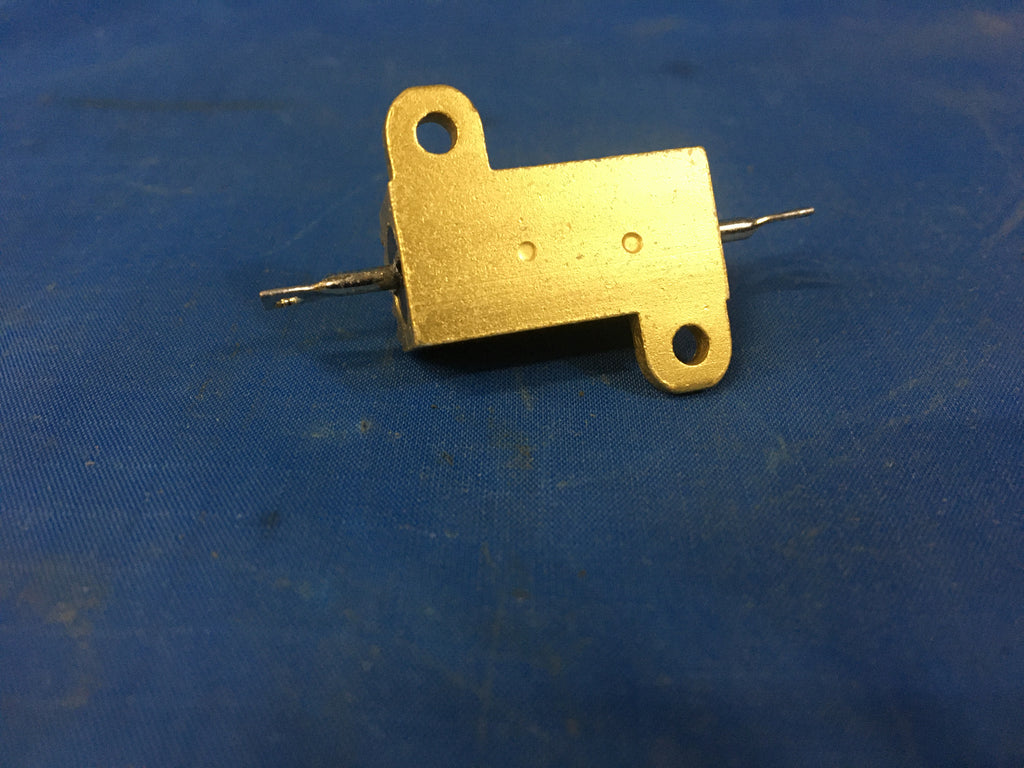

Inductive Wire Wound Fixed Resistor

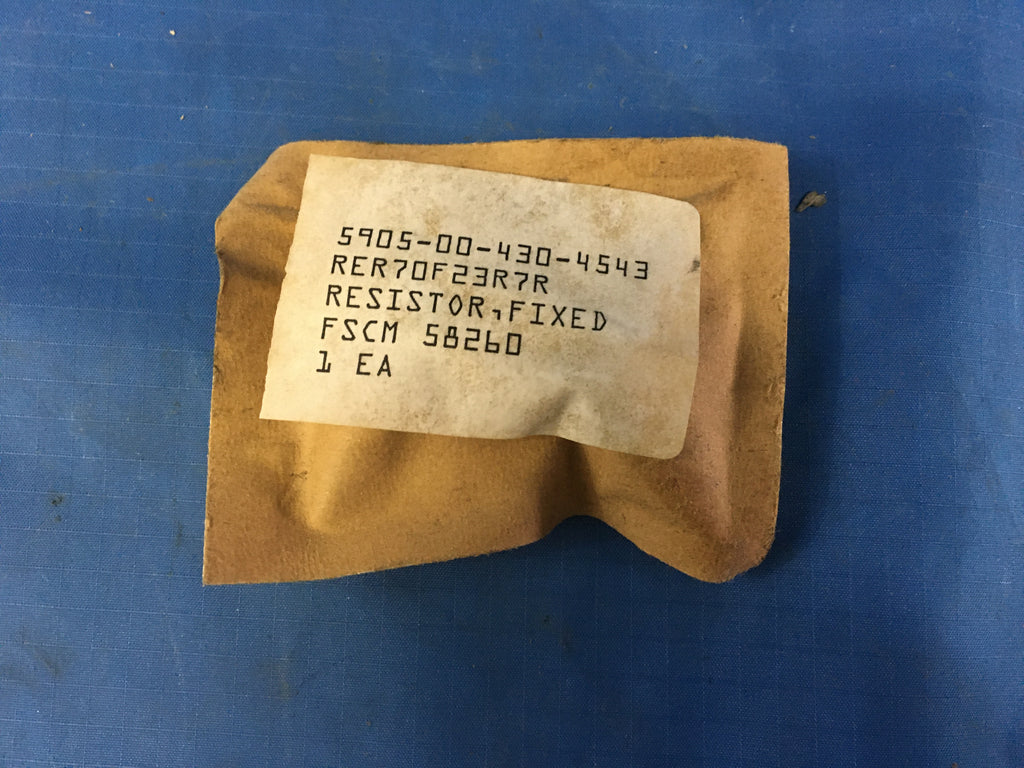

NSN: 5905-00-430-4543 | Model: RER70F23R7R
ITAR Registered seal

Inc 37403 reinstated on 010303~A resistor whose oh mic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes suppressor, ignition interference. See also resistor (1), fixed, wire wound, noninductive.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
Electrical Resistance
23.700 ohms
Resistance Tolerance In Percent
Heat Sink Material
Aluminum alloy
Heat Sink Length
7.000 inches
Heat Sink Width
5.000 inches
Heat Sink Height
2.000 inches
Heat Sink Thickness
0.040 inches
Ambient Tempurature In Deg Celsius At Full Rated Power
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
Tempurature Range Of Tempurature Coefficient In Deg Celsius
Inclosure Method
Terminal Type
Tab, solder lug
Reliability Indicator
Reliability Failure Rate Level In Percent
Terminal Length
0.438 inches
Body Length
1.062 inches
Body Width
0.531 inches
Body Height
0.562 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length
0.719 inches
Power Dissipation Rating In Watts
8.000 free air
Mounting Hole Size
0.125 inches
Style Designator
Axial terminal (s)
Test Data Document
81349-MIL-R-39009 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-MIL-R-39009/1 government specification
