Hughes M28748-09A0V01A Electrical Receptacle Connector W/ Contacts NSN:5935-00-344-1778

Please fill out the form below for a price quote and availability on this item.

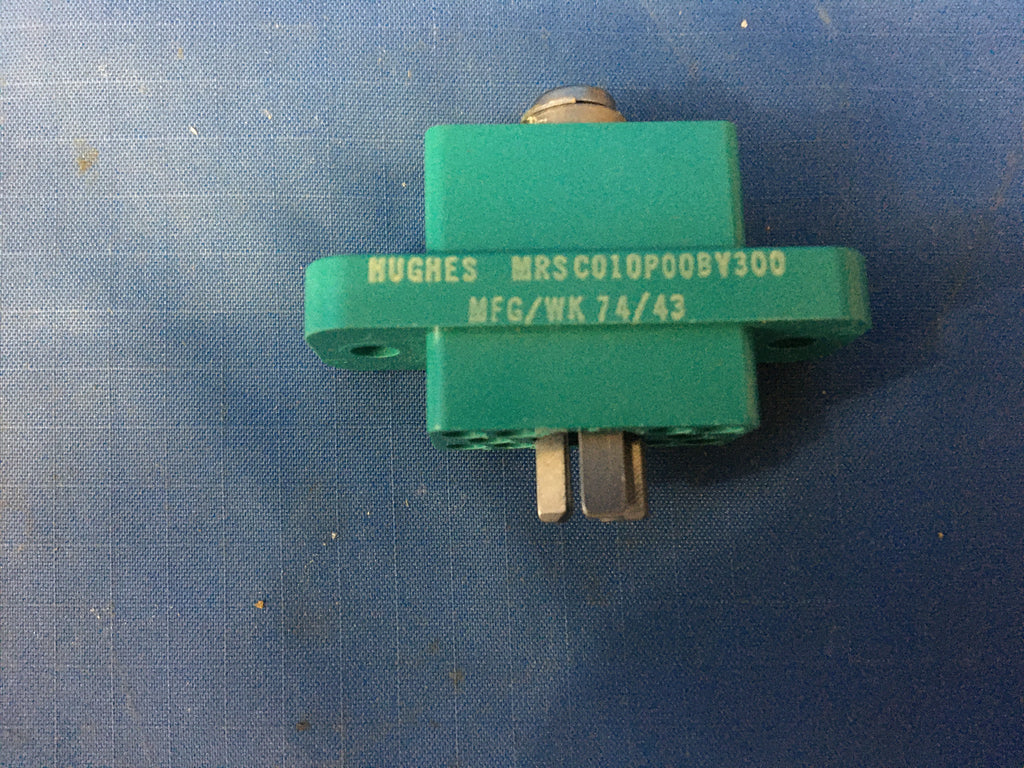

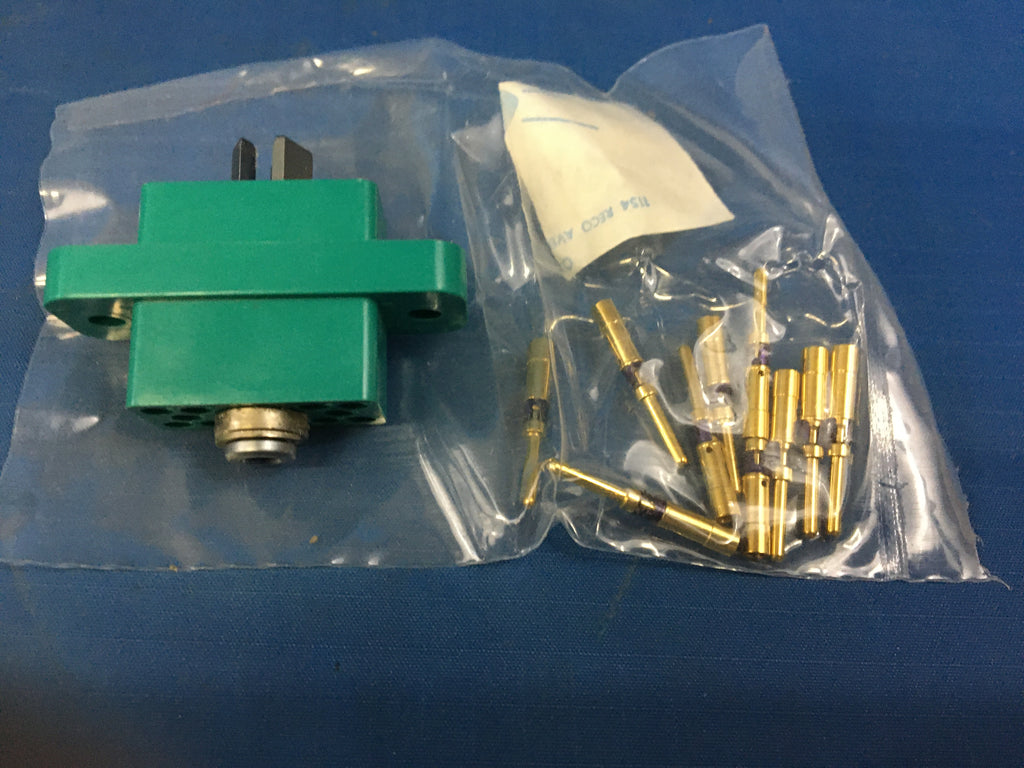

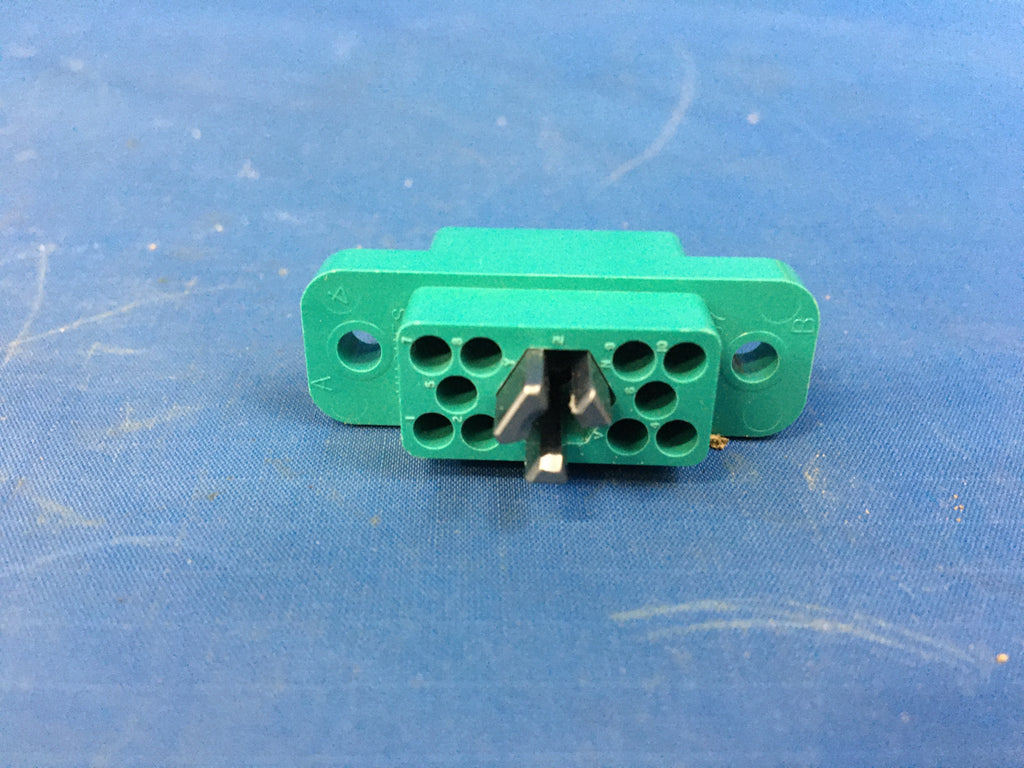

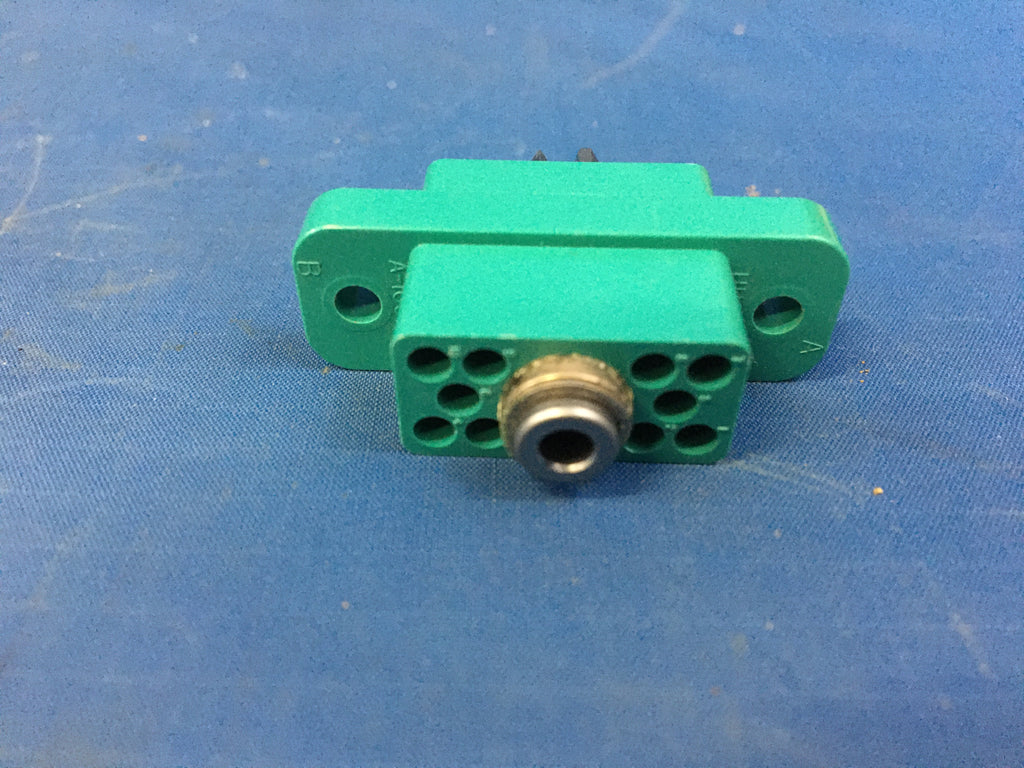

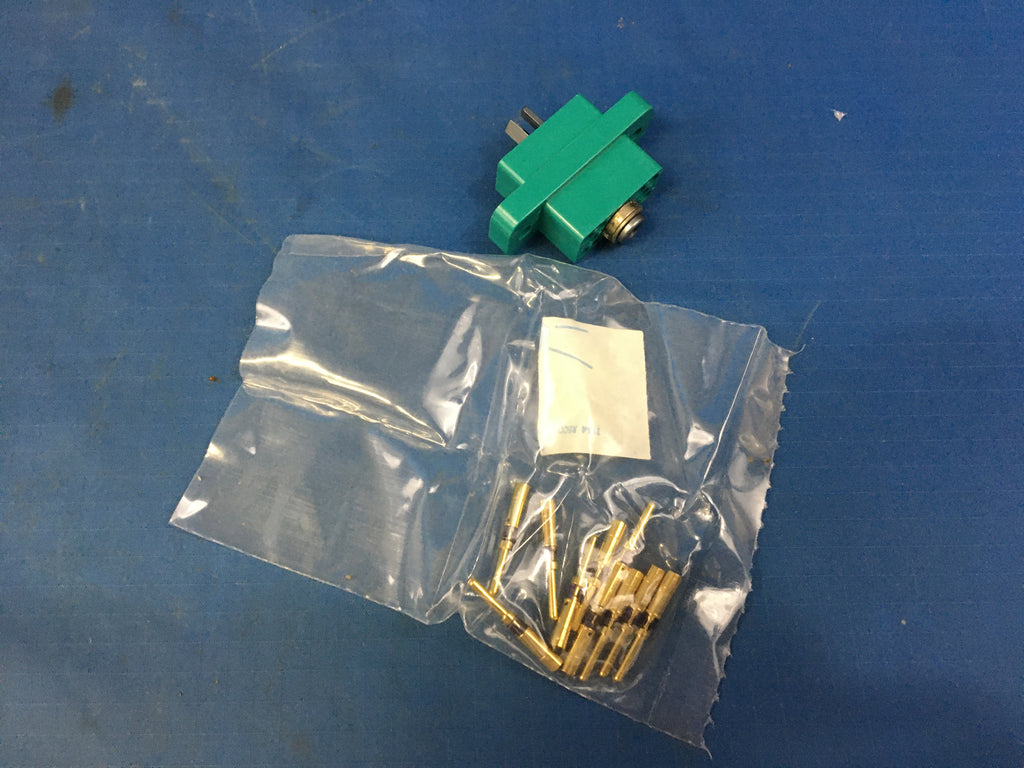

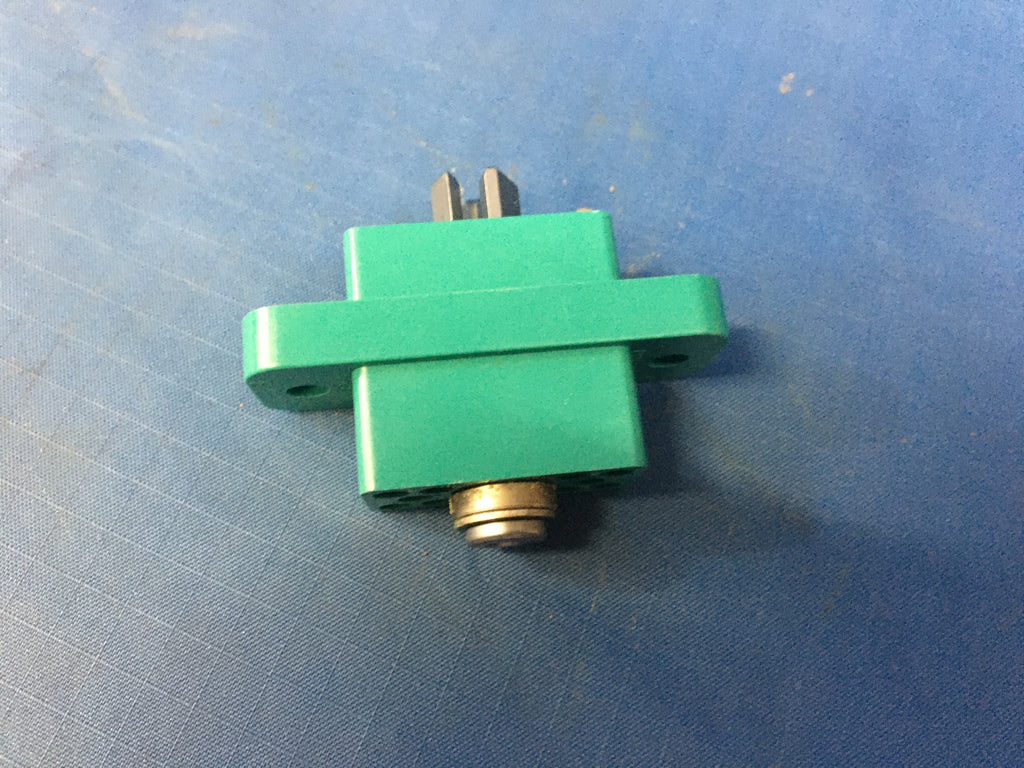

Electrical Receptacle Connector

NSN: 5935-00-344-1778 | Model: M28748-09A0V01A
ITAR Registered seal

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connecto (s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lampholder; jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified) . For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-00-344-1778
DEMIL
Yes - ITAR Controlled
Thread Class
2b
Thread Direction
Right-hand
Body Style
Straight shape w/jackscrew
Overall Length
Between 1.665 inches and 1.685 inches
Overall Height
1.070 inches
Overall Width
Between 0.560 inches and 0.580 inches
Environmental Protection
Moisture proof and salt water resistant and vibration resistant
Unthreaded Mounting Hole Diameter
0.149 inches
Distance Between Mounting Facility Centers
Between 1.295 inches and 1.305 inches
Threaded Device Type
Coupling facility
Mating End Quantity
1
Contact Position Arrangement Style
10 single mating end
Contact Removability
Removable single mating end single contact grouping
Connector Locking Method
Screw
Thread Size
0.138 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping
Insert Material
Plastic diallyl phthalate single mating end
Contact Surface Treatment Specification
Mil-g-45204, type 2, class 1 military specification single treatment response single mating end single contact grouping
Terminal Type
Crimp single mating end single contact grouping
Insert Material Specification
Mil-m-14, type sdg-f military specification single material response single mating end

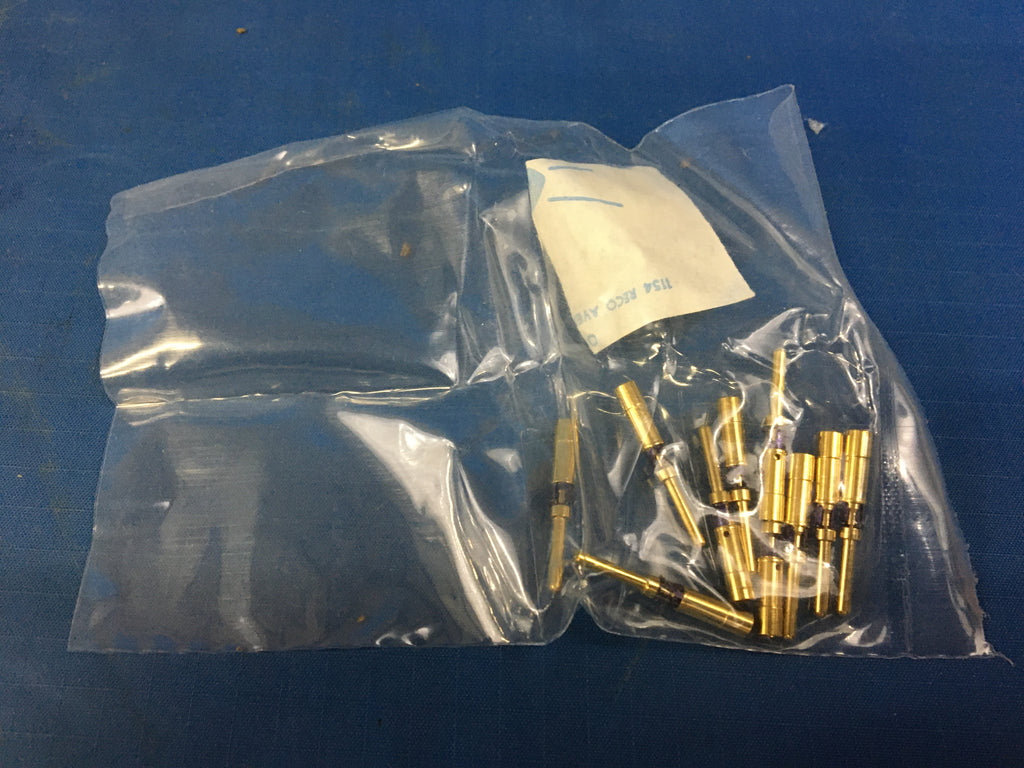

Included Contact Quantity
10 single mating end single contact grouping
Included Contact Type
Round pin single mating end single contact grouping
Special Features
Polarized in v position
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.010 gold grains, troy
Precious Material
Gold
Test Data Document
81349-mil-c-28748 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unc
Specification Data
81349-mil-c-28748/9 government specification



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
