C and K Components

C and K Components 9M-11223134175069071 Push Switch NSN:5930-01-314-7320

Regular price $175.00

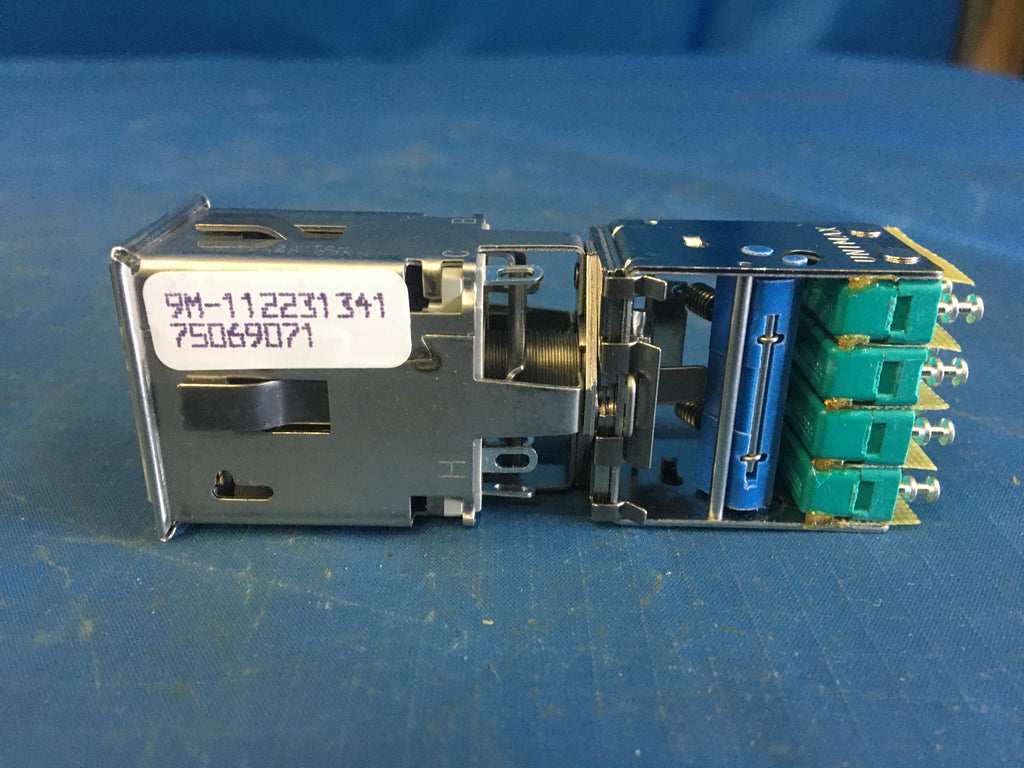

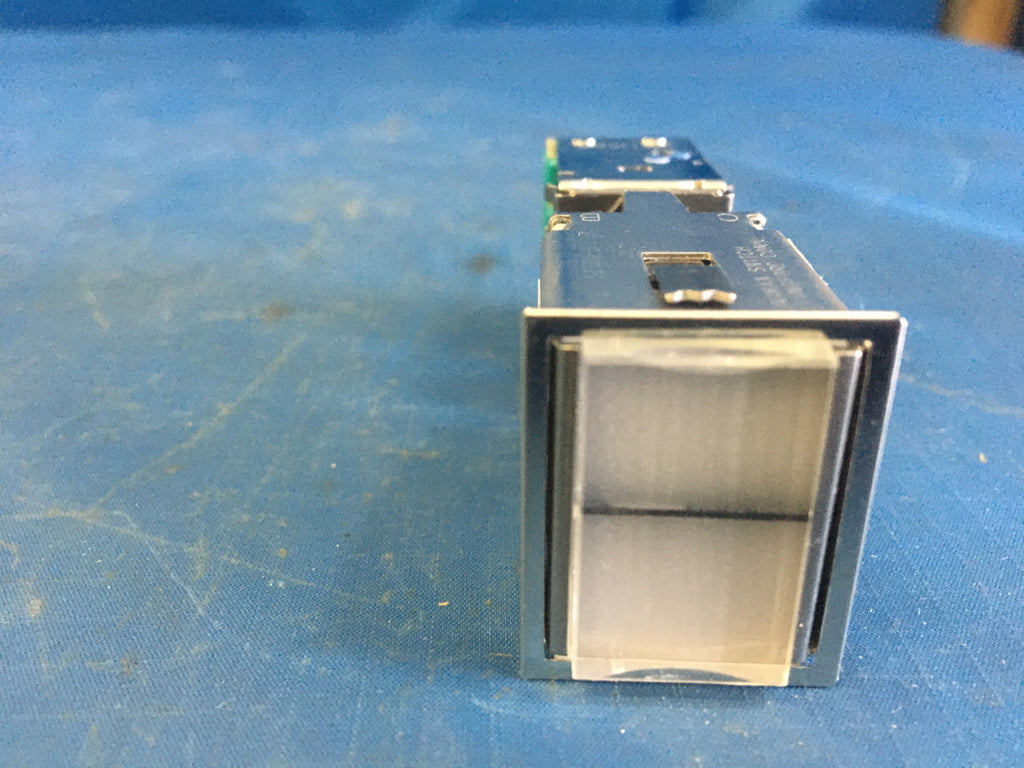

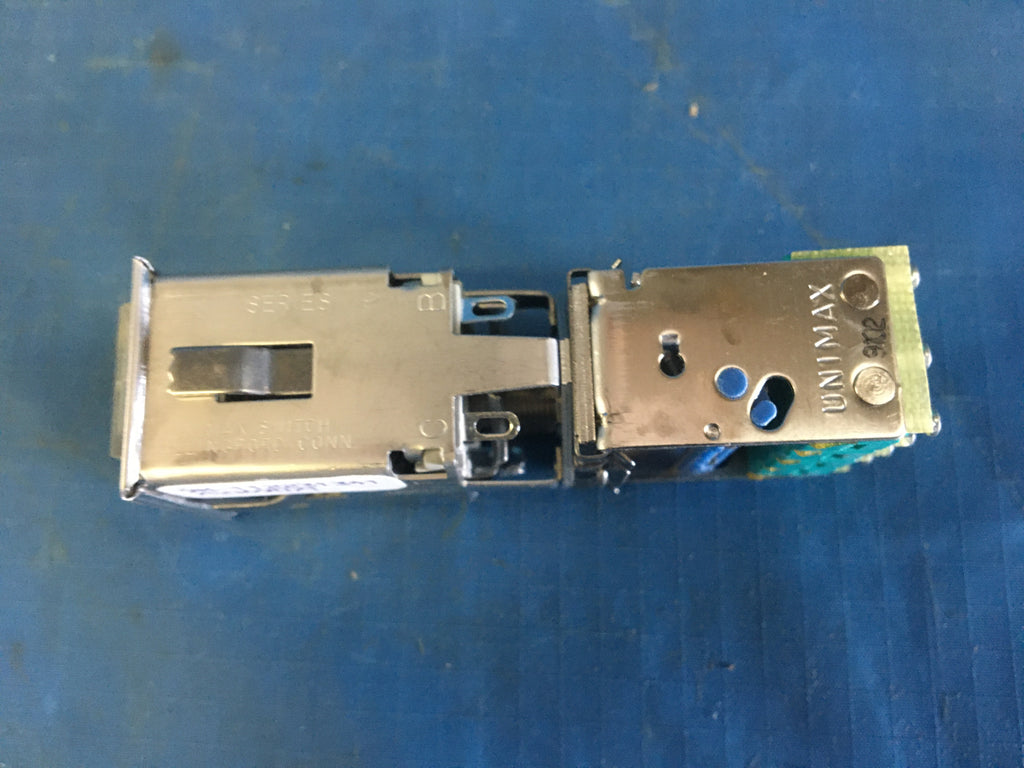

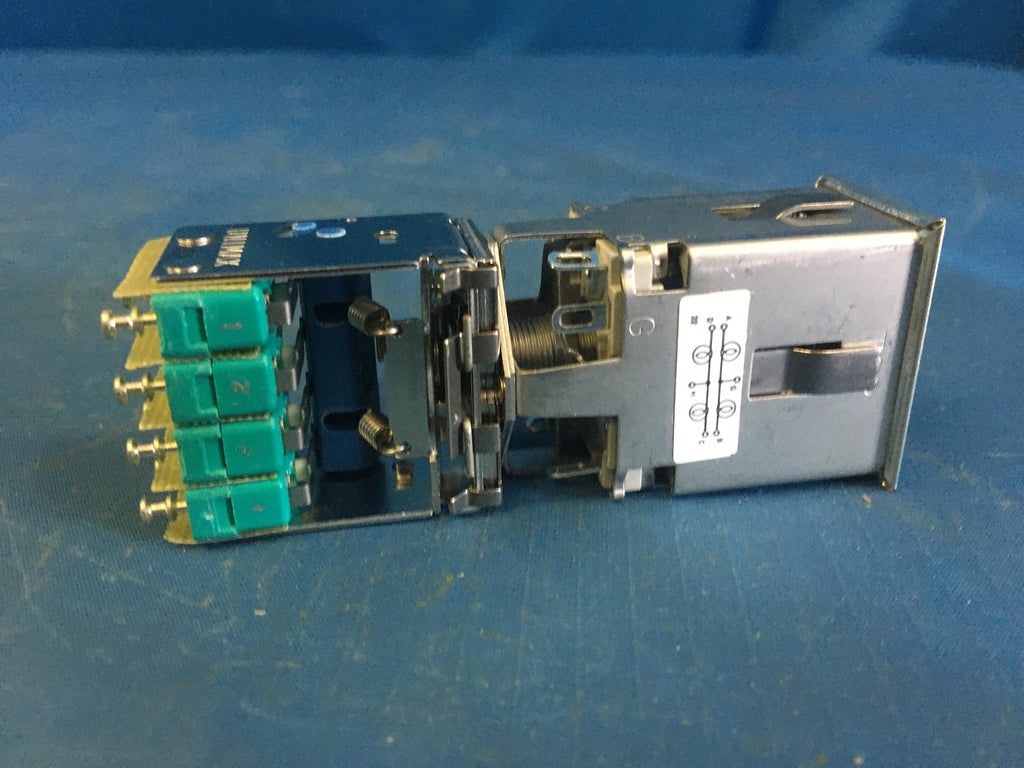

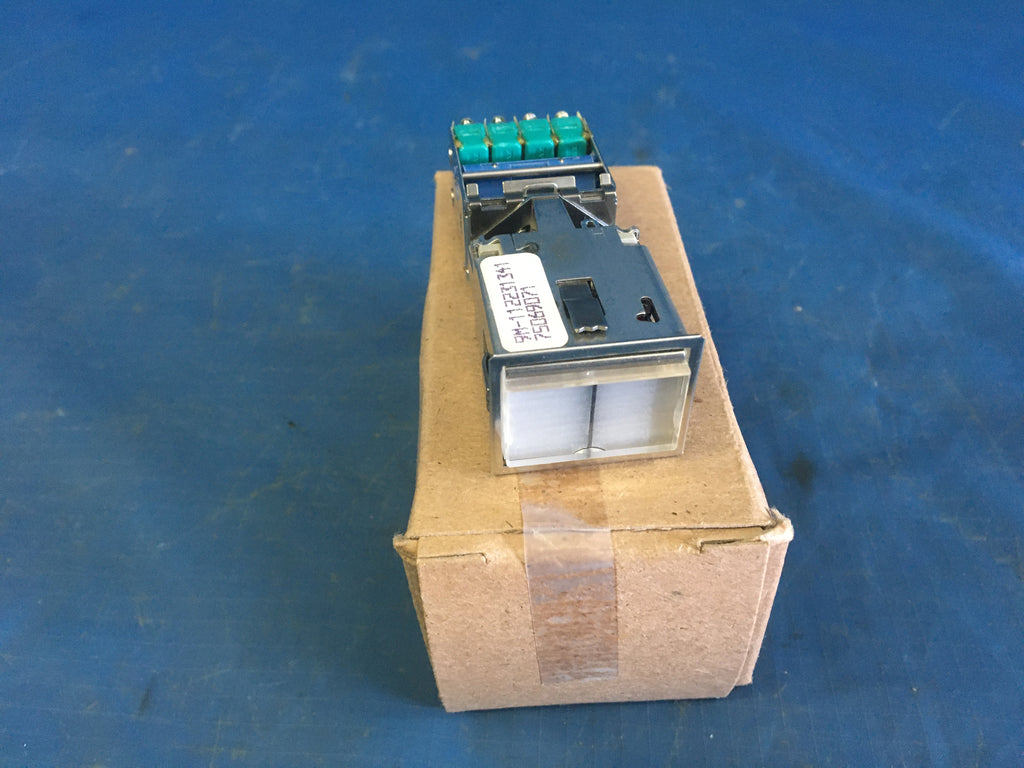

Push Switch

NSN: 5930-01-314-7320 | Model:9M-11223134175069071
ITAR Registered seal

A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lam (s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull; switch, sensitive and switch assembly. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.

NSN Properties and Flags
NATO Stock Number
5930-01-314-7320
DEMIL
NO
Body Style
Panel mount
Body Length
1.200 inches
Body Width
0.960 inches
Body Height
3.094 inches
Actuator Length
1.030 inches
Actuator Style
Rectangular
Actuator Height
0.100 inches
Actuator Width
0.625 inches
Illuminated Actuator Color
Red single actuator and blue single actuator
Actuator Inscription
Battle/short/thermal/overload single actuator
Maximum Voltage Rating In Volts
250.0 ac and 30.0 dc
Inclosure Type
Uninclosed
Mounting Method
Panel
Features Provided
Rfi shielding and actuator seal
Nonpile-up Contact Arrangement
4 pole, double throw, both positions maintained single switch unit
Contact Load Current Rating At Maximum Rated Voltage
5.000 amperes resistive dc and 3.000 amperes inductive dc and 10.000 amperes resistive ac
Precious Material And Location
Contacts silver

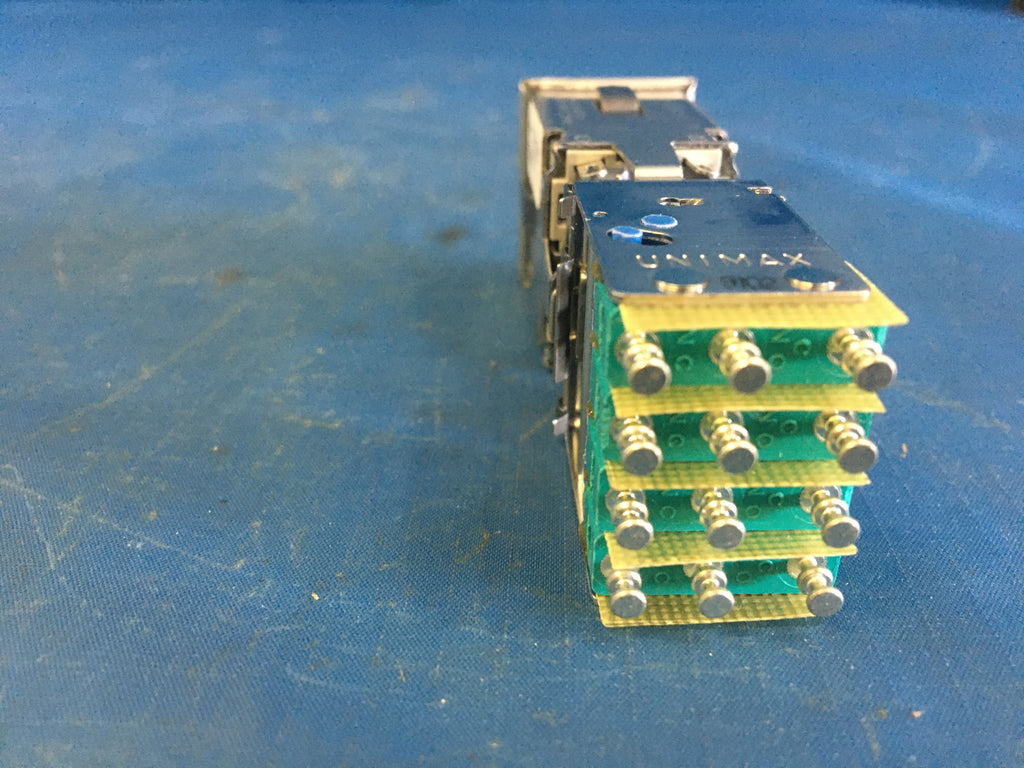

Terminal Type And Quantity
6 tab, solder lug and 12 turret
