Push Switch

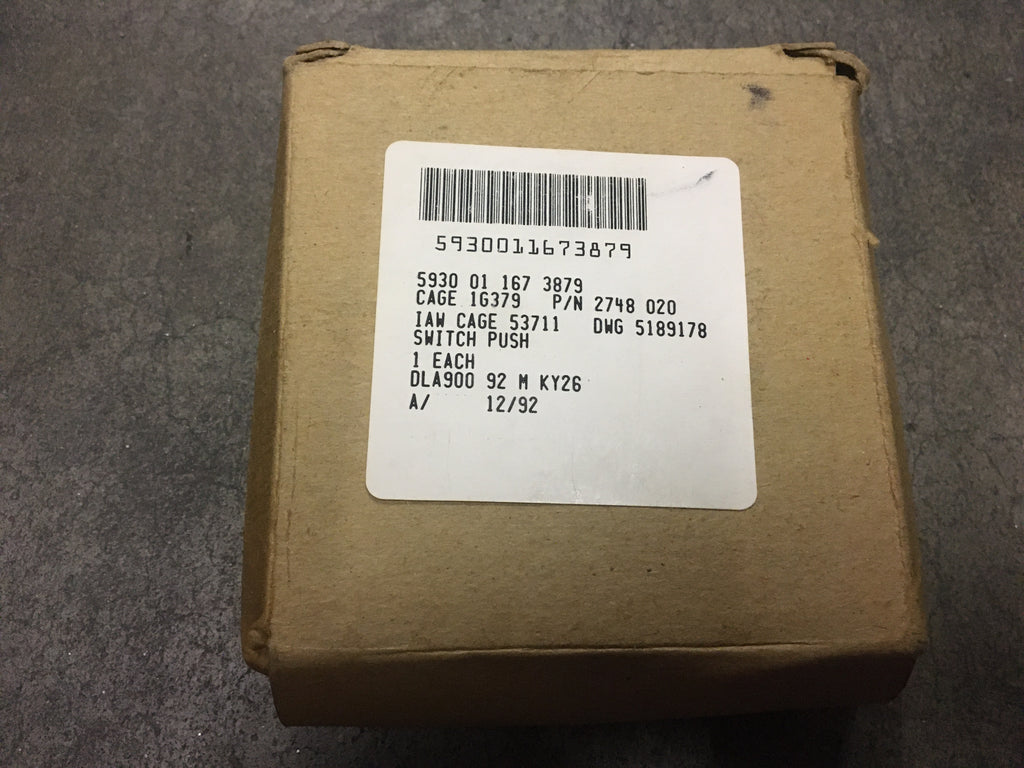

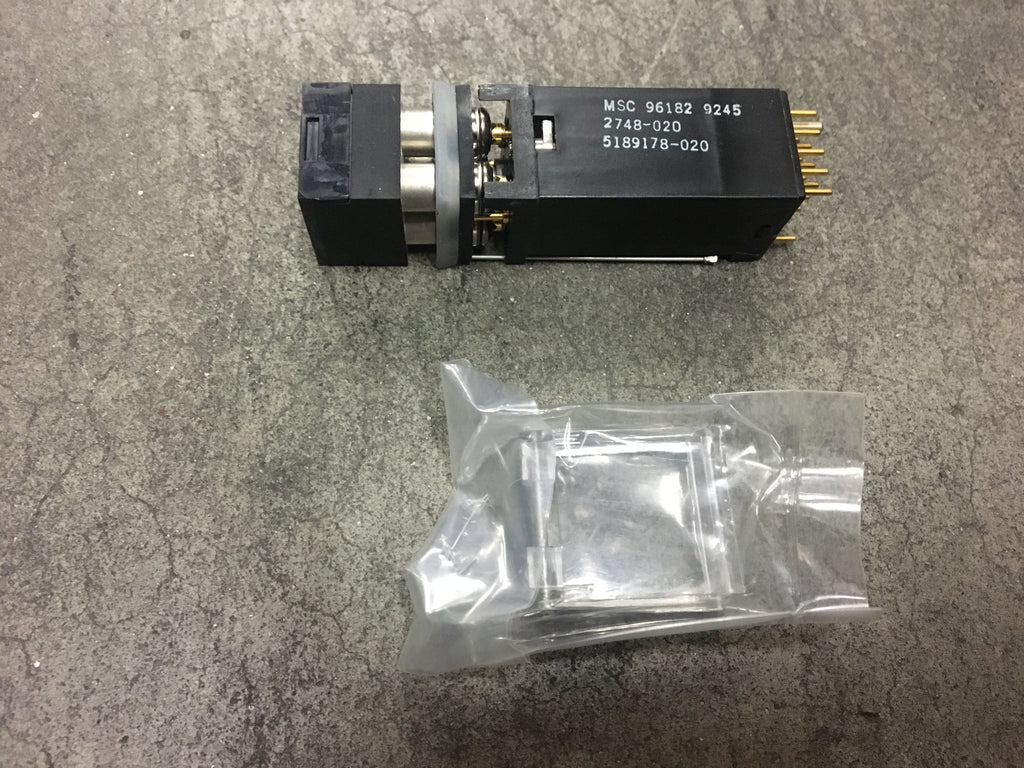

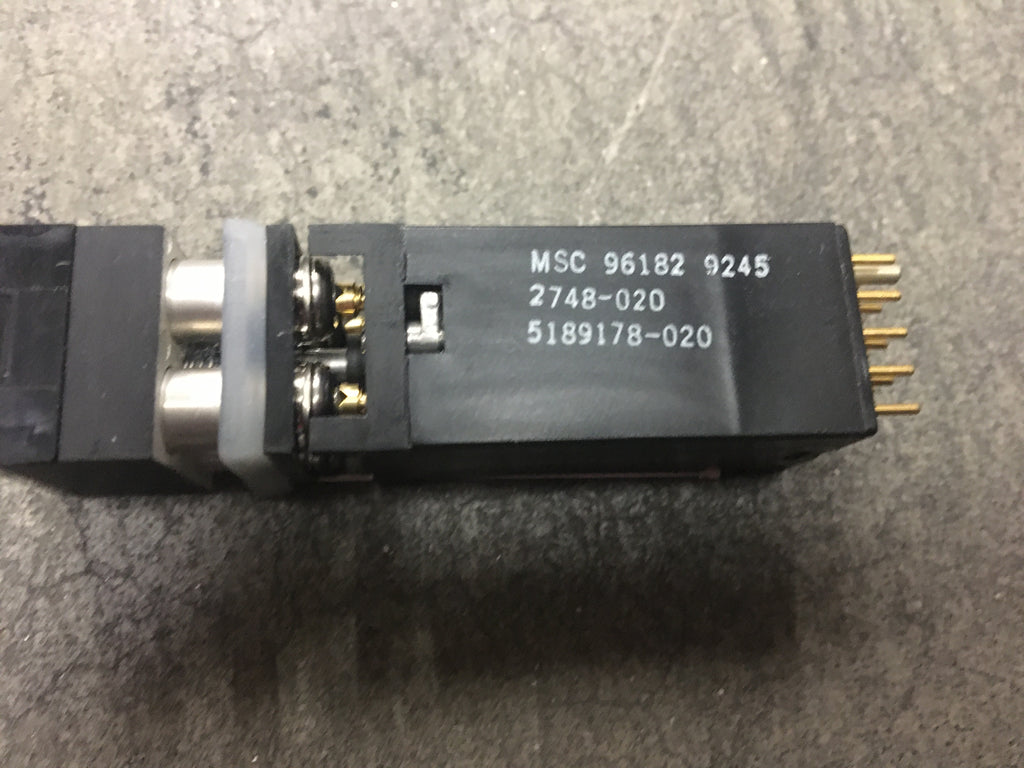

NSN:5930-01-167-3879  Model:5189178-020
ITAR Registered seal

A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lam (s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull switch, sensitive and switch assembly. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.

NSN Properties and Flags
NATO Stock Number
5930-01-167-3879
DEMIL
Yes - ITAR Controlled
Body Style
Panel mount
Hazardous Locations/environmental Protection
Moisture resistant
Body Length
0.740 inches
Body Width
0.740 inches
Body Height
3.060 inches
Case Material
Metal
Actuator Color
Red single actuator
Illuminated Actuator Color
Red single actuator

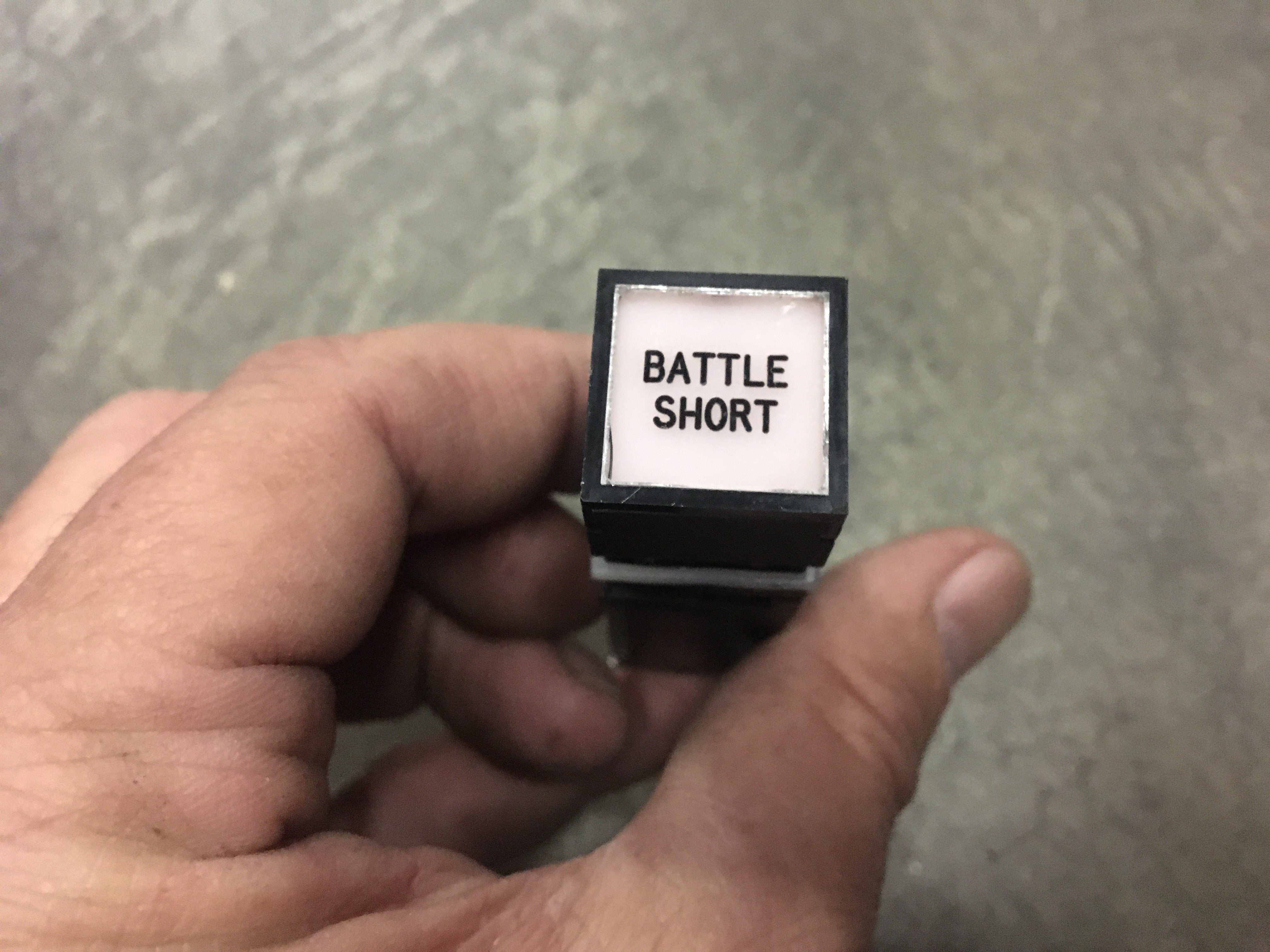

Actuator Inscription
Battle, short single actuator
Maximum Voltage Rating In Volts
30.0 dc
Inclosure Type
Fully enclosed
Mounting Method
Panel
Features Provided
Rfi shielding
Nonpile-up Contact Arrangement
4 pole, double throw, both positions maintained single switch unit
Contact Load Current Rating At Maximum Rated Voltage
5.000 amperes restive dc and 2.500 amperes inductive dc and 5.000 amperes restive ac

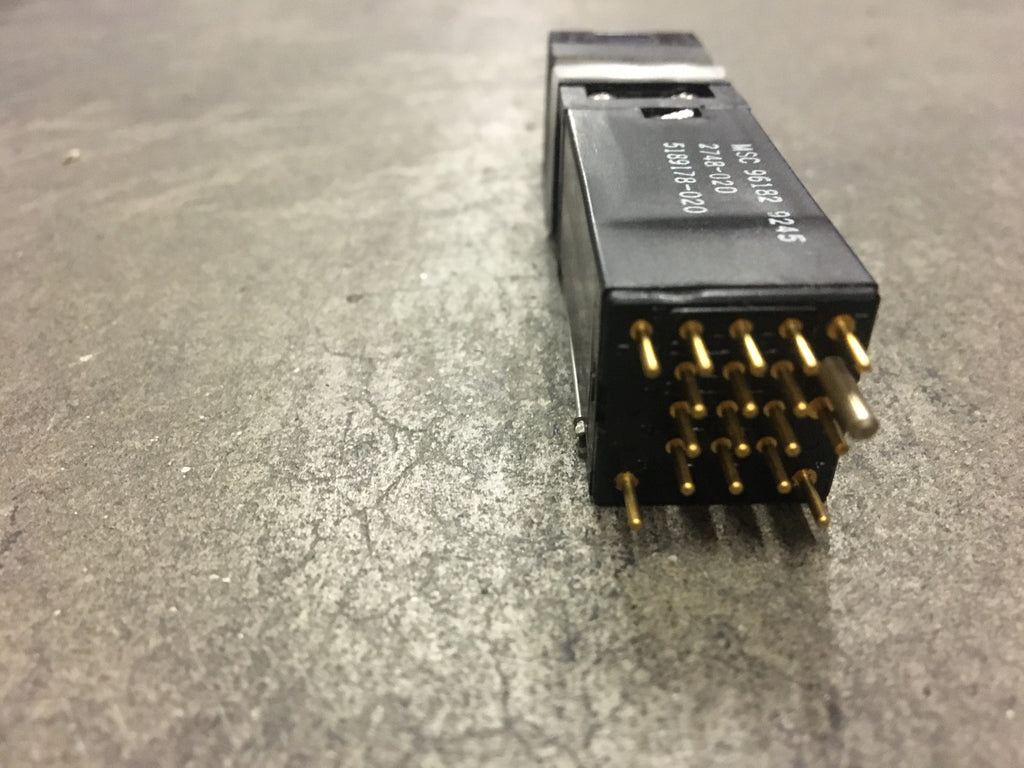

Terminal Type And Quantity
11 pin

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
