U S Army Tank Automotive Command Push Switch NSN:5930-01-142-8272 P/N:12308572

Please fill out the form below for a price quote and availability on this item.

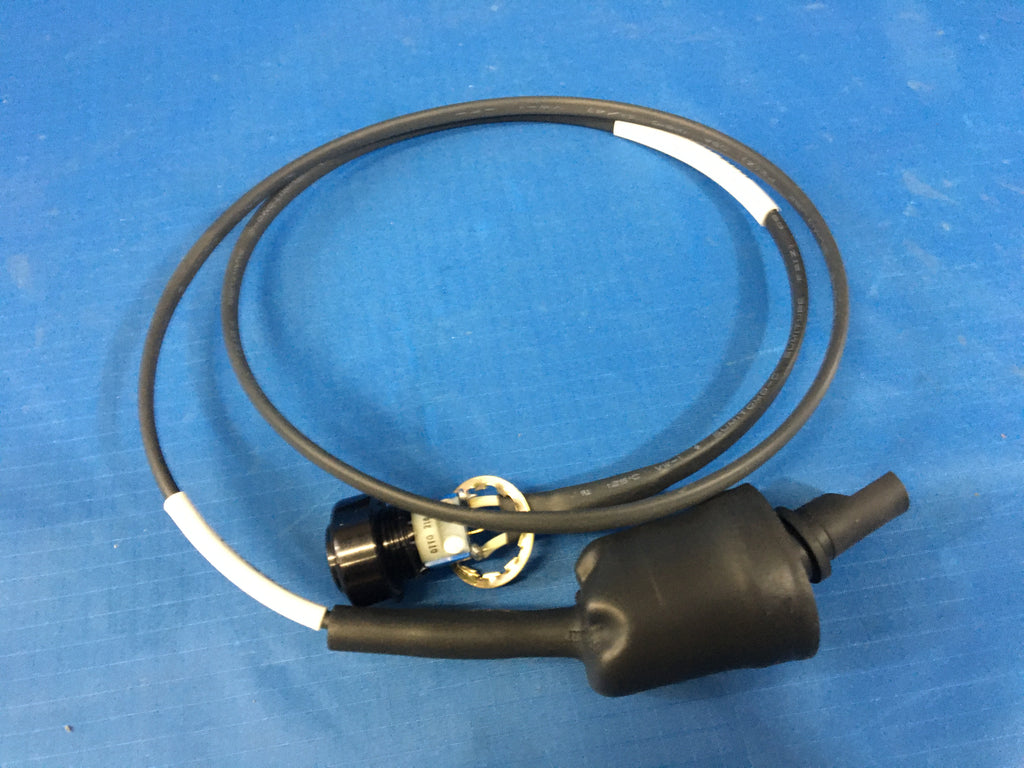

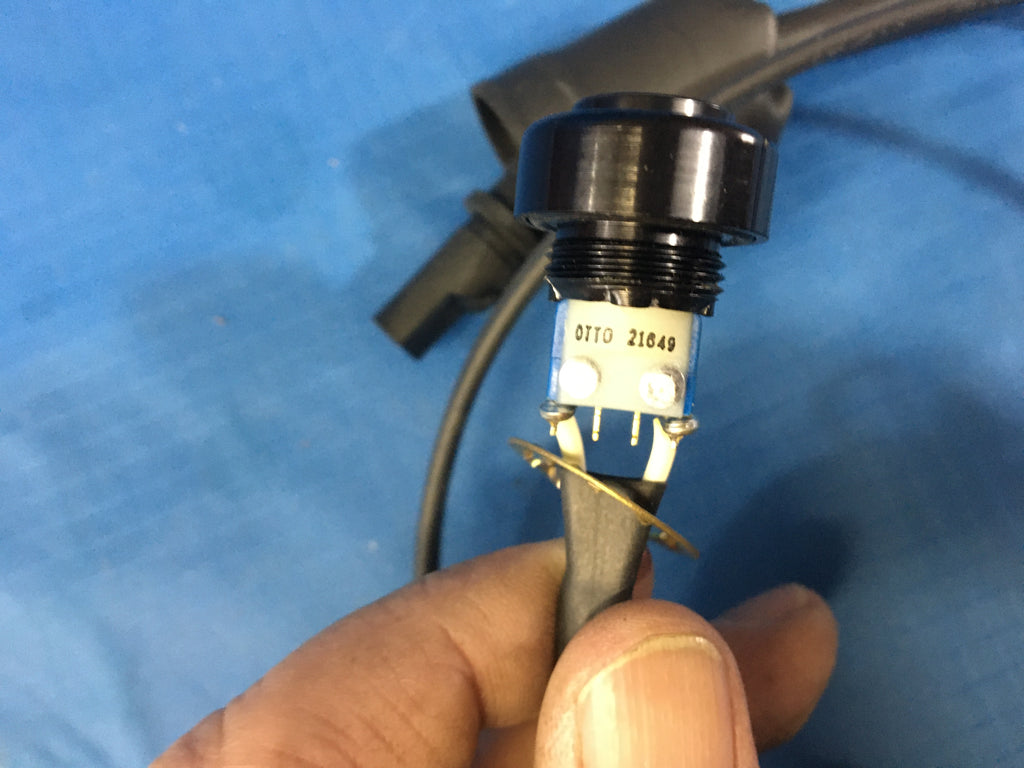

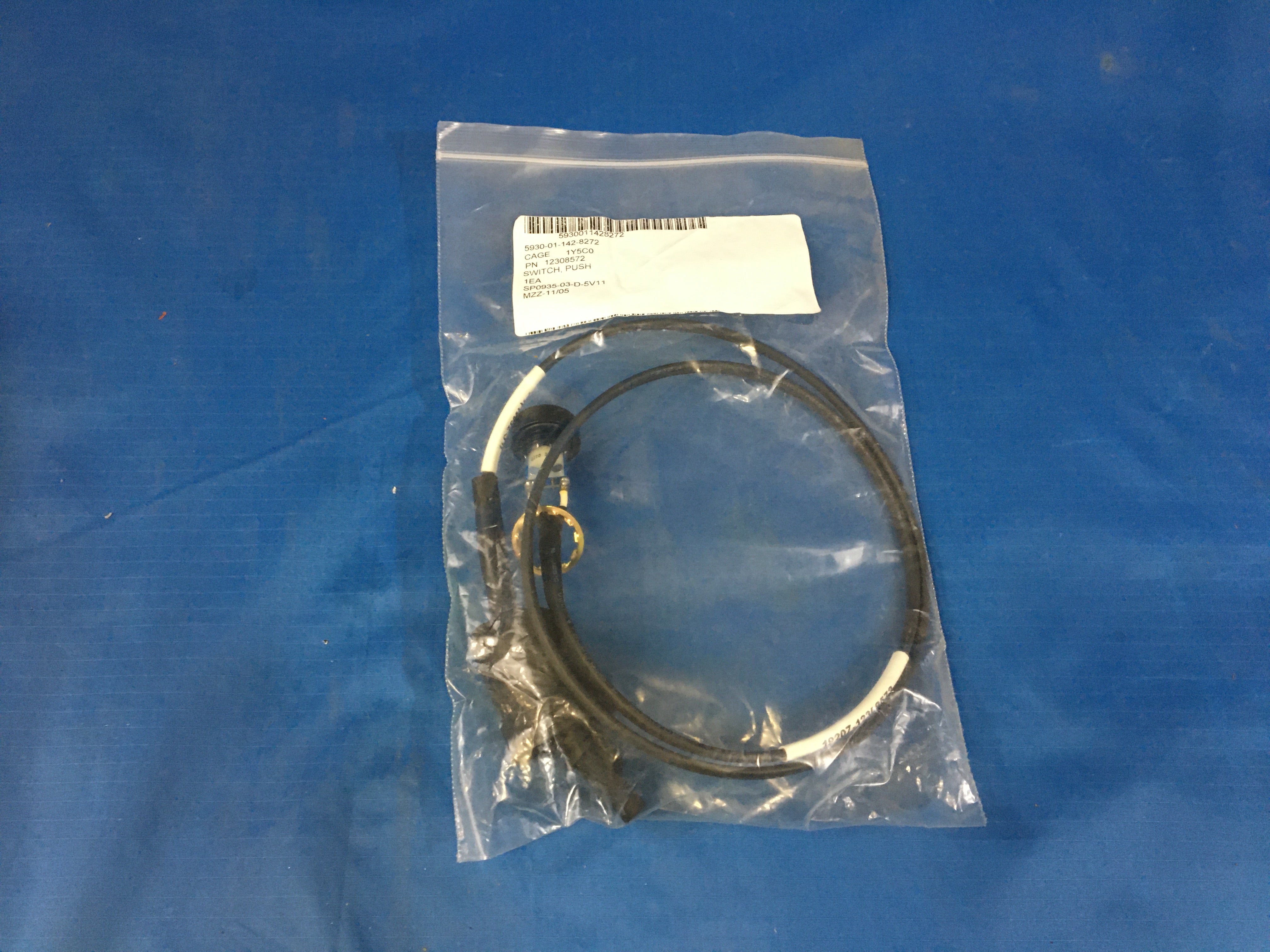

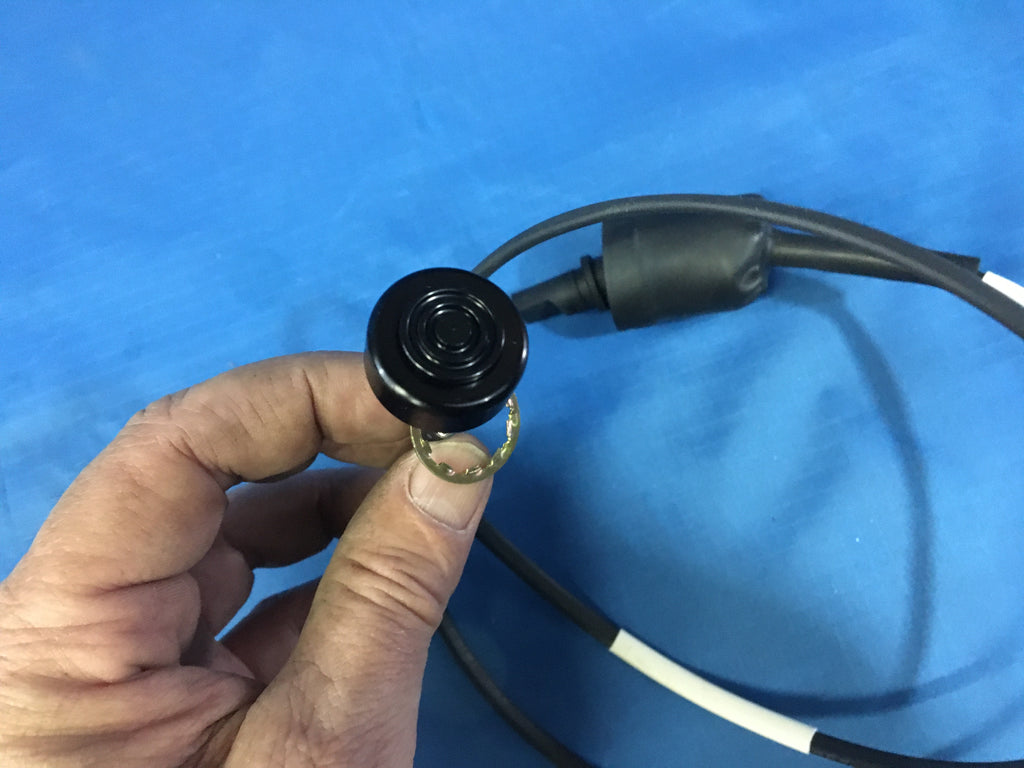

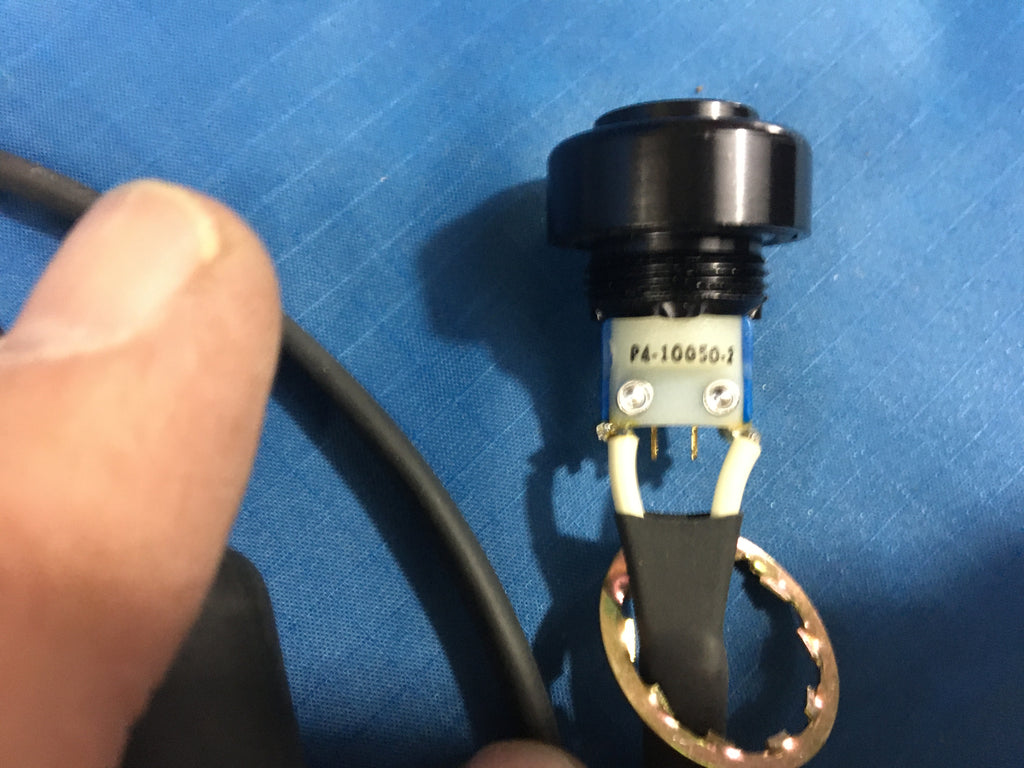

Push Switch

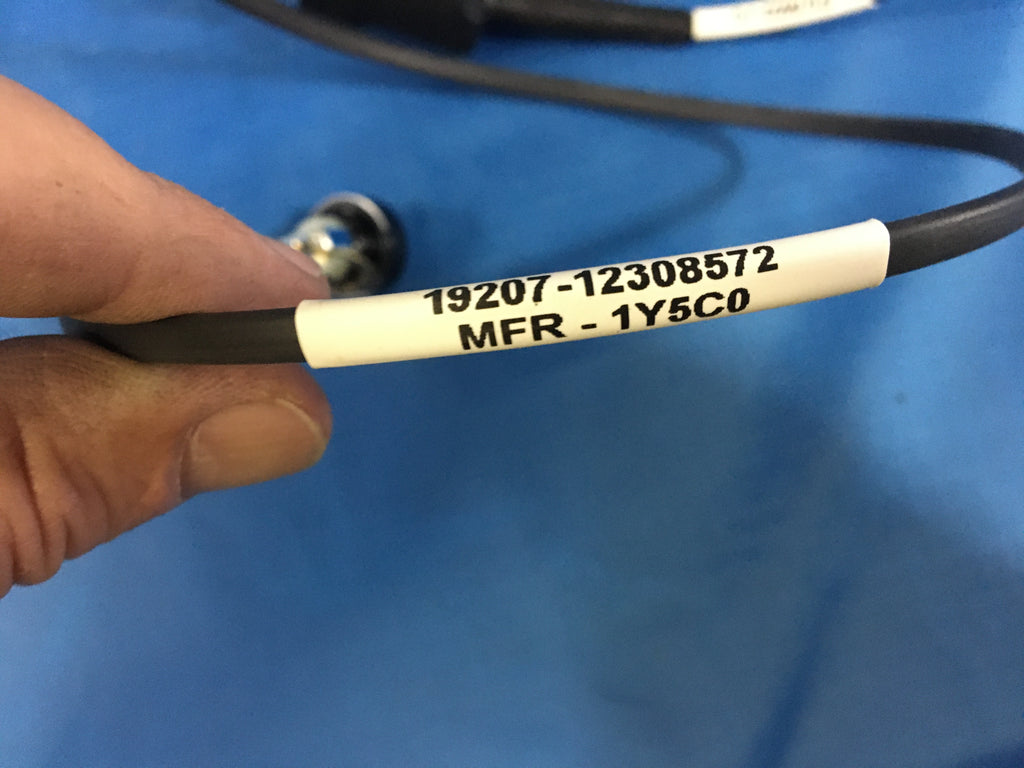

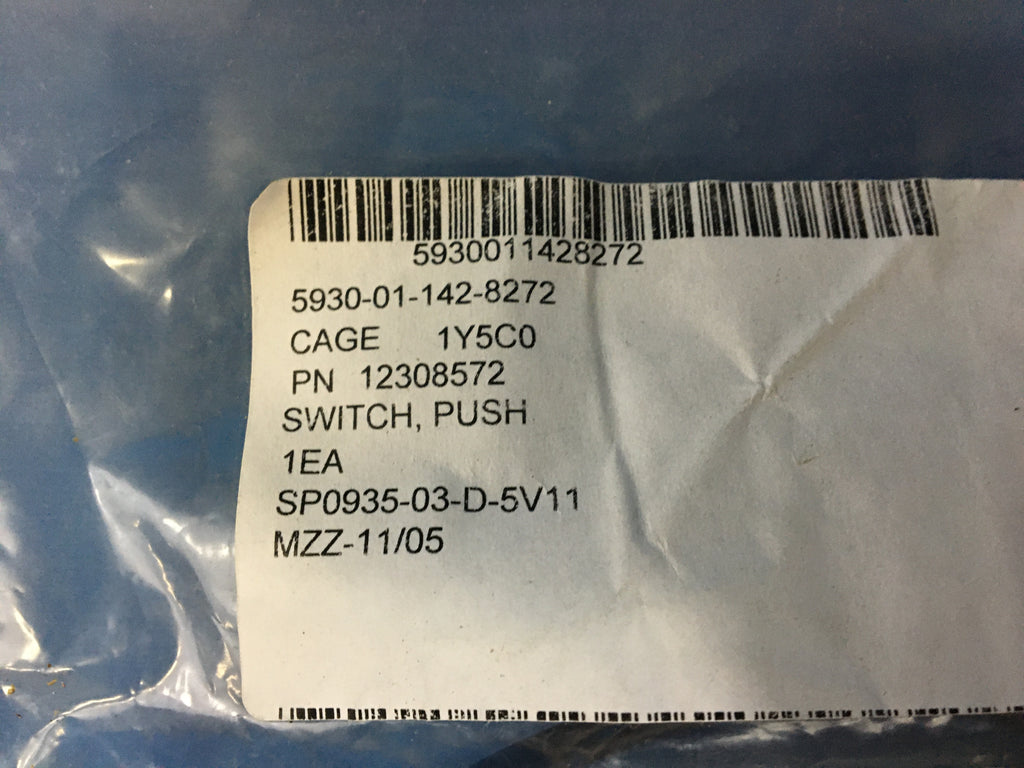

NSN: 5930-01-142-8272 | Model: 12308572
ITAR Registered seal

A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lam (s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull switch, sensitive and switch assembly. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Style
Bushing mounted
Body Diameter
0.531 inches
Bushing Length
0.250 inches
Body Length
0.605 inches
Unthreaded Mounting Hole Diameter
0.052 inches
Maximum Voltage Rating In Volts
125.0 ac and 28.0 dc
End Application
Inclosure Type
Fully enclosed
Mounting Method
Unthreaded hole
Contact Load Current Rating At Maximum Rated Voltage
5.000 amperes restive dc and 5.000 amperes restive ac and 3.000 amperes inductive ac
Terminal Type And Quantity
4 screw

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
