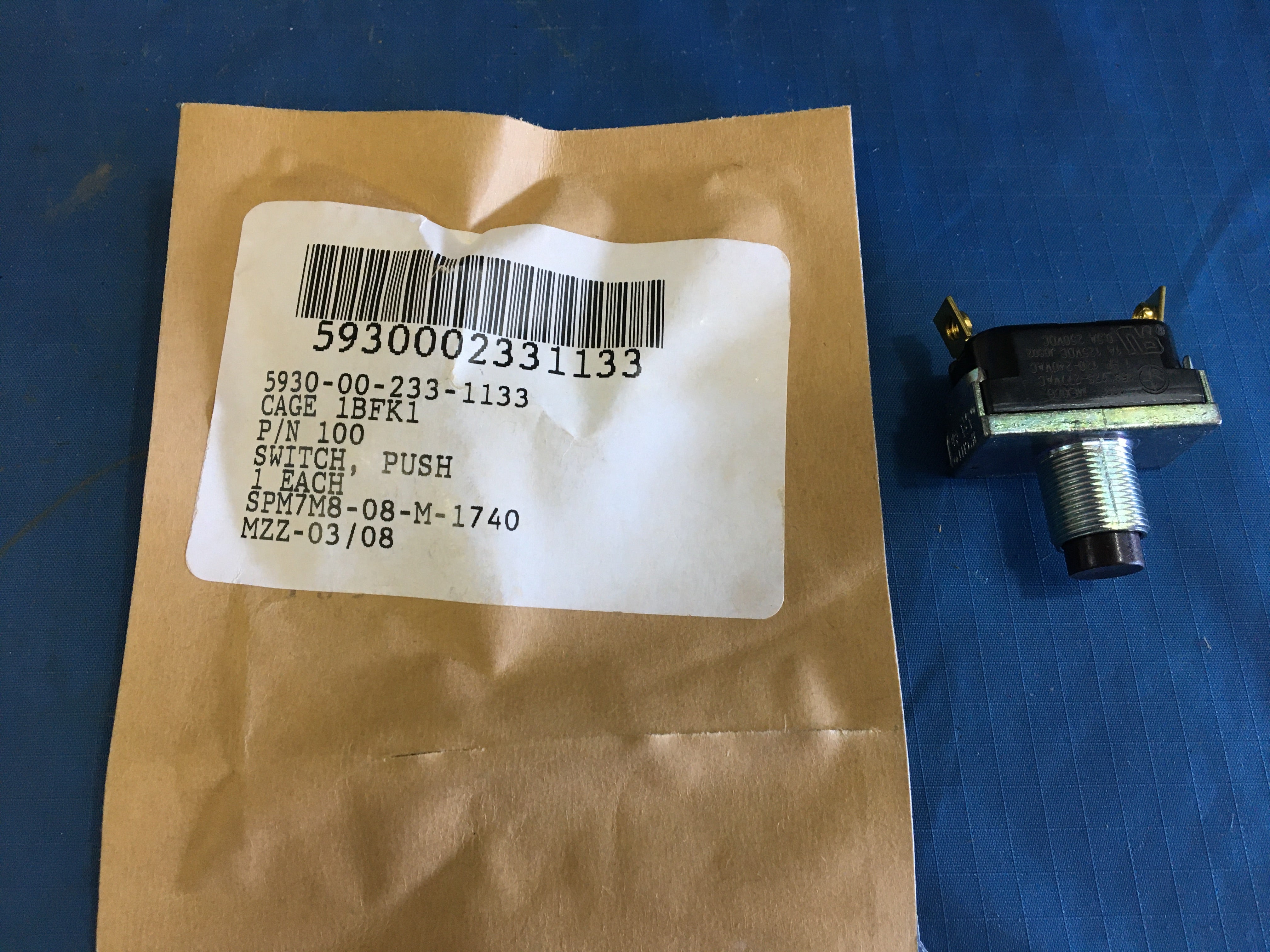

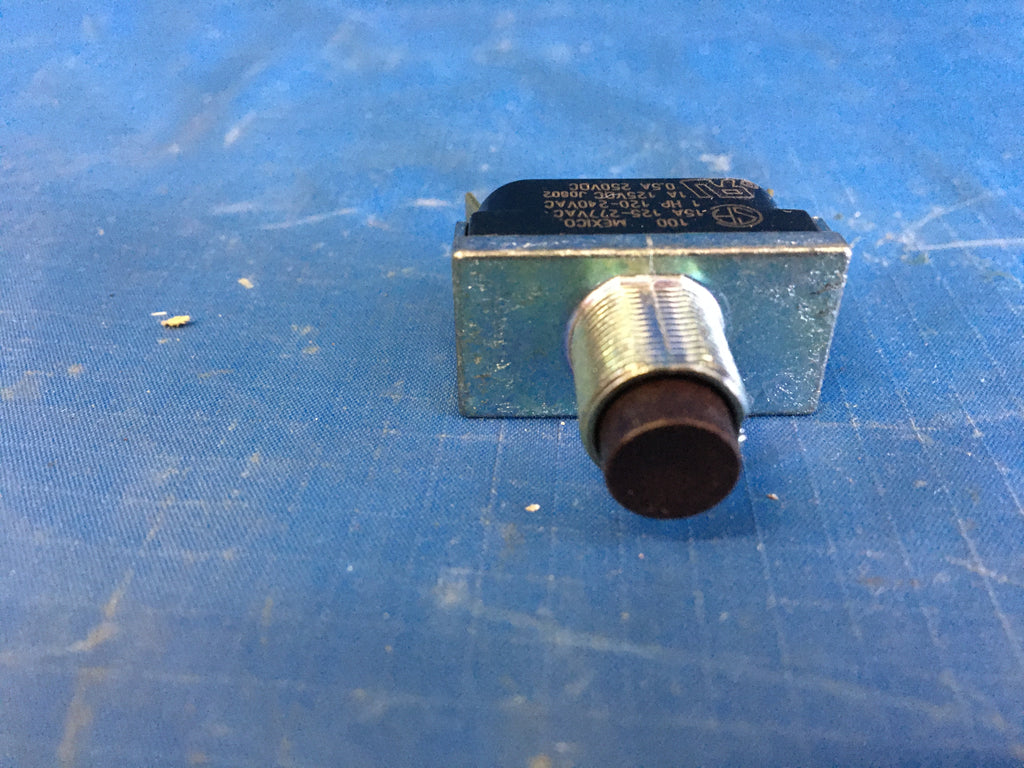

Push Switch NSN: 5930-00-233-1133 P/N: 100
Please fill out the form below for a price quote and availability on this item.
A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. the action may be momentary, with mechanical return. the actuating device may or may not be an integral part of the switch. the item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull; switch, sensitive and switch assembly. for devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.
|Actuator Height:||0.164 inches nominal|
|Actuator Color:||Black single actuator|
|Actuator Diameter:||0.359 inches nominal|
|Body Height:||0.670 inches nominal|
|Body Length:||1.172 inches nominal|
|Body Style:||Bushing mounted|
|Body Width:||0.625 inches maximum|
|Bushing Length:||0.437 inches nominal|
|Contact Load Current Rating At Maximum Rated Voltage:||500.000 milliamperes resistive dc and 15.000 amperes resistive ac|
|Maximum Voltage Rating In Volts:||250.0 ac and 250.0 dc|
|Mounting Method:||Threaded bushing|
|Nominal Thread Size:||0.469 inches|
|Nonpile-up Contact Arrangement:||1 pole, single throw, normally open, double make, momentary action single switch unit|
|Inclosure Type:||Fully inclosed|
|Terminal Type And Quantity:||2 tab w/screw|
|Thread Quantity Per Inch:||32|
|Thread Series Designator:||Uns|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
