Oeco Pulse Transformer NSN: 5950-00-962-2108 P/N:T1466

Please fill out the form below for a price quote and availability on this item.

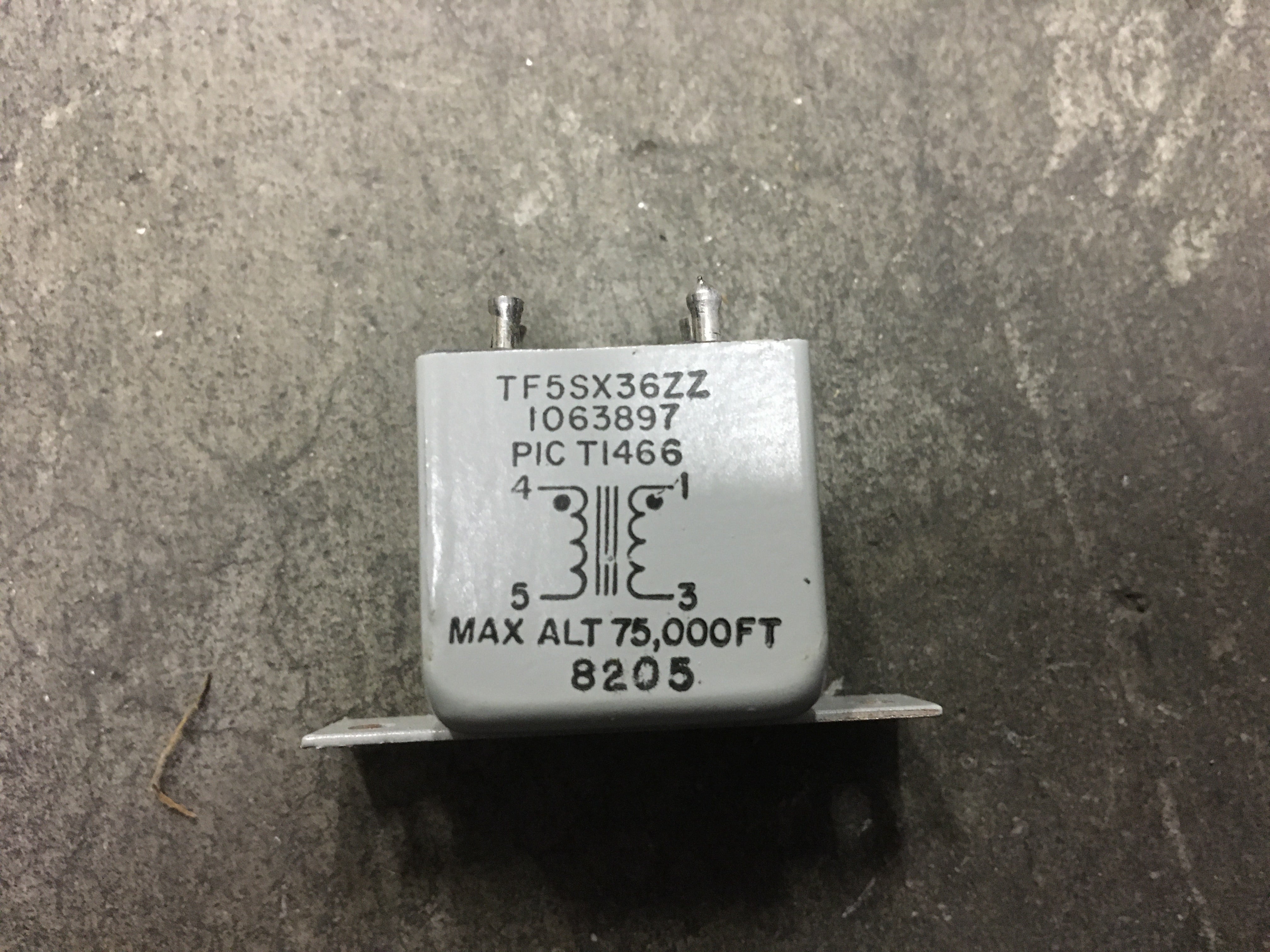

Pulse Transformer

NSN:5950-00-962-2108  P/N:T1466  Model:1063897
ITAR Registered seal

A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.

NSN Properties and Flags
NATO Stock Number
5950-00-962-2108
DEMIL
Yes - ITAR Controlled
Reliability Indicator
Not established
Inductance Rating
80.00 millihenries single component single primary
Primary To Secondary Turn Ratio
1-7/8 to 1 single component
Pulse Repetition Rate
4.2 kilohertz single component
Body Length
1.030 inches
Body Width
0.810 inches
Body Height
1.030 inches
Distance Between Mounting Facility Centers
1.380 inches single mounting facility single center group
Inclosure Type
Hermetically sealed
Mounting Facility Quantity
2 single group

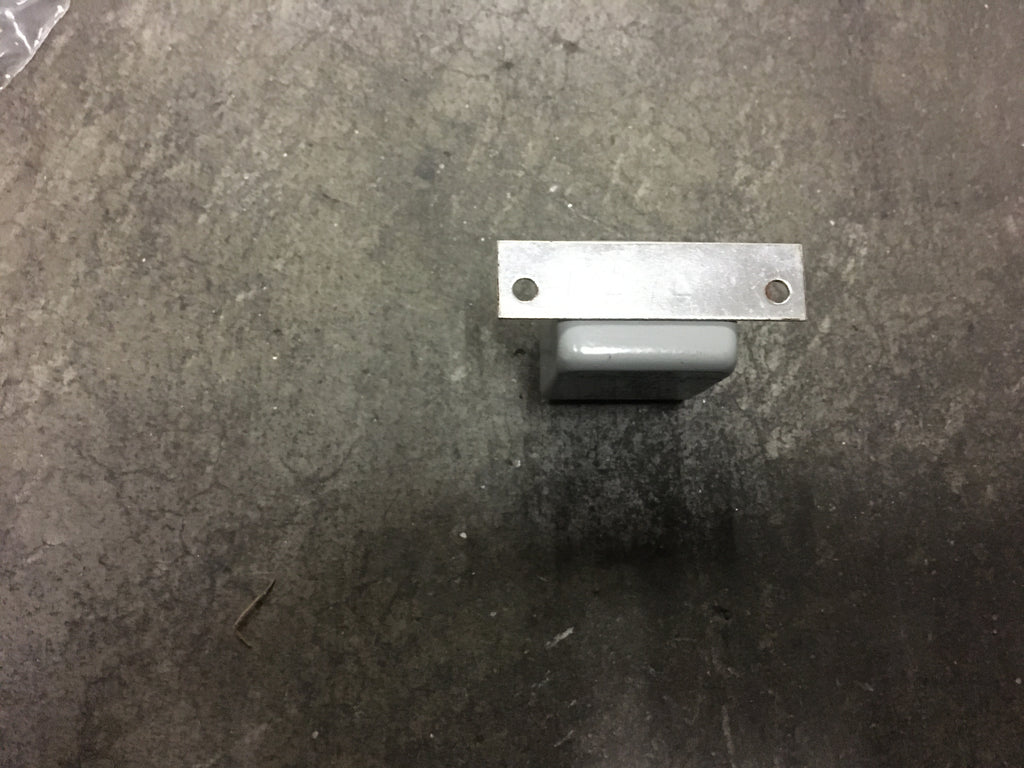

Mounting Method
Flange single group and unthreaded hole single group
Winding Function And Quantity
1 primary single component and 1 secondary single component
Terminal Type And Quantity
4 solder stud



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
