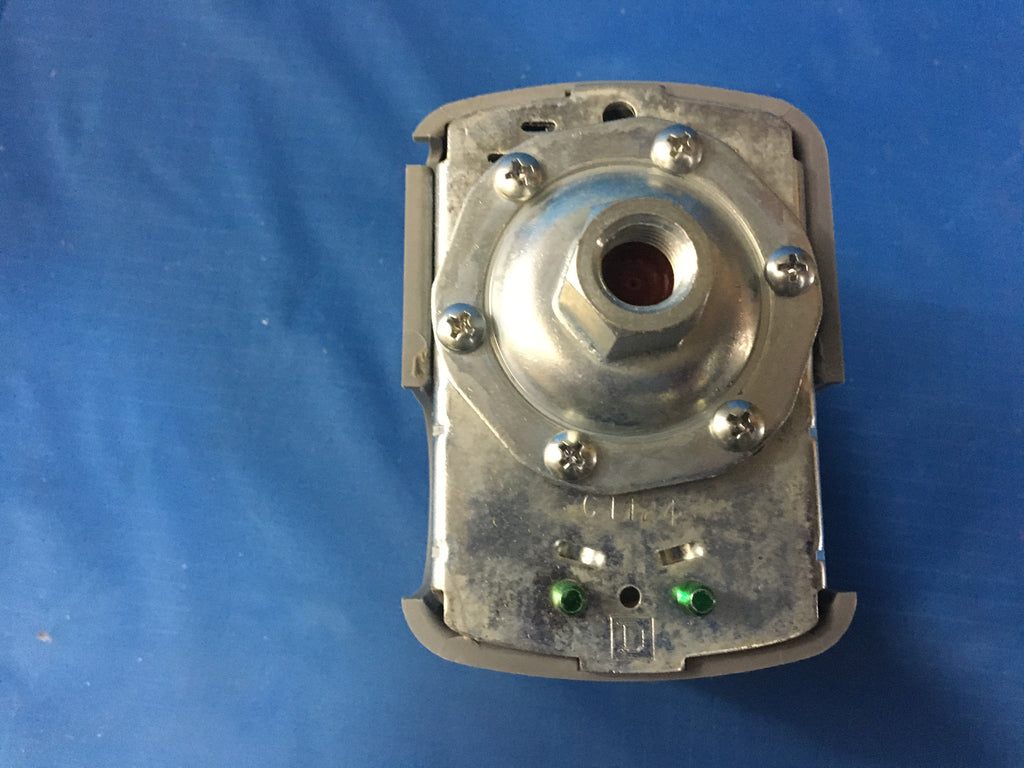

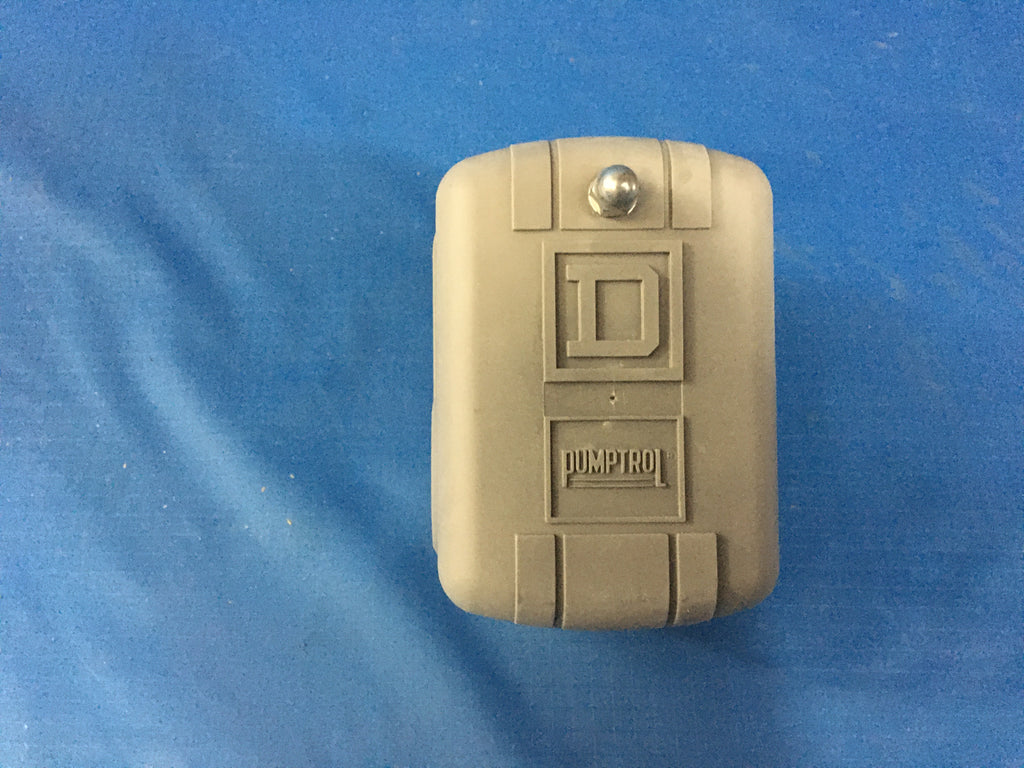

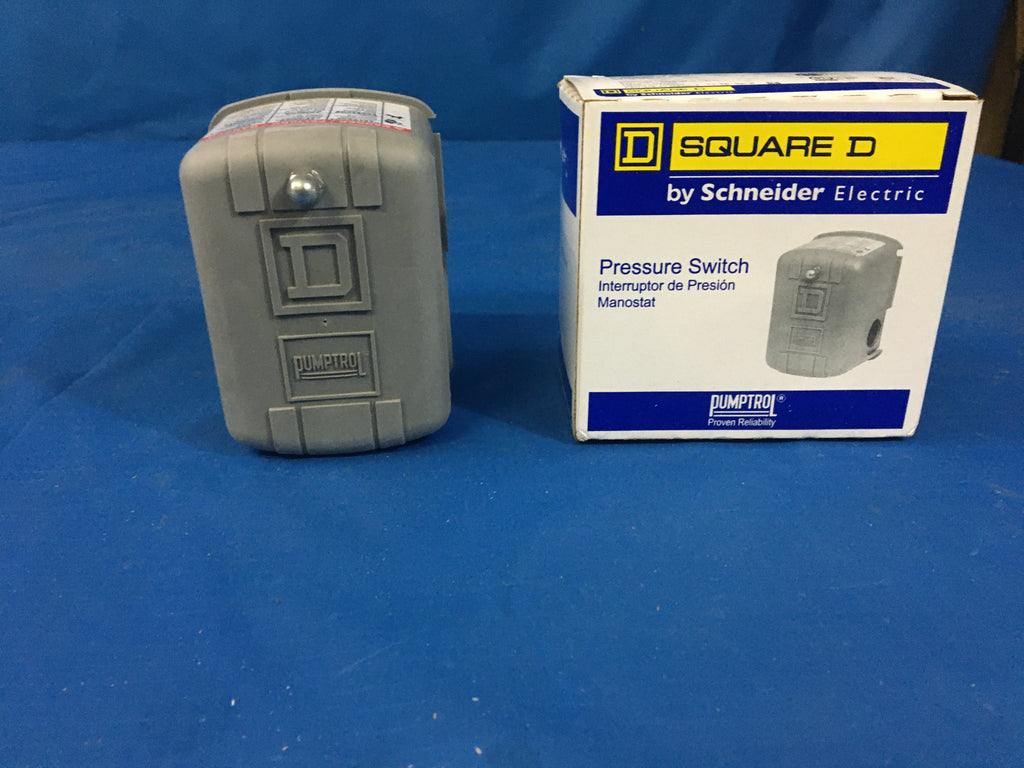

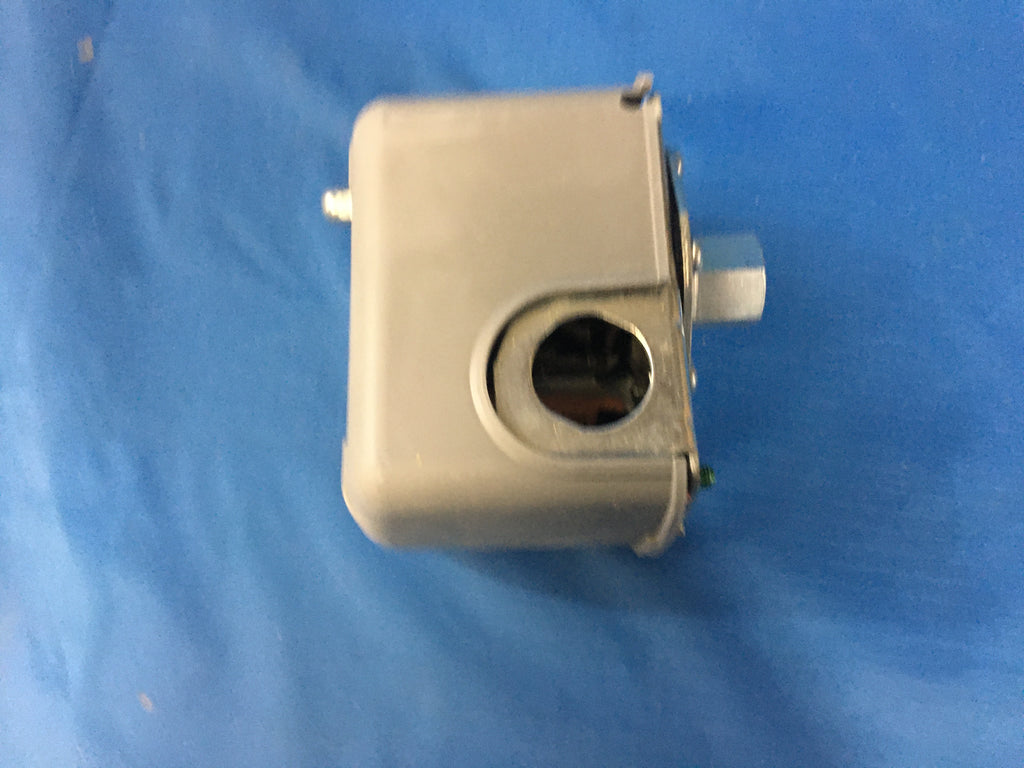

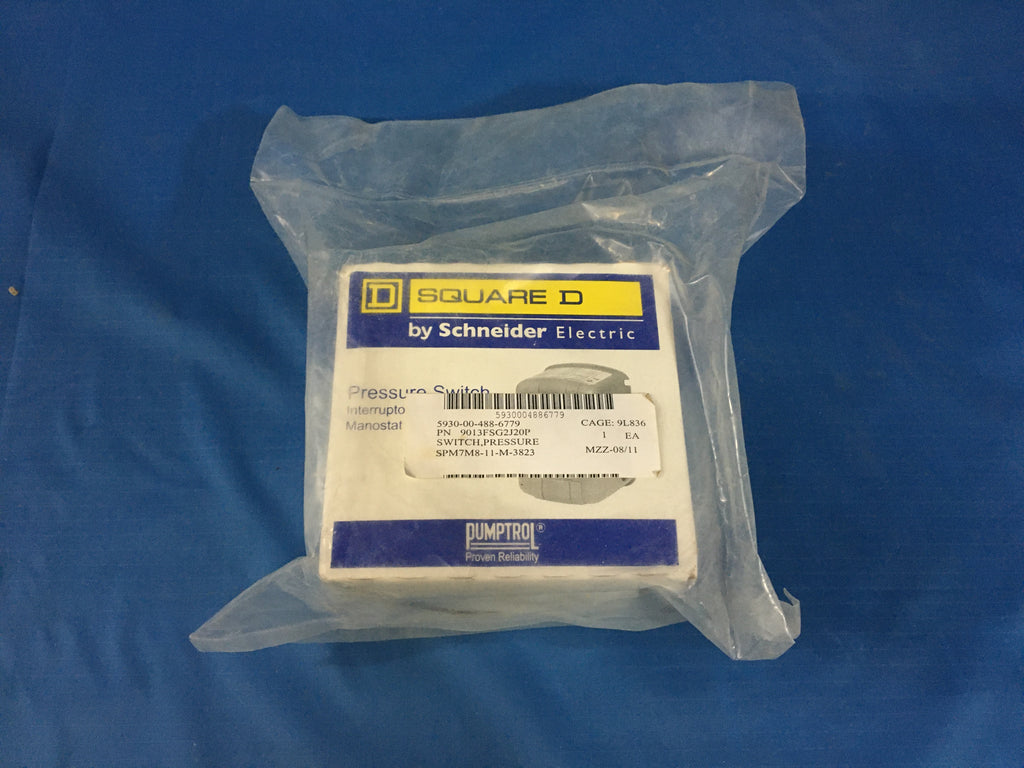

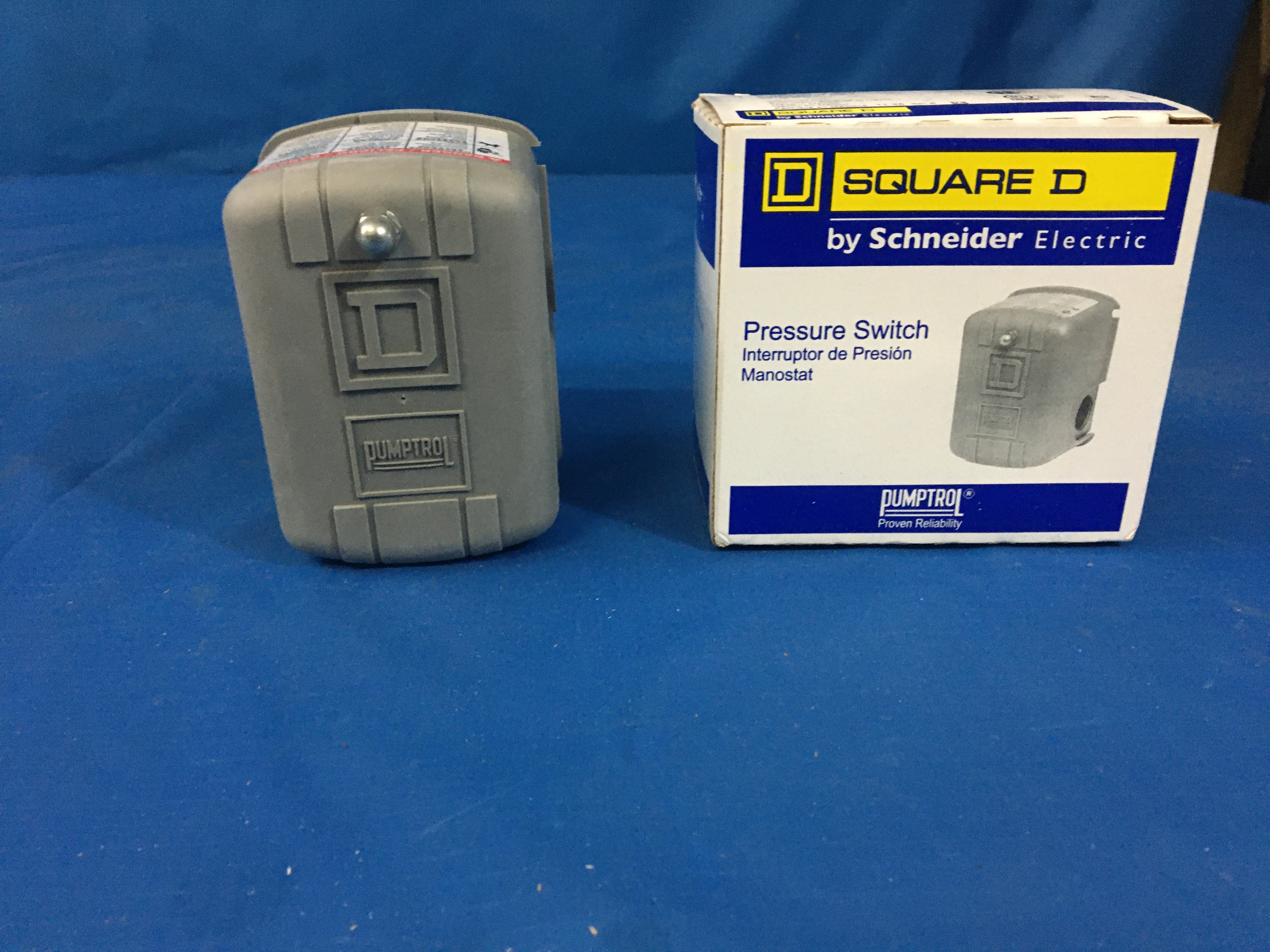

Square D Water Pump Pressure Switch 20-40 PSI P/N:9013FSG2J20P NSN:5930-00-488-6779

Please fill out the form below for a price quote and availability on this item.

Pressure Switch

NSN:5930-00-488-6779  Model:9013FSG2J20P
ITAR Registered seal

A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes brainwash switch, pressure-thermostatic; and switch, sensitive.

NSN Properties and Flags
NATO Stock Number
5930-00-488-6779
DEMIL
Yes - ITAR Controlled
Overall Length
3.930 inches
Overall Height
3.706 inches
Body Length
3.930 inches
Body Height
2.800 inches
Pressure Switch Type
Gage
Operating Tempurature Rating
Between -22.0 degrees Fahrenheit and 176.0 degrees Fahrenheit
Mounting Method
Inlet connection
Features Provided
Electrical access port
Contact Action Stimulus
Decrease

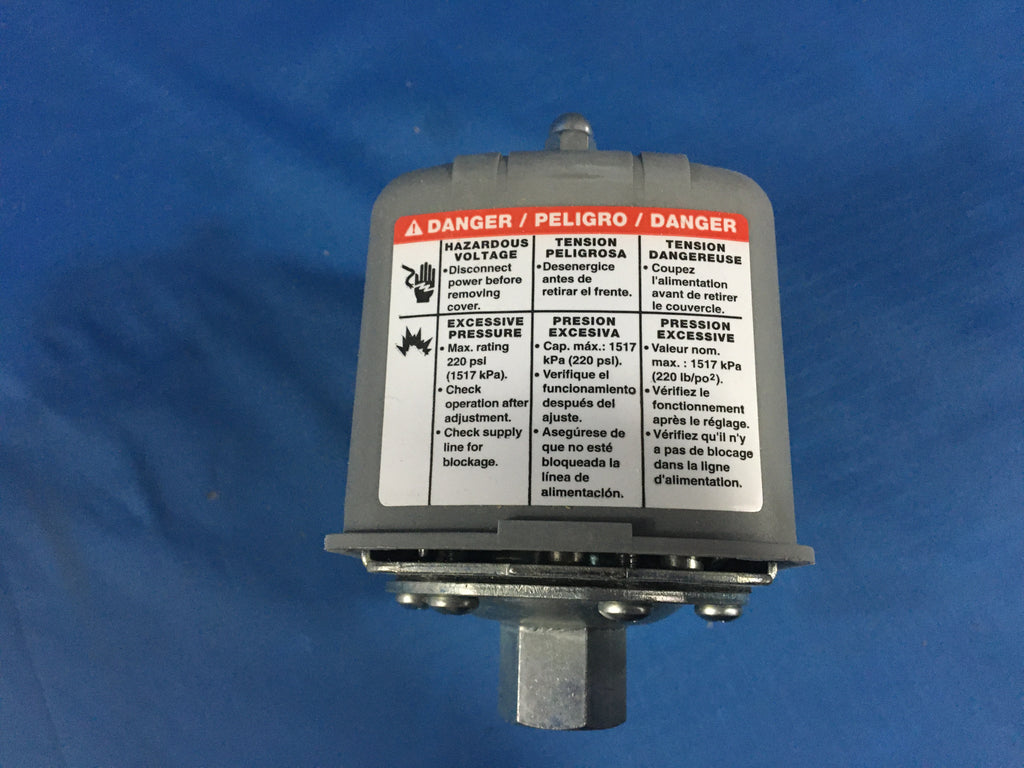

Proof Pressure
220.00 pounds per square inch
Thread Size
0.250 inches single pressure connection
Nonpile-up Contact Arrangement
2 pole, single throw, normally closed, double break, momentary action
Terminal Type
Screw
Contact Adjustability
Actuation point adjustable, preset and deactuation point adjustable, preset
Contact Adjustment Range
+20.00/+65.00 actuation point pounds per square inch
Contact Adjustment Type
Internal actuation point hex nut
Contact Stimulus Rating

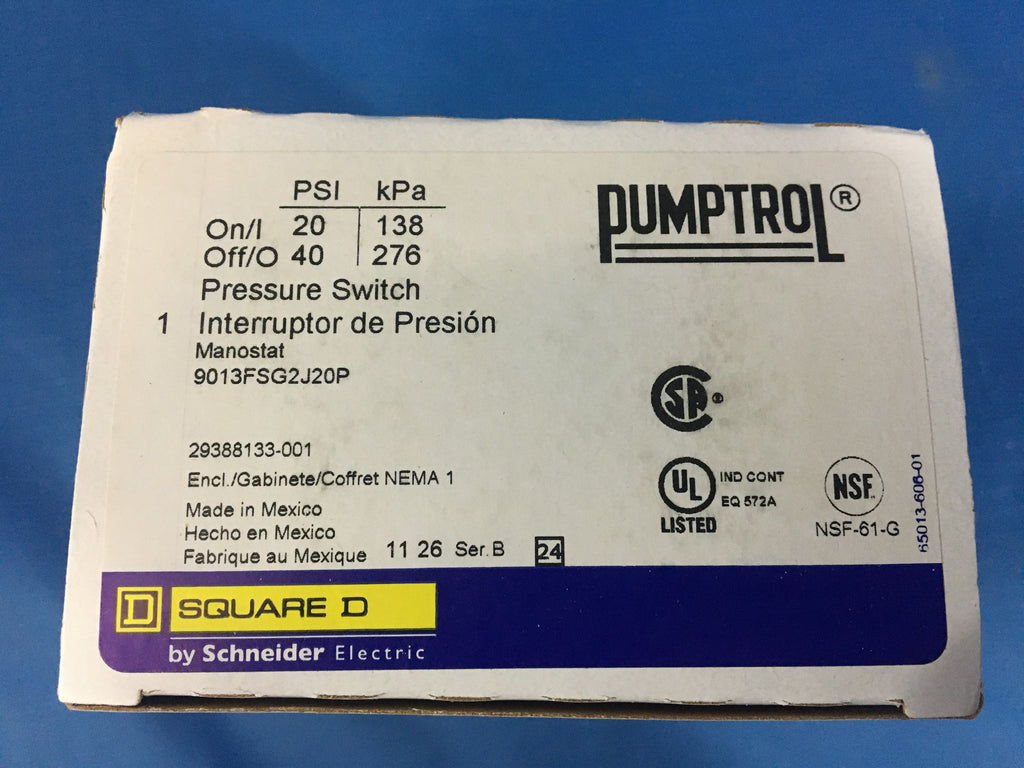

20.00 actuation point pounds per square inch gage and 40.00 deactuation point pounds per square inch gage
Media For Which Designed
Liquid
Style Designator
Rectangular
Thread Series Designator
Npsf single pressure connection



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
