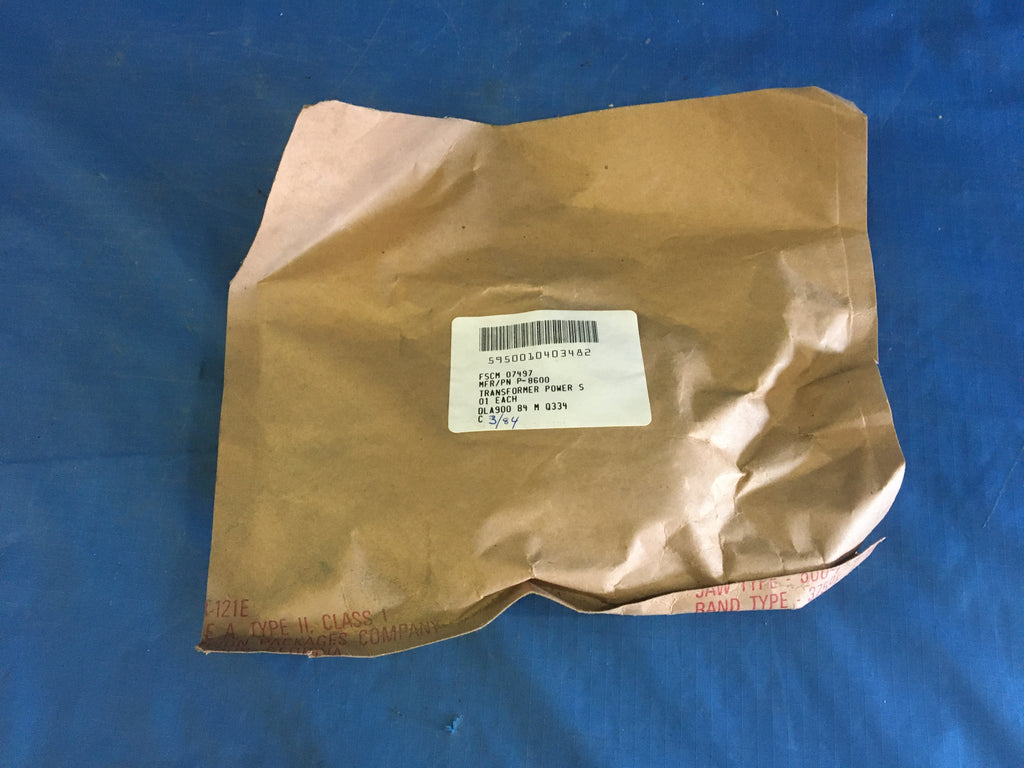

Power Transformer NSN: 5950-01-040-3482 P/N: P-8600
Please fill out the form below for a price quote and availability on this item.
A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). it may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. for transformers having winding(s) common to both input and output circuits, see transformer (1), power, autotransformer. excludes transformer (1), pulse.
|Body Height:||1.188 inches nominal|
|Body Length:||1.469 inches nominal|
|Body Width:||1.312 inches nominal|
|Distance Between Mounting Facility Centers:||1.750 inches nominal single mounting facility single center group|
|Frequency Rating:||50.0 hertz nominal single component or 60.0 hertz nominal single component|
|Maximum Operating Temp:||200.0 deg celsius|
|Maximum Transformer Power Rating:||11.0 decibels single component|
|Mounting Facility Quantity:||2 single group|
|Mounting Hole Diameter:||0.188 inches nominal single group|
|Mounting Method:||Unthreaded hole single group|
|Inclosure Type:||Fully inclosed|
|Input-output Phase Relationship:||Single phase to single phase single component|
|Reliability Indicator:||Not established|
|Winding Function And Quantity:||1 primary single component and 1 secondary single component|
|Winding Operating Current:||85.0 milliamperes ac minimum single component single secondary|
|Winding Operating Voltage:||117.00 ac volts nominal single component single primary|
|Winding Operating Voltage:||28.00 ac volts nominal single component single secondary|
|Terminal Type And Quantity:||5 wire lead|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
