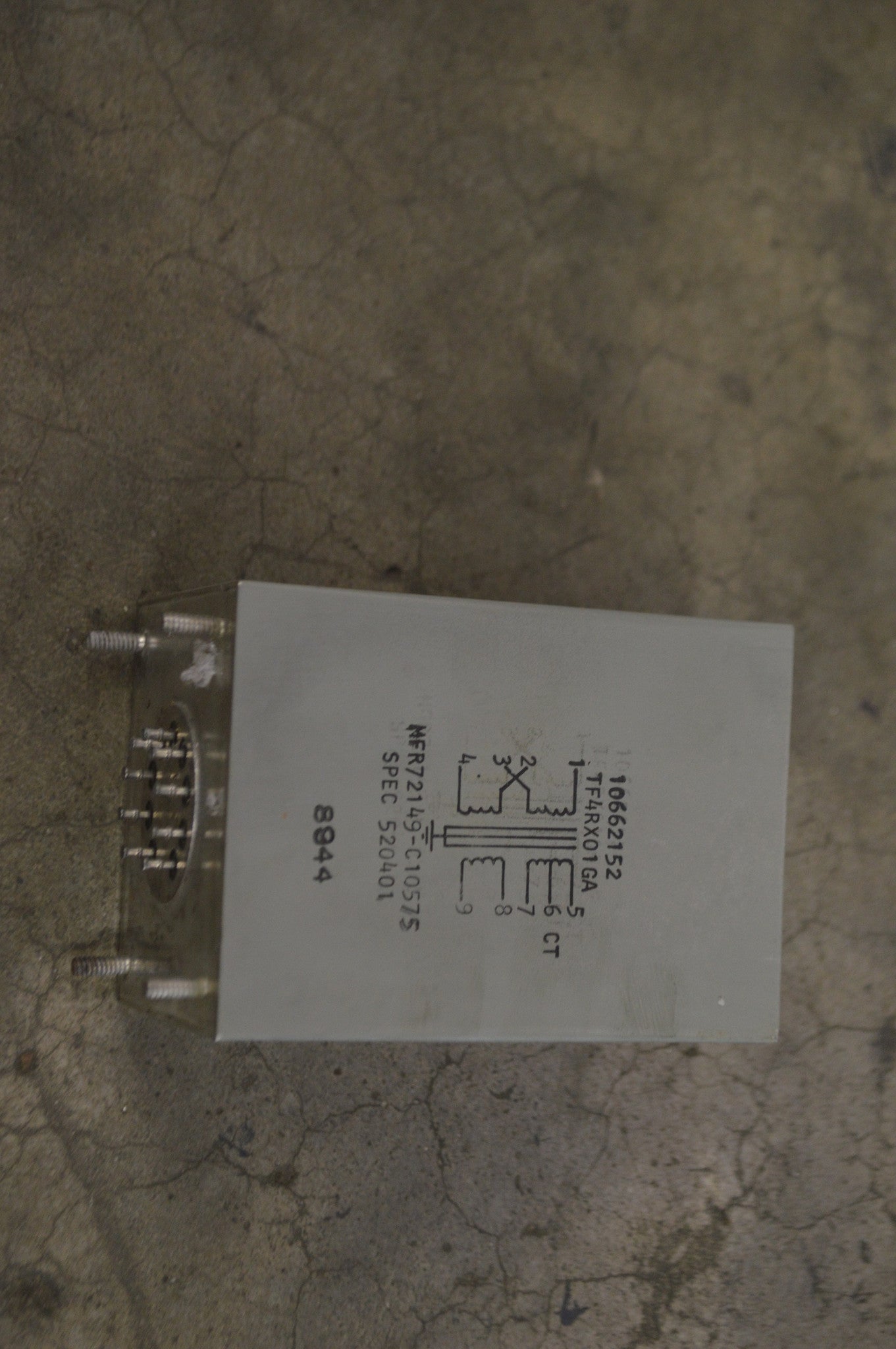

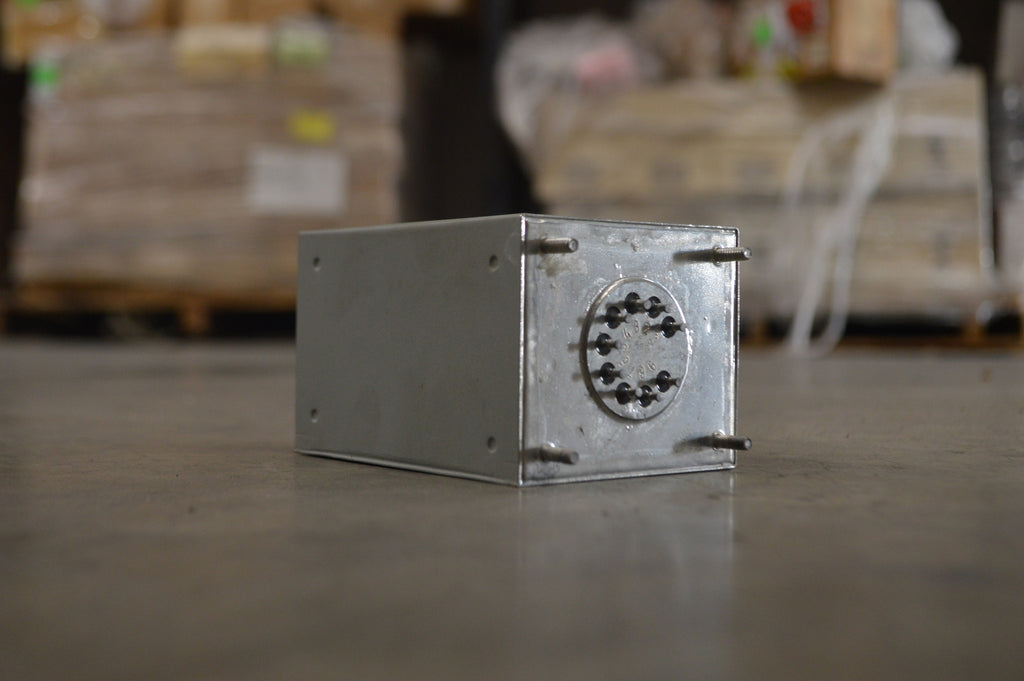

Power Transformer NSN: 5950-00-420-7801 P/N: 10662152
Please fill out the form below for a price quote and availability on this item.
A transformer consisting of one or more primary winding(s) and one or more secondary winding(s). it may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an overall one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. for transformers having winding(s) common to both input and output circuits, see transformer (1), power, autotransformer. excludes transformer (1), pulse.
|Body Height:||2.375 inches nominal|
|Body Length:||3.812 inches nominal|
|Body Width:||2.750 inches nominal|
|Center To Center Distance Between Mounting Facilities Parallel To Length:||2.125 inches nominal single mounting facility single center group|
|Center To Center Distance Between Mounting Facilities Parallel To Width:||1.750 inches nominal single mounting facility single center group|
|Frequency Rating:||50.0 hertz nominal single component or 60.0 hertz nominal single component|
|Mounting Facility Quantity:||4 single group|
|Mounting Method:||Threaded stud single group|
|Nominal Thread Size:||0.138 inches single group|
|Inclosure Type:||Hermetically sealed|
|Input-output Phase Relationship:||Single phase to single phase single component|
|Reliability Indicator:||Not established|
|Winding Operating Current:||1.5 amperes ac maximum single component all secondary|
|Winding Function And Quantity:||2 primary single component and 2 secondary single component|
|Winding Operating Voltage:||115.00 ac volts nominal single component all primary|
|Winding Operating Voltage:||12.60 ac volts nominal single component all secondary115.00 ac volts nominal single component all primary|
|Winding Shielding Method:||Internal shield grounded to inclosure single component|

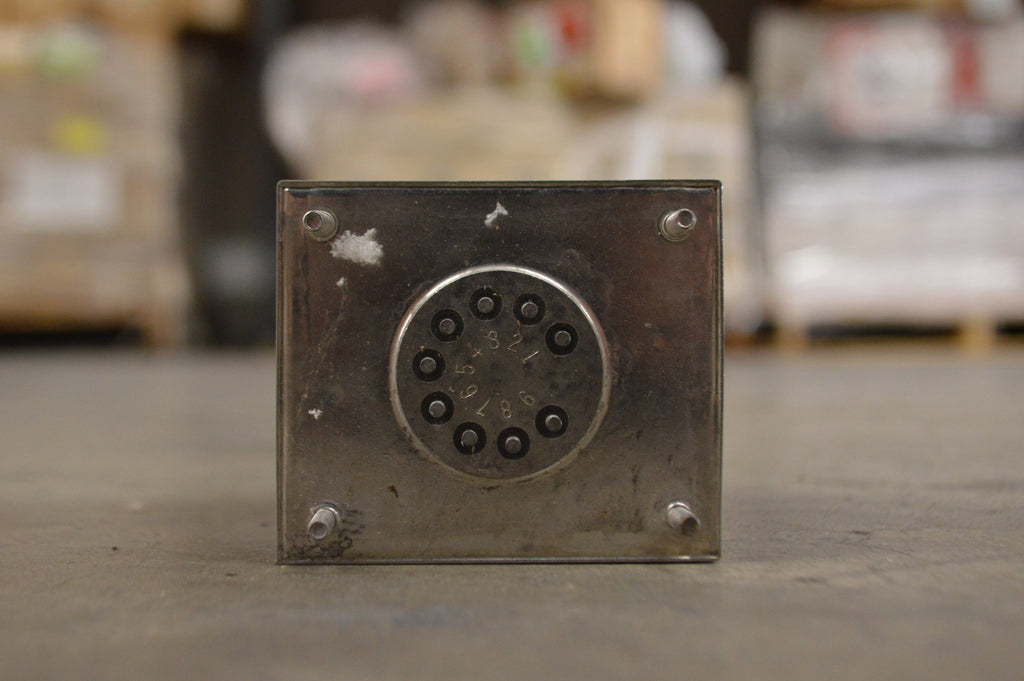

|Terminal Type And Quantity:||9 turret|
|Thread Quantity Per Inch:||32 single group|
|Thread Series Designator:||Unc single group|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
