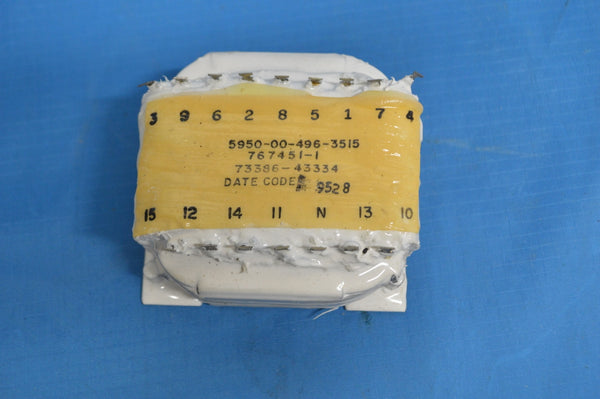

400hz Sealed Power Transformer
Regular price
$179.99
Power Transformer
SKU: 5950004963515 | Model: 1666AS120
NSN 5950-00-496-3515
Specifications from the Manufacturer
Reliability Indicator:
Not established
Center To Center Distance Between Mounting Facilities Parallel To Length:
3.440 inches nominal single mounting facility single center group
Center To Center Distance Between Mounting Facilities Parallel To Width:
2.560 inches nominal single mounting facility single center group
Frequency Rating:
400.0 hertz nominal single component
Input-output Phase Relationship:
Three phase to three phase single component
Transformer Winding Connection Type:
Wye-delta
Maximum Transformer Power Rating:
717.9 volt-ampere single component
Body Length:
4.100 inches maximum
Body Width:
3.500 inches maximum
Body Height:
2.150 inches maximum
Maximum Operating Temp:
155.0 deg celsius
Inclosure Type:
Fully inclosed

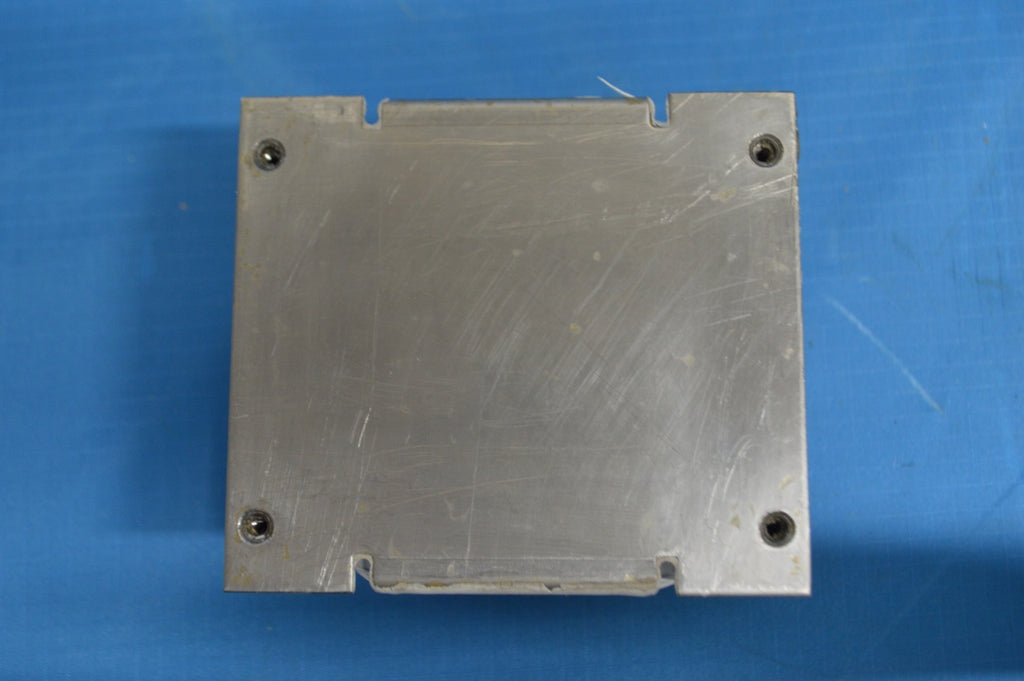

Mounting Facility Quantity:
4 single group
Mounting Method:
Threaded hole single group
Winding Function And Quantity:
1 primary single component and 4 secondary single component
Nominal Thread Size:
0.138 inches single group
Winding Operating Current:
11.5 amperes dc nominal single component 4th secondary
Winding Operating Current:
3.5 amperes dc nominal single component 3rd secondary
Winding Power Rating:
214.1 volts-amperes single component 1st secondary
Winding Power Rating:
214.1 volts-amperes single component 2nd secondary84.8 volts-amperes single component 3rd secondary204.9 volts-amperes single component 4th secondary
Winding Operating Voltage:
14.00 dc volts nominal single component 3rd secondary10.30 dc volts nominal single component 4th secondary199.00 ac volts nominal single component single primary
Winding Operating Voltage:
27.50 dc volts nominal single component 2nd secondary14.00 dc volts nominal single component 3rd secondary10.30 dc volts nominal single component 4th secondary
Thread Series Designator:
Unc single group

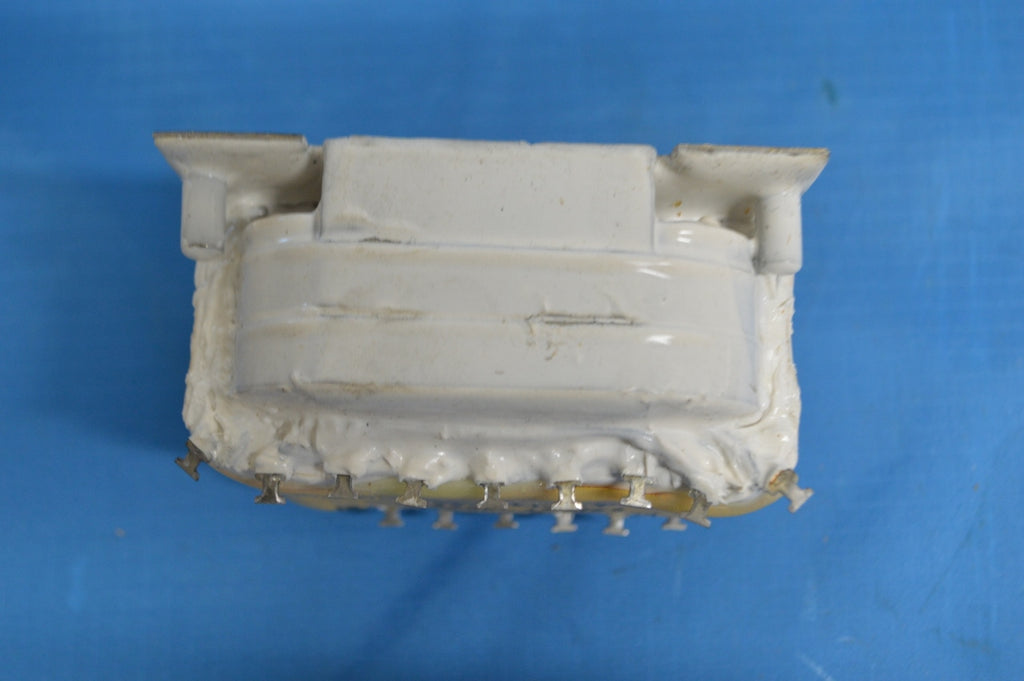

Terminal Type And Quantity:
16 tab, solder lug
