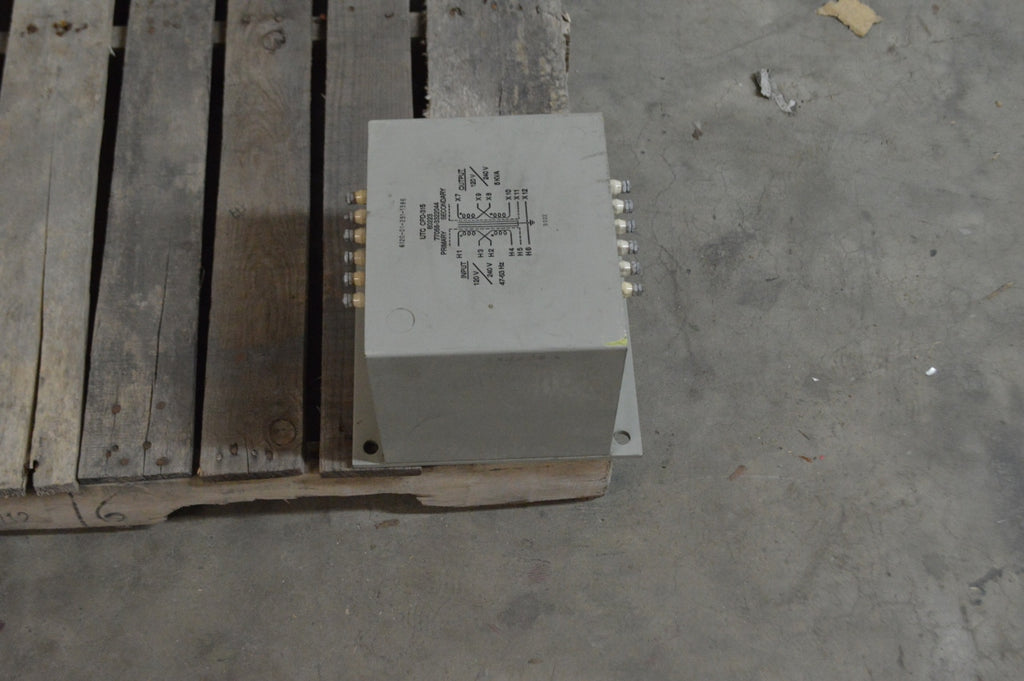

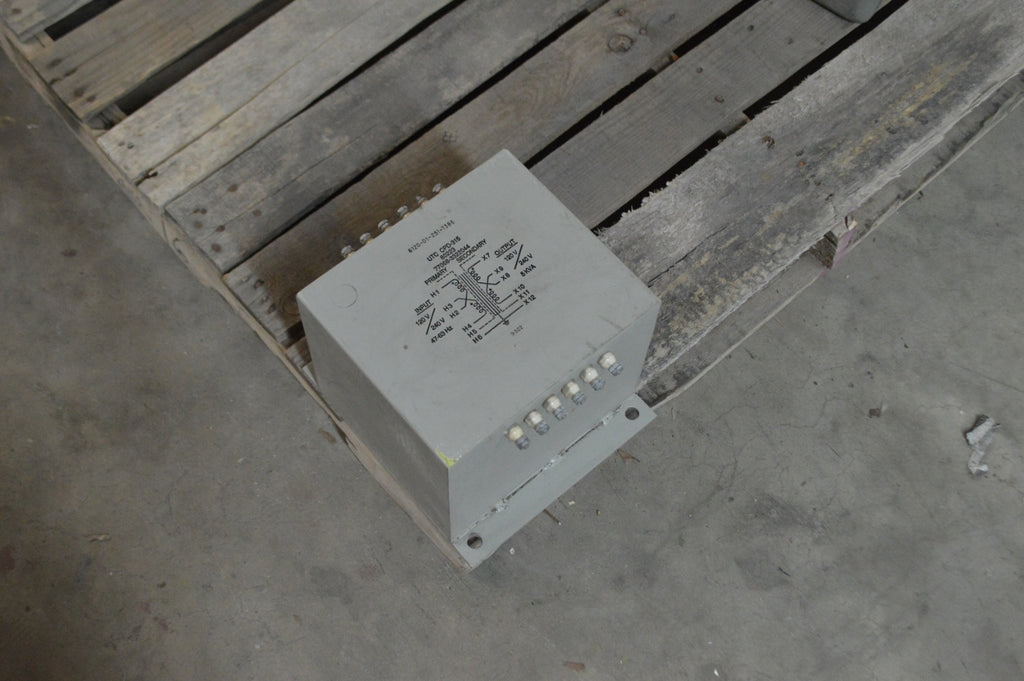

Power Sealed Transformer 120V/240V, 47-63HZ NSN 6120-01-251-1386 Model: CPD-315
Regular price
$259.99
Power Transformer
SKU: 5950012511386 | Model: CPD-315NSN 6120-01-251-1386
Specifications from the Manufacturer
Overall Length:
9.531 inches nominal
Center To Center Distance Between Mounting Facilities Parallel To Length:
8.270 inches nominal single mounting facility single center group
Center To Center Distance Between Mounting Facilities Parallel To Width:
7.270 inches nominal single mounting facility single center group
Overall Height:
7.500 inches nominal
Overall Width:
8.594 inches nominal
Mounting Hole Diameter:
0.507 inches nominal single group
Frequency Rating:
50.0 hertz nominal single component or 60.0 hertz nominal single component
Input-output Phase Relationship:
Single phase to single phase single component
Maximum Transformer Power Rating:
5.0 kilovolt-ampere single component
Inclosure Type:
Open
Mounting Facility Quantity:
4 single group
Mounting Method:
Threaded stud single group

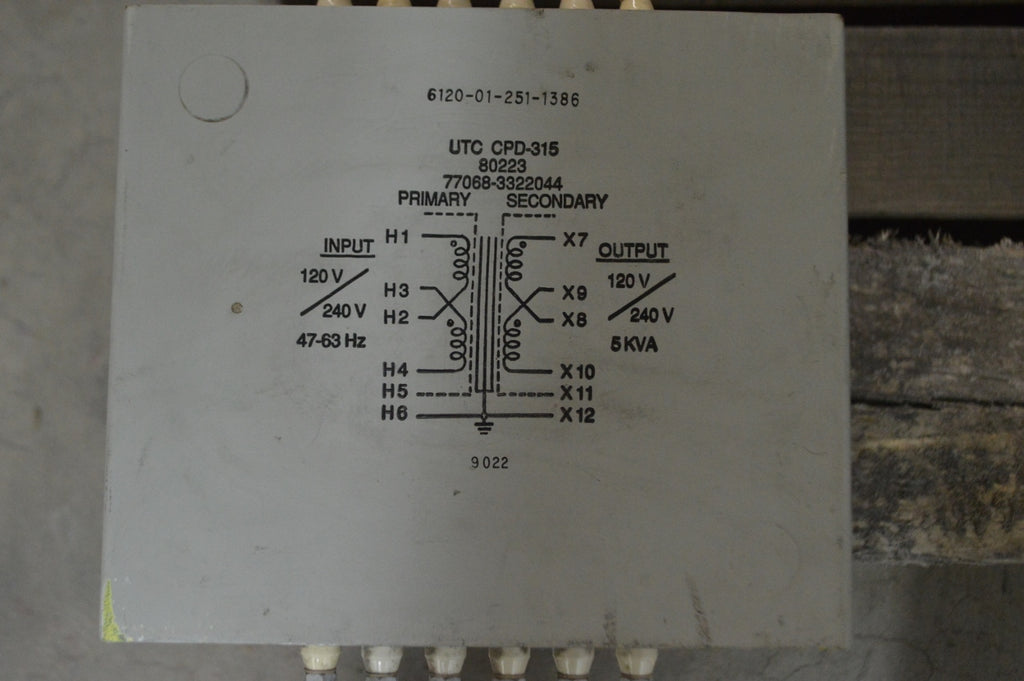

Winding Function And Quantity:
2 primary single component and 2 secondary single component
Nominal Thread Size:
0.190 inches all groupings
Winding Operating Current:
10.0 amperes ac nominal single component single primary
Winding Operating Current:
3.3 amperes ac nominal single component single secondary
Winding Operating Voltage:
120.00 ac volts nominal single component 1st primary
Winding Operating Voltage:
240.00 ac volts nominal single component 2nd secondary
Thread Series Designator:
Unf single group

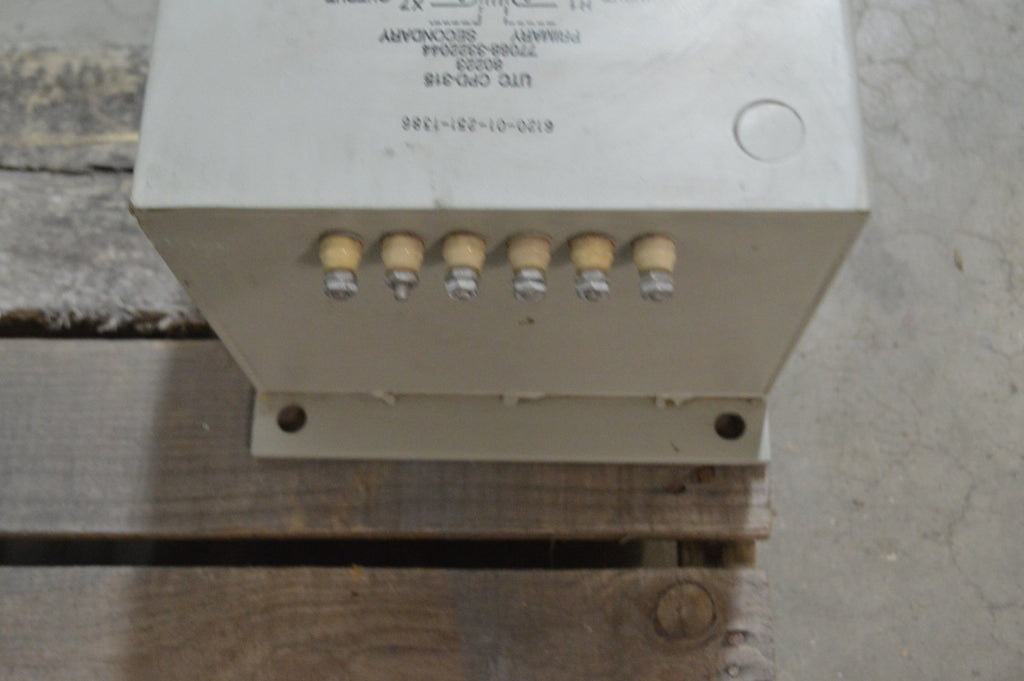

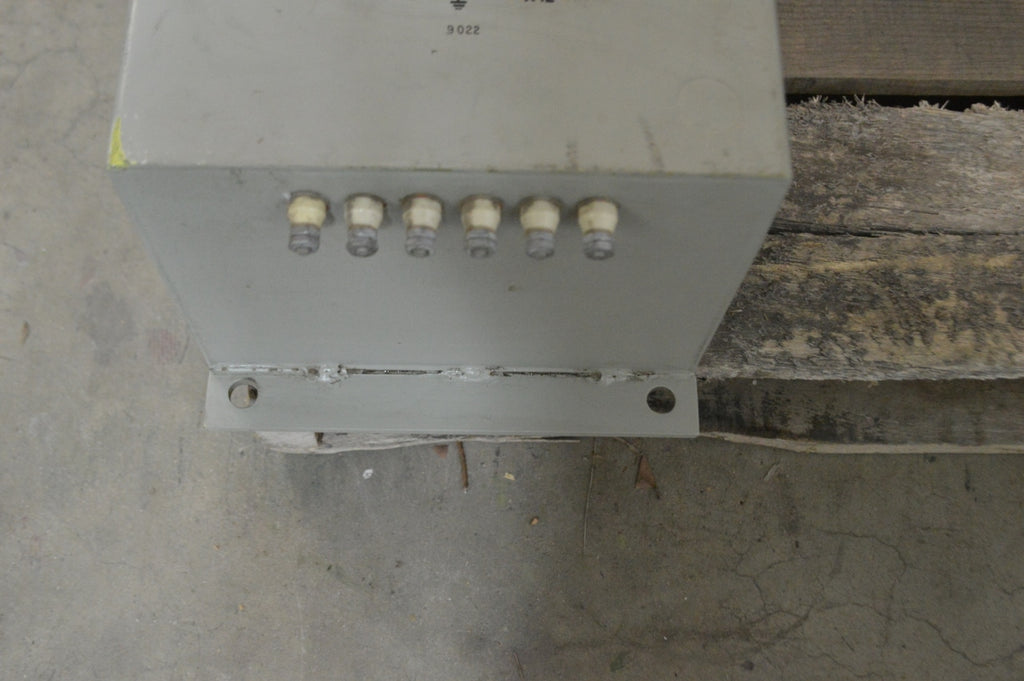

Terminal Type And Quantity:
12 threaded stud
