Texas Instruments C812804 Plug-in Electronic Components Socket NSN:5935-01-085-8380

Please fill out the form below for a price quote and availability on this item.

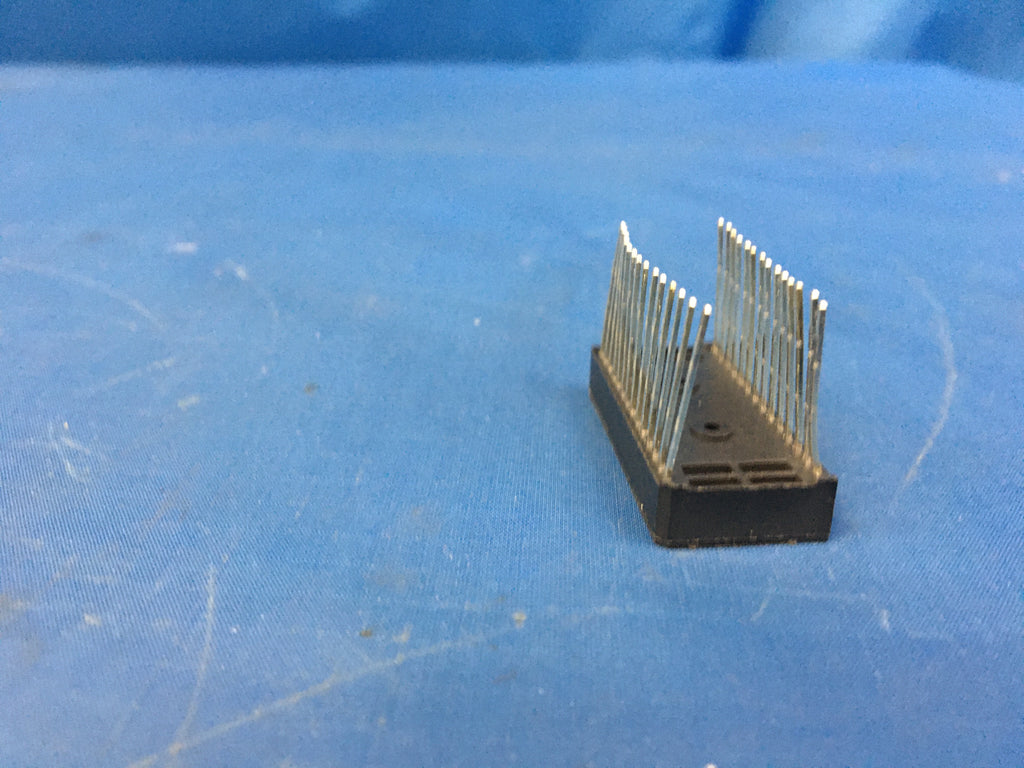

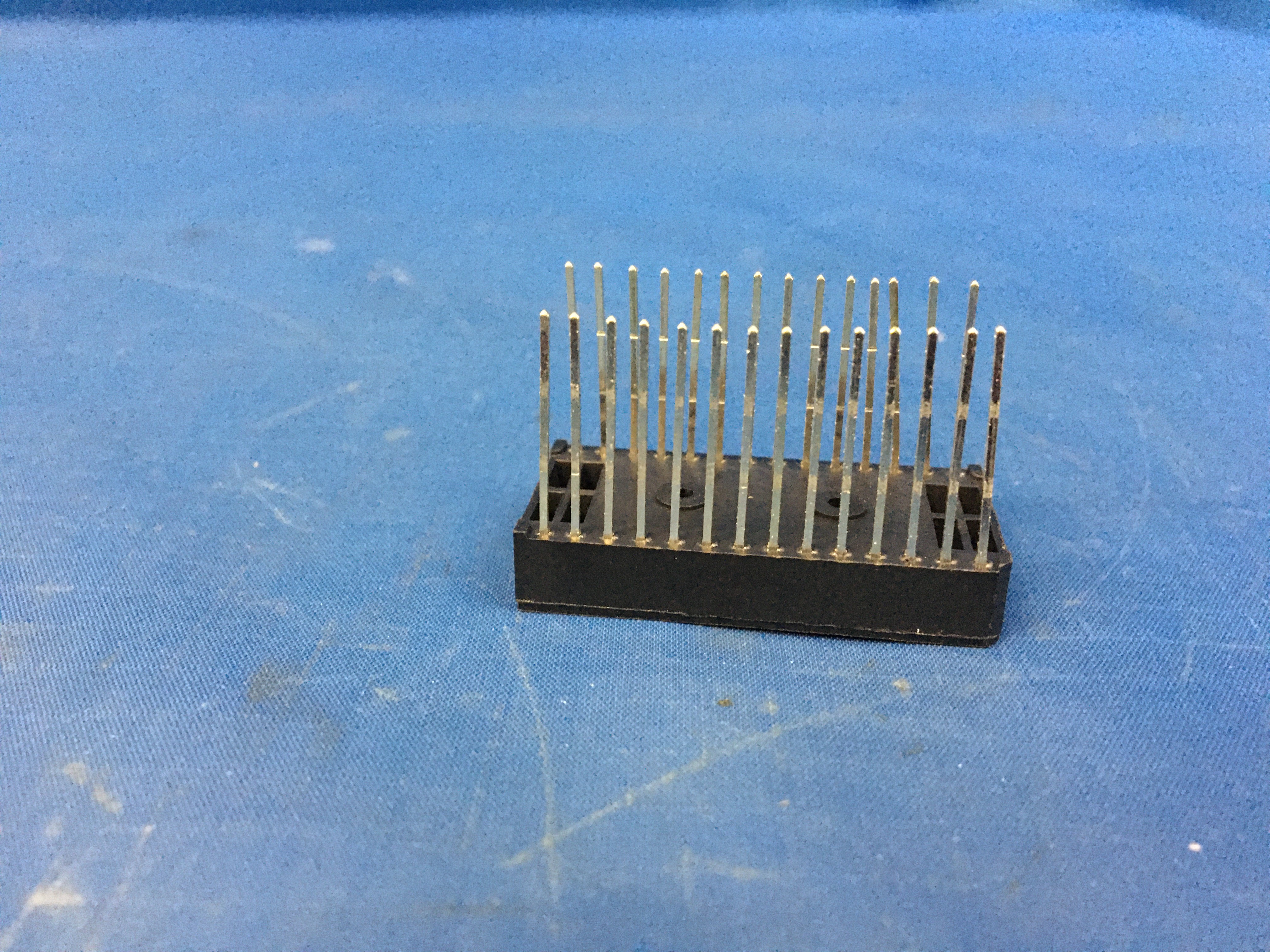

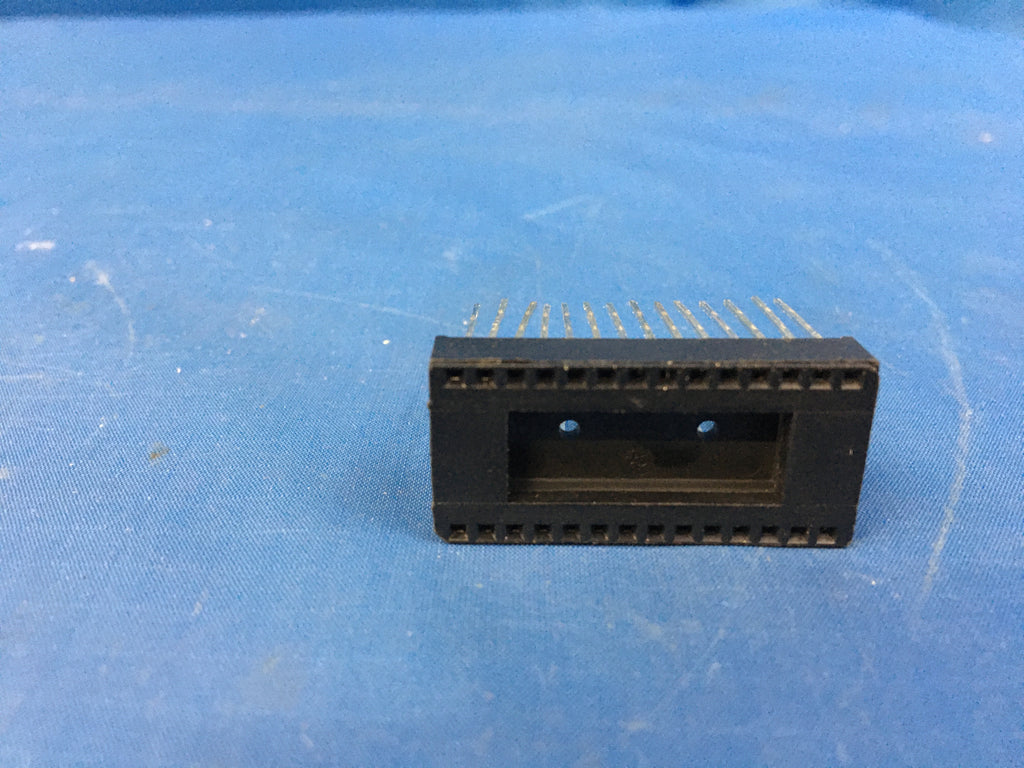

Plug-in Electronic Components Socket

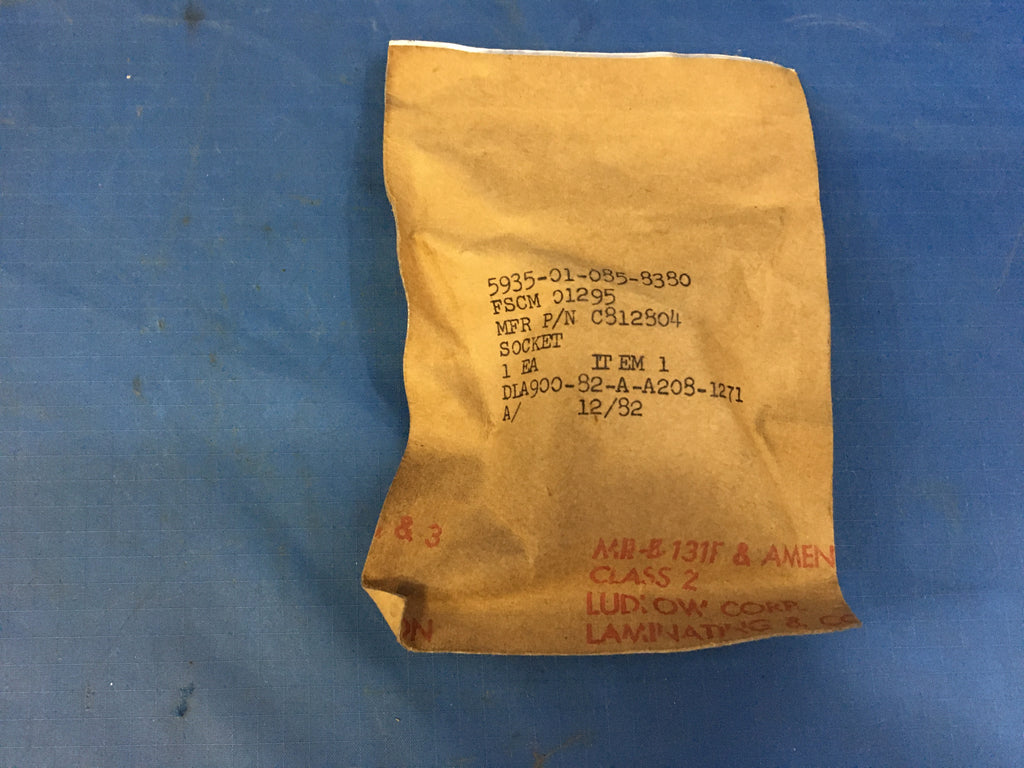

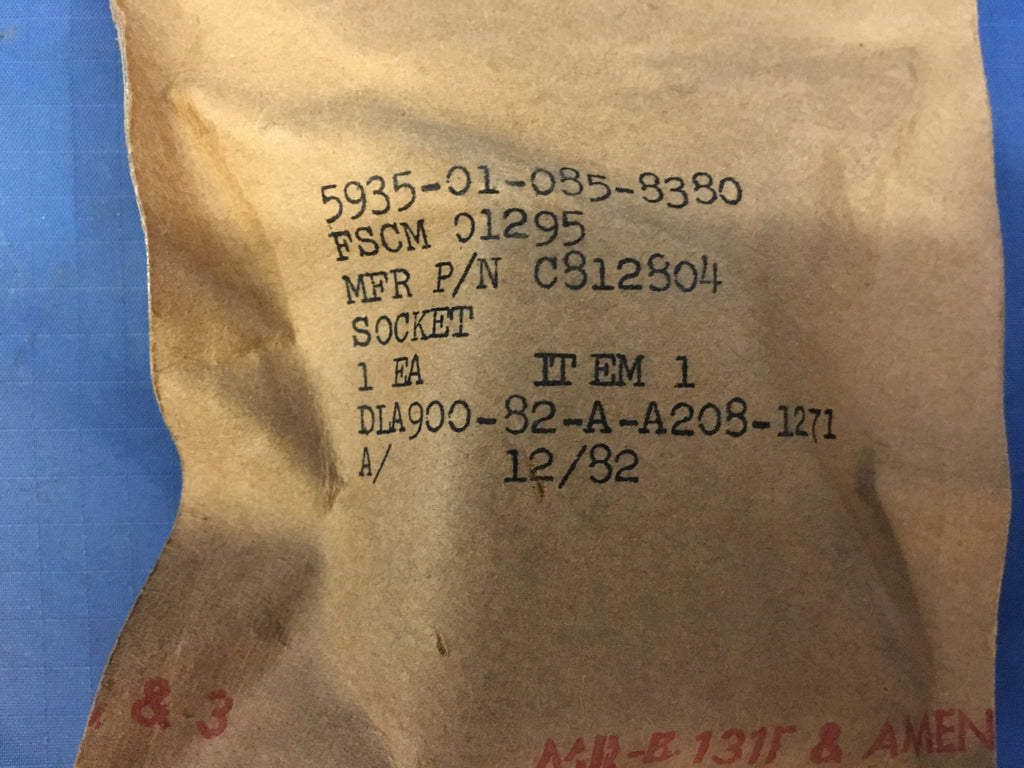

NSN: 5935-01-085-8380 | Model: C812804
ITAR Registered seal

An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

NSN Properties and Flags
NATO Stock Number
5935-01-085-8380
DEMIL
Yes - ITAR Controlled
Body Material
Glass and polyamide nylon
Body Style
Top mount
Overall Length
1.480 inches
Terminal Length
Between 0.640 inches and 0.690 inches
Overall Height
0.945 inches
Overall Width
0.700 inches
Contact Material
Phosphor bronze
Contact Surface Treatment
Tin
Accommodated Contact Quantity
28
Printed Circuit Board Hole Arrangement Style
Twenty eight hole dimension "a" 0.600 inch
Polarization Type
Contact shape
Mounting Method
Terminal
Mounting Type For Which Designed
Printed circuit
Contact Position Arrangement Style
Dual in-line
Terminal Type And Quantity
28 wire wrap



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
