Donallco EE404 Plate Insulator NSN:5970-00-473-9116

Please fill out the form below for a price quote and availability on this item.

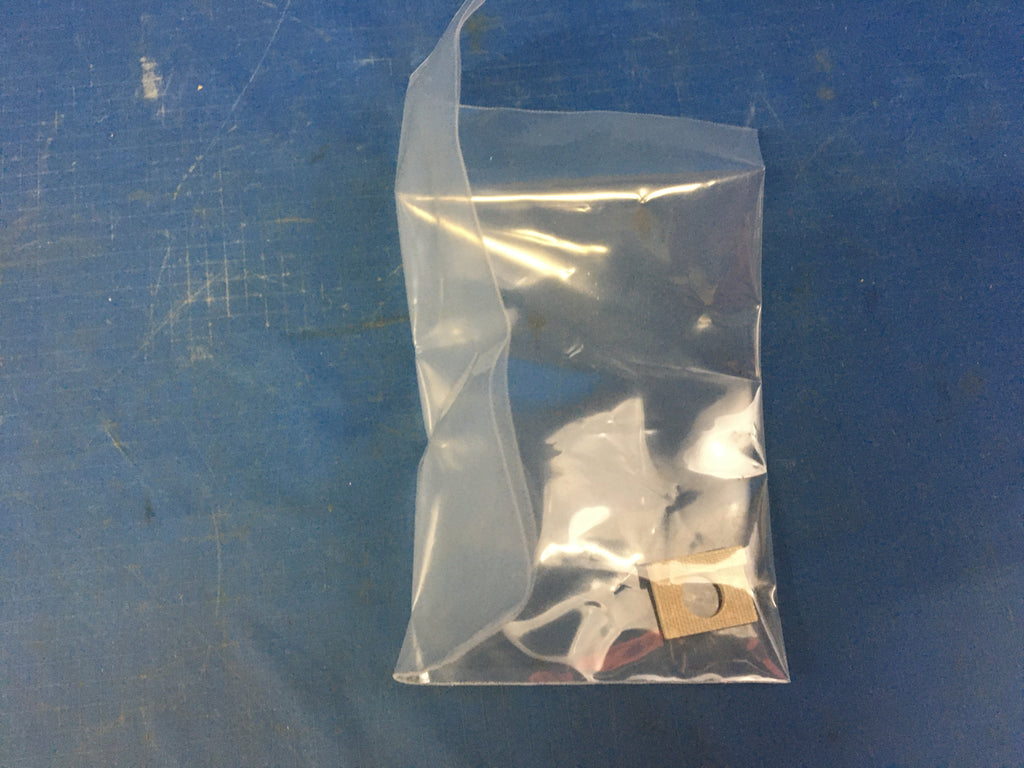

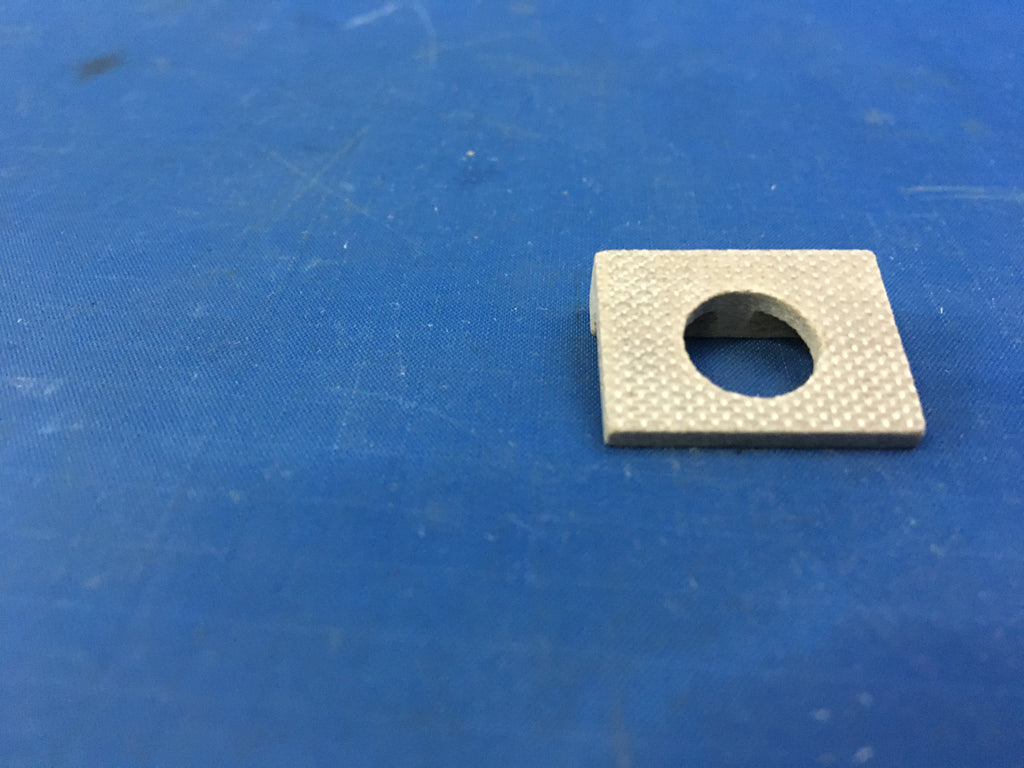

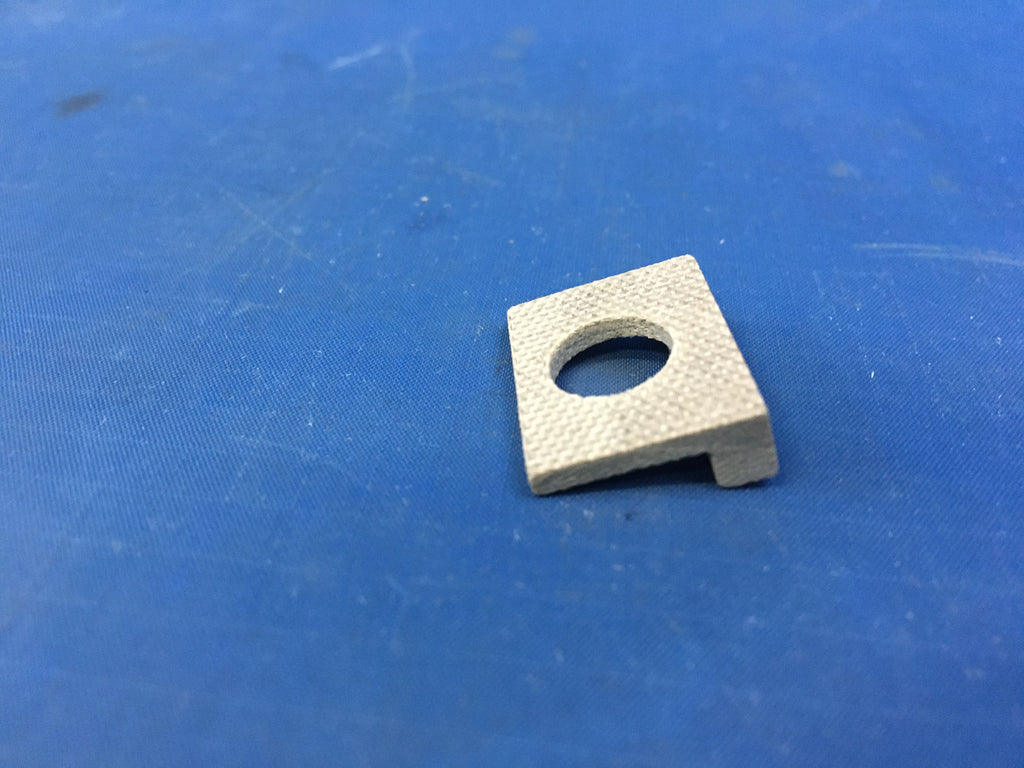

Plate Insulator

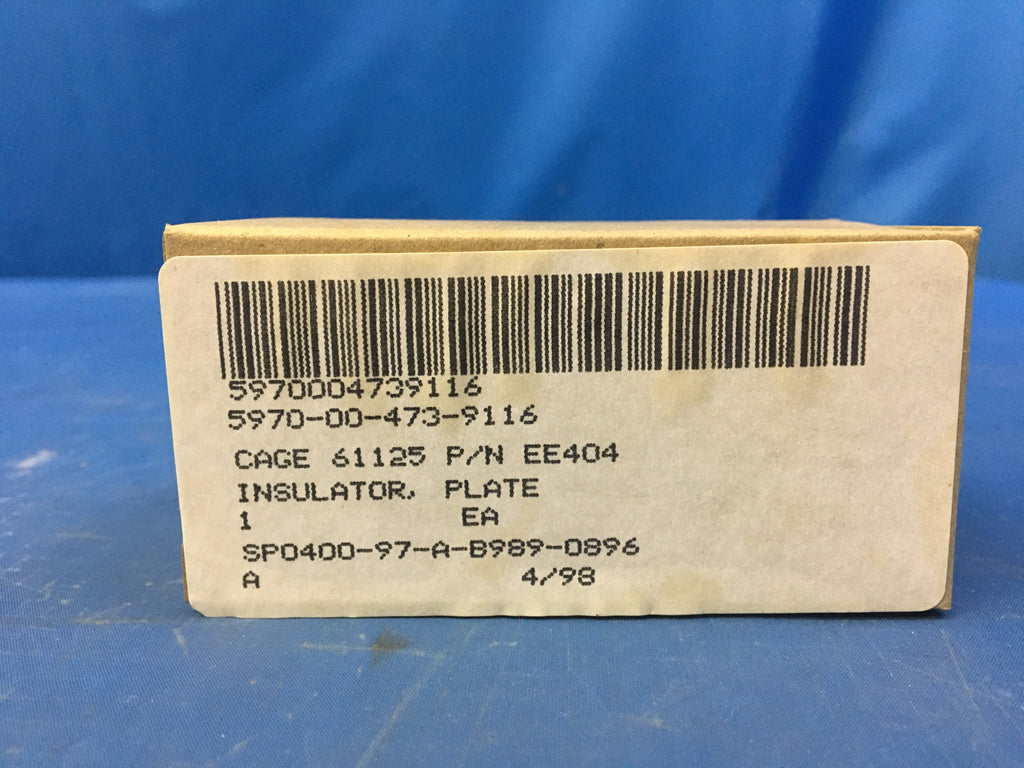

NSN: 5970-00-473-9116 | Model: EE404
ITAR Registered seal

An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes insulator (1), spacer; insulator (1), washer; mounting pad, electrical-electronic component; plate, electrical shield; and terminal board.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Length
0.850 inches
Overall Height
0.094 inches
Overall Width
0.650 inches
First Hole Diameter
0.400 inches
First Hole Spacing
0.425 inches
Second Hole Spacing
0.325 inches
Special Features

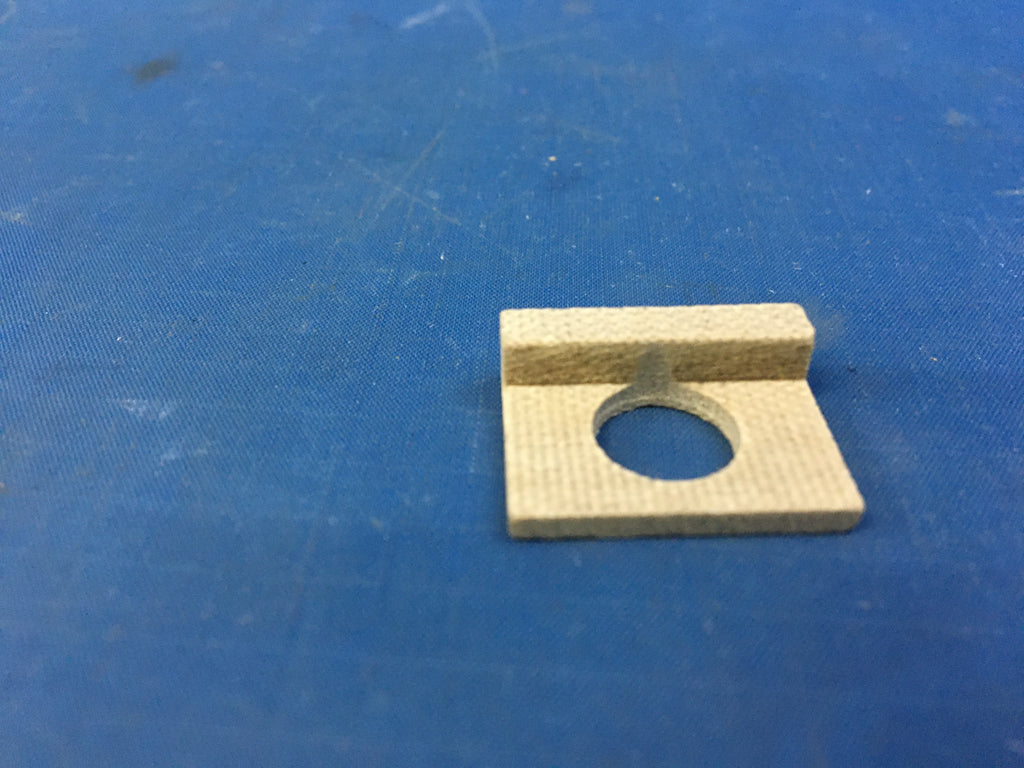

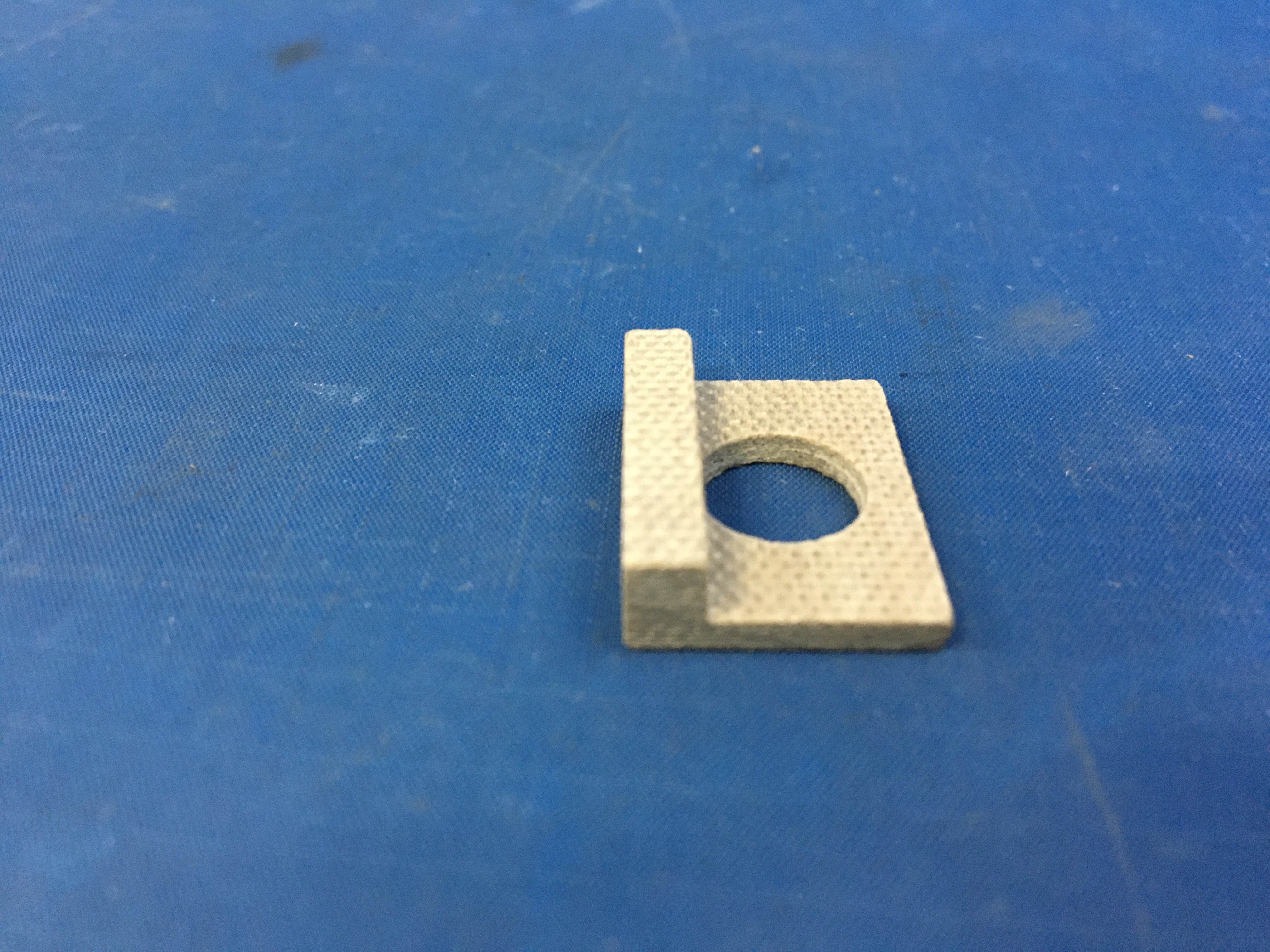

One linear side has 0.171 in. X 0.156 in. Raised lip
Material And Location
insulation, electrical
Style Designator
Flat, rectangular

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
