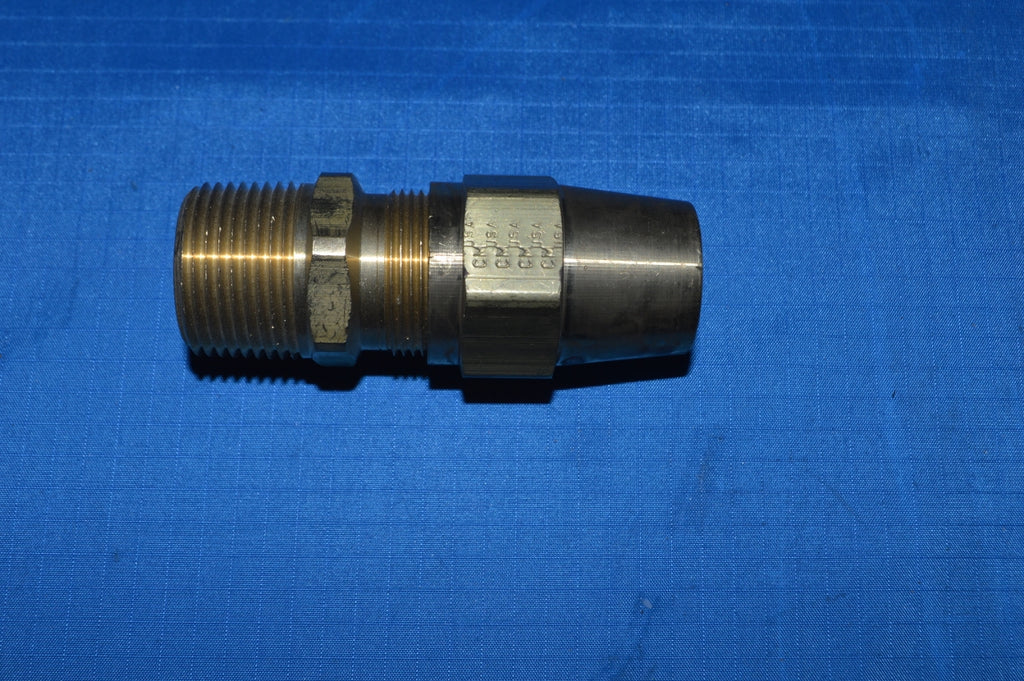

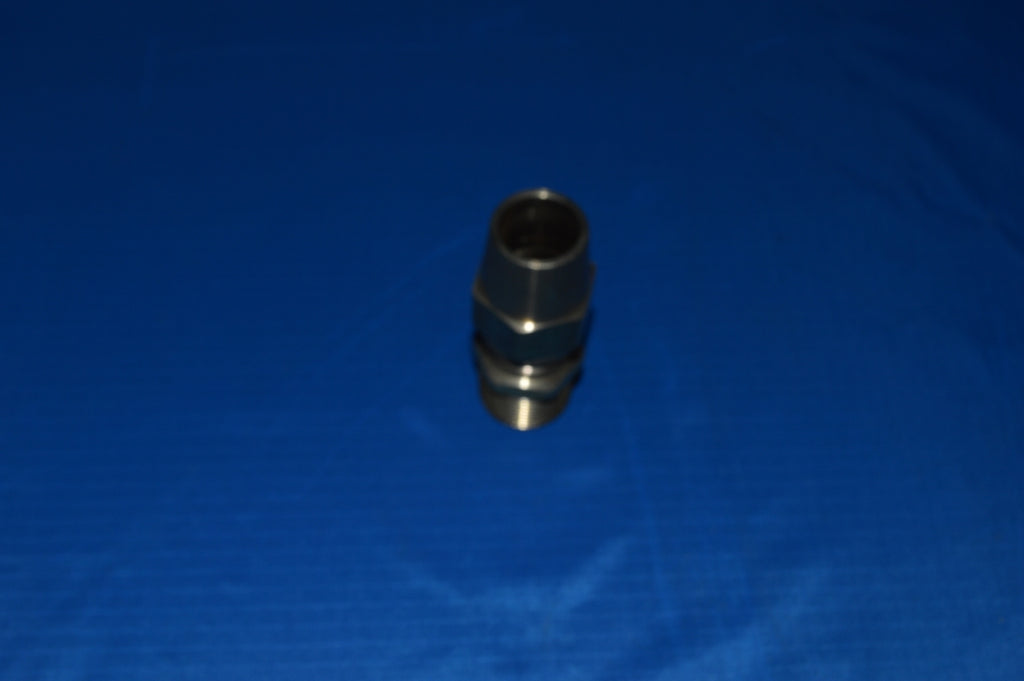

Pipe to Tube Straight Adapter NSN: 4730-00-277-8761 P/N: J246
Please fill out the form below for a price quote and availability on this item.
Tube Adapter- An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. the other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. it is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
| MRC: | Requirement Name: | Requirement: |
| NAME | ITEM NAME | ADAPTER,STRAIGHT,PIPE TO TUBE |
| AAAR | NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 2ND END |
| AAJD | THREAD CLASS | 2A 1ST END |
| AHNC | CONNECTION STYLE | B66 FLARELESS 1ST END |
| AHNC | CONNECTION STYLE | B67B PLAIN 2ND END |
| AWLS | CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| AWLS | CONNECTION TYPE | THREADED EXTERNAL PIPE 2ND END |
| CQJX | NOMINAL THREAD SIZE | 1.000 INCHES 1ST END |
| CQJX | NOMINAL THREAD SIZE | 0.750 INCHES 2ND END |
| CQRB | SEAT ANGLE | 20.0 DEGREES 1ST END |
| CWFD | NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END |

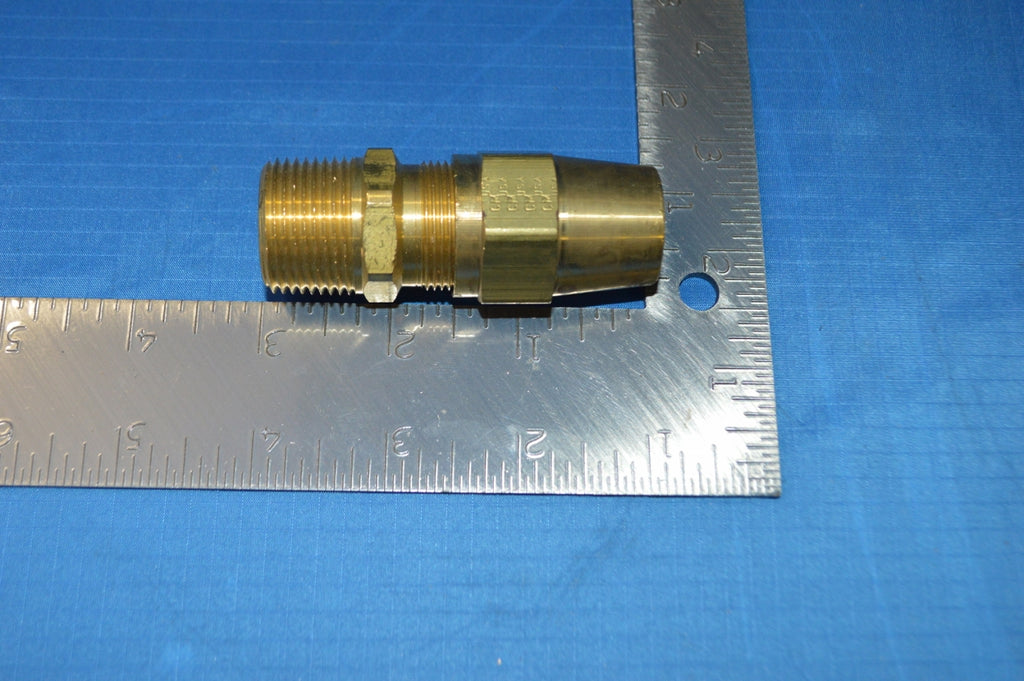

| CWFR | NOMINAL OVERALL LENGTH | 1.590 INCHES |
| MATT | MATERIAL | COPPER ALLOY 360 OVERALL |
| MDCL | MATERIAL DOCUMENT AND CLASSIFICATION | SAE CA360 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| PRPY | PROPRIETARY CHARACTERISTICS | PACS |
| THSD | THREAD SERIES DESIGNATOR | UNF 1ST END |
| THSD | THREAD SERIES DESIGNATOR | NPTF 2ND END |

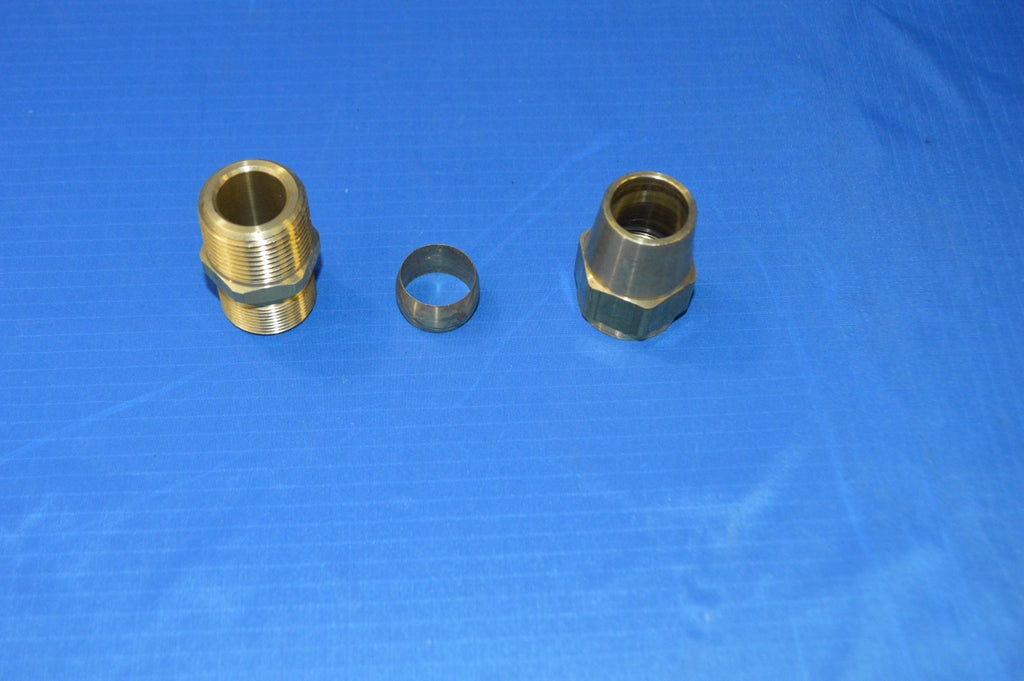

| TMQY | FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT W/SLEEVE |
| ZZZK | SPECIFICATION/STANDARD DATA | 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| ZZZT | NONDEFINITIVE SPEC/STD DATA | 1A FIGURE |
