Mtu America 5190688 Outlet Ass'y Pipe Flange, 1 1/4" NSN:4730-00-363-8227

Please fill out the form below for a price quote and availability on this item.

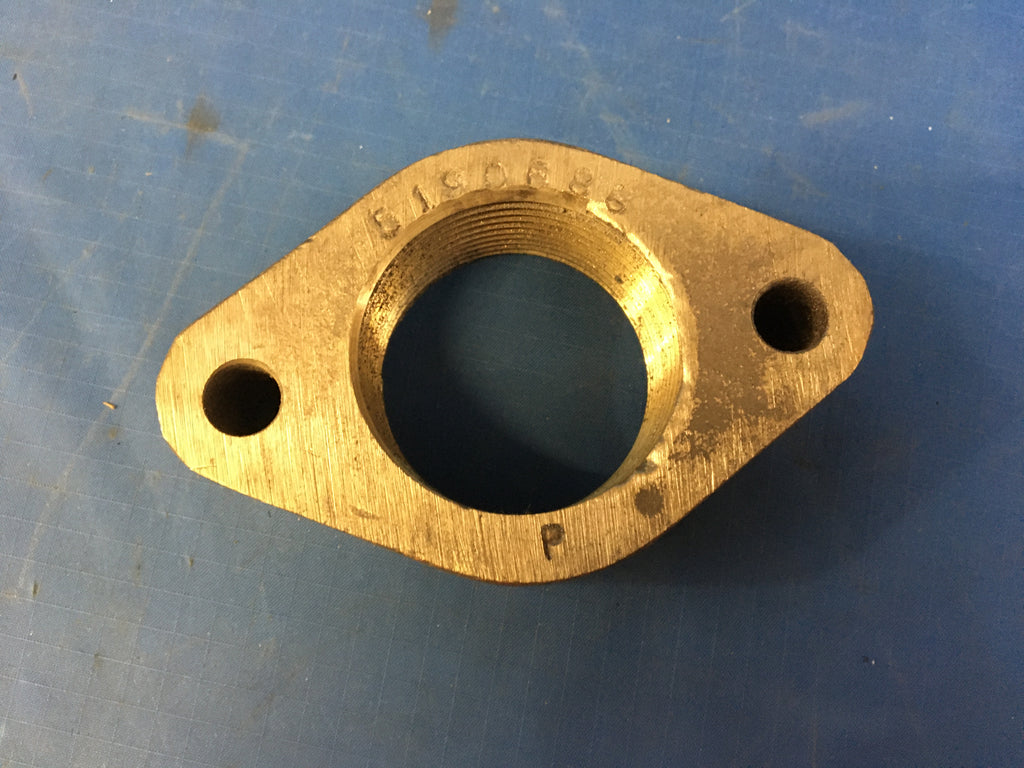

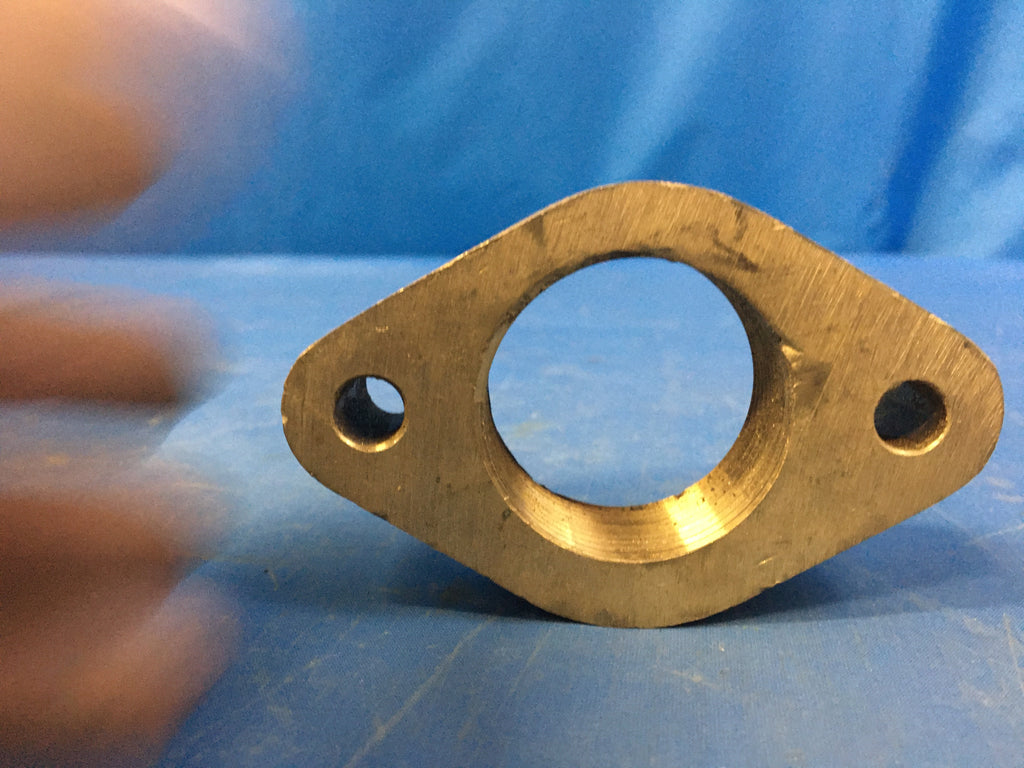

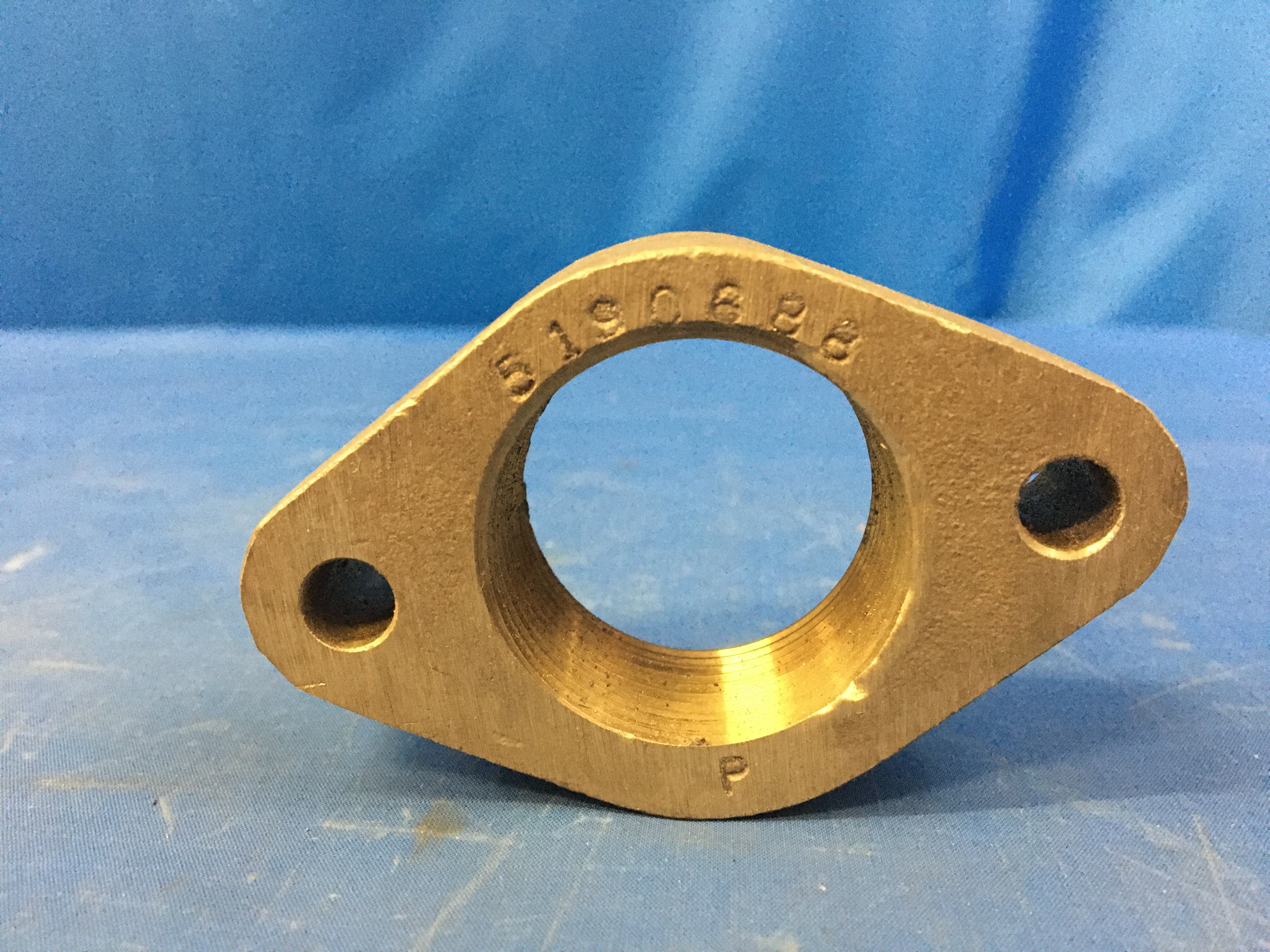

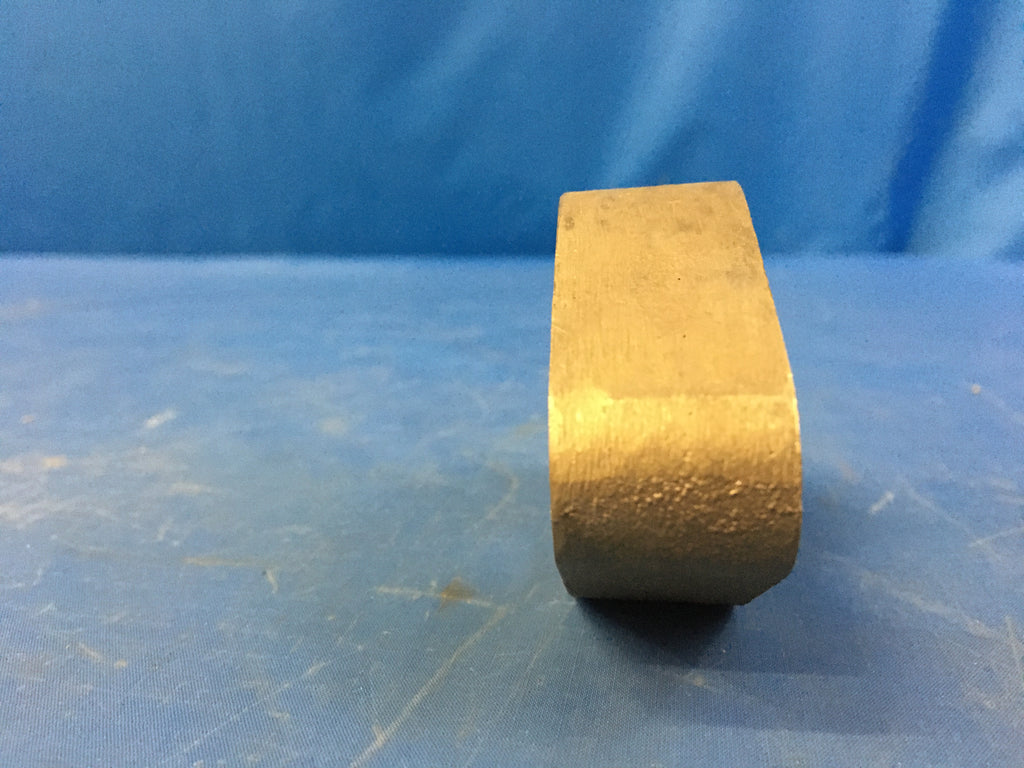

Pipe Flange

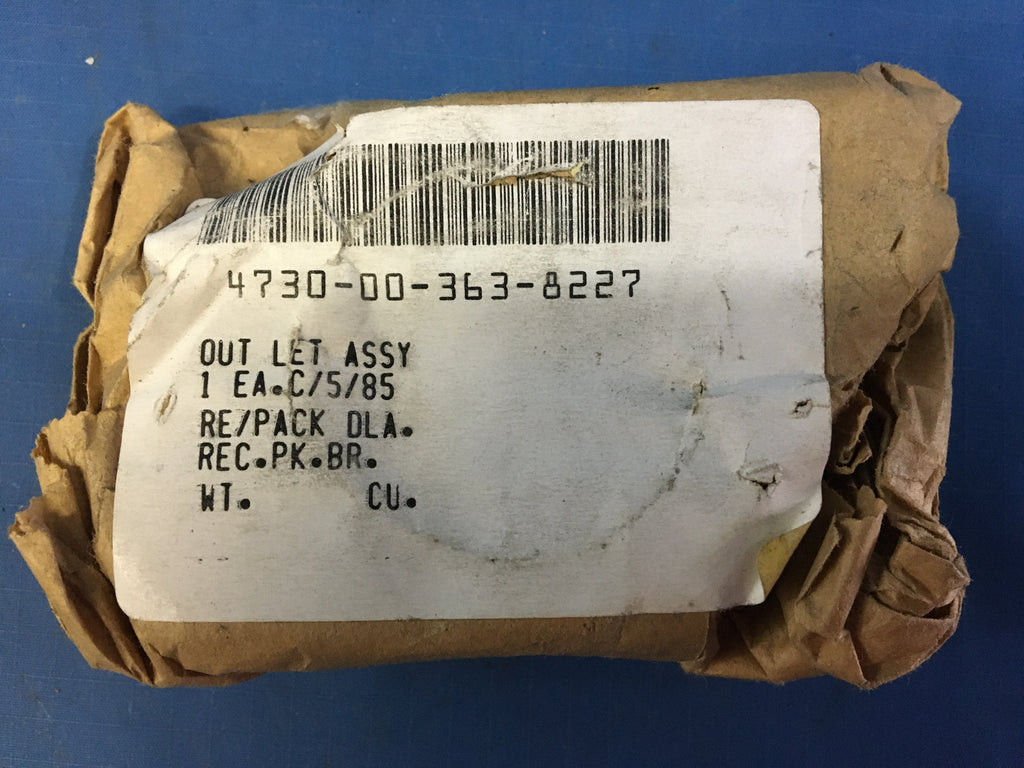

NSN: 4730-00-363-8227 | Model: 5190688
ITAR Registered seal

An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes flange, pipe, blind; ferrule, grooved clamp coupling; and adapter (as modified).

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Bolt Circle Diameter
2.625 inches
0.672 inches
Pipe Size For Which Designed
1.250 inches
Bolt Hole Quantity
Flange Length
Between 3.375 inches and 3.438 inches
Flange Width
Between 2.156 inches and 2.188 inches
Bolt Hole Diameter
0.375 inches
Flange End Radius
0.375 inches
Flange Section Style
Plain face
Screw Thread Series Designator
Face Seating Surface Condition
Thread Size
1.250 inches
Copper alloy
Style Designator
Oval, one bolt hole circle

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
