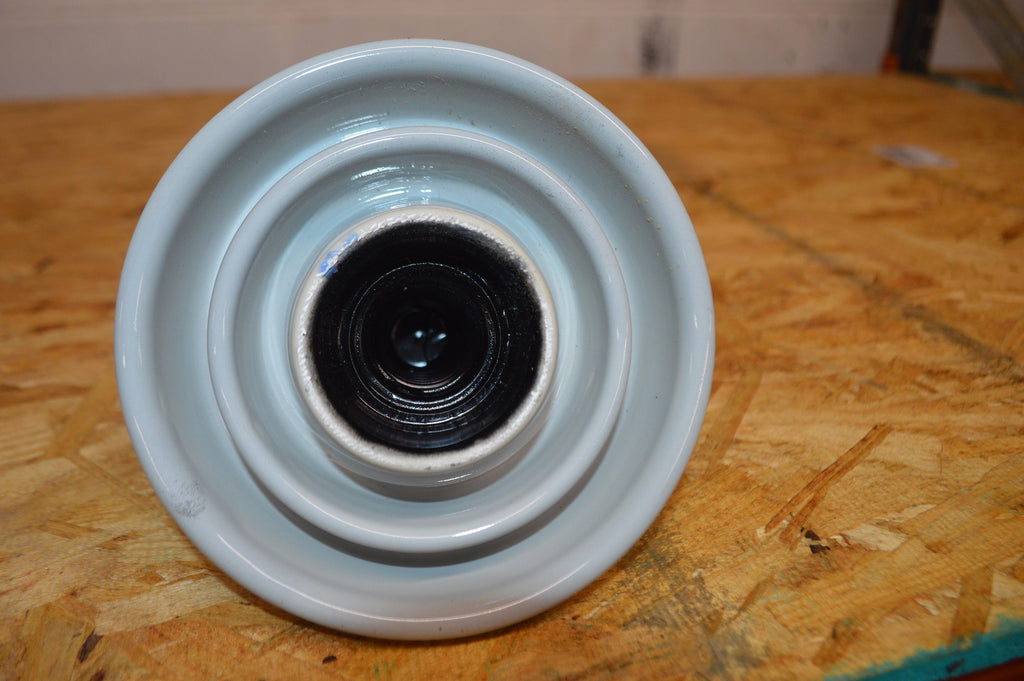

Pin Insulator NSN:5970-00-727-0001 P/N:366S
Please fill out the form below for a price quote and availability on this item.
Pin Insulator- An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin
| Mounting Facility Type And Quantity: | 1 unthreaded hole |
| Outside Diameter: | 5.500 inches nominal |
| Overall Height: | 4.000 inches nominal |
| Material And Location: | Overall ceramic |
| Radial Groove Radius: | 0.375 inches nominal |
| Pin Hole Depth: | 2.000 nominal inches |
| Pinhole Diameter: | 1.000 inches nominal |
| Special Features: | 9 in. leakage distance |
| Style Designator: | Petticoat |
| Top Wire Groove Radius: | 0.500 inches nominal |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
