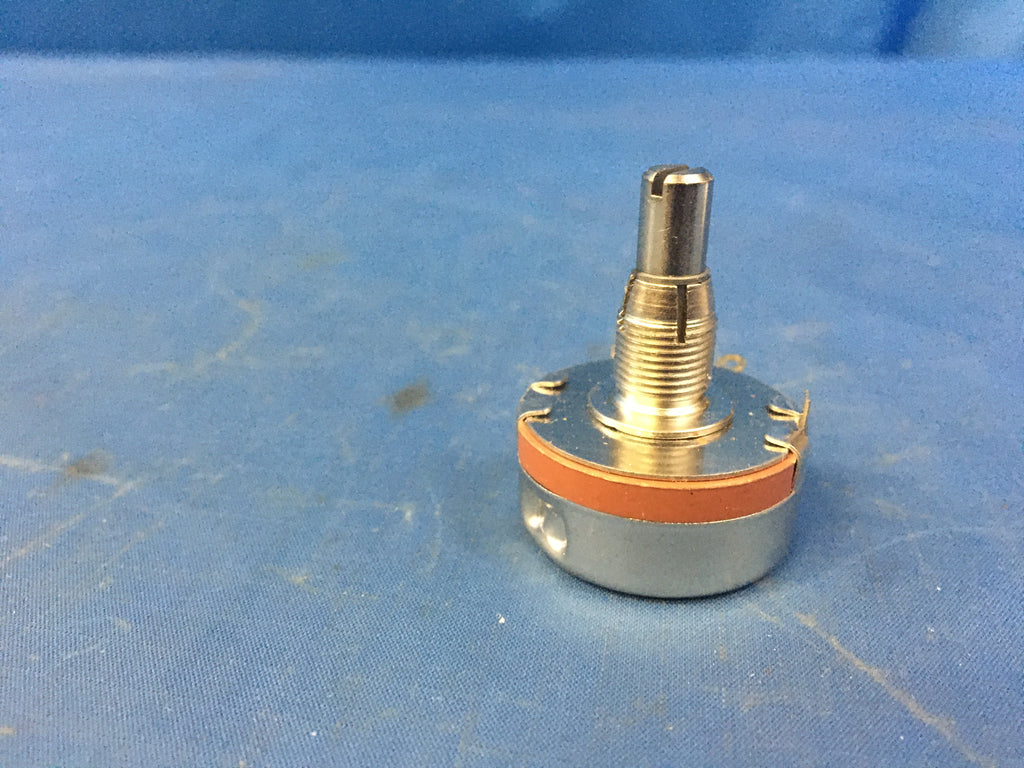

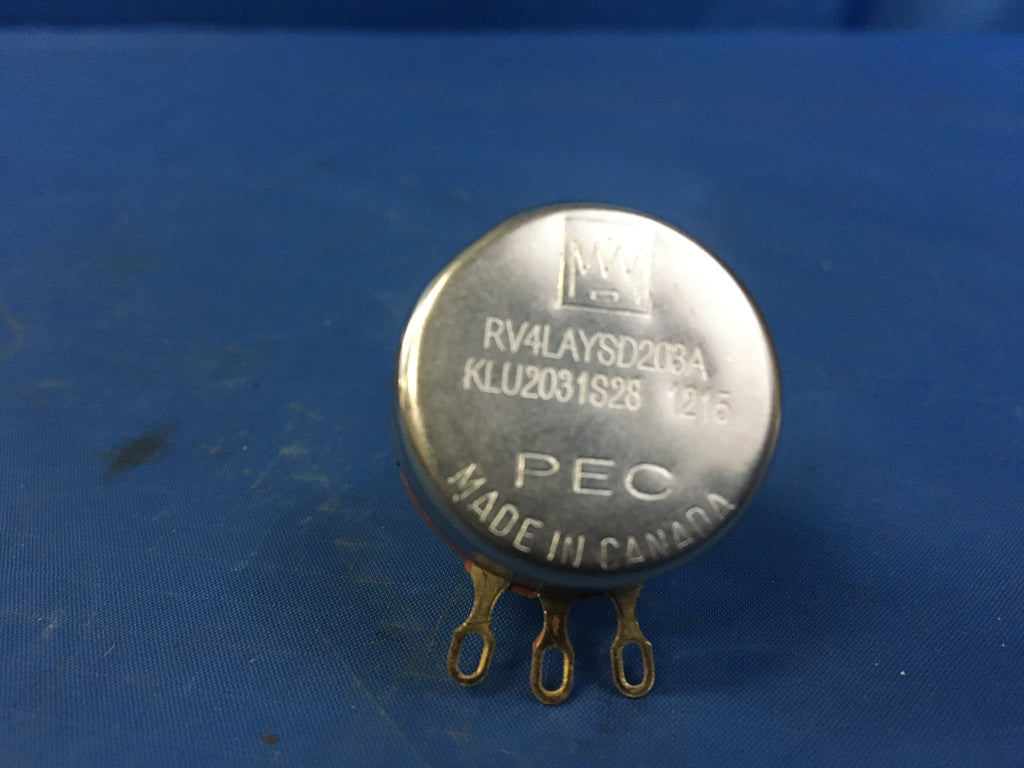

PEC RV4LAYSD203A Potentionmeter NSN:5905-00-227-6844

Regular price $14.99

Nonprecision Nonwire Wound Variable Resistor

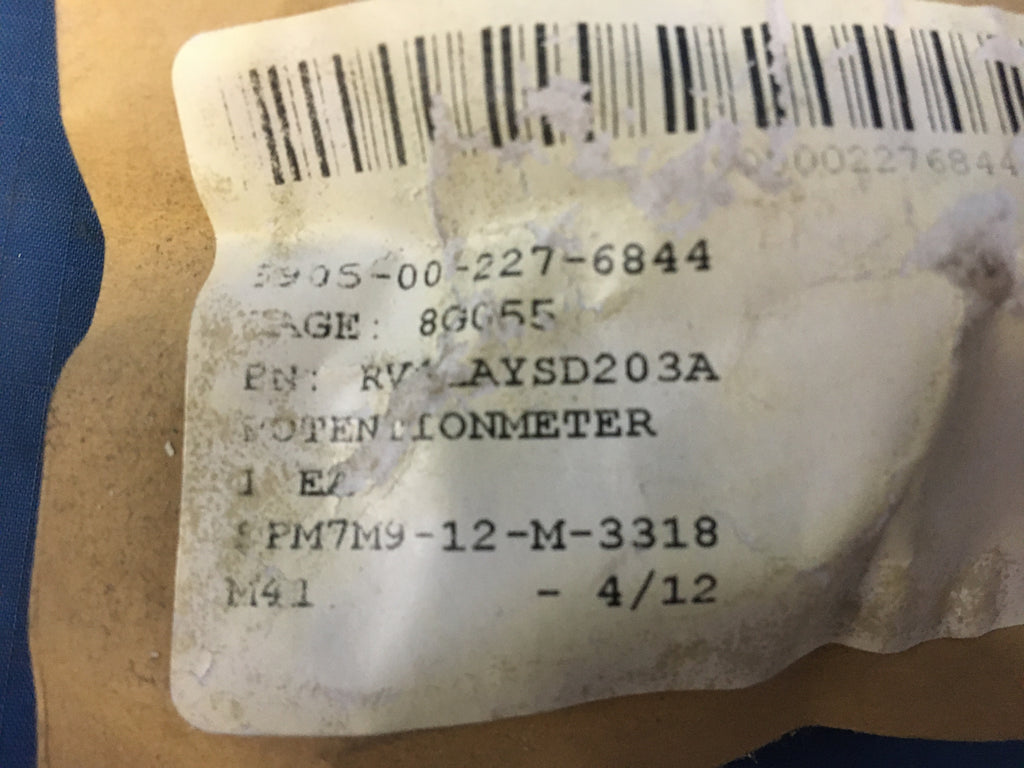

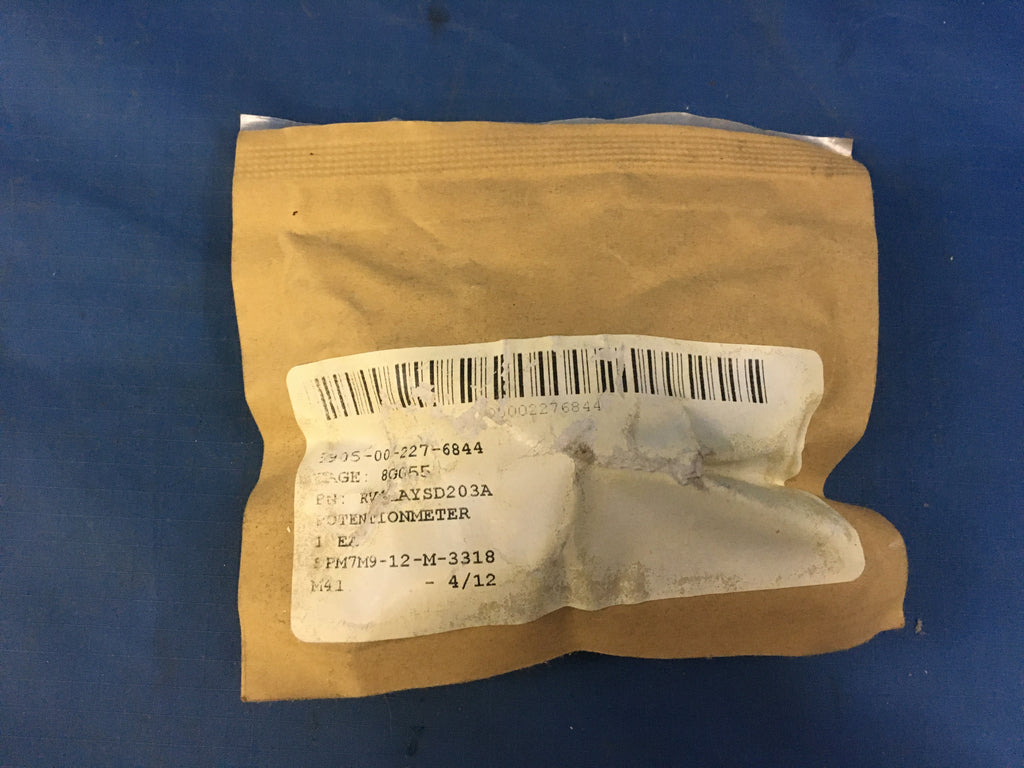

NSN: 5905-00-227-6844 | Model: RV4LAYSD203A
ITAR Registered seal
  • 5905-00-227-6844 replaces 5905-00-067-6203
Schedule B & Trade:
  • Schedule B: 8533400080 (NAICS 334416)

    Variable resistors, including potentiometers, nesoi

  • SITC: 77235

    Variable electrical resistors (including reostats and potentiometers), n.E.S.

  • End Use: 20005

    Electric apparatus

NSN Properties and Flags
NATO Stock Number
Section Quantity
Body Style
Cylindrical bushing mounted
Reliability Indicator
Not established
Overall Length
1.437 inches
Body Diameter
1.094 inches
Shaft Diameter
0.250 inches
Shaft Length
0.875 inches
Mounting Bushing Length
0.375 inches
Body Length
0.562 inches
Overall Diameter
1.515 inches
Shaft Style
Round, slotted
Actuator Type
Single shaft
Maximum Starting Torque
6.00 inch-ounces
Maximum Running Torque
1.00 inch-ounces
Maximum Stop Torque
128.00 inch-ounces
Nonturn Device Location
At 9 oclock
Nonturn Device Radius
0.531 inches
Screw Thread Diameter
0.375 inches
Screw Thread Series Designator
Screw Thready Qty Per Inch (tpi)
Terminal Location
Radially positioned over less than half the circumference
Mounting Method
Locking bushing
Electrical Resistance Per Section
20.0 kilohms single section
Rotary Actuator Travel In Angular Deg
Resistance Tempurature Characteristic Range Per Section In Percent
-3.0 to 0.0 -55 degrees celsius single section and -5.0 to 10.0 -25 degrees celsius single section and -5.0 to 10.0 25 degrees celsius single section and -0.0 to 3.0 120 degrees celsius single section
Ambient Tempurature In Deg Celsius Per Section At Zero Percent Rated Power
120.0 single section
Power Dissipation Rating Per Section In Watts
2.0 free air single section
Resistance Tolerance Per Section In Percent
-10.0 to 10.0 single section
Ambient Tempurature In Deg Celsius Per Section At Full Rated Power
70.0 single section
Standard Taper Curve Per Section
A single section
Test Data Document
81349-mil-r-94 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Terminal Type And Quantity
3 tab, solder lug
Specification Data
81349-mil-r-94/5 government specification
