Parker Hannifin R9916ZCDD Tube To Hose Straight Adapter NSN:4730-01-144-3733

Regular price $75.99

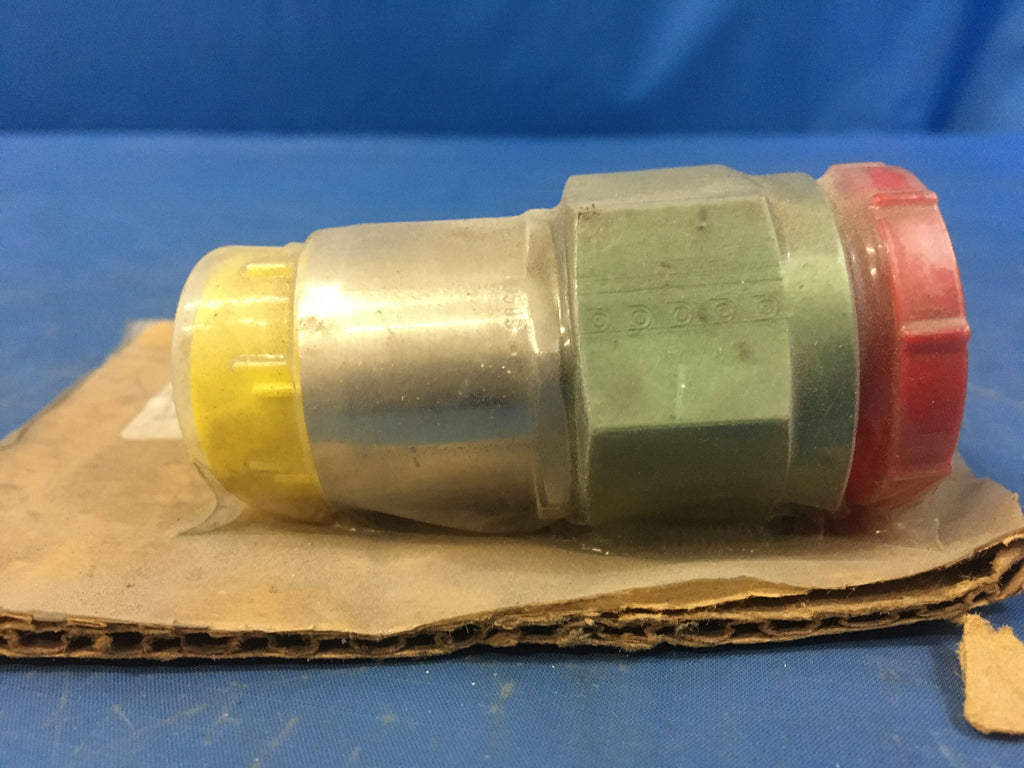

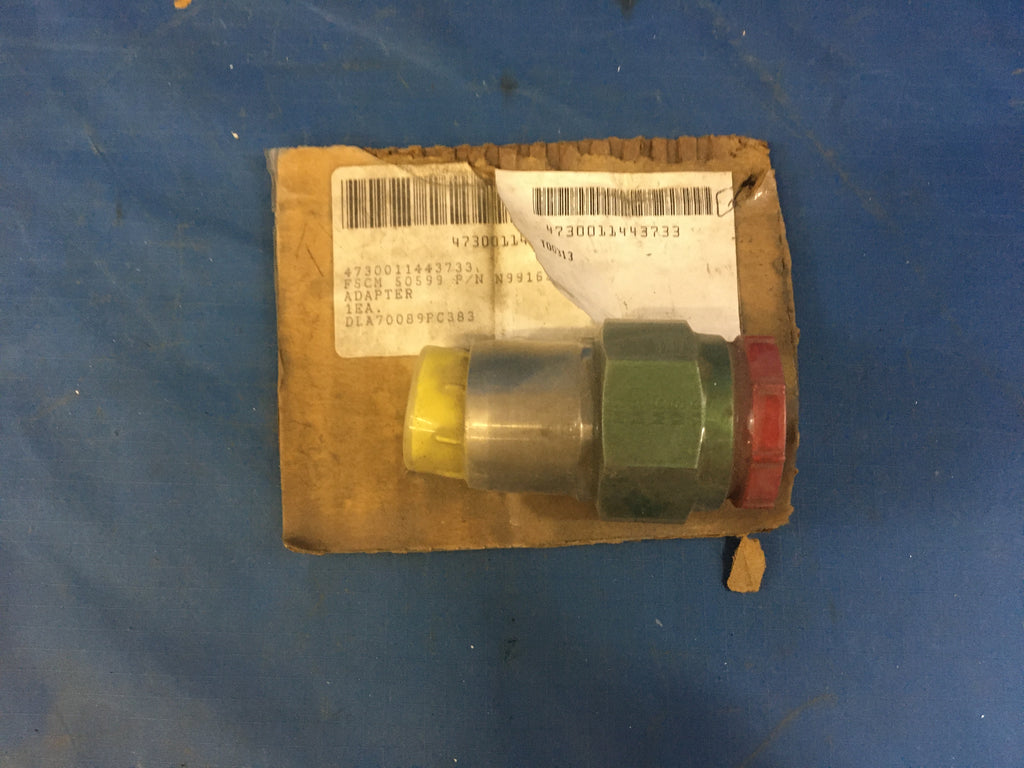

Tube To Hose Straight Adapter

NSN: 4730-01-144-3733 | Model: R9916ZCDD
ITAR Registered seal

An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.

NSN Properties and Flags
NATO Stock Number
Thread Class
3b 1st end
Connection Style
Swivel nut, flareless (swivel nut attachment method optional) (tube) 1st end
Connection Type
Unthreaded internal hose 2nd end
Thready Qty Per Inch (tpi)
12 1st end
Maximum Operating Pressure
1500.0 pounds per square inch single response
Thread Size
1.312 inches 1st end
Seat Angle
12.0 degrees 1st end
Outside Diameter Tube Accommodated
1.000 inches 1st end
1.888 inches
Steel comp 304 socket
Thread Series Designator
Unj 1st end
